Home >> Ford >> 2012 >> Fusion AWD V6-3.0L Flex Fuel >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test JB: Secondary Ignition (COP)

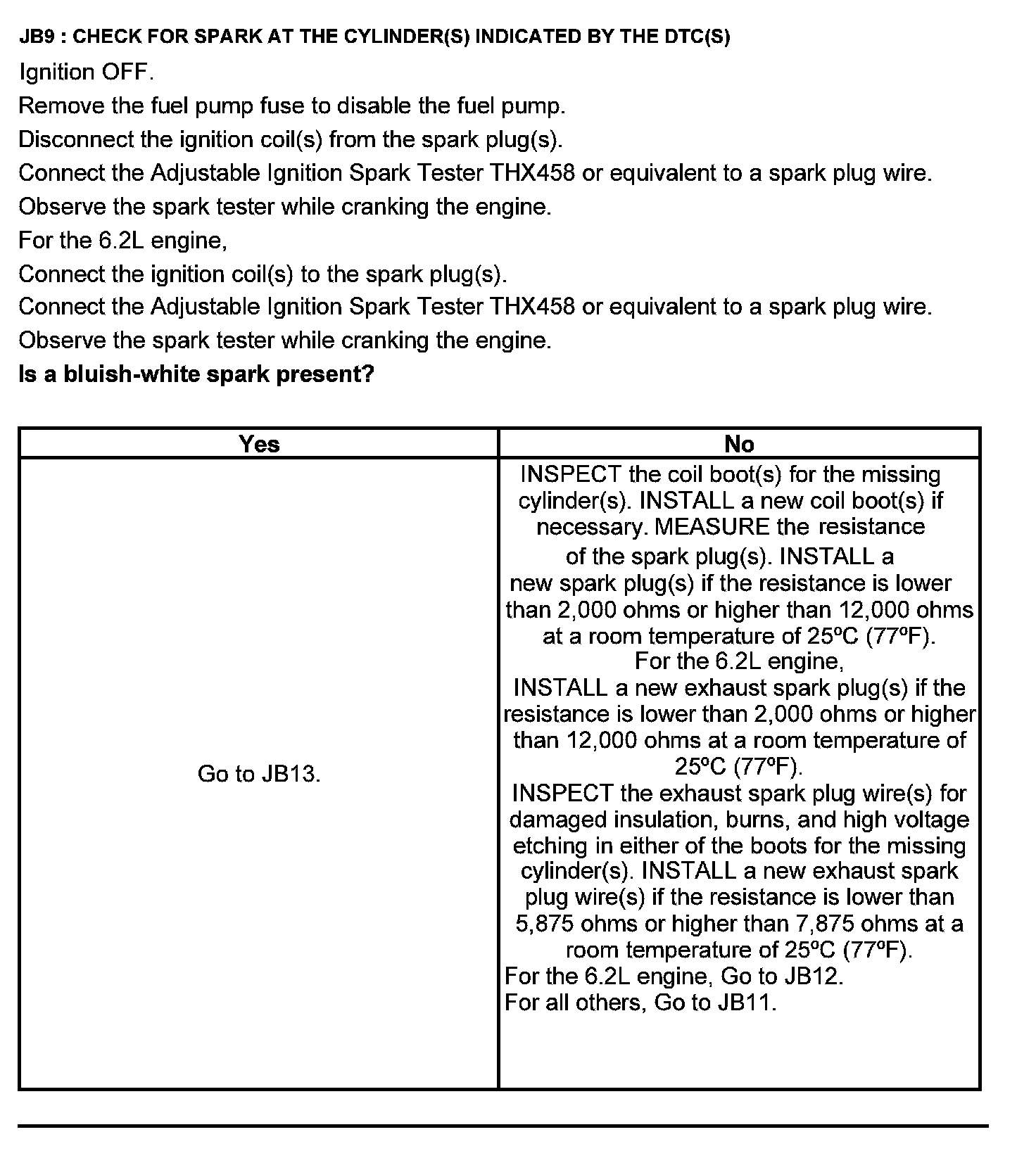

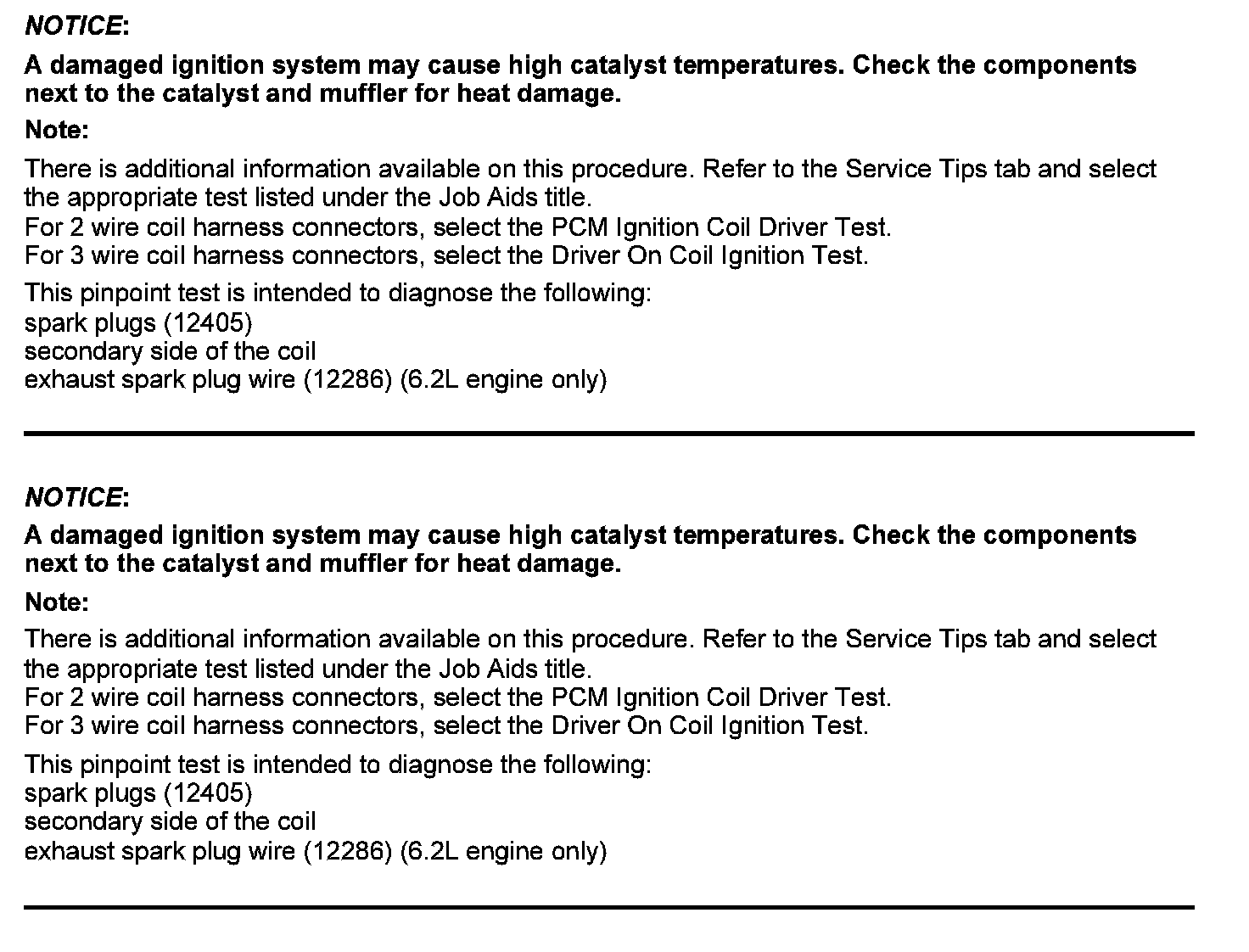

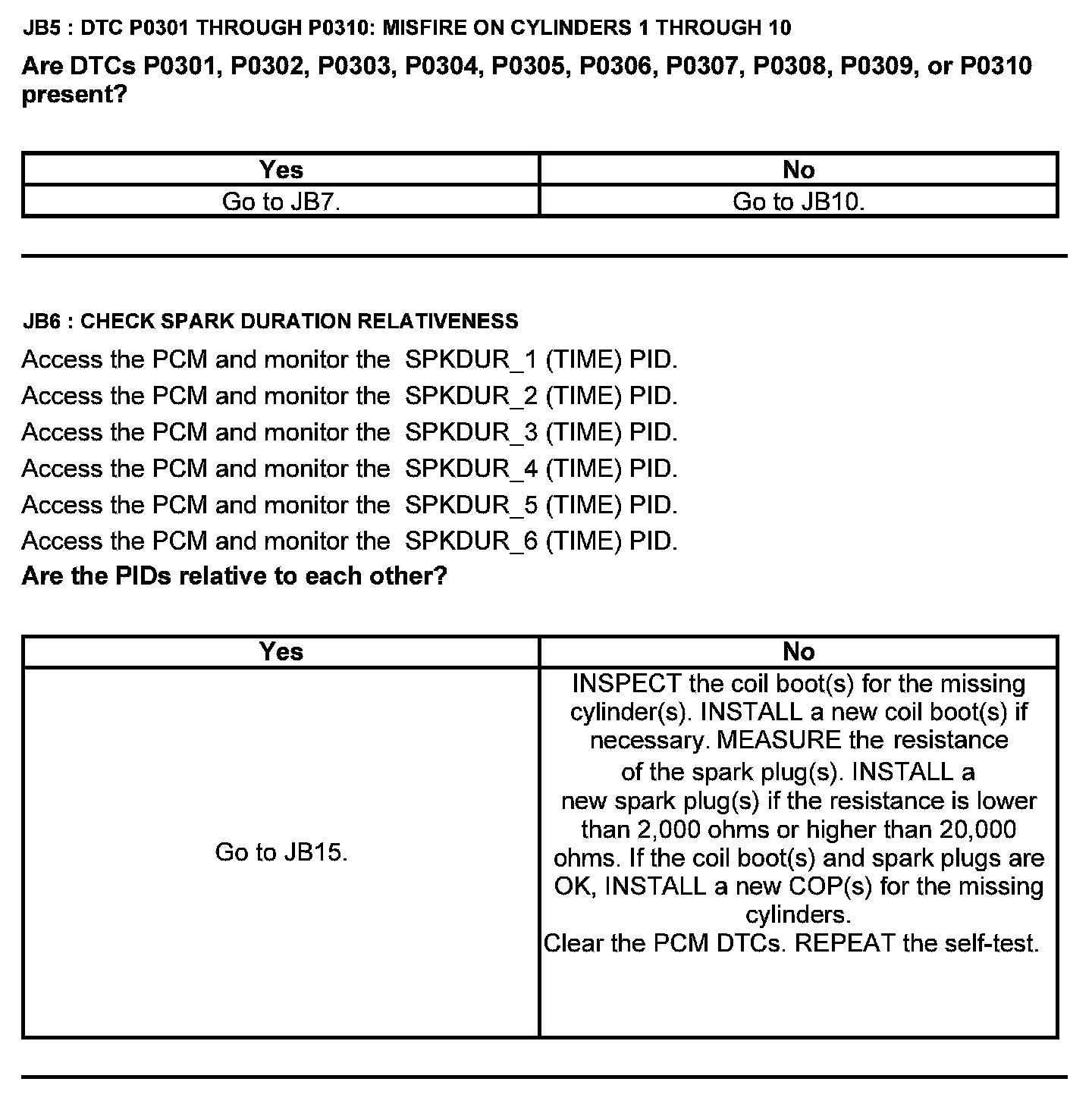

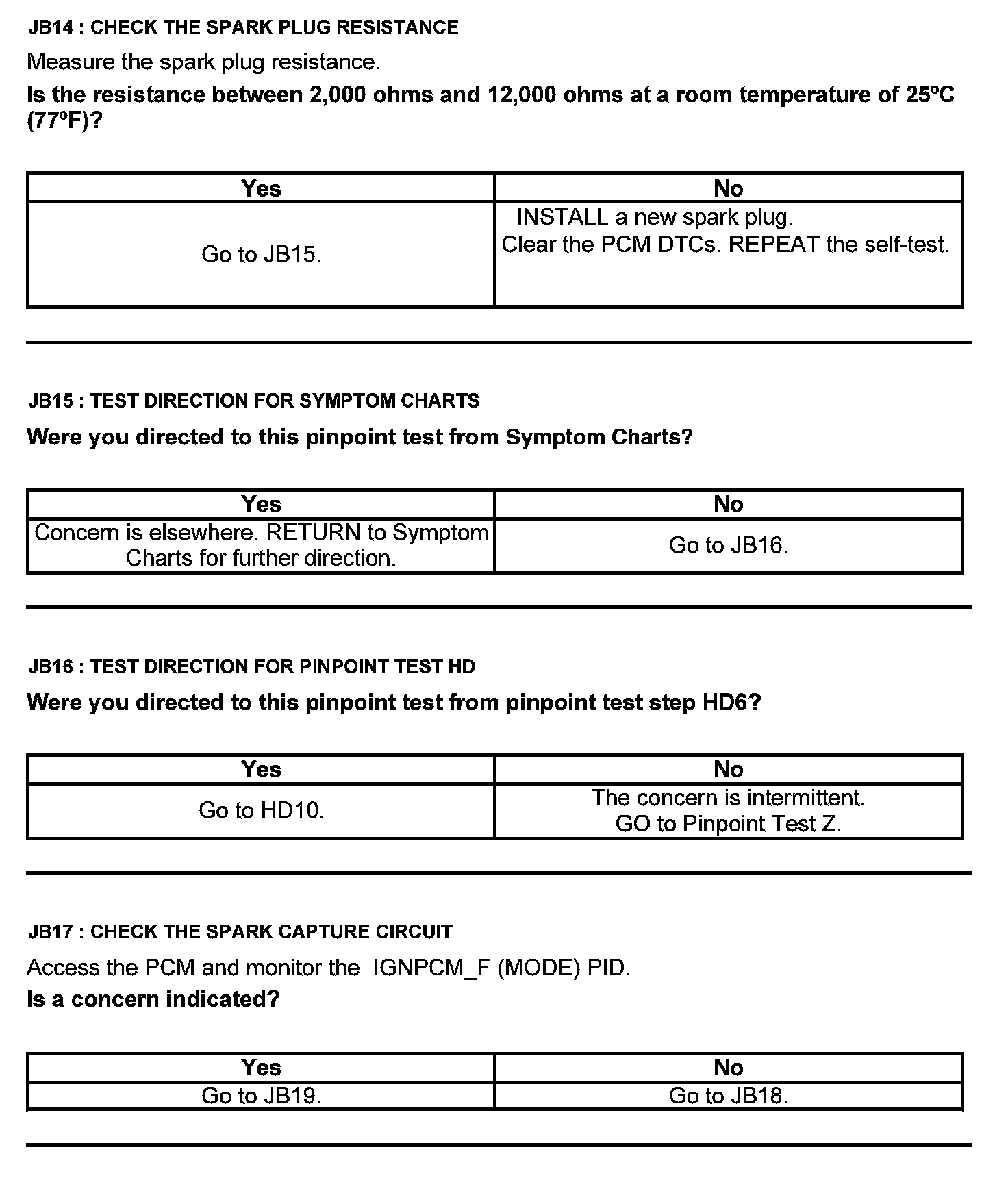

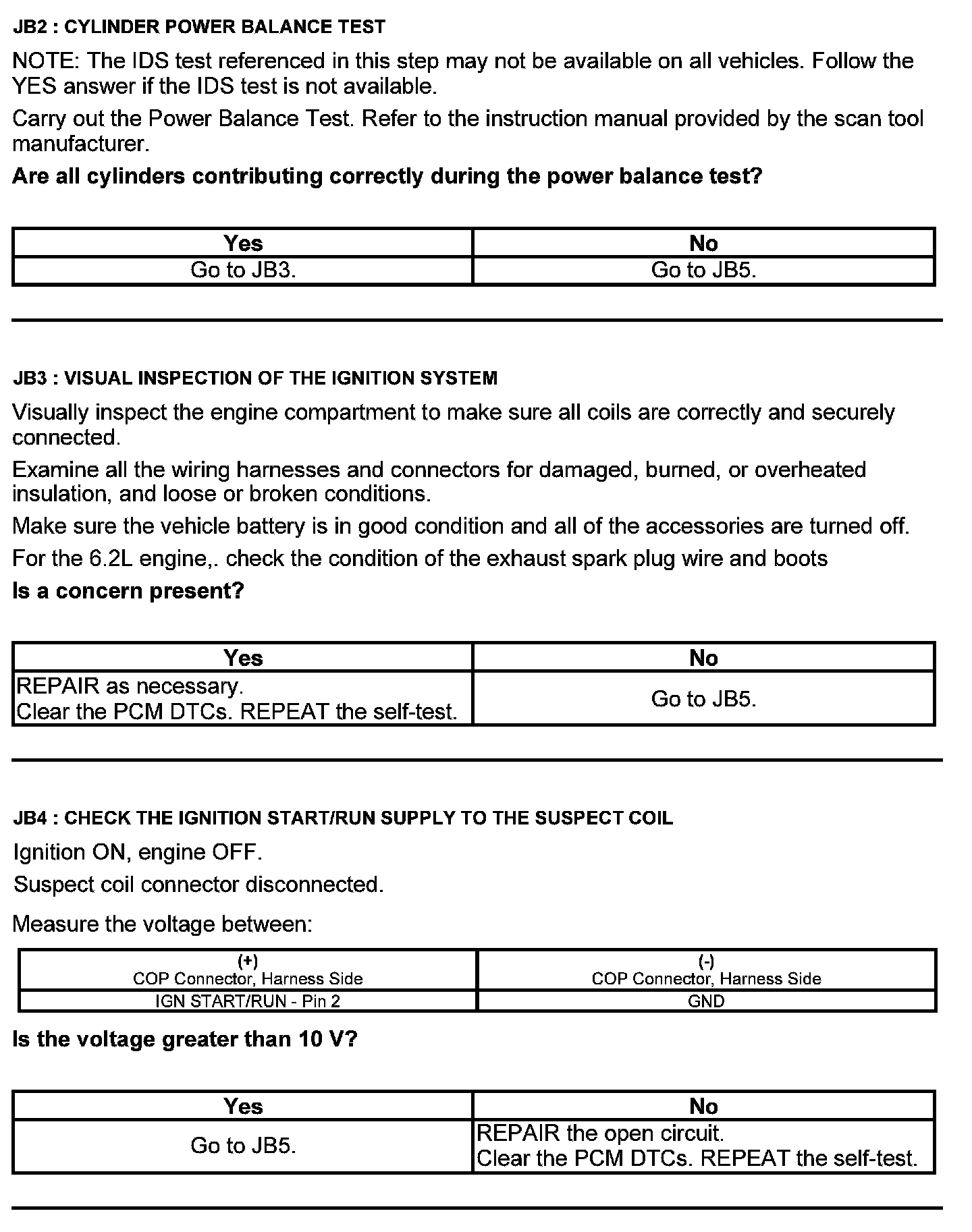

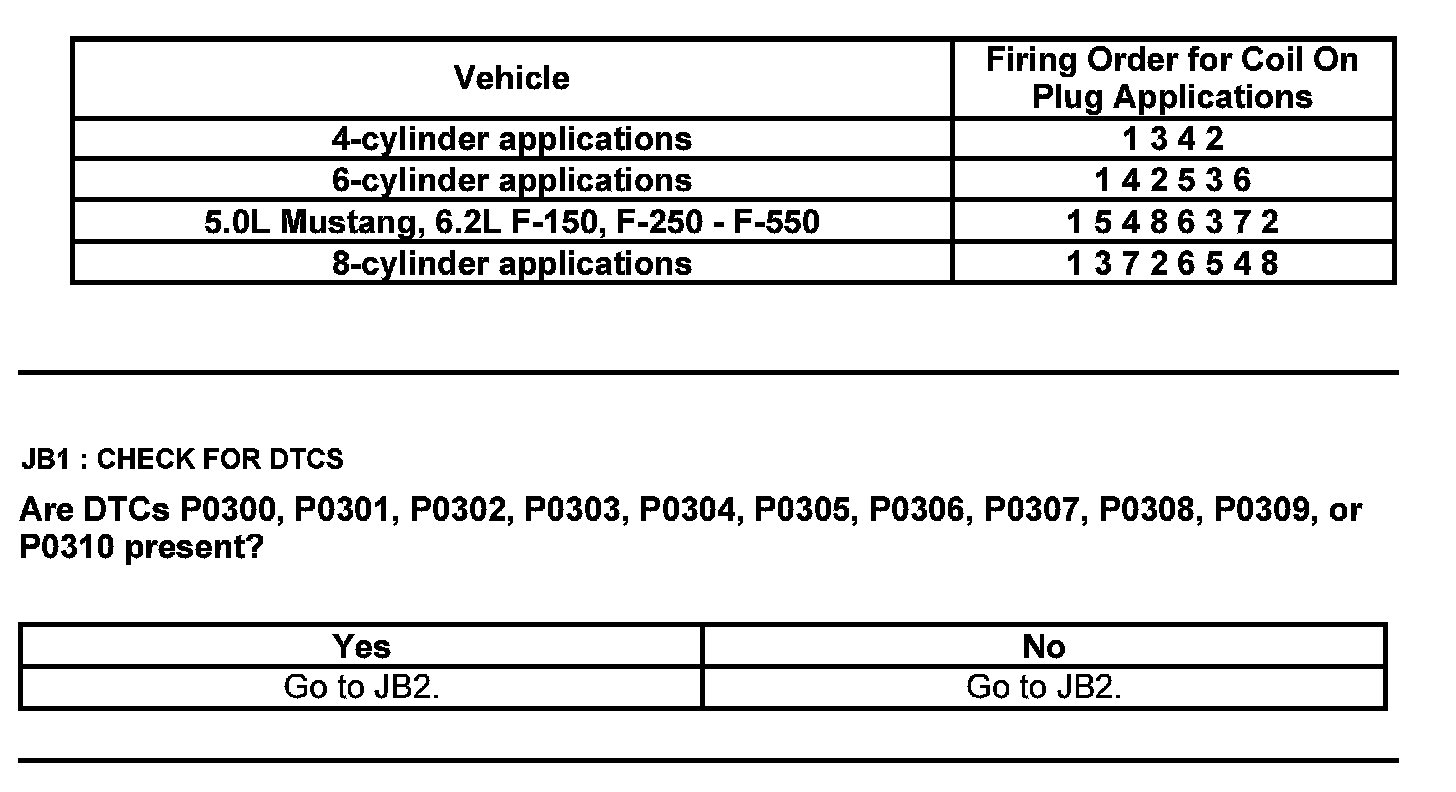

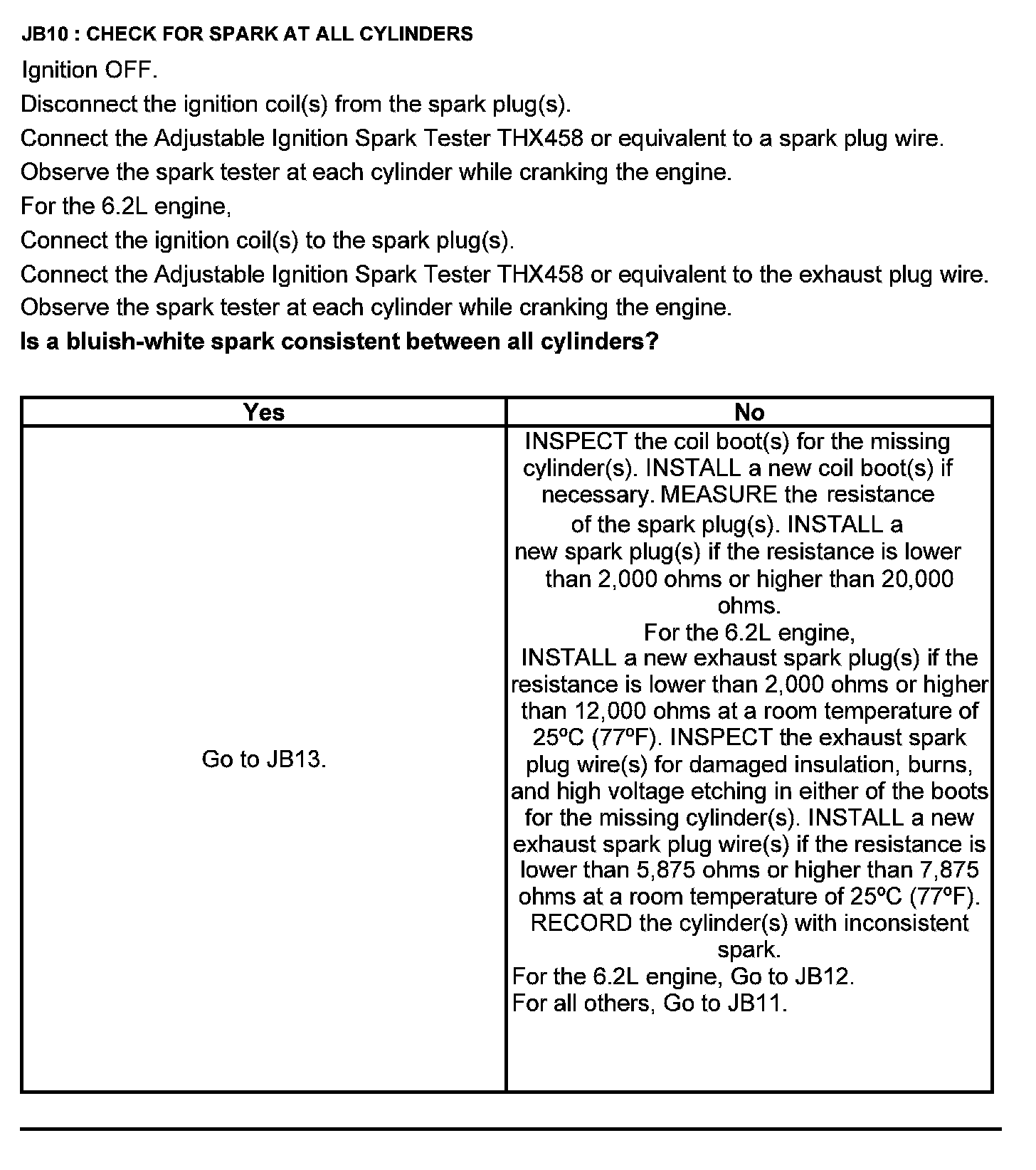

Test JB: Secondary Ignition (COP)

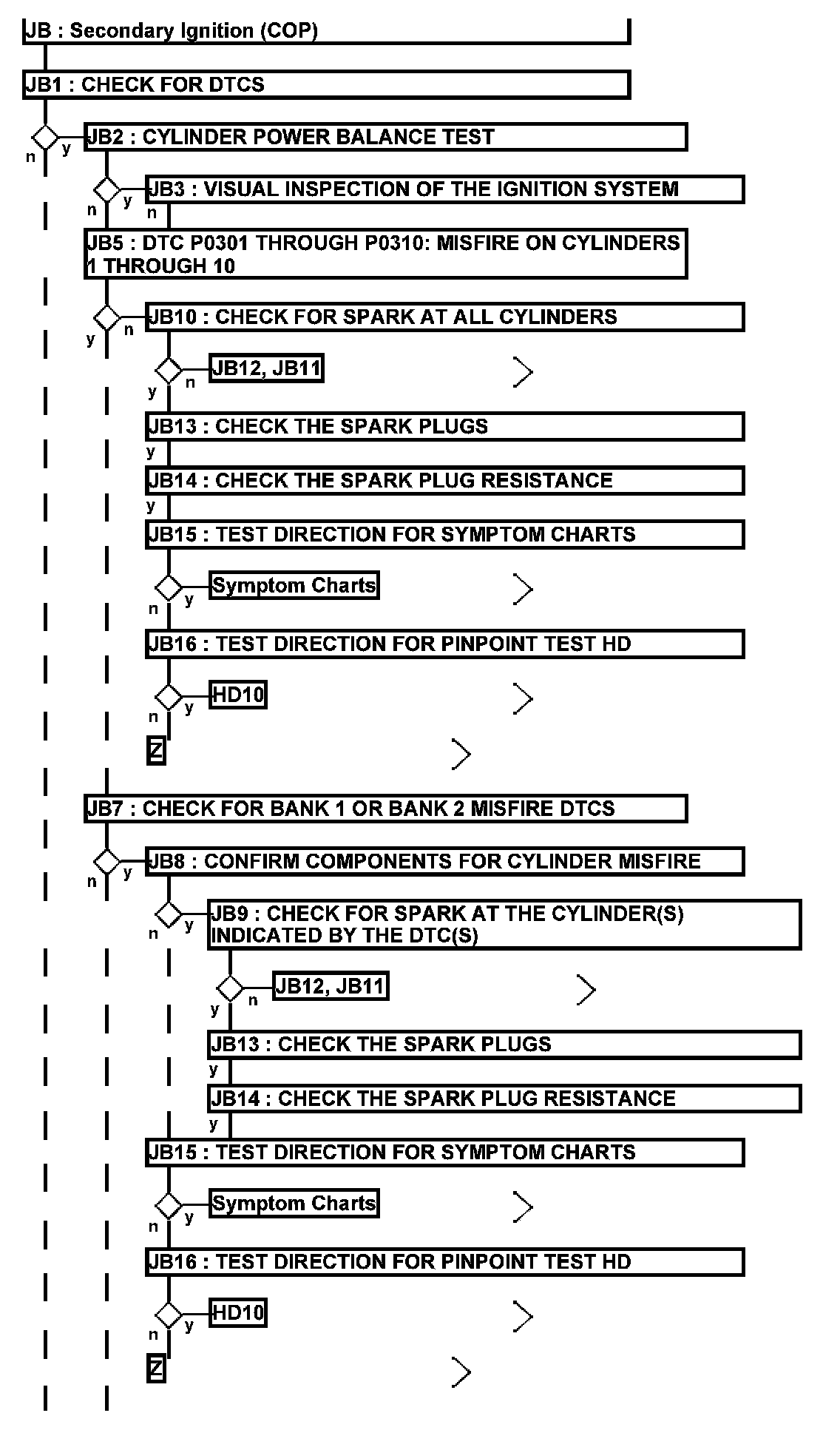

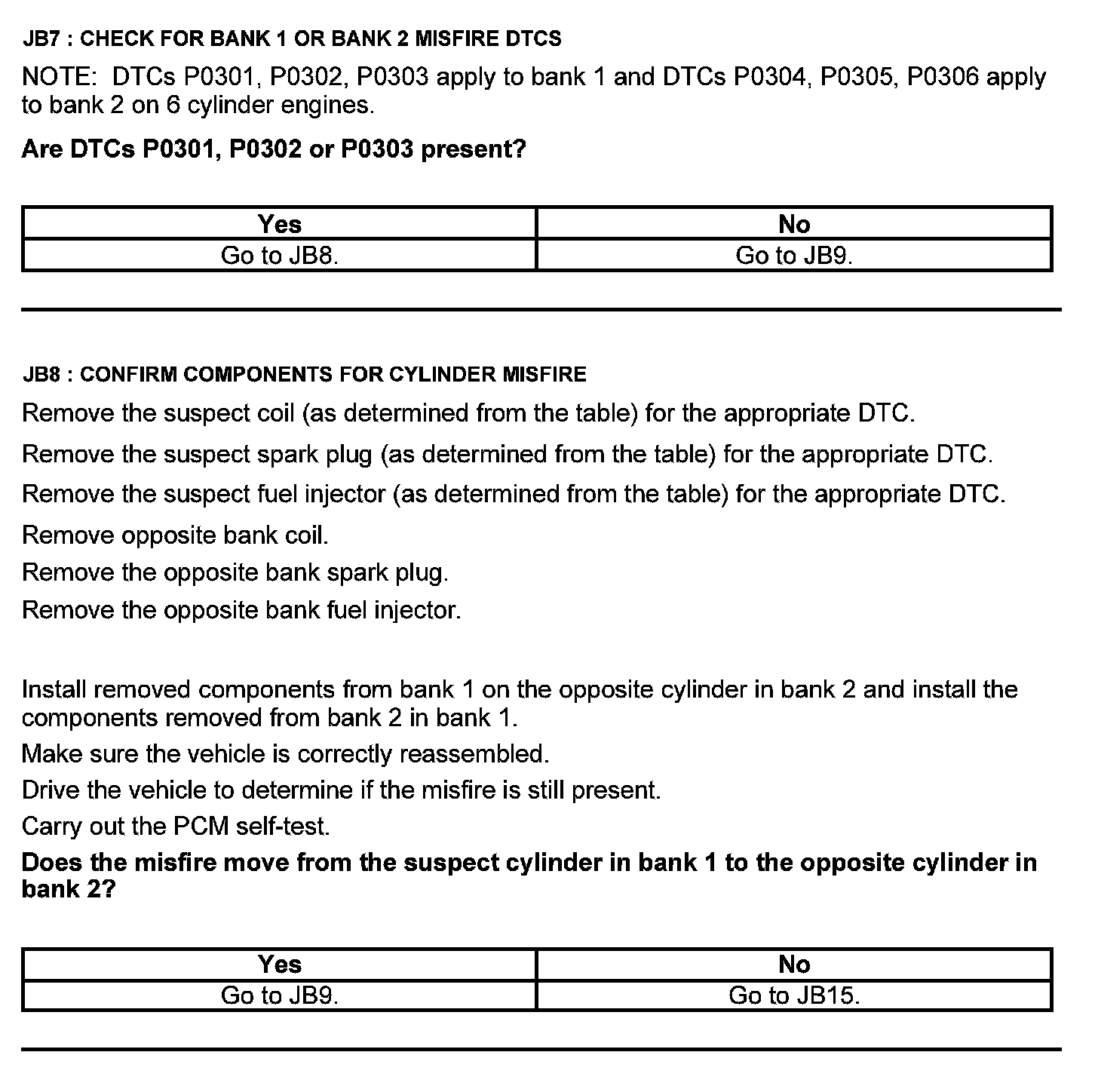

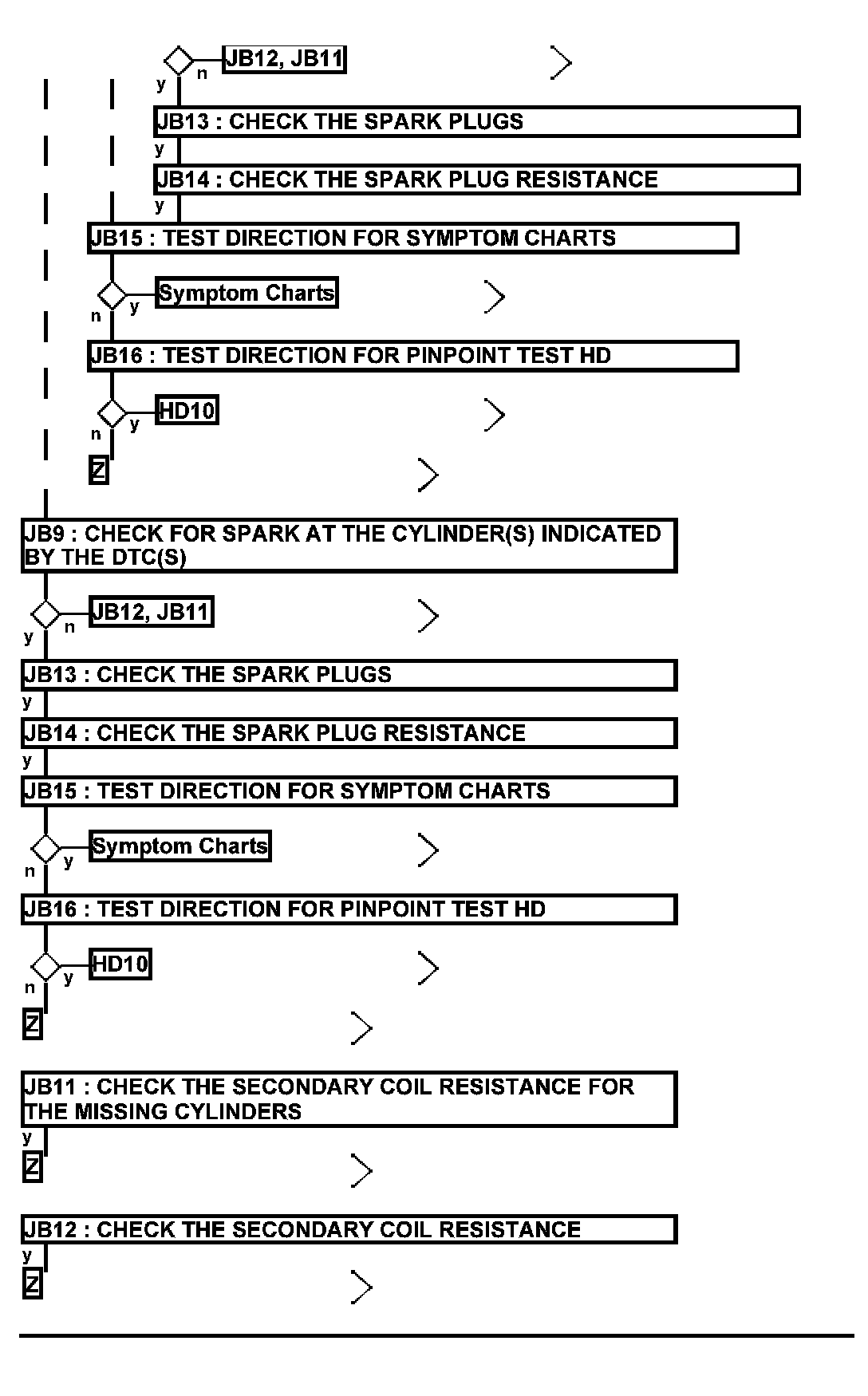

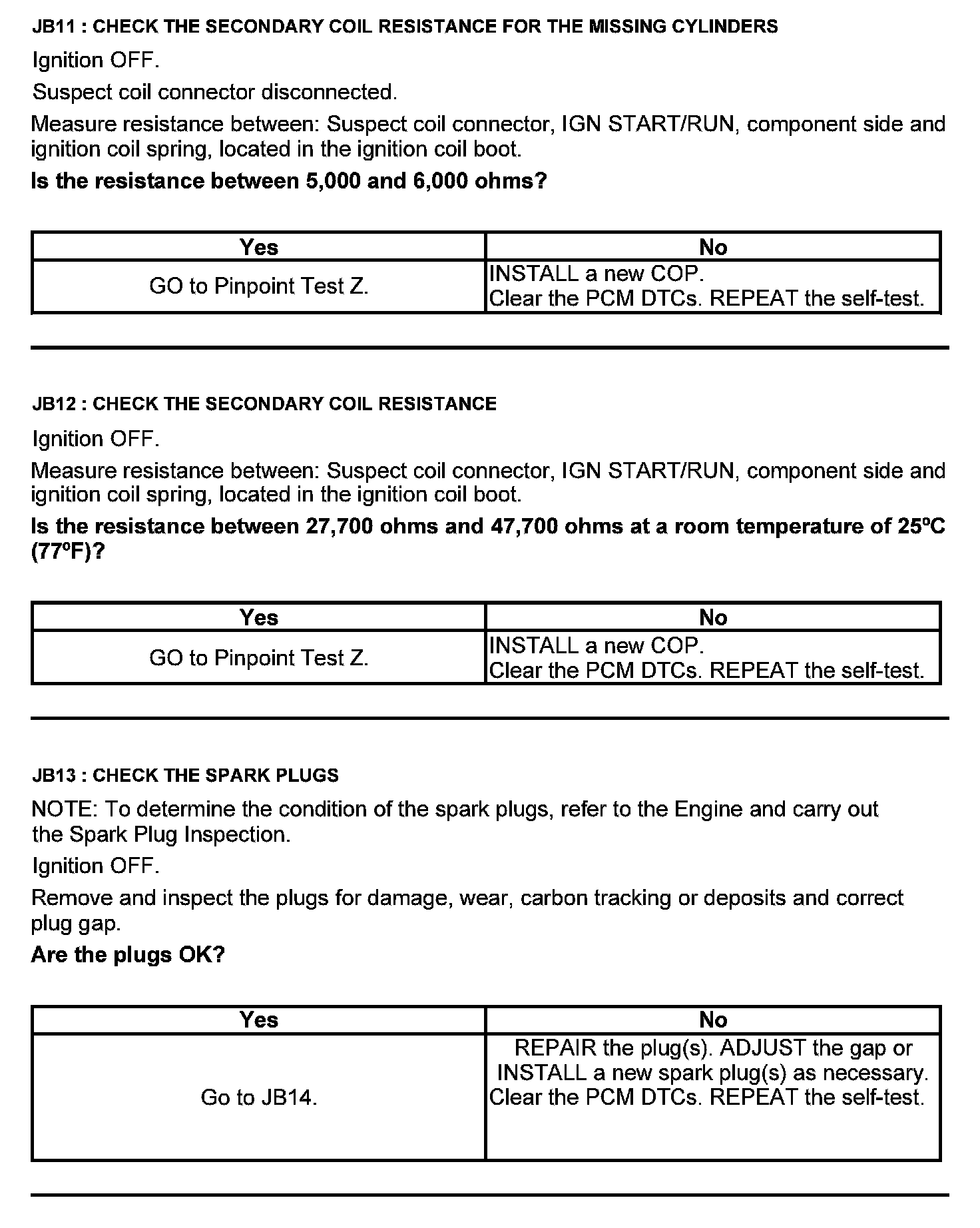

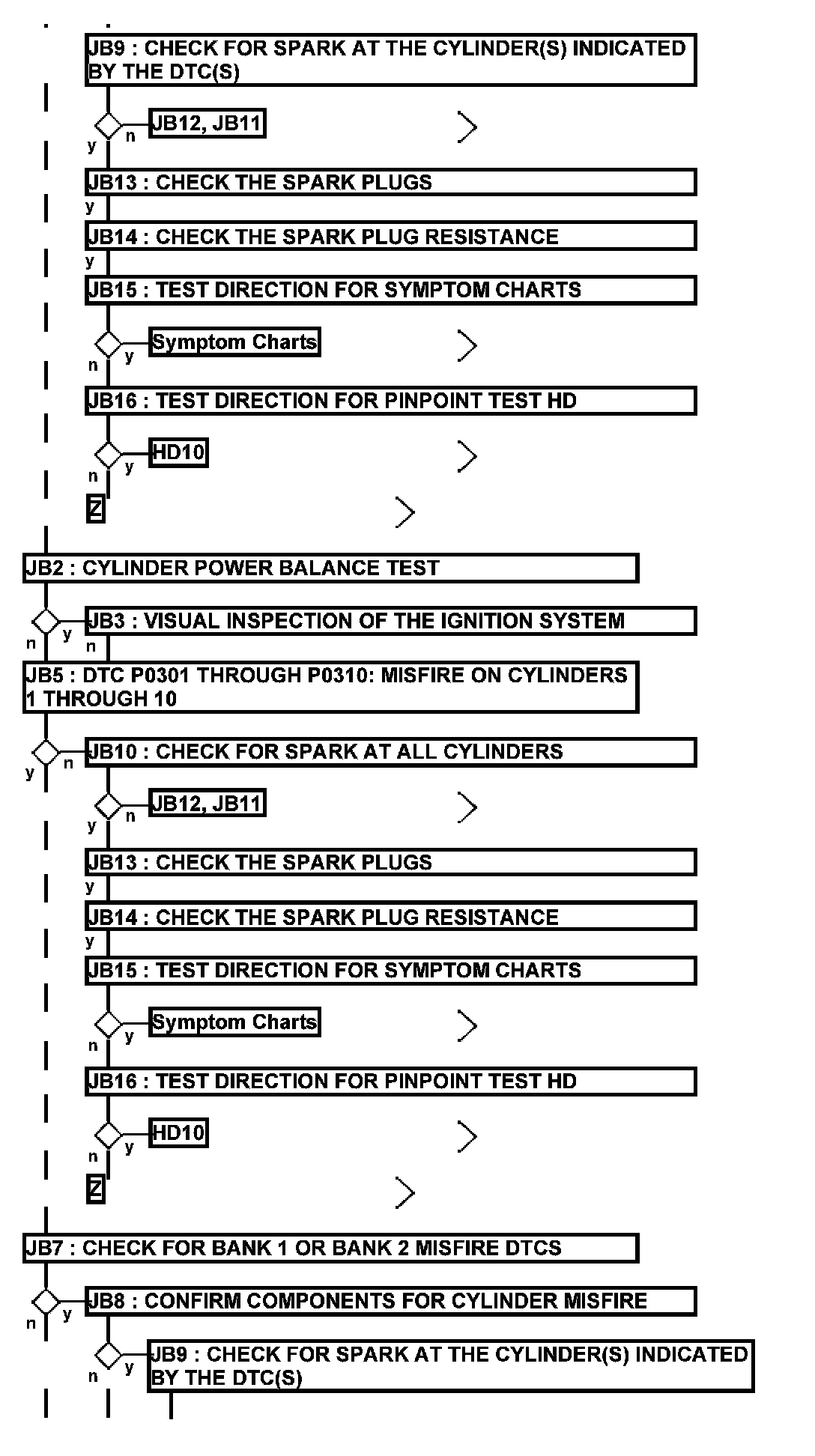

Secondary Ignition (COP)

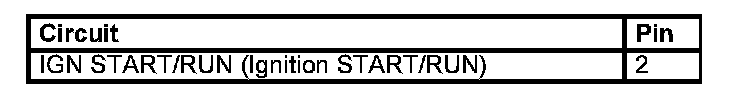

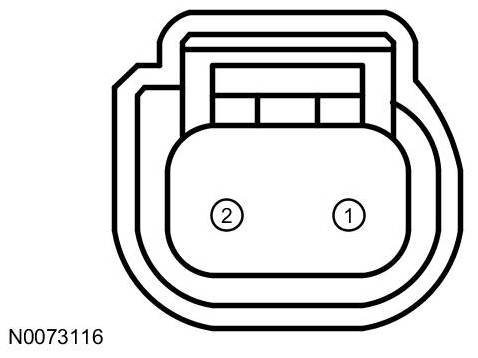

Coil On Plug (COP) Connector






Harness Side
