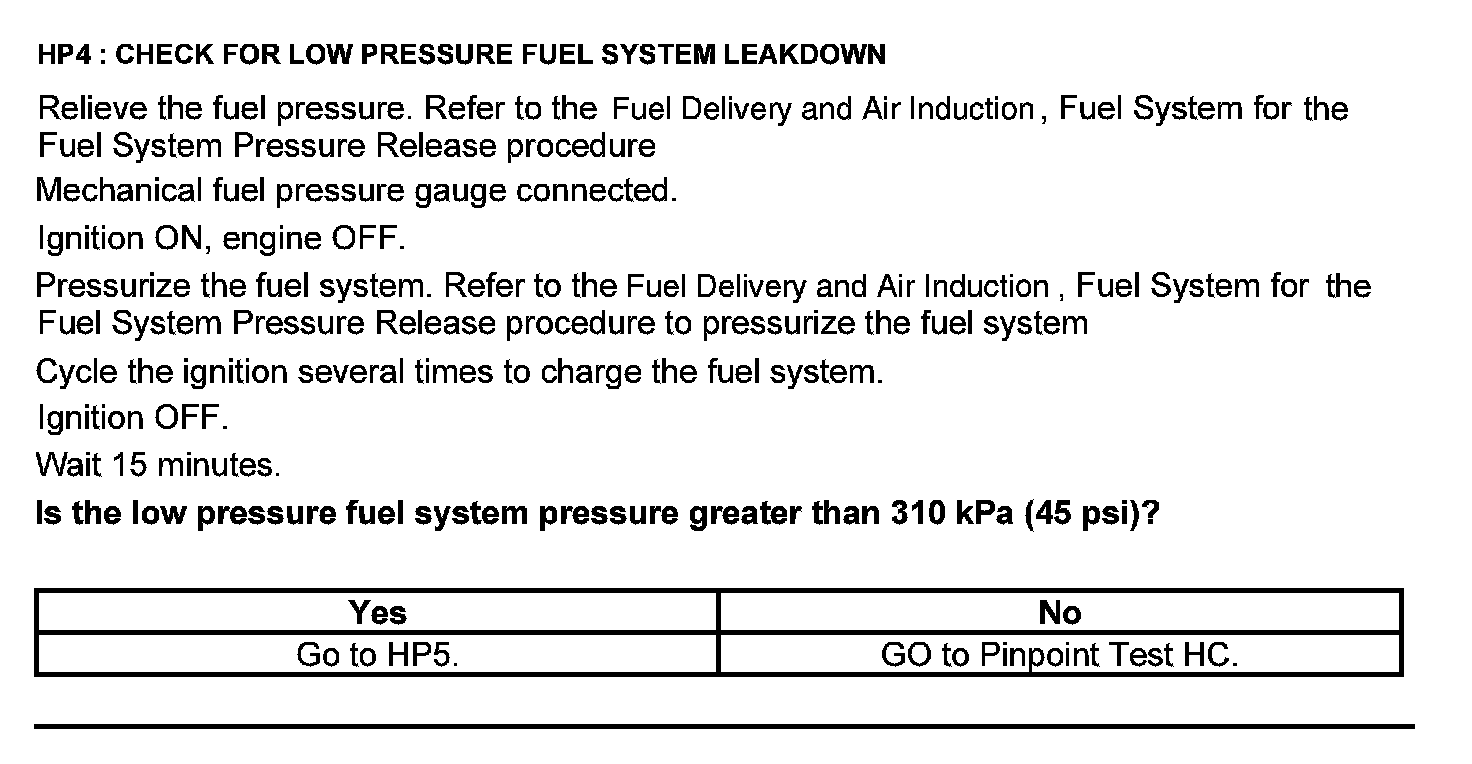

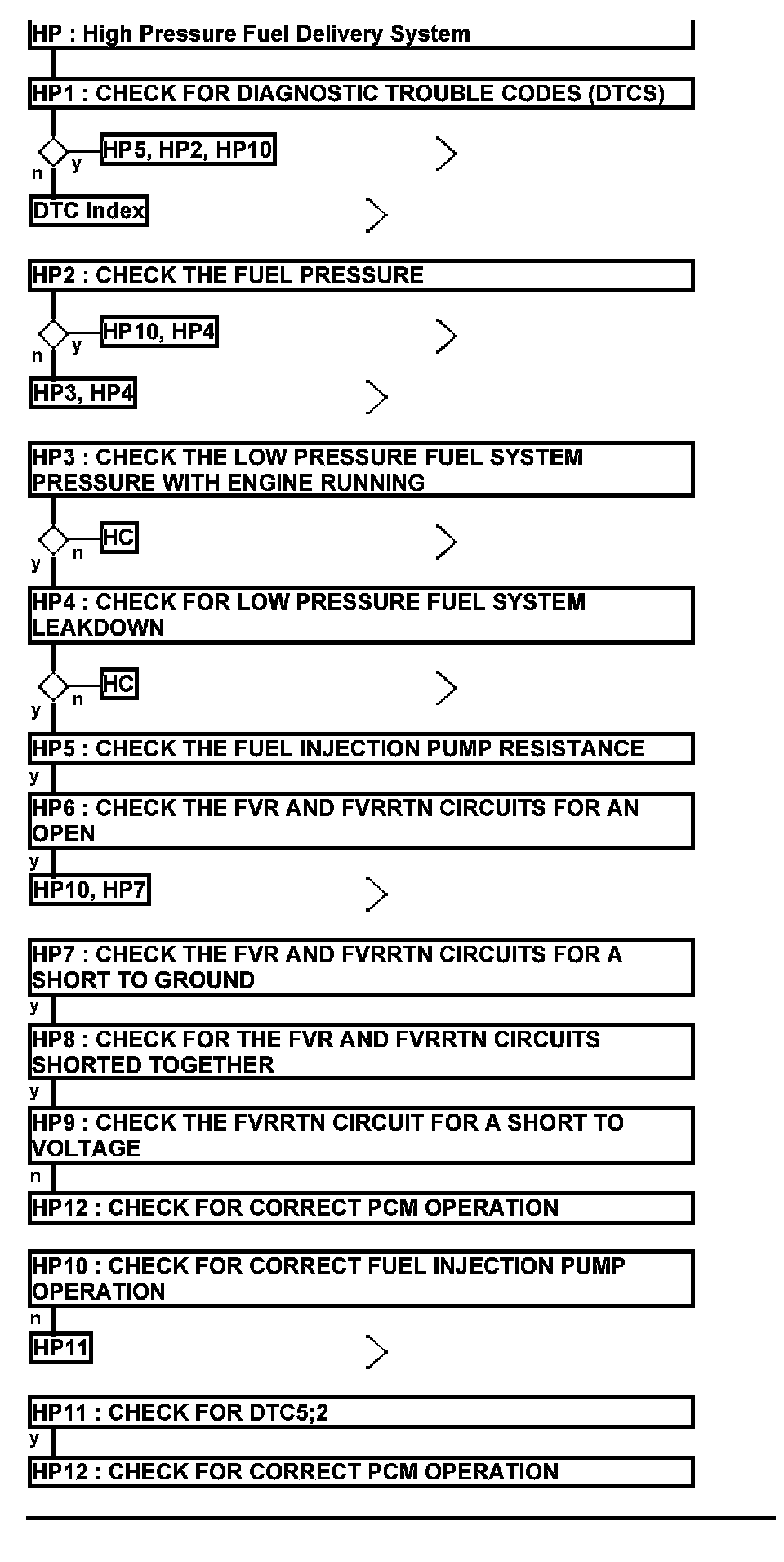

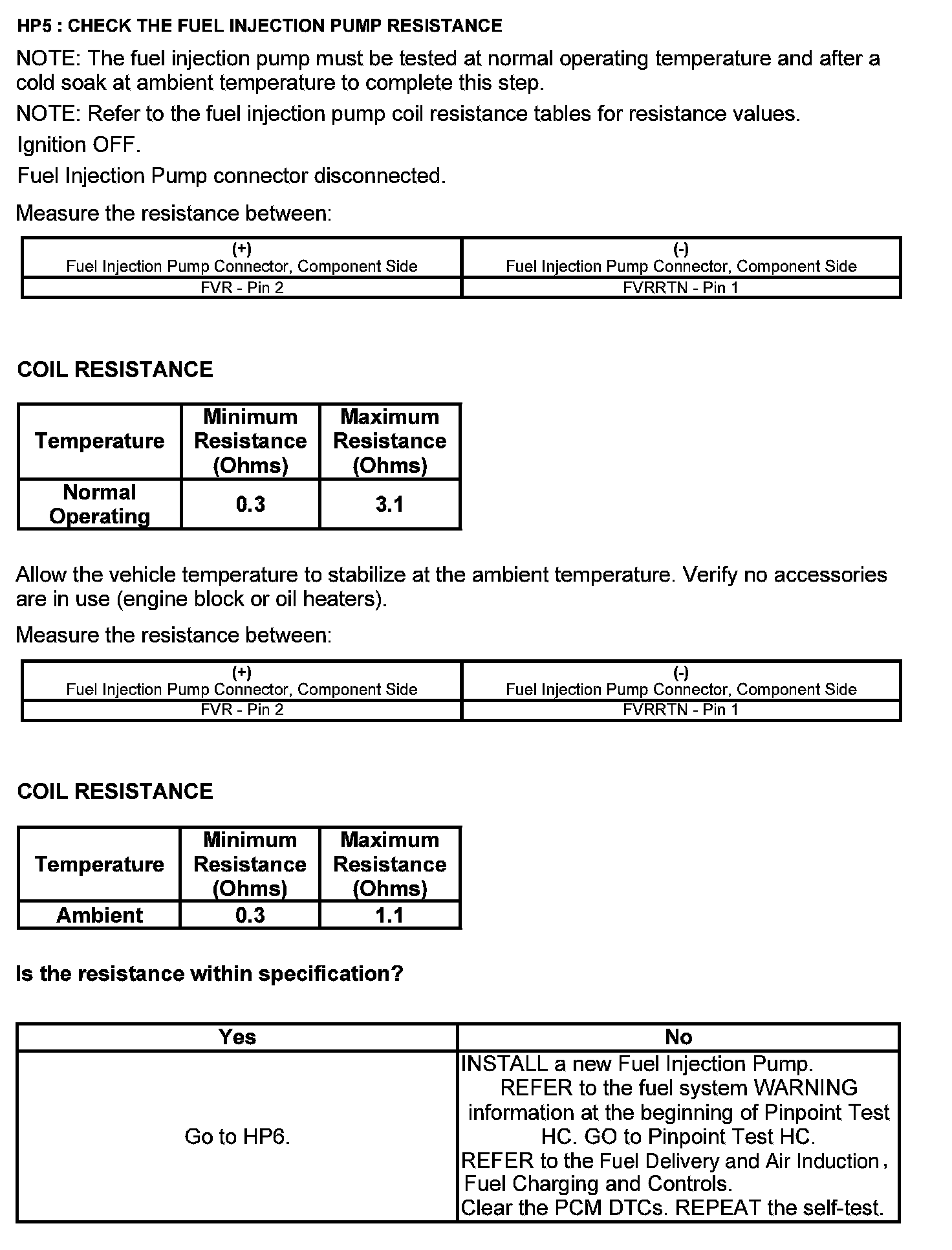

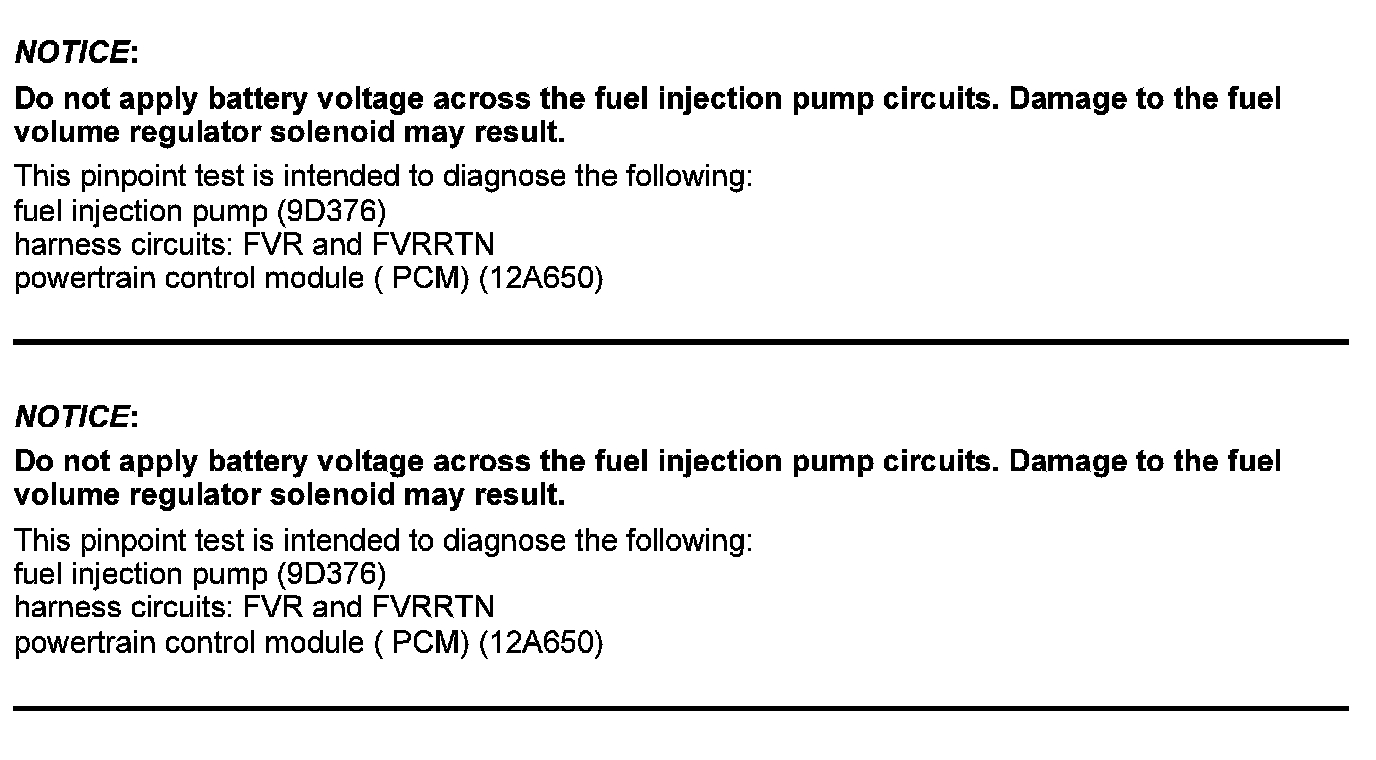

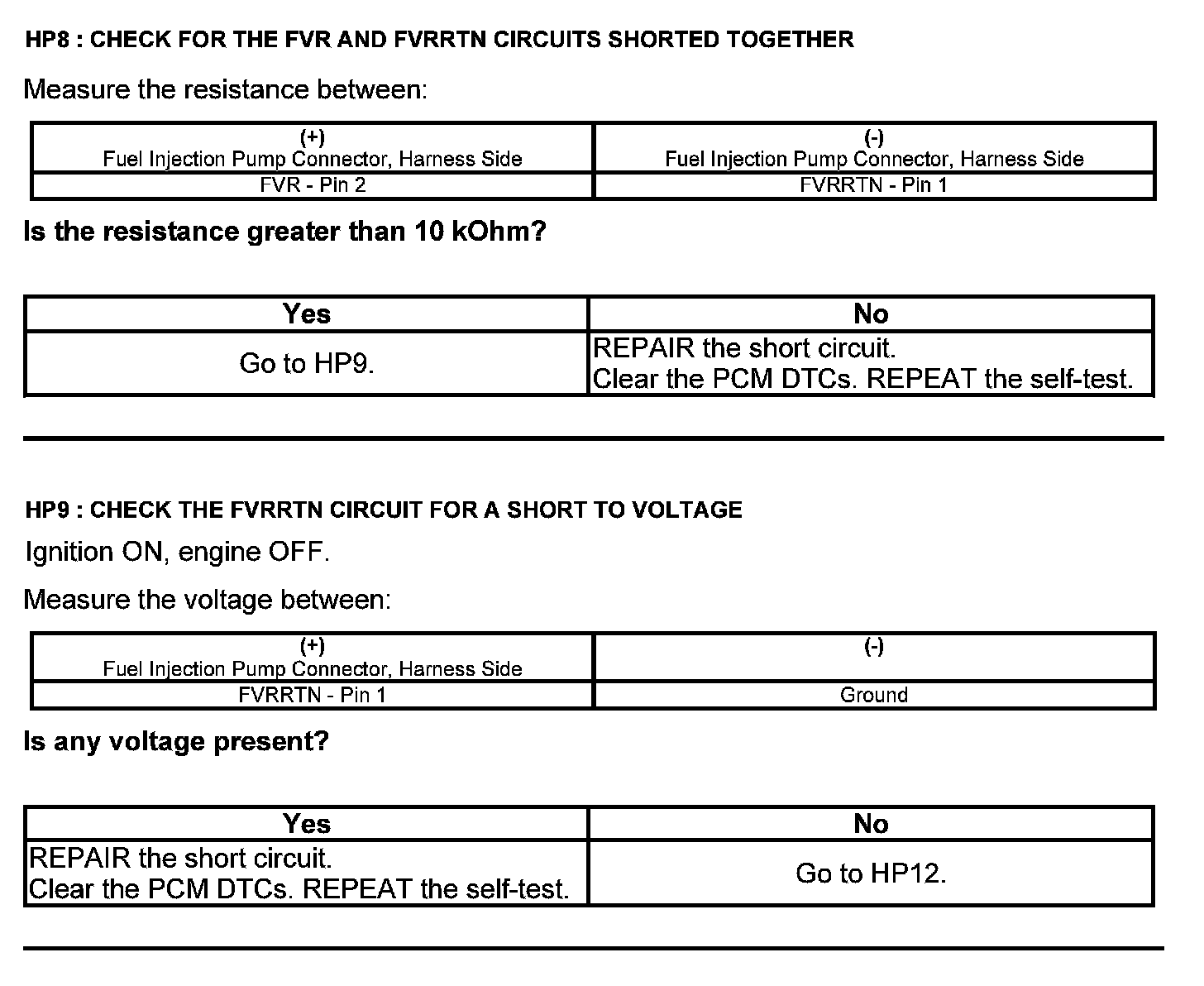

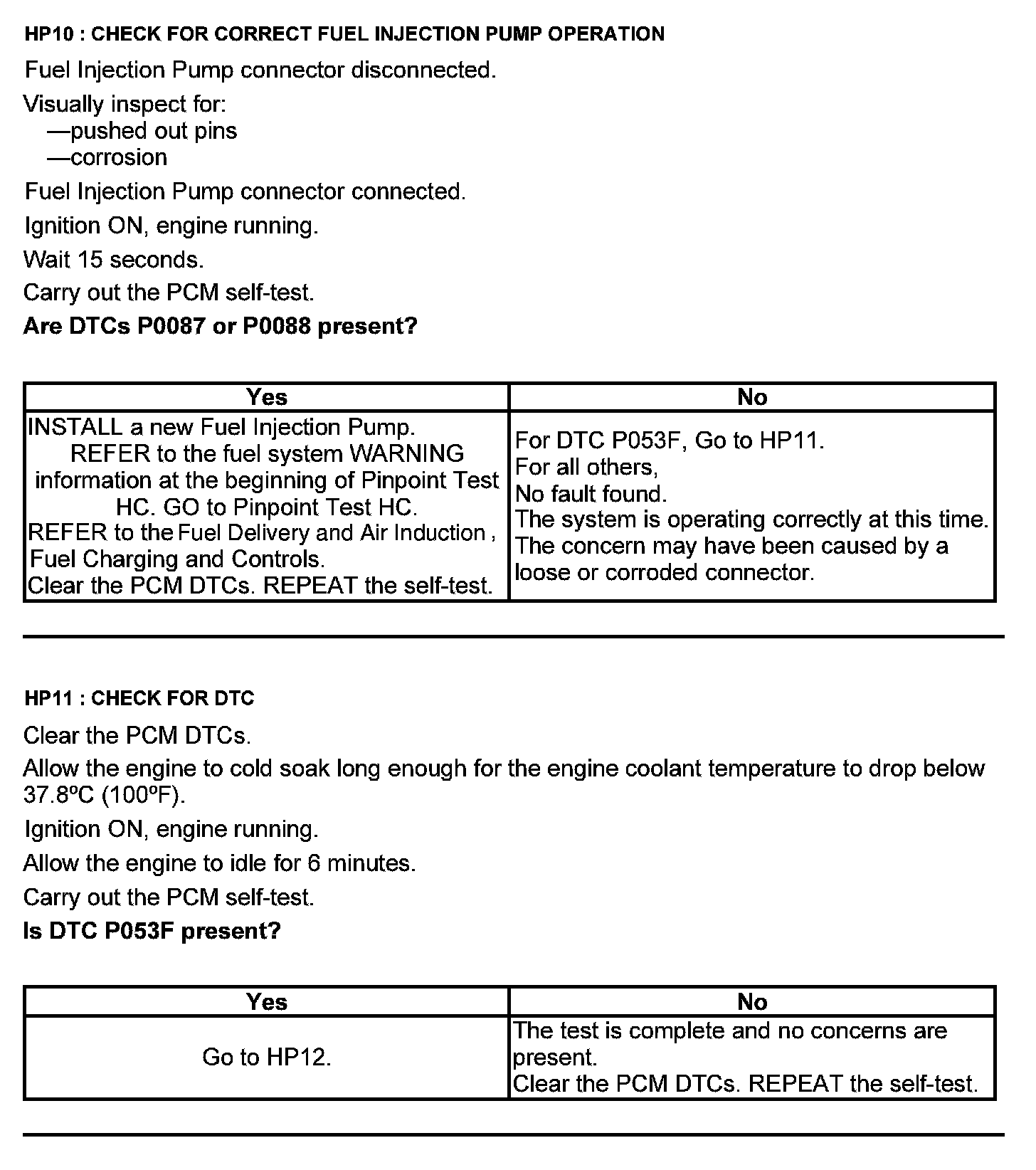

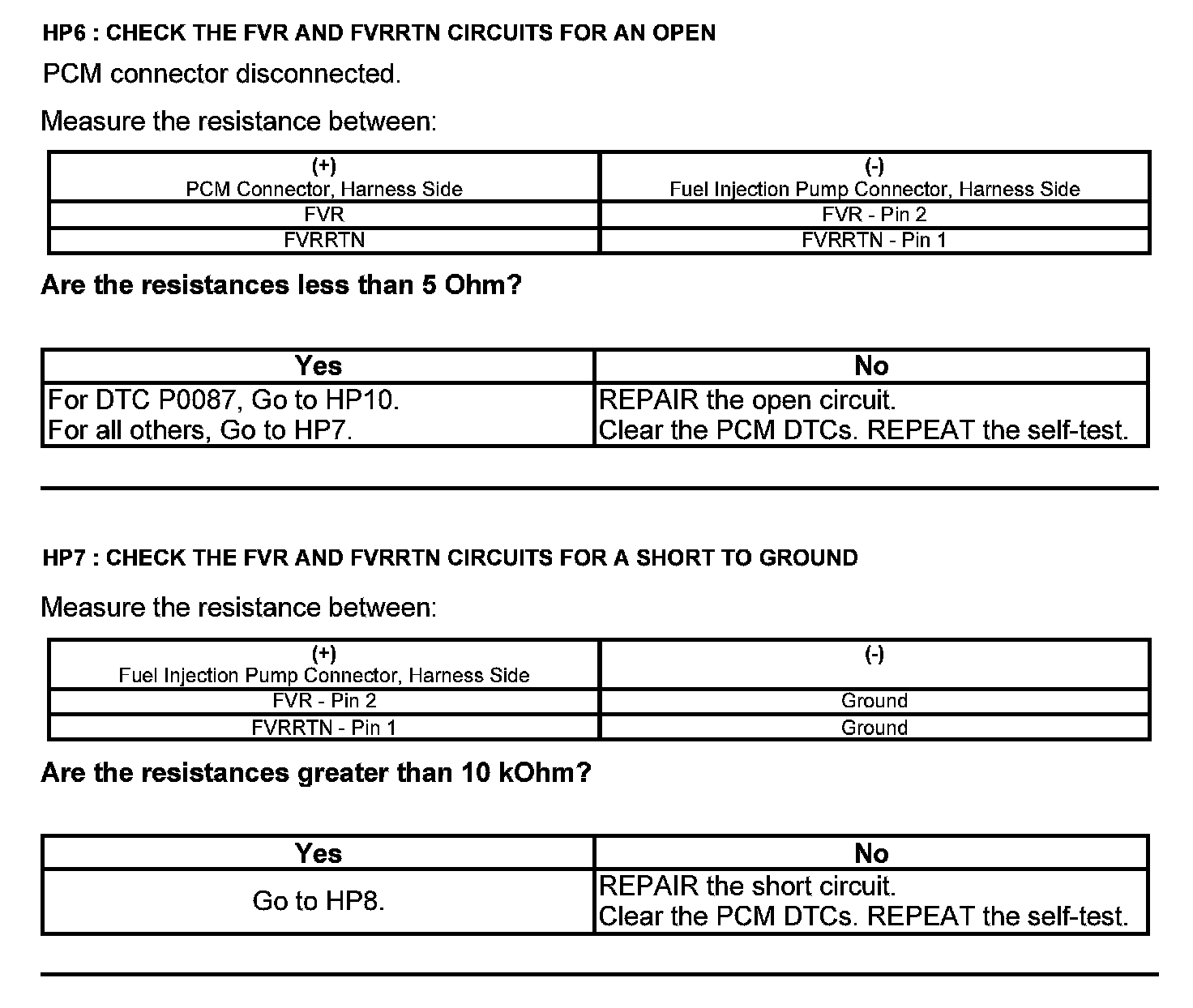

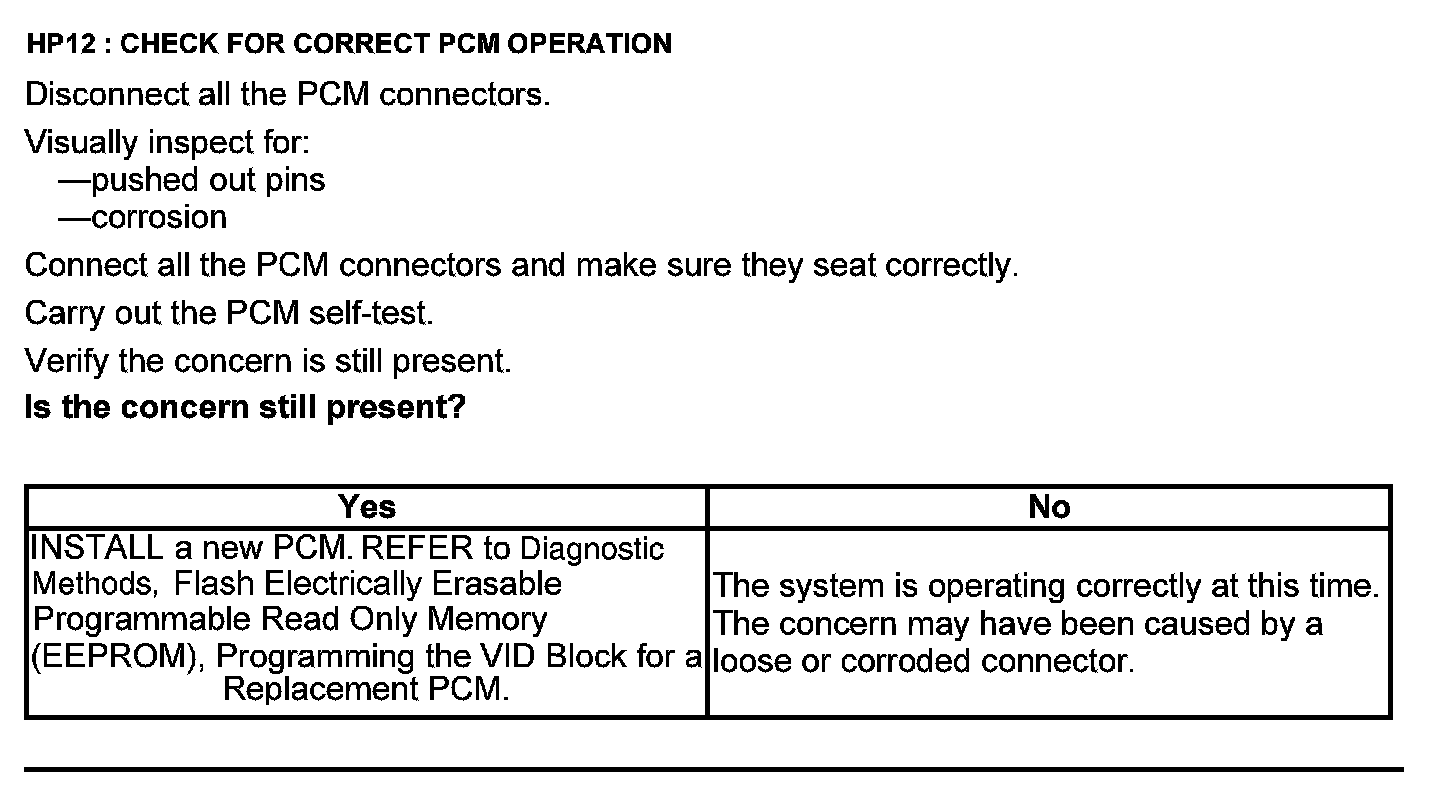

Test HP: High Pressure Fuel Delivery System



High Pressure Fuel Delivery System

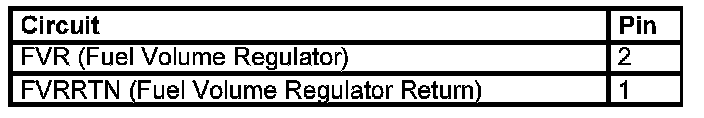

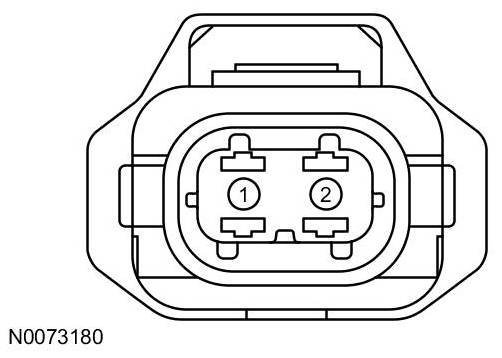

Fuel Injection Pump Connector






Harness Side







Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
