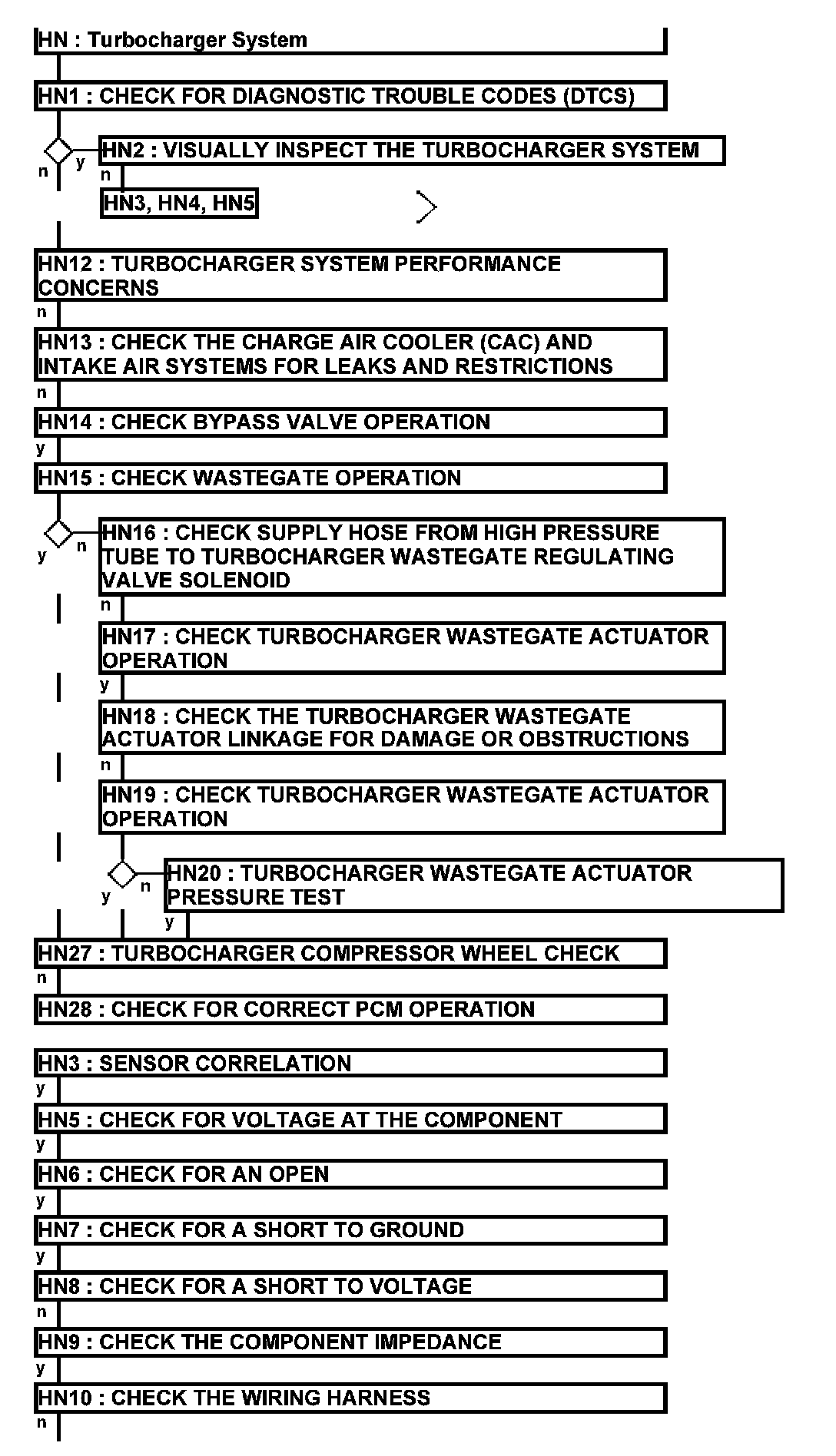

Test HN: Turbocharger System



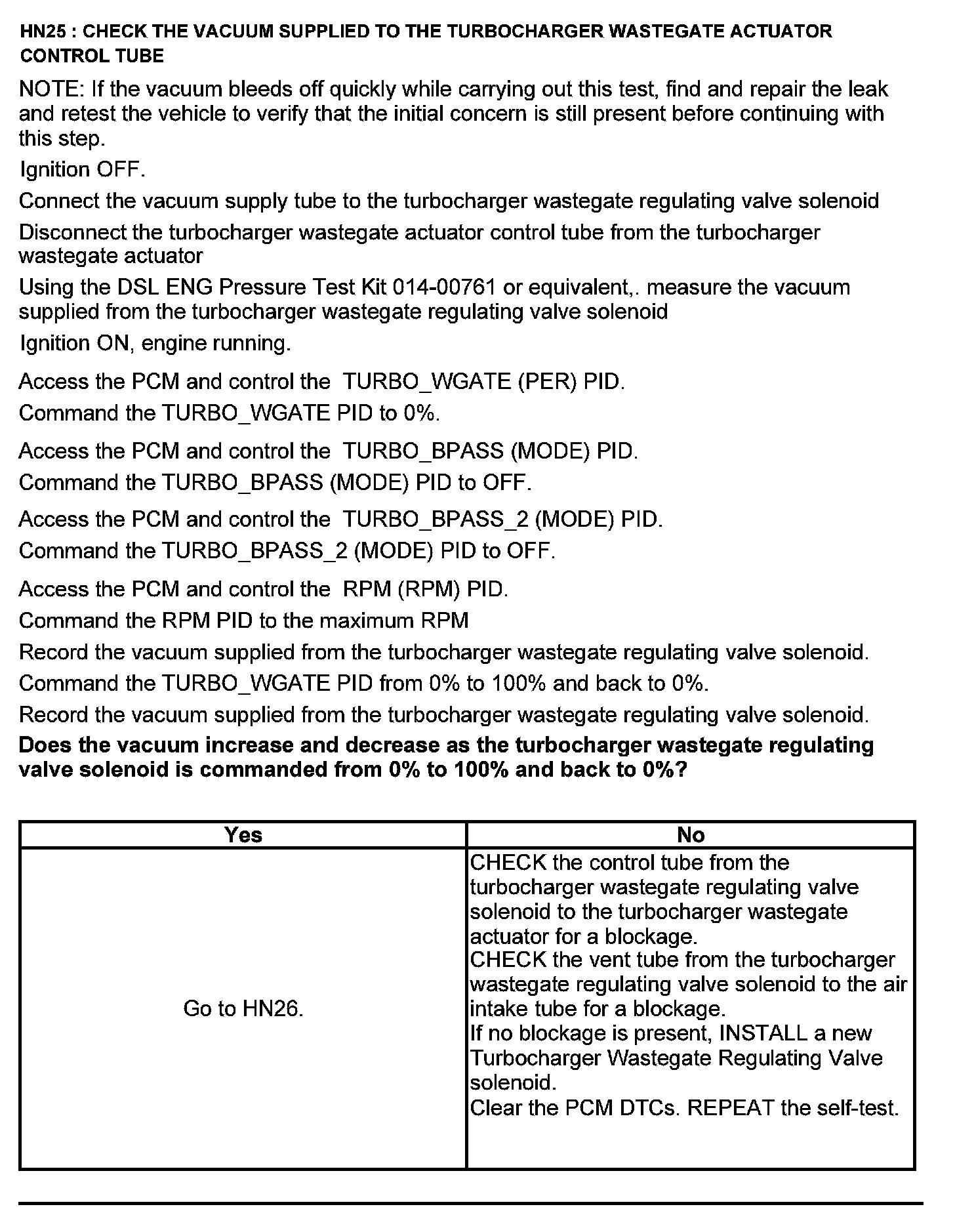

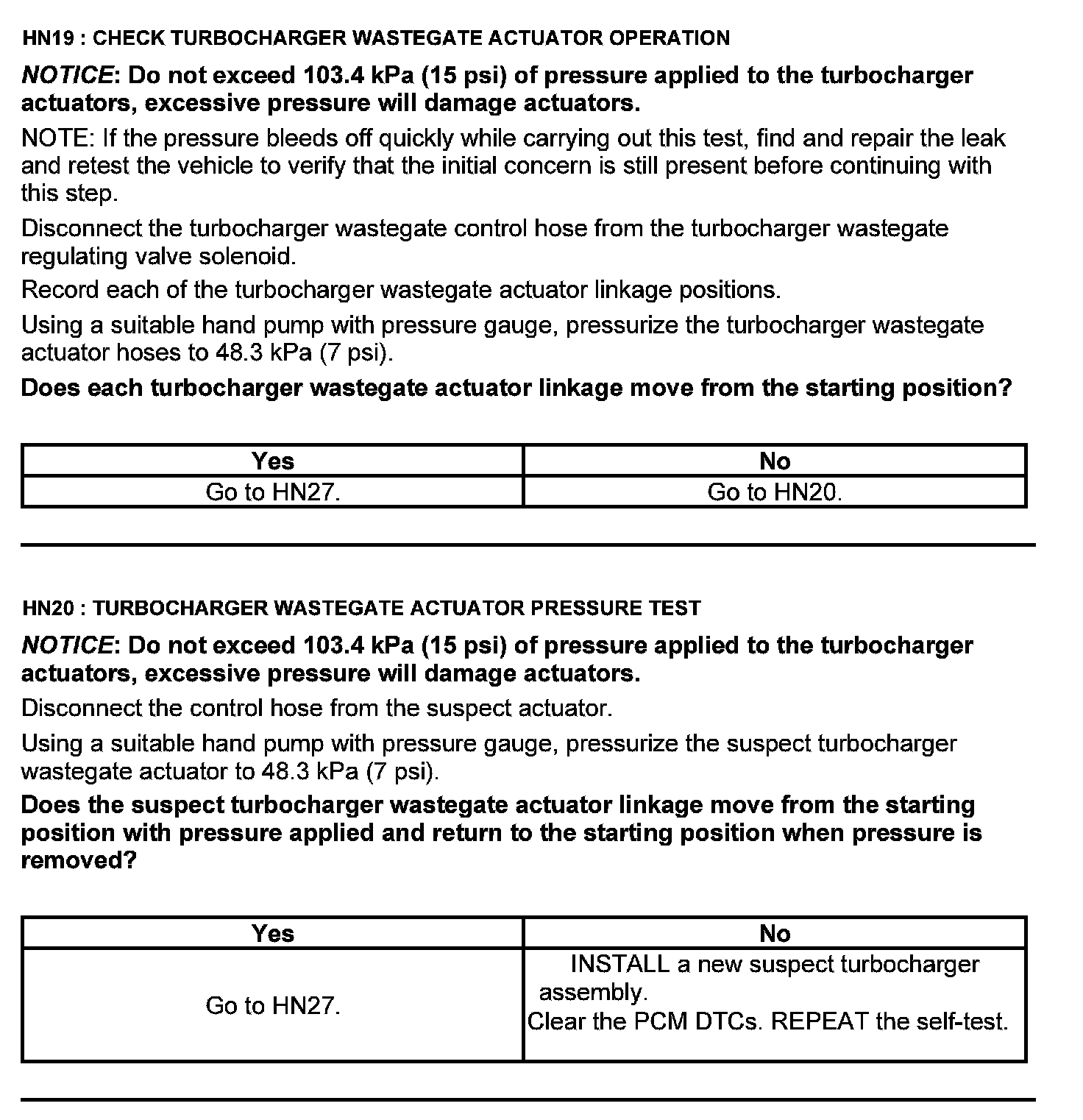

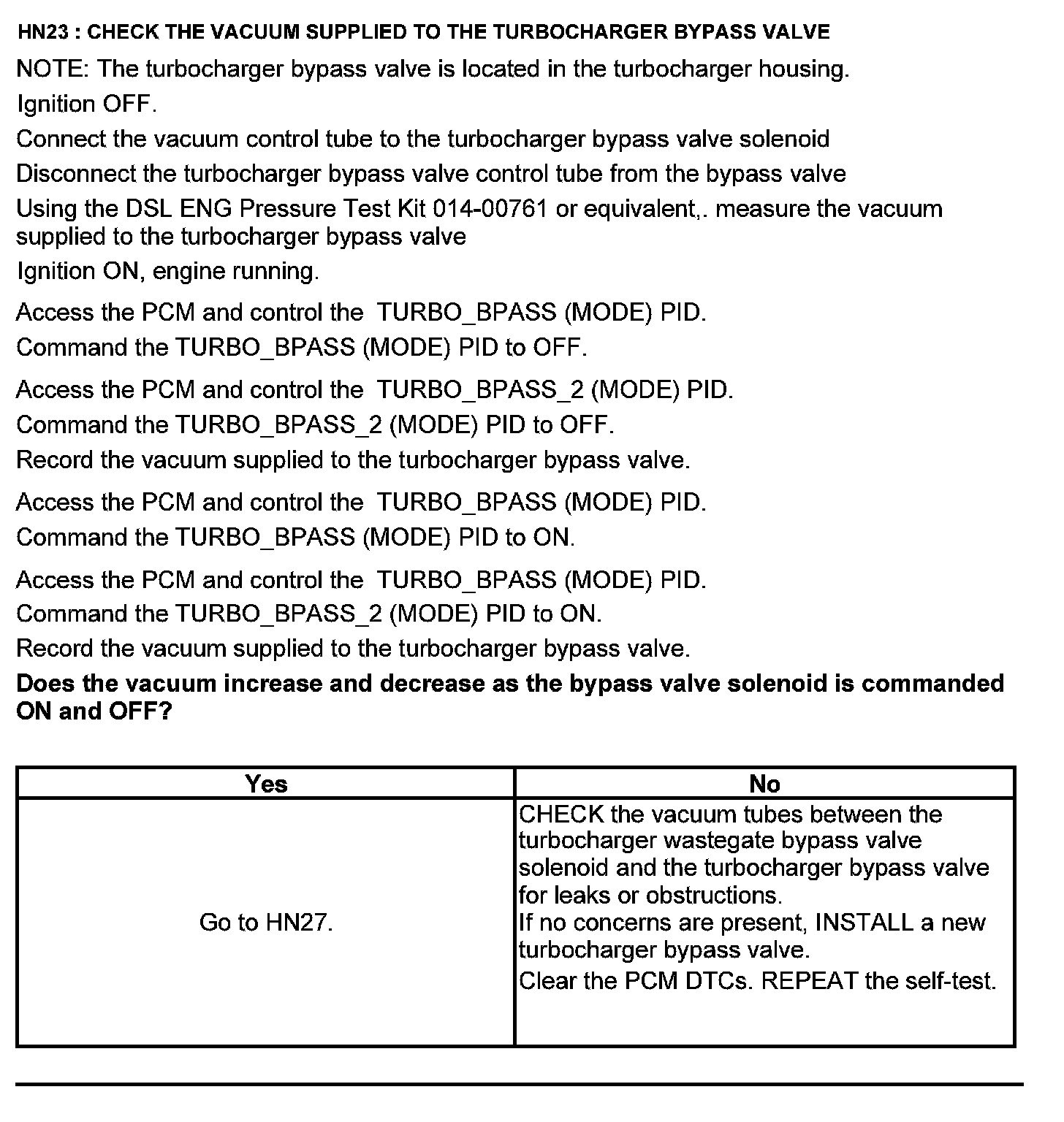

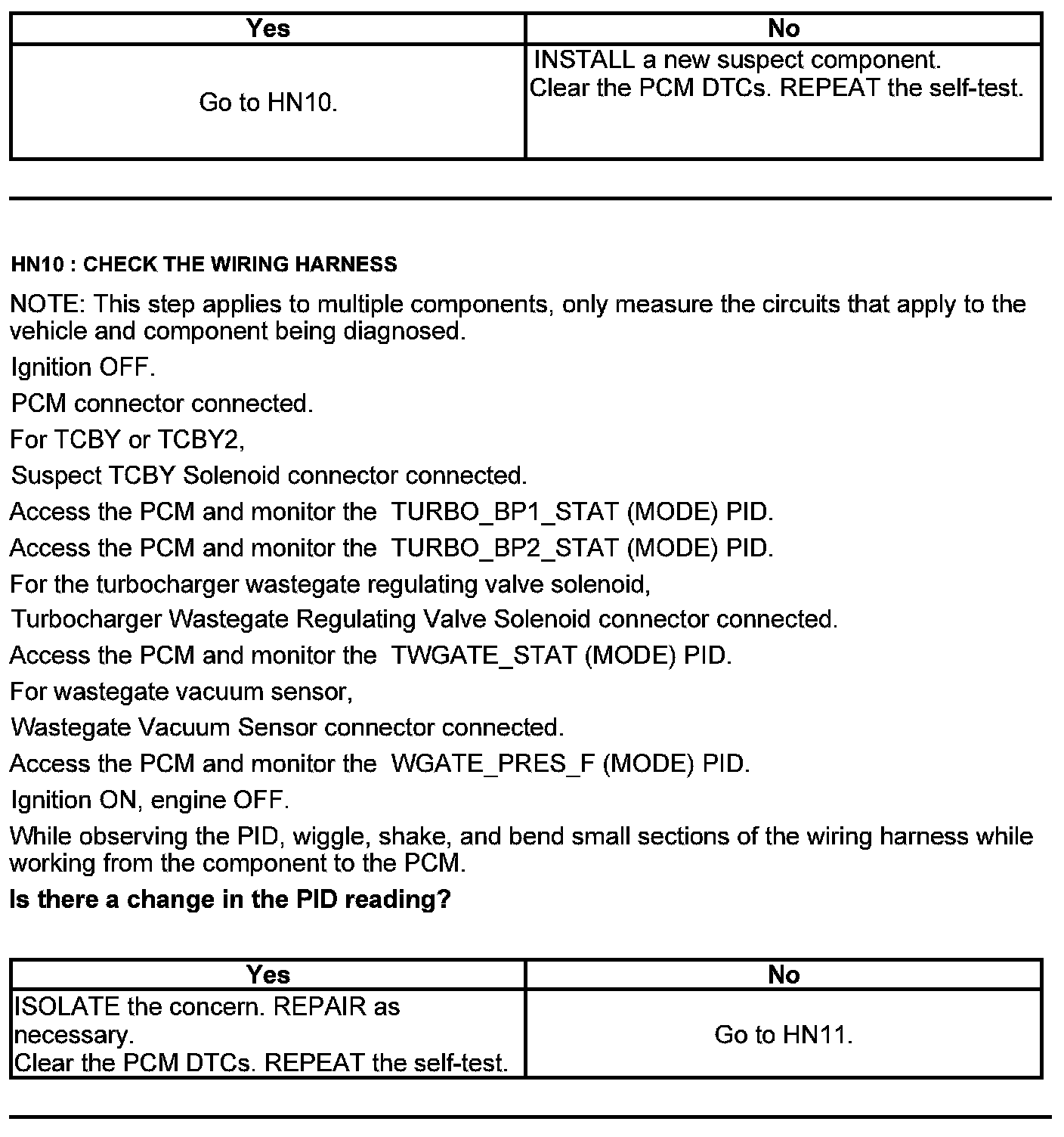

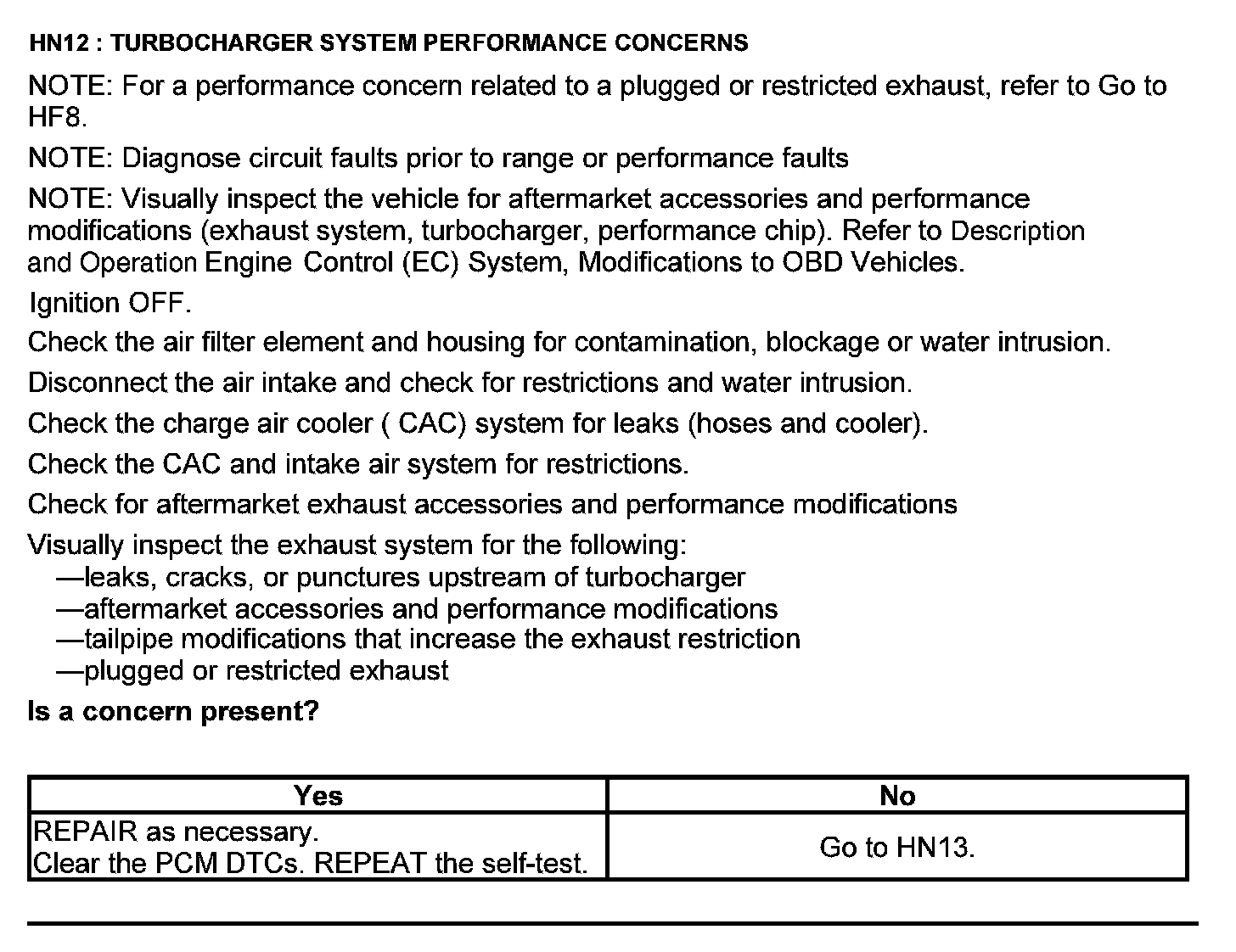

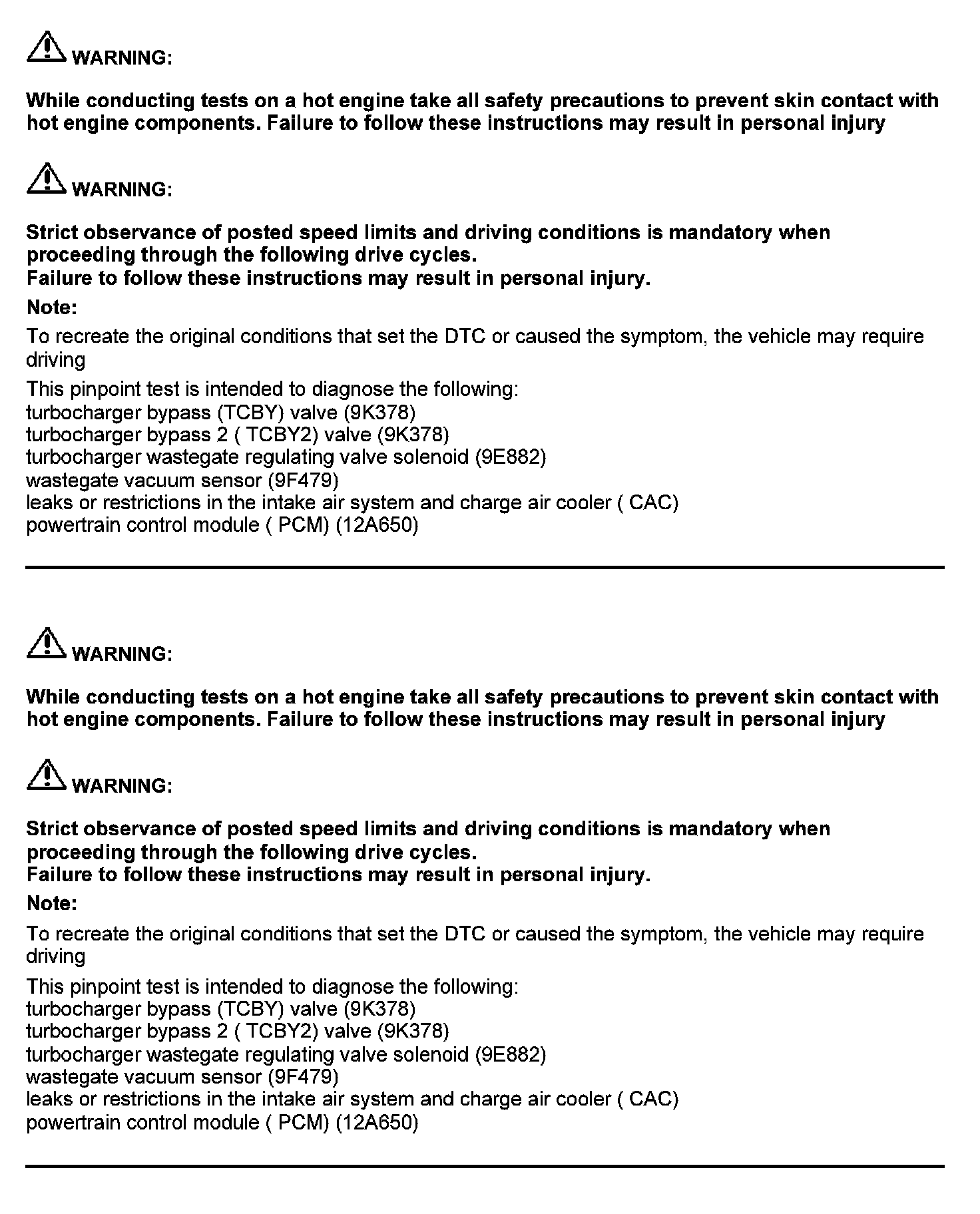

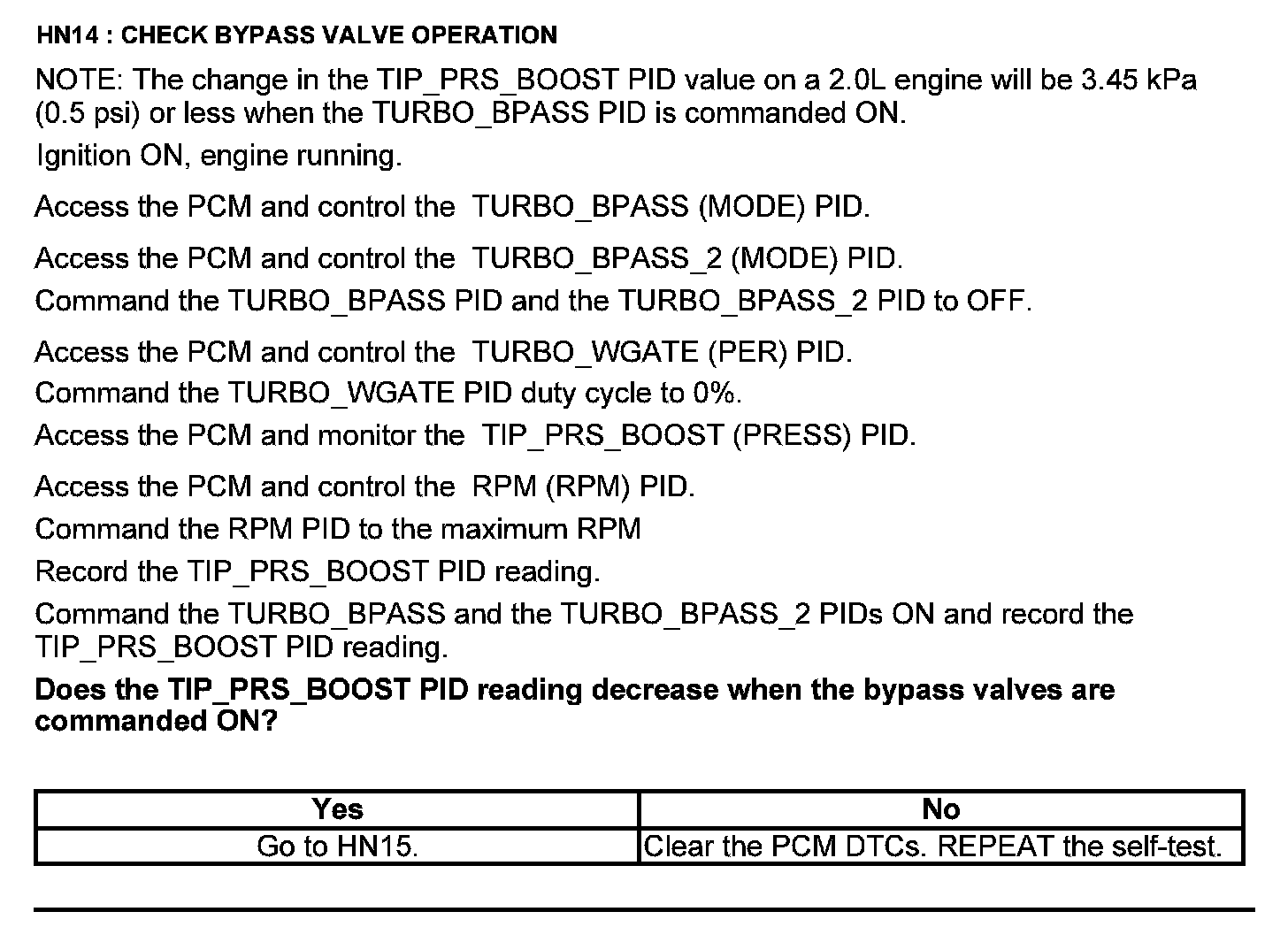

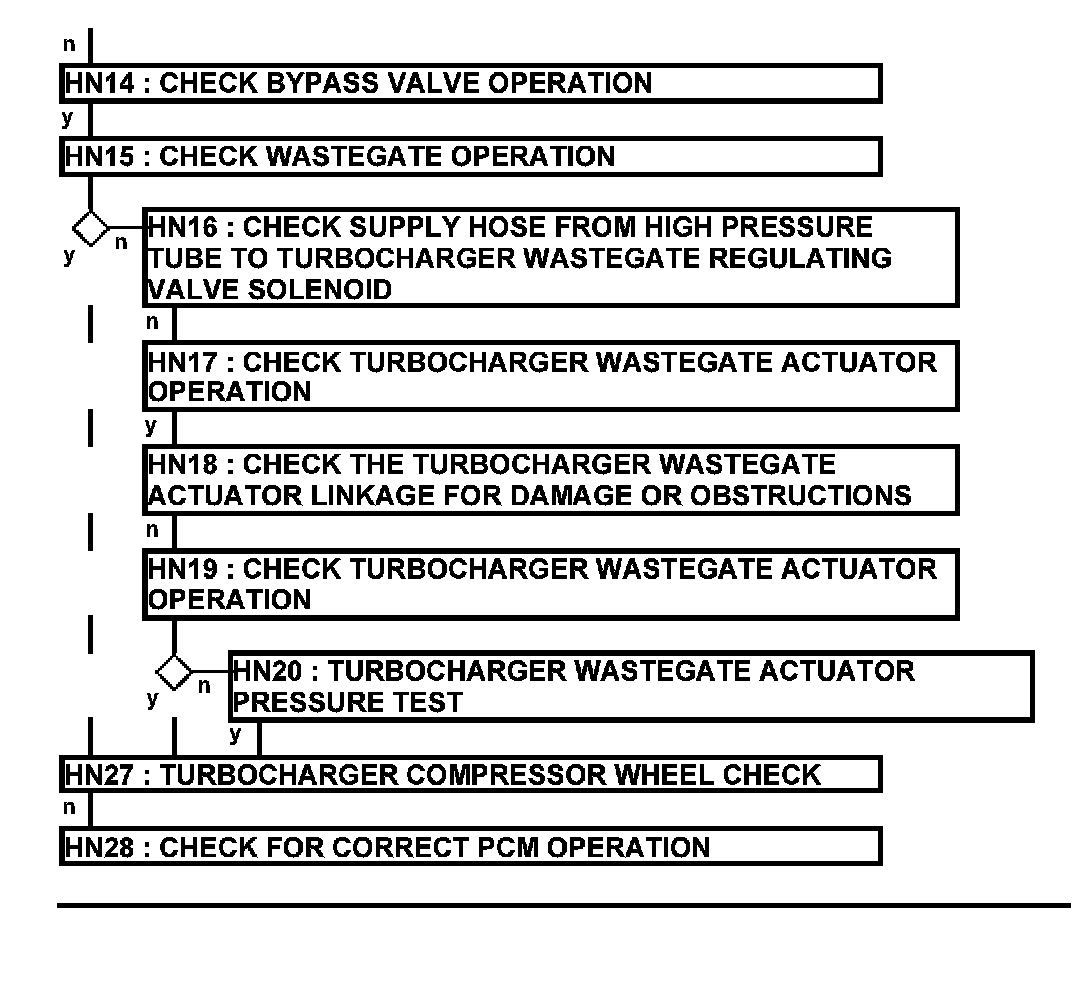

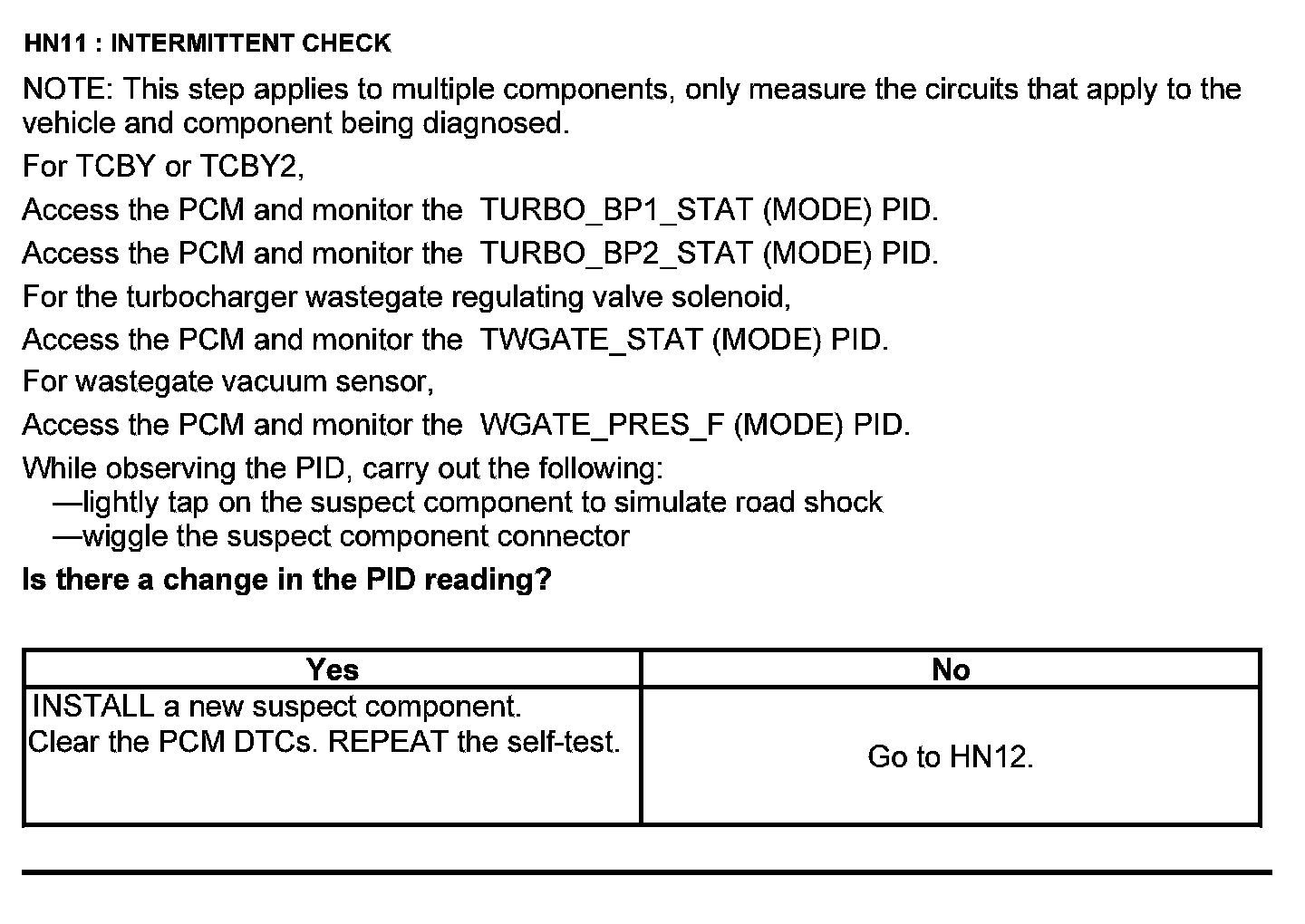

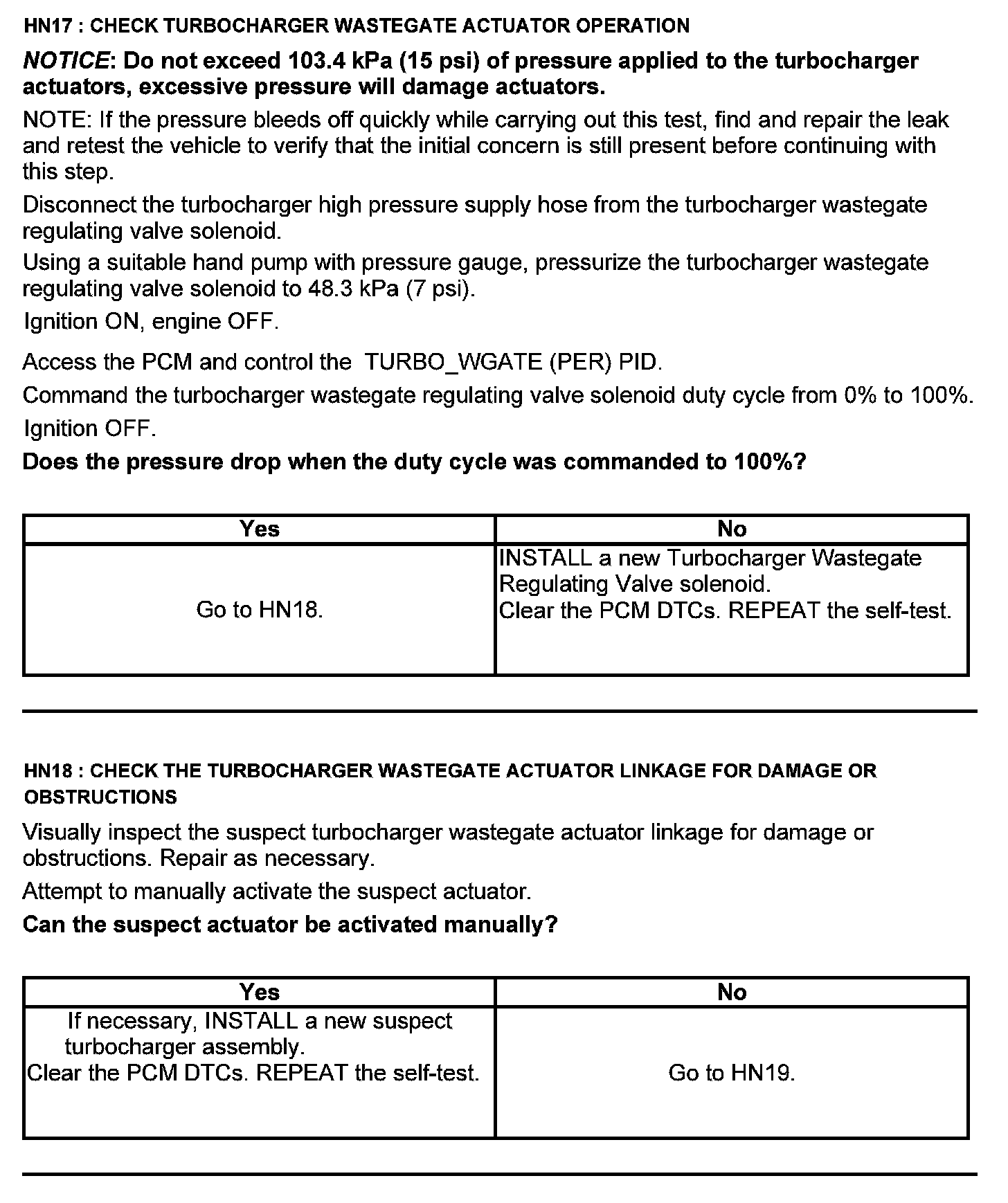

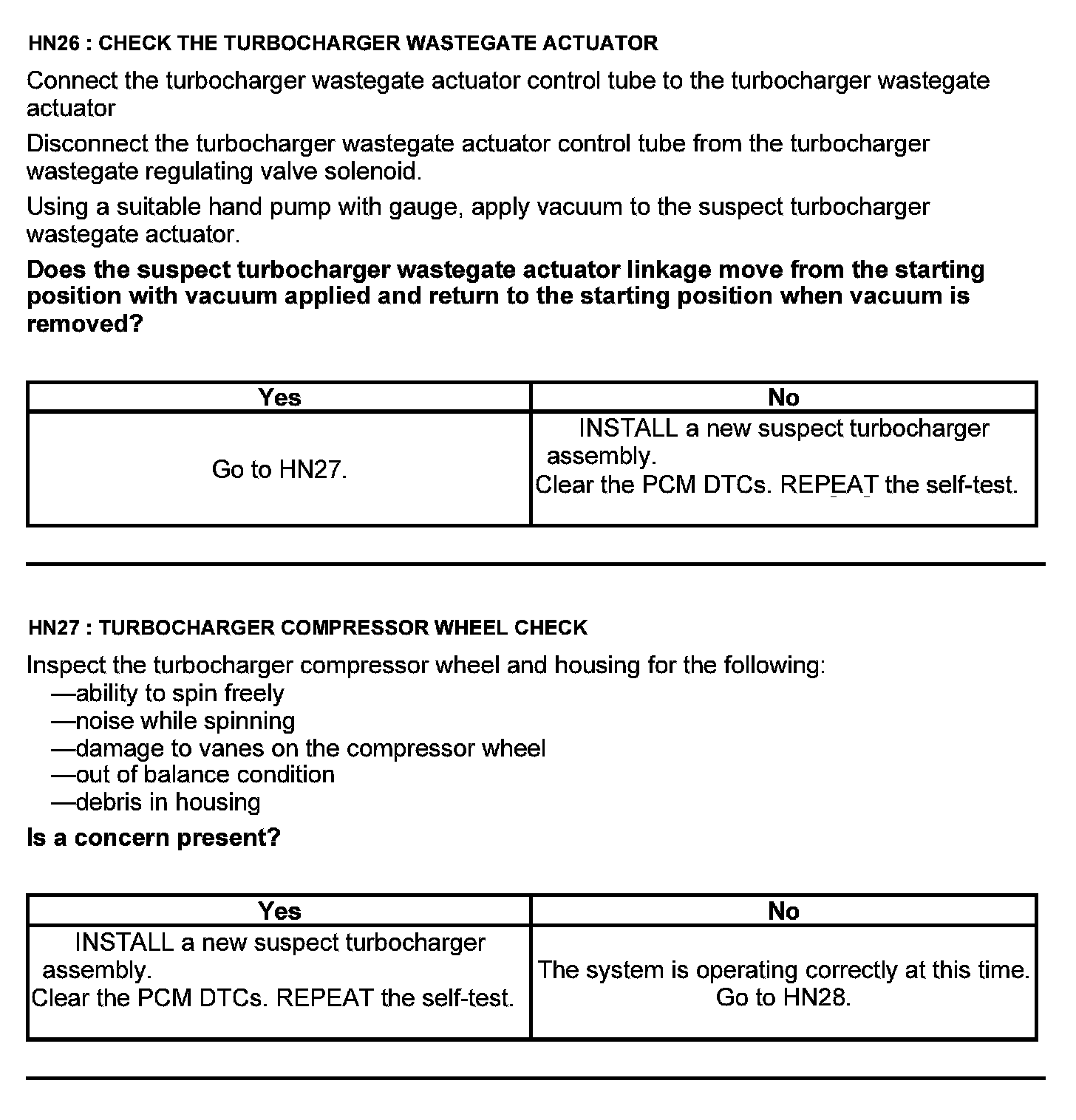

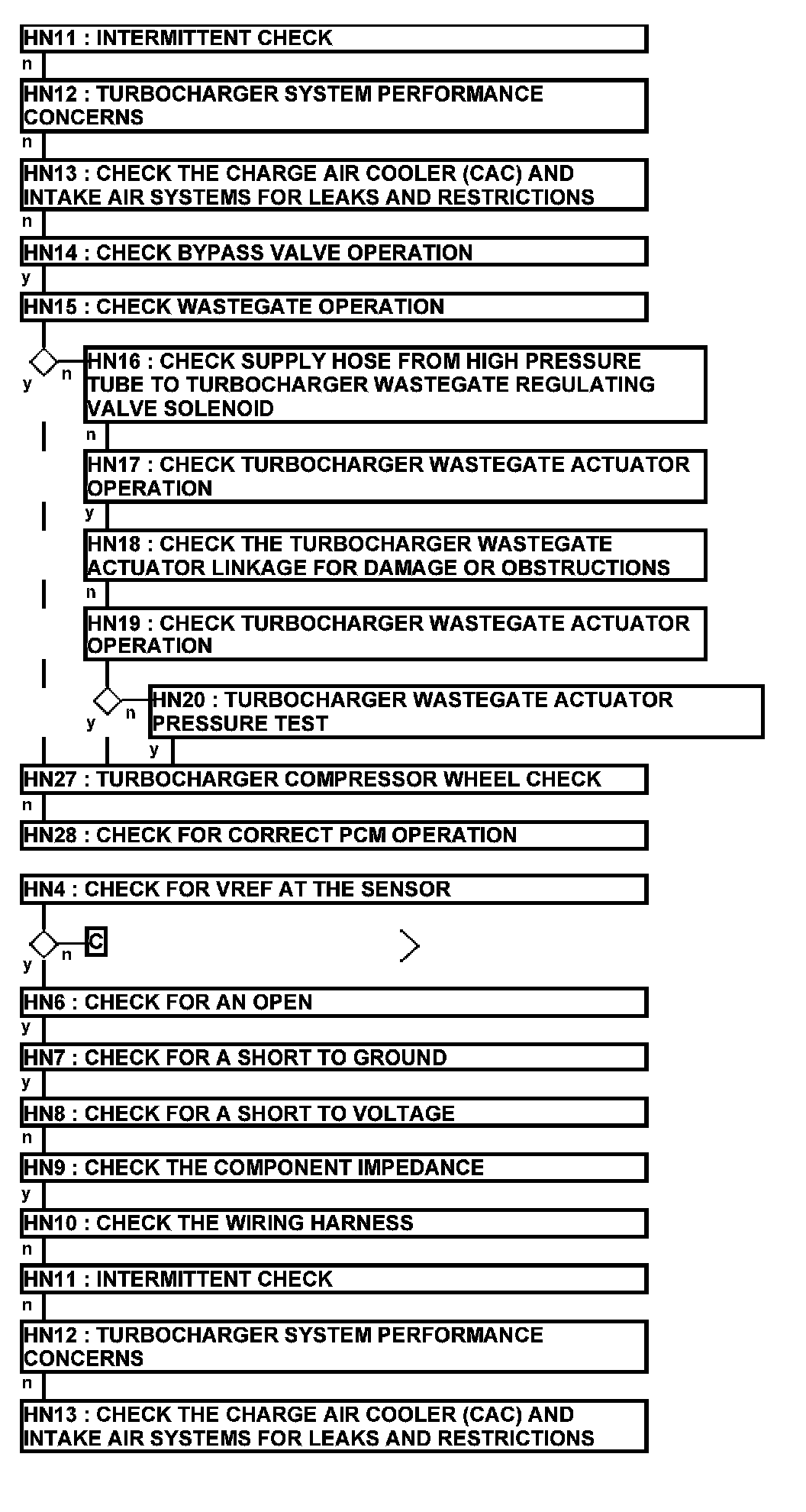

Turbocharger System

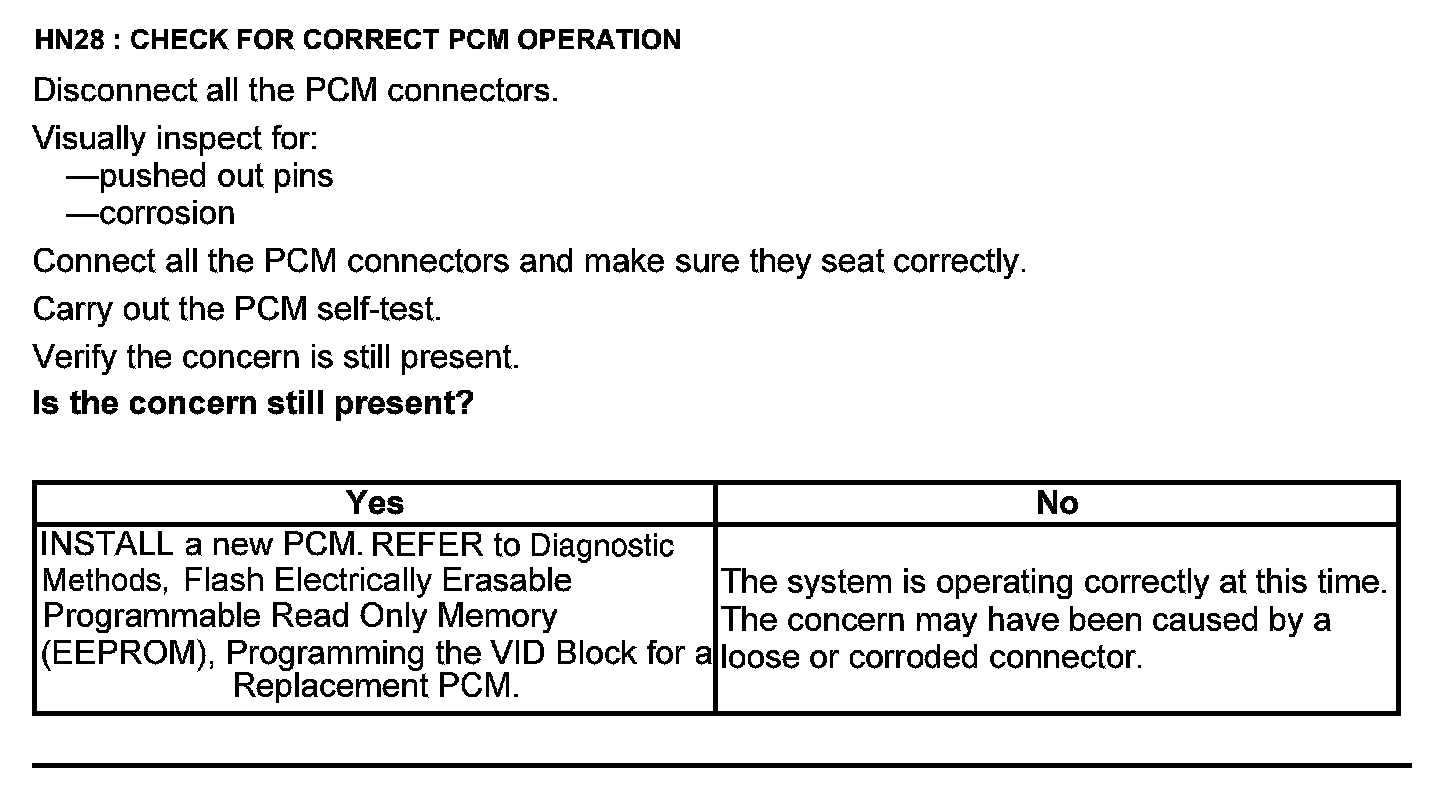

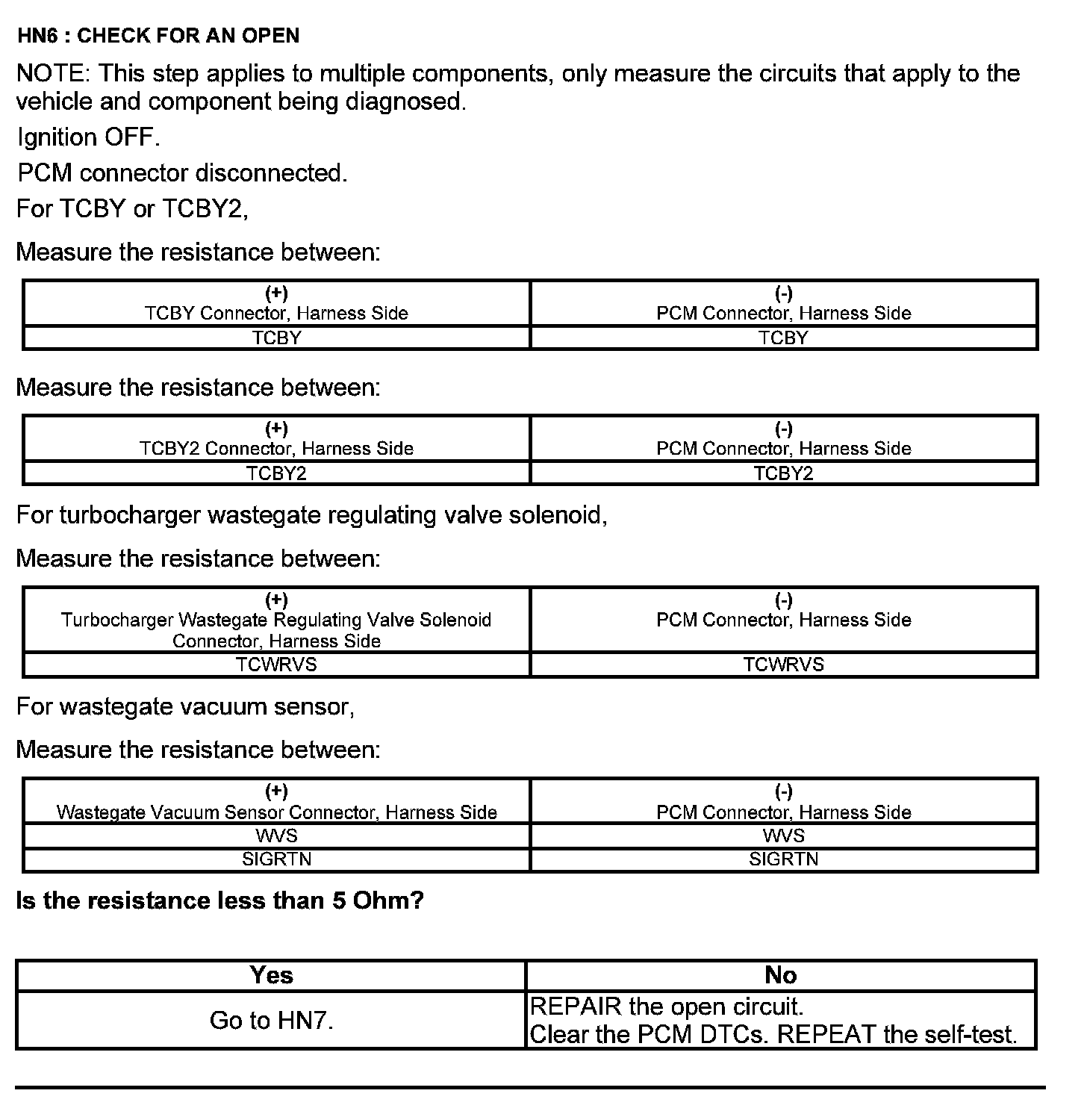

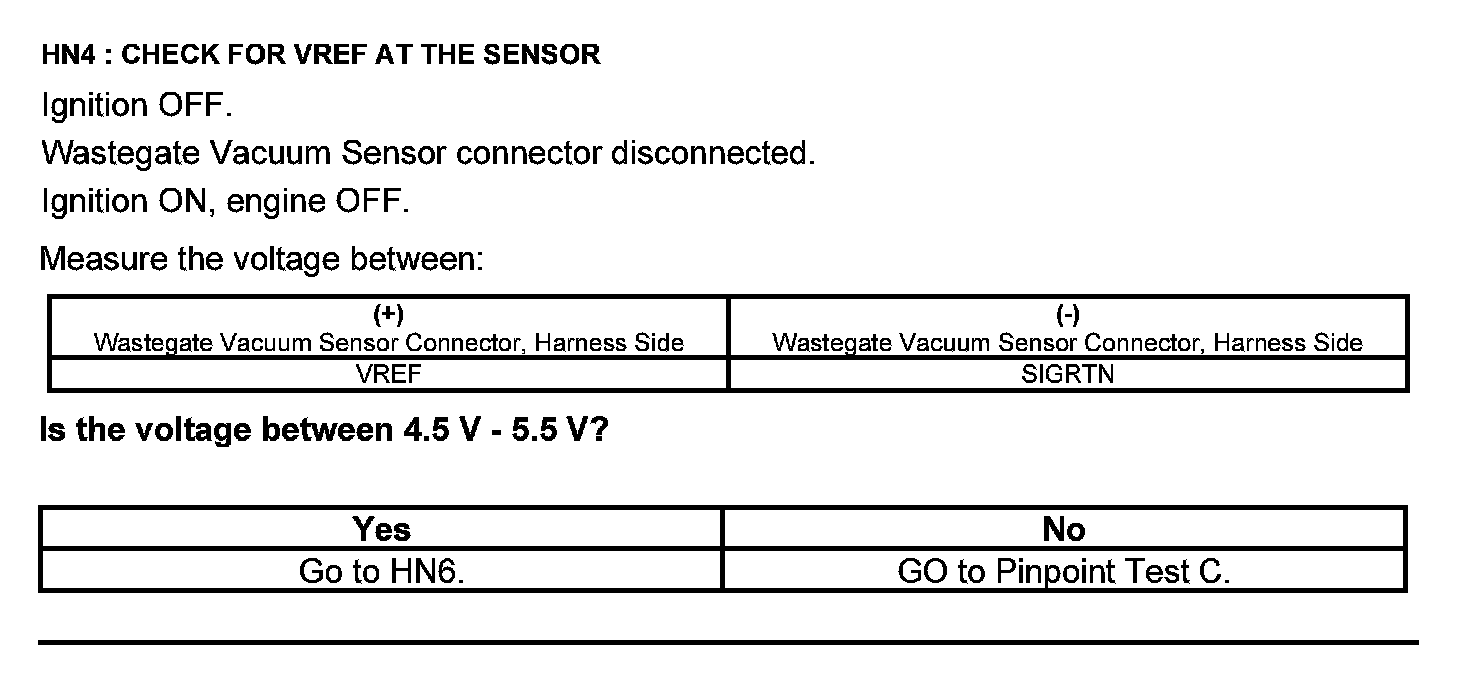

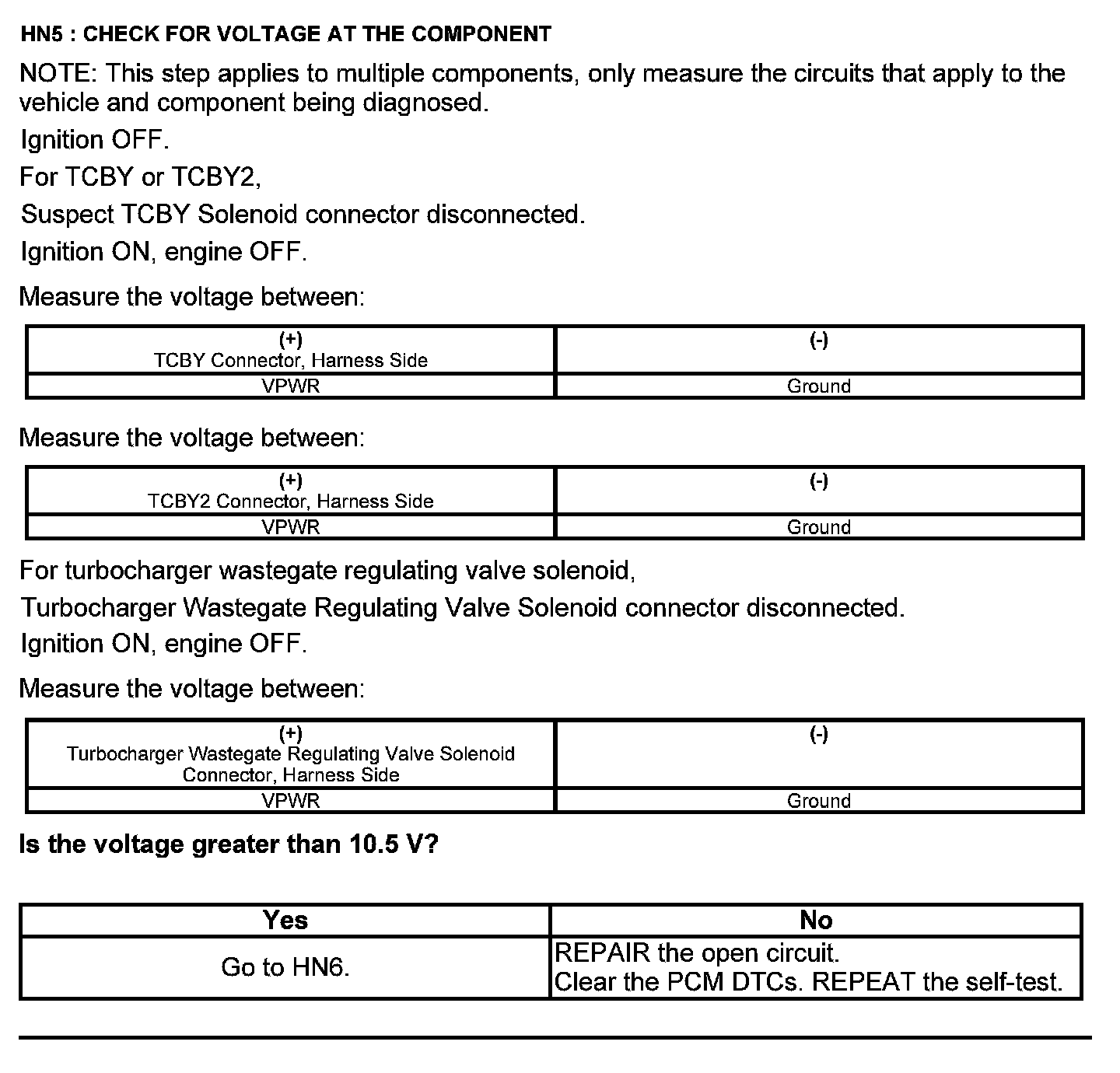

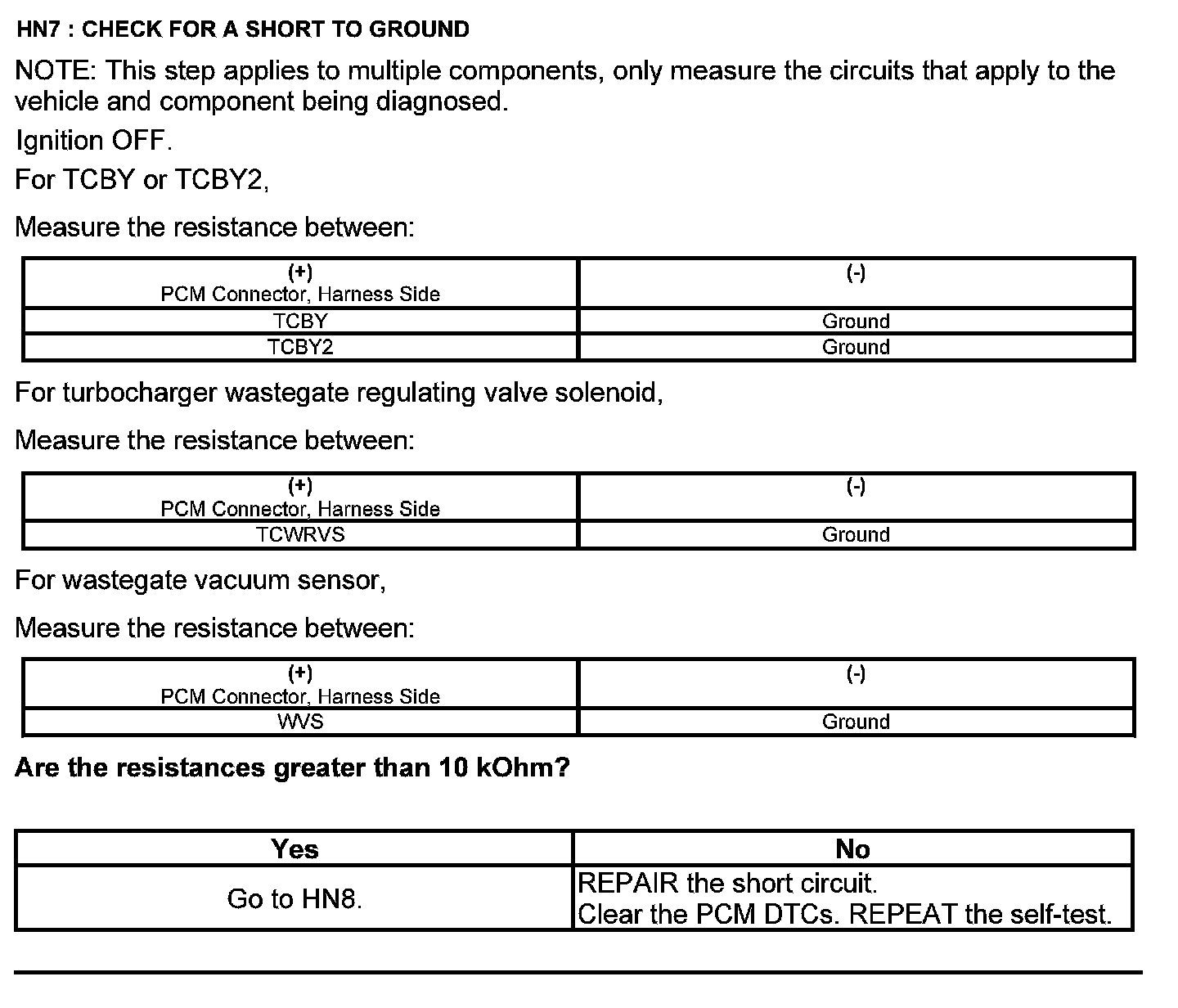

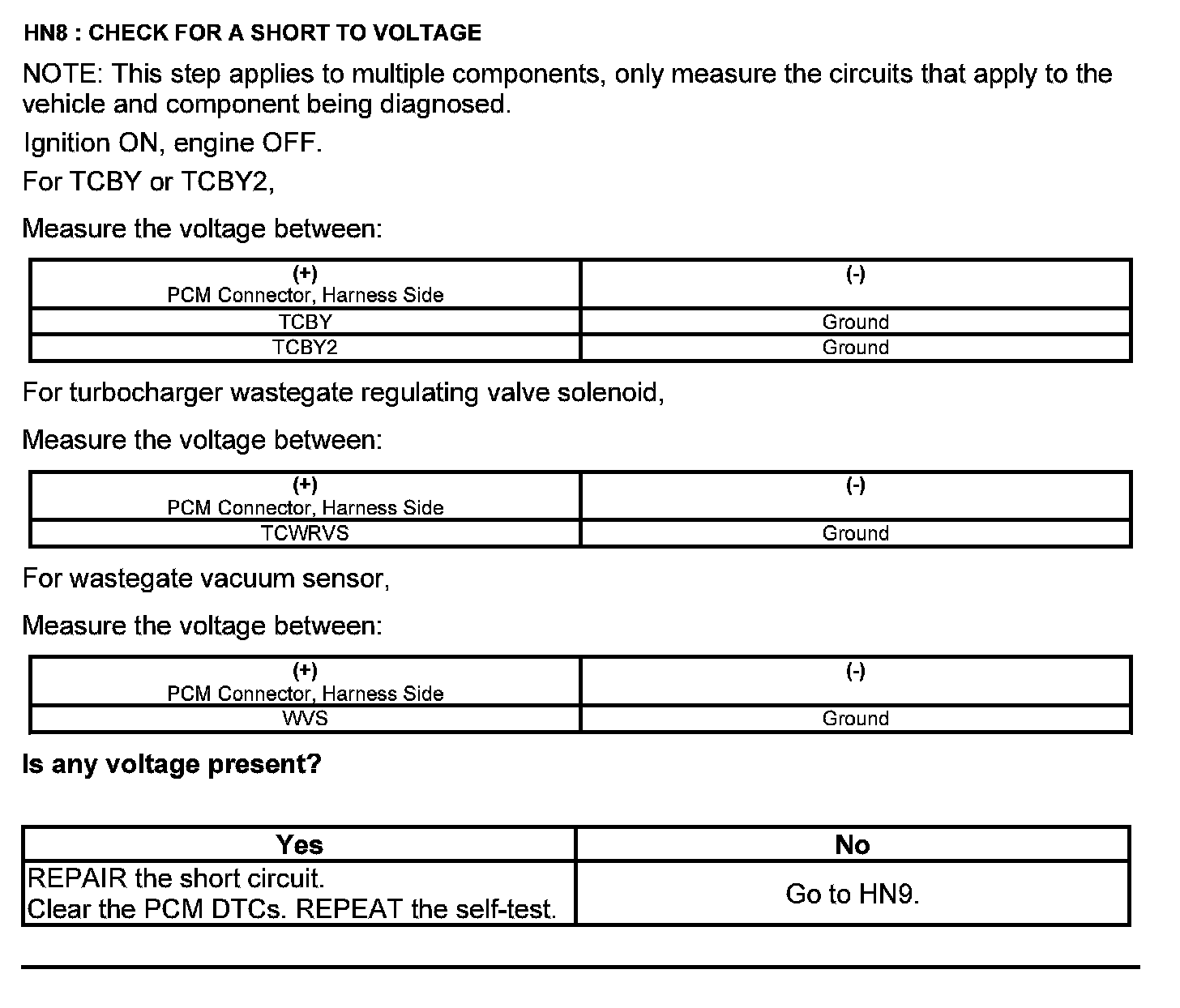

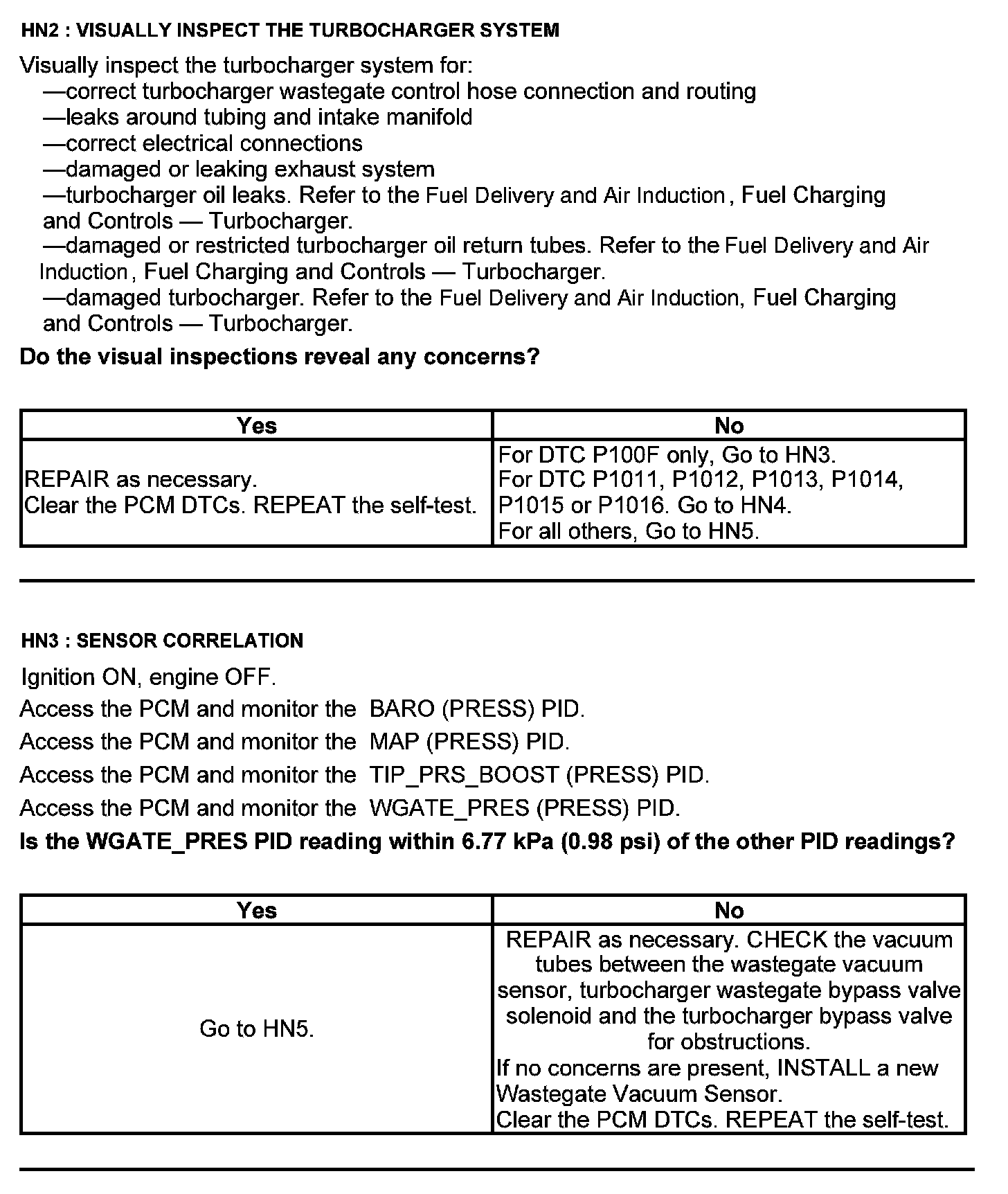

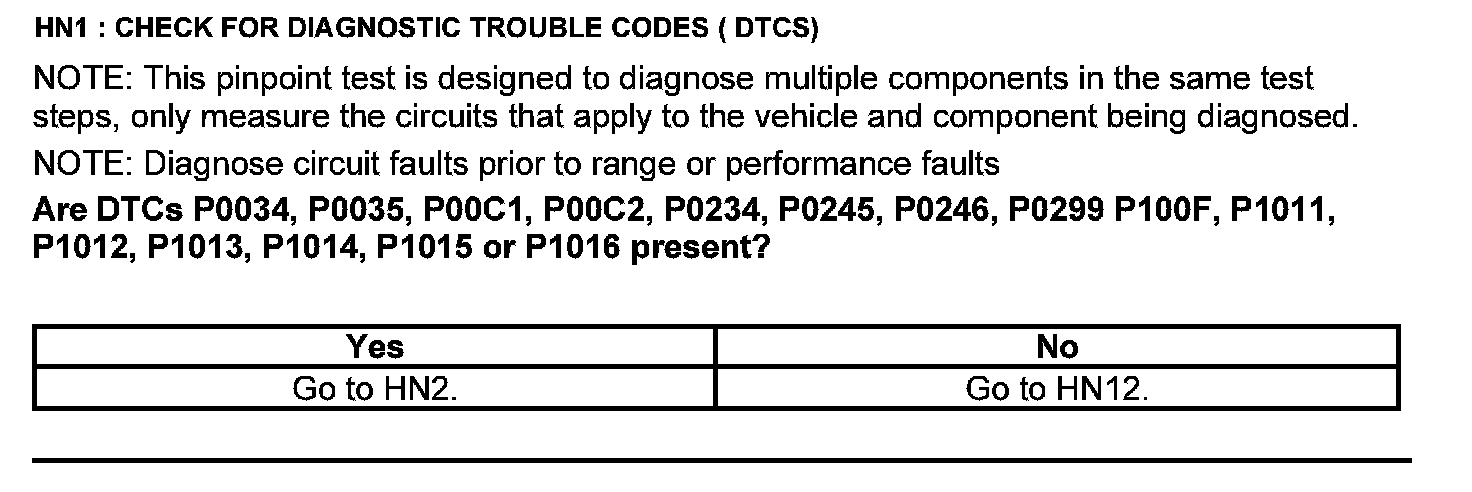

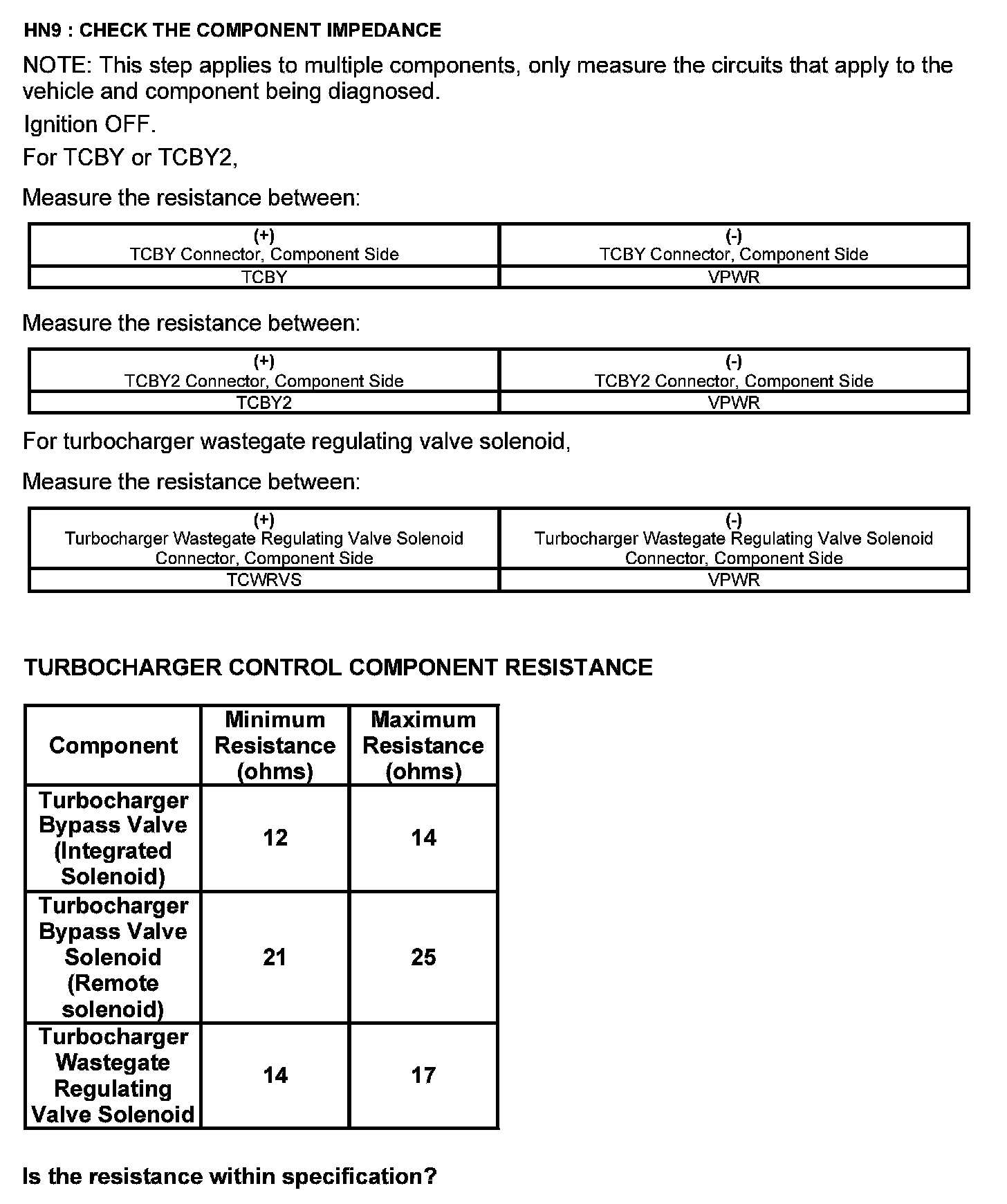

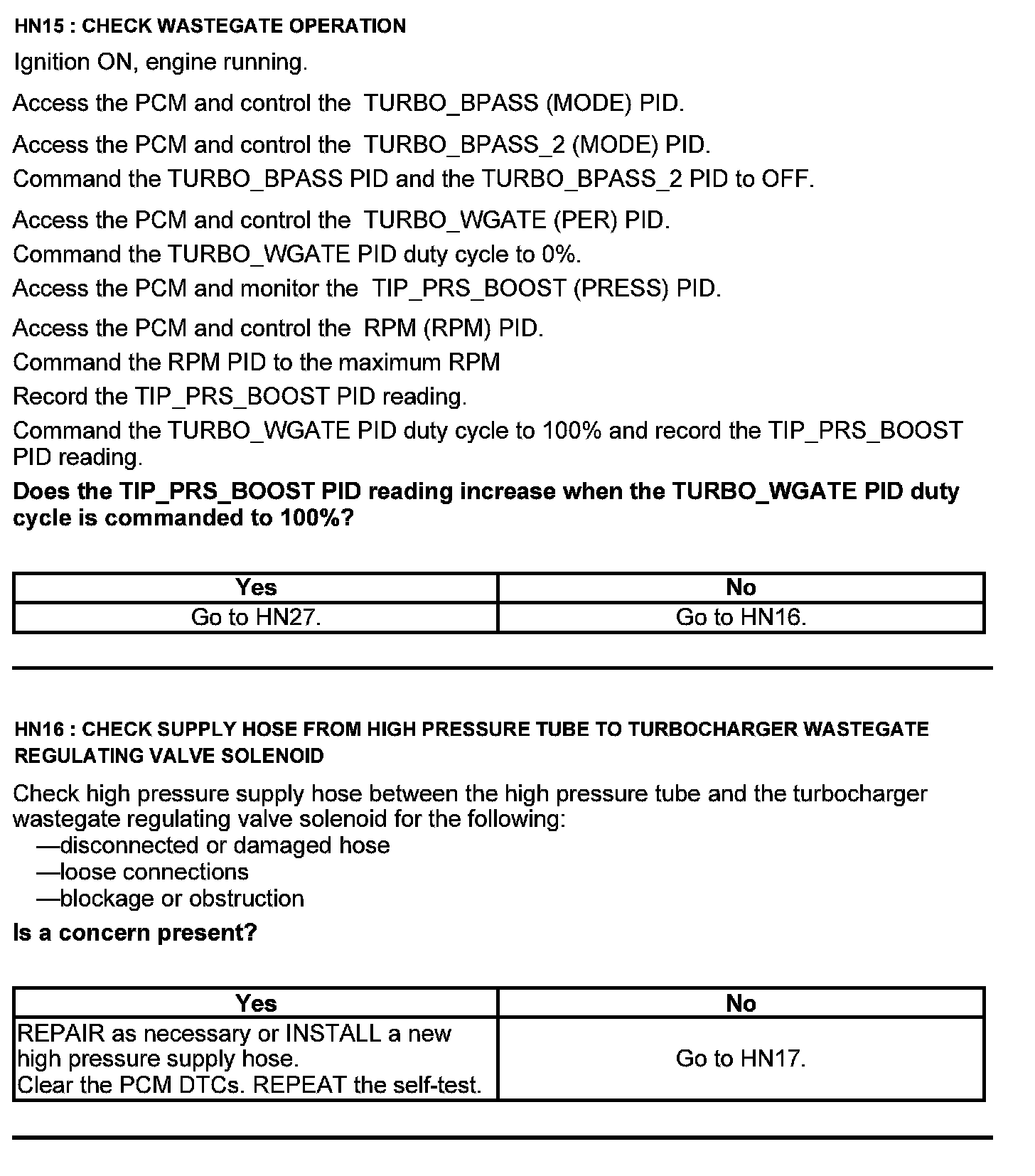

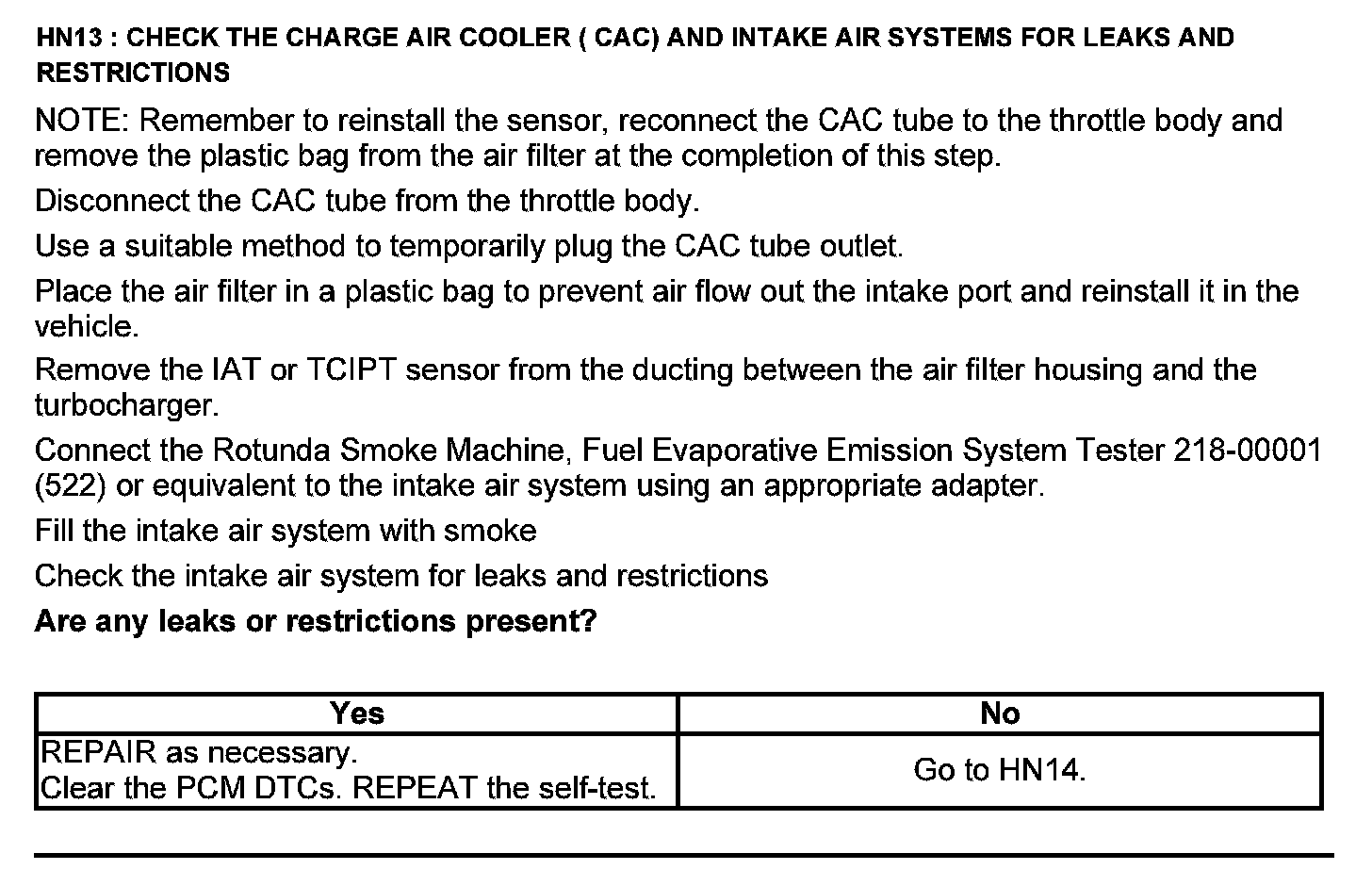

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
