Test HK: Variable Camshaft Timing (VCT)



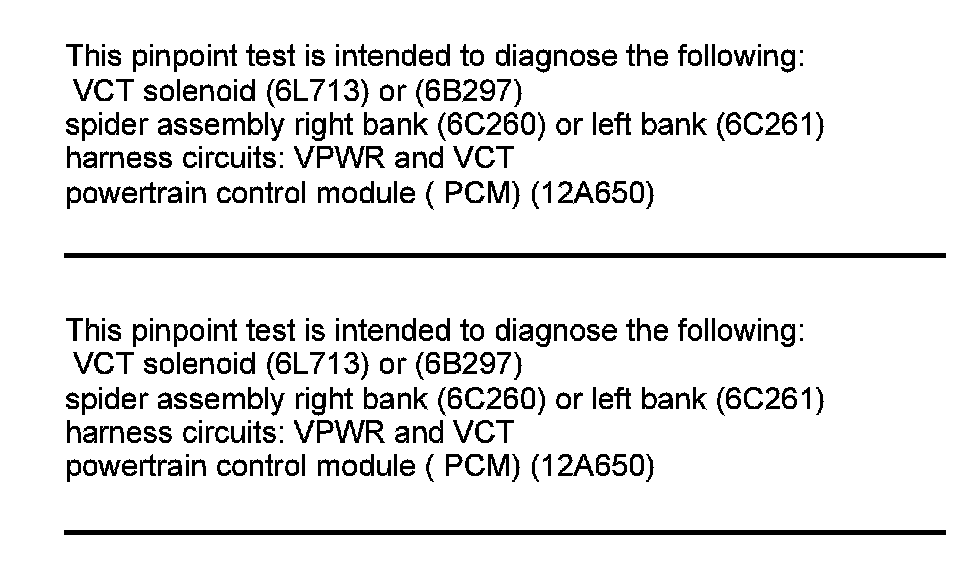

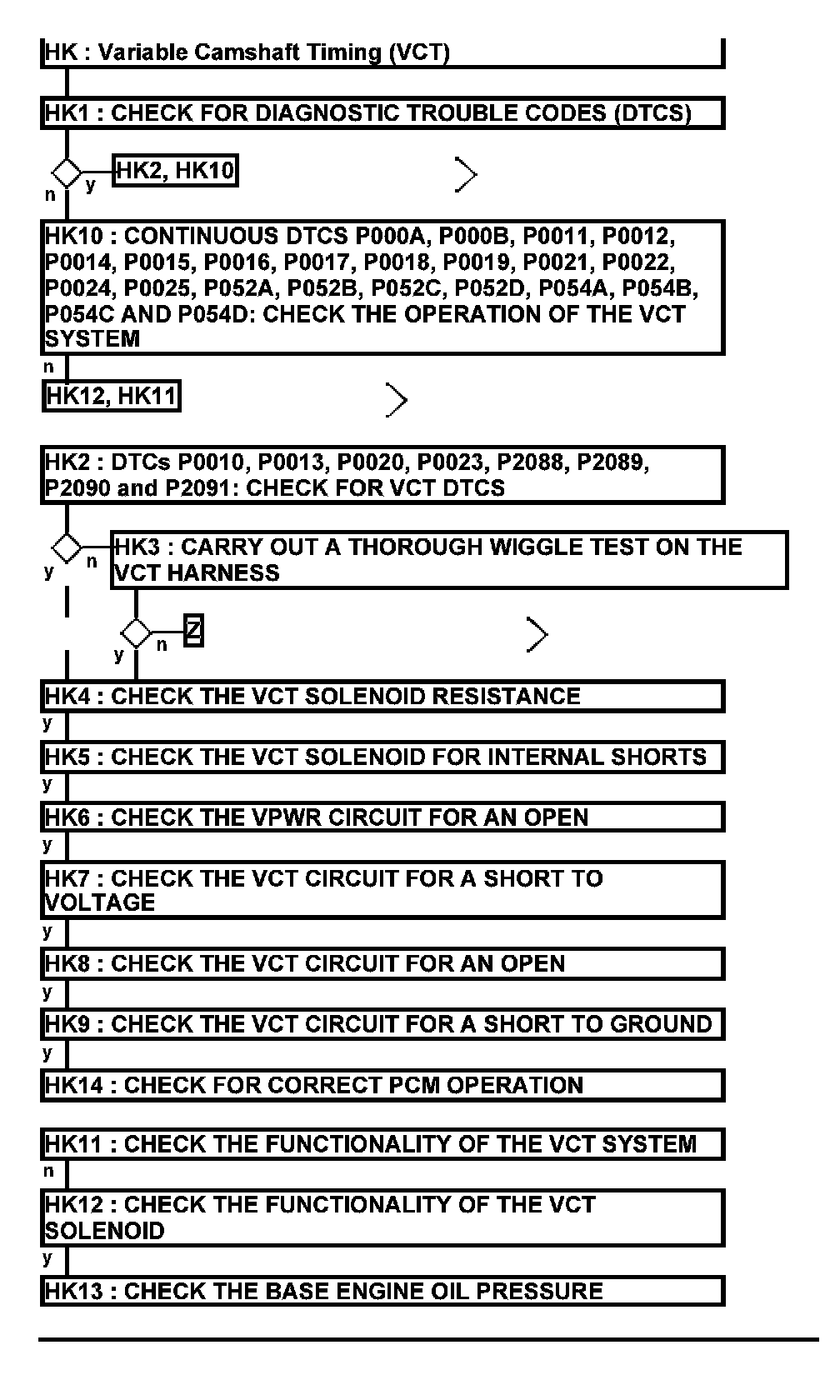

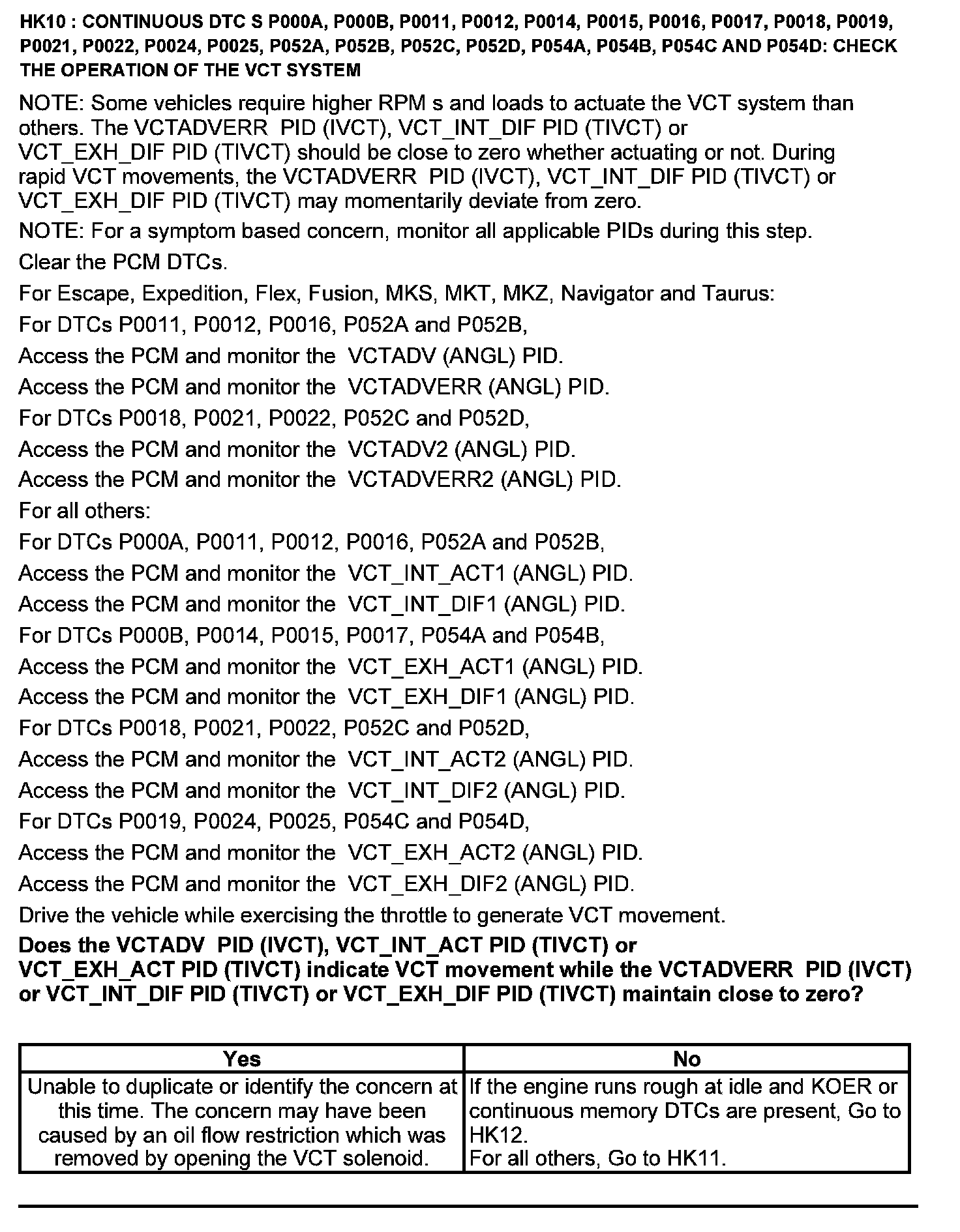

Variable Camshaft Timing (VCT)

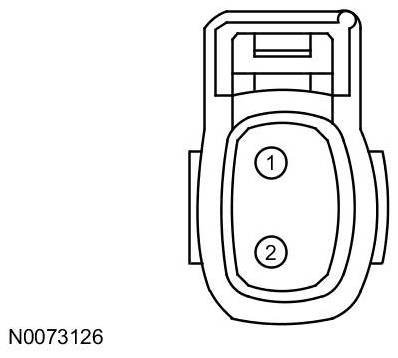

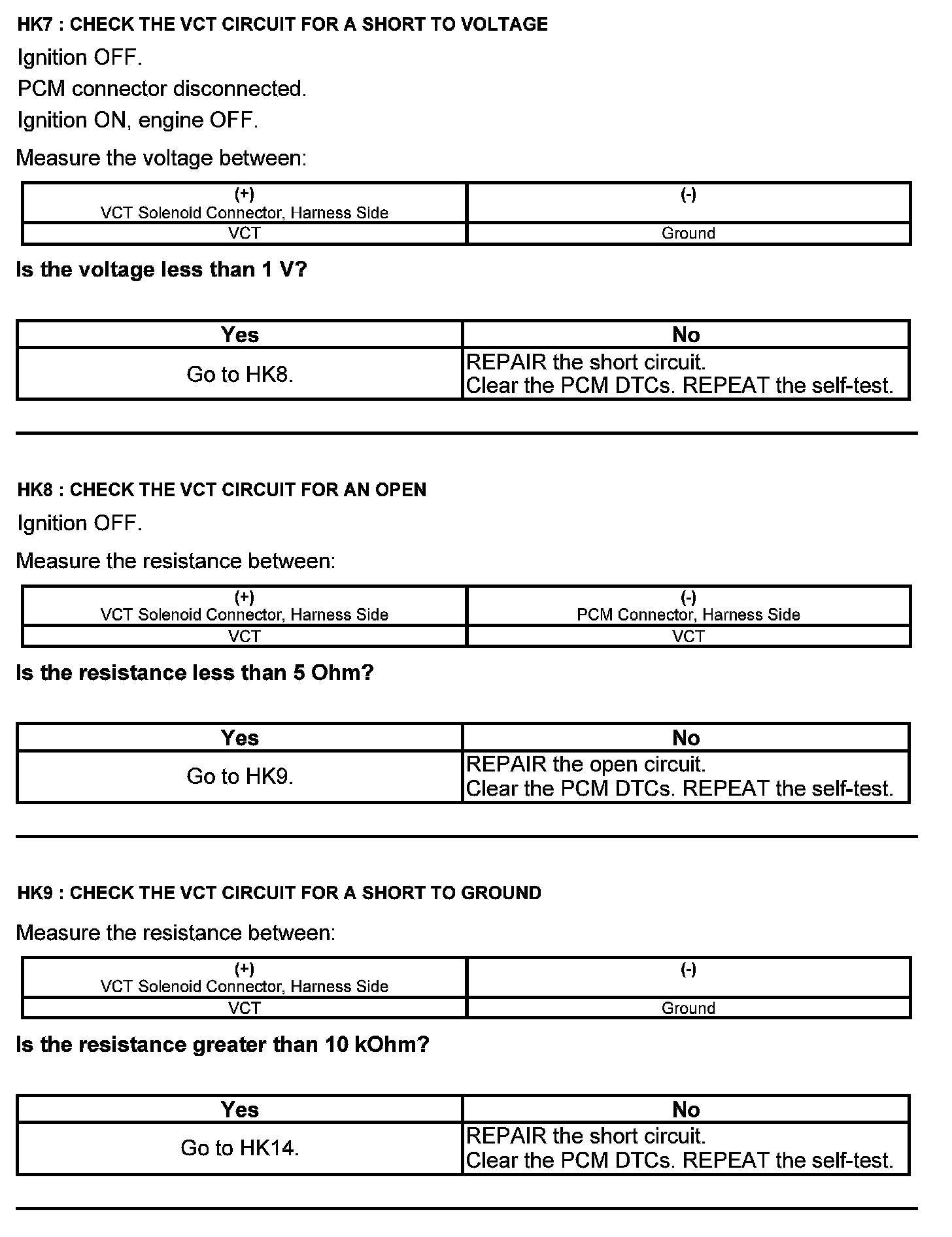

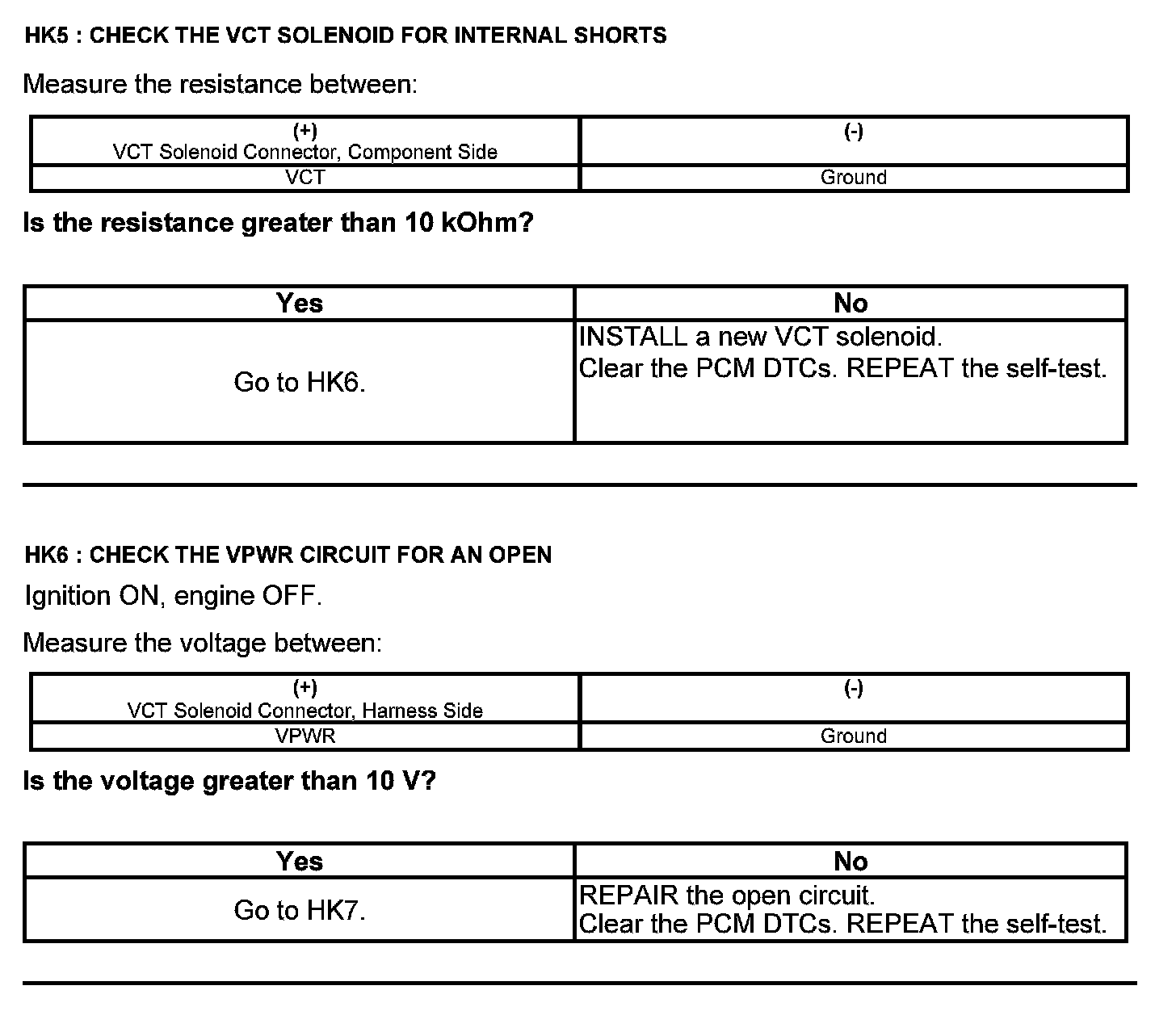

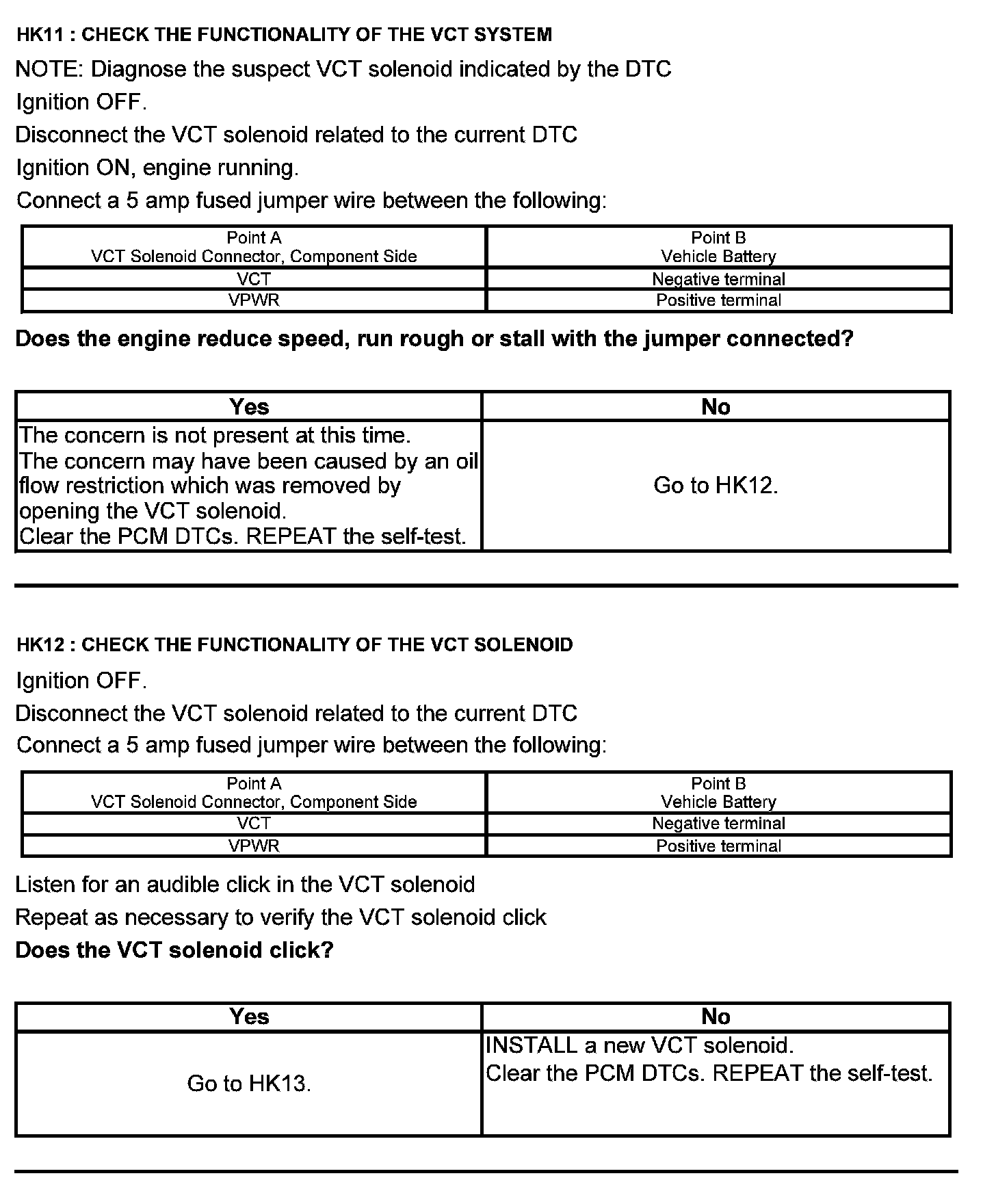

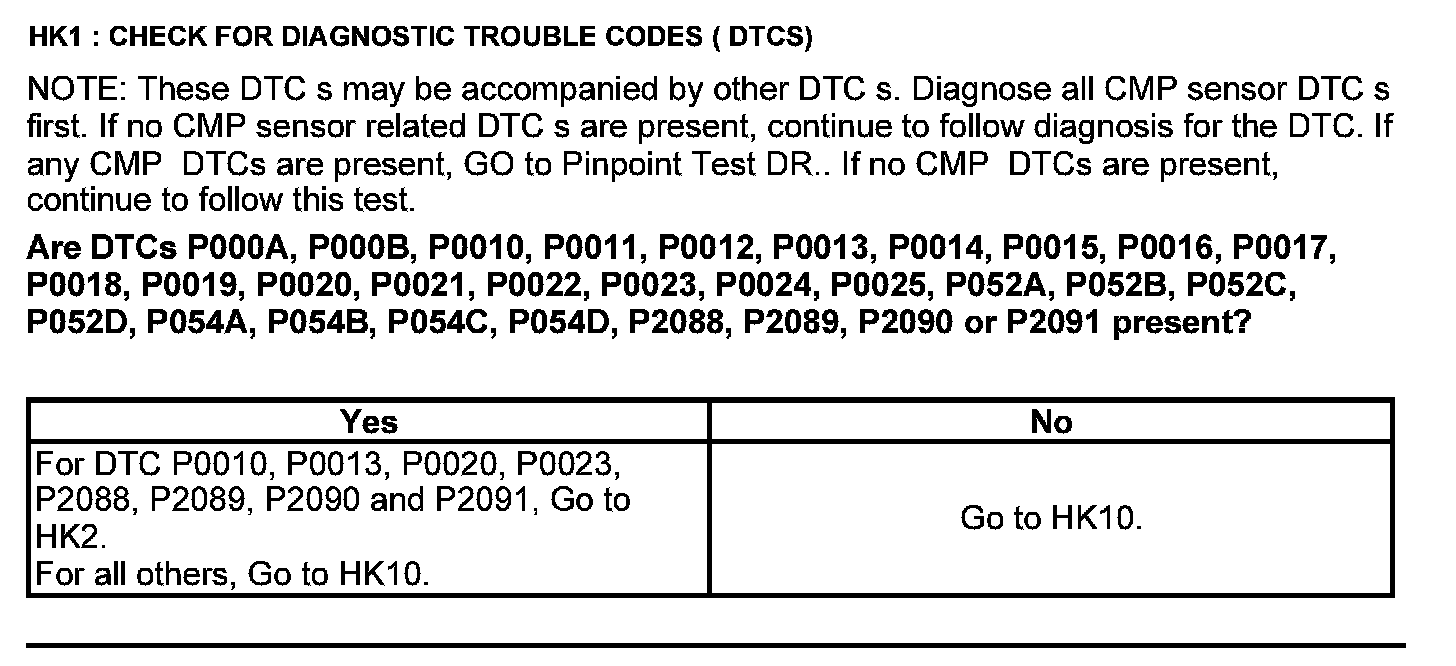

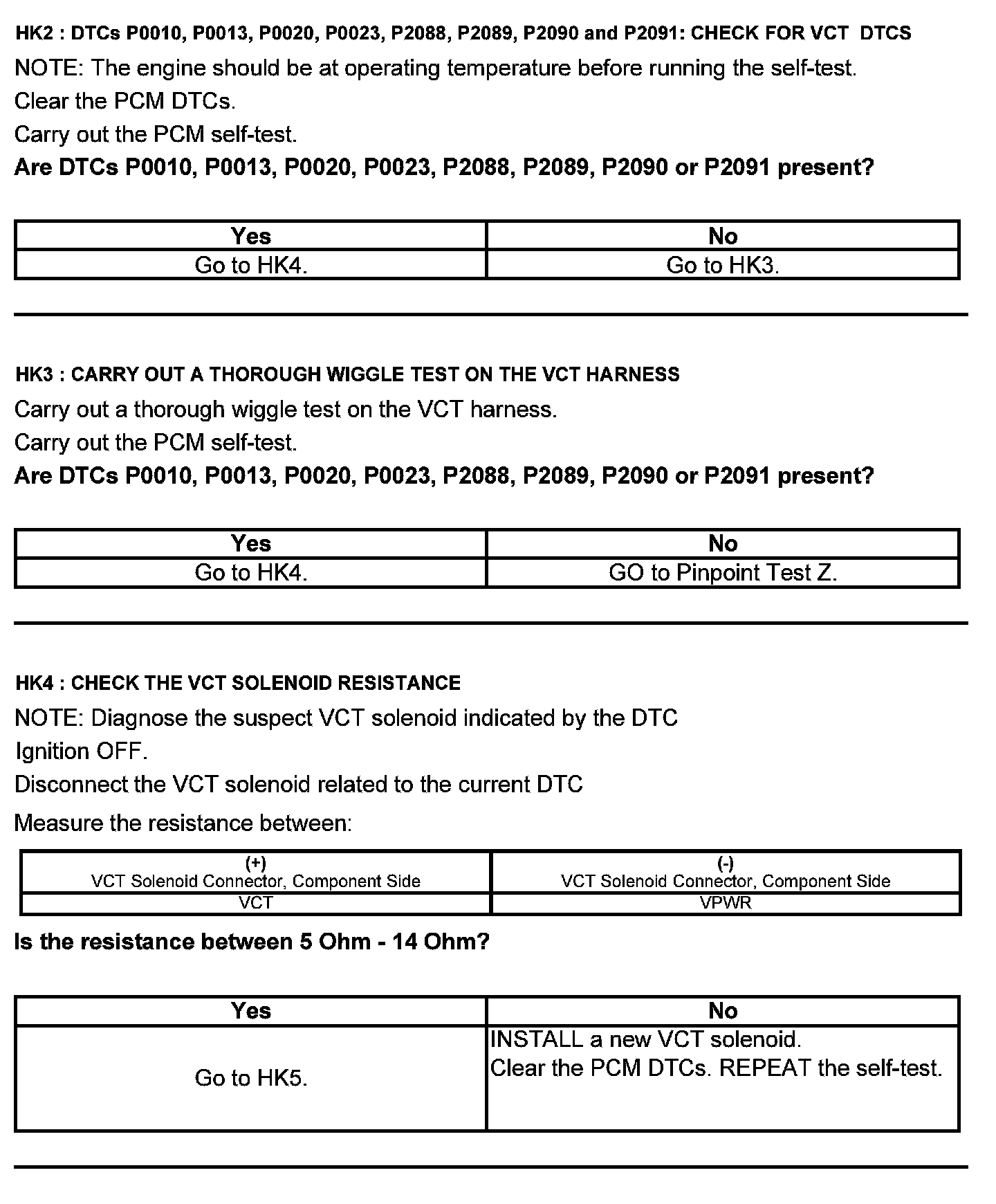

Variable Camshaft Timing Bank 1 (VCT1) Solenoid Connector






Harness Side







Variable Camshaft Timing Bank 2 (VCT2) Solenoid Connector






Harness Side







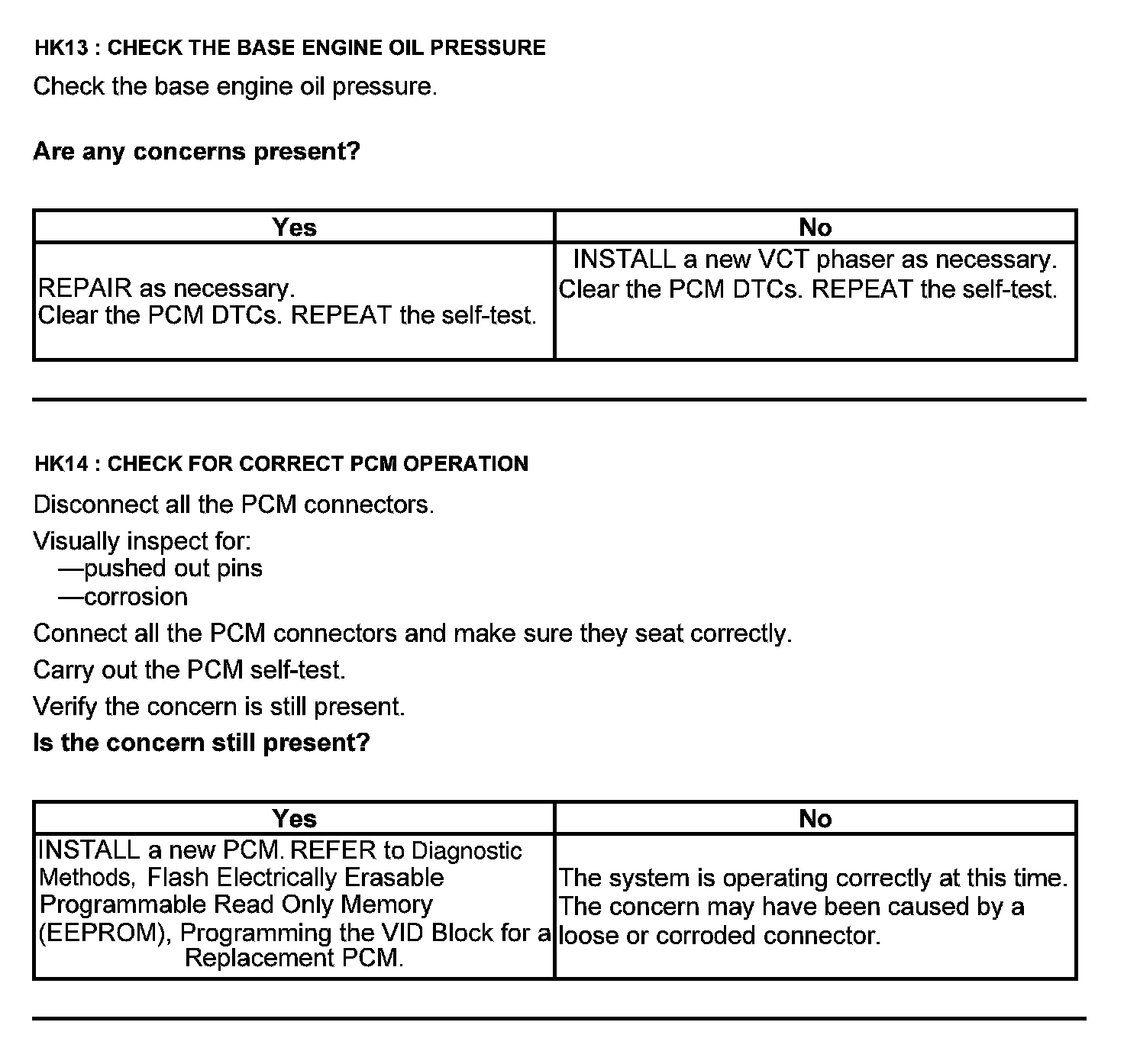

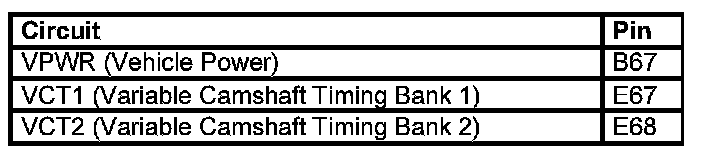

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
