Home >> Ford >> 2012 >> Fusion AWD V6-3.0L Flex Fuel >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test HC: Fuel Delivery System >> Vehicles That Don't Start

Vehicles That Don't Start

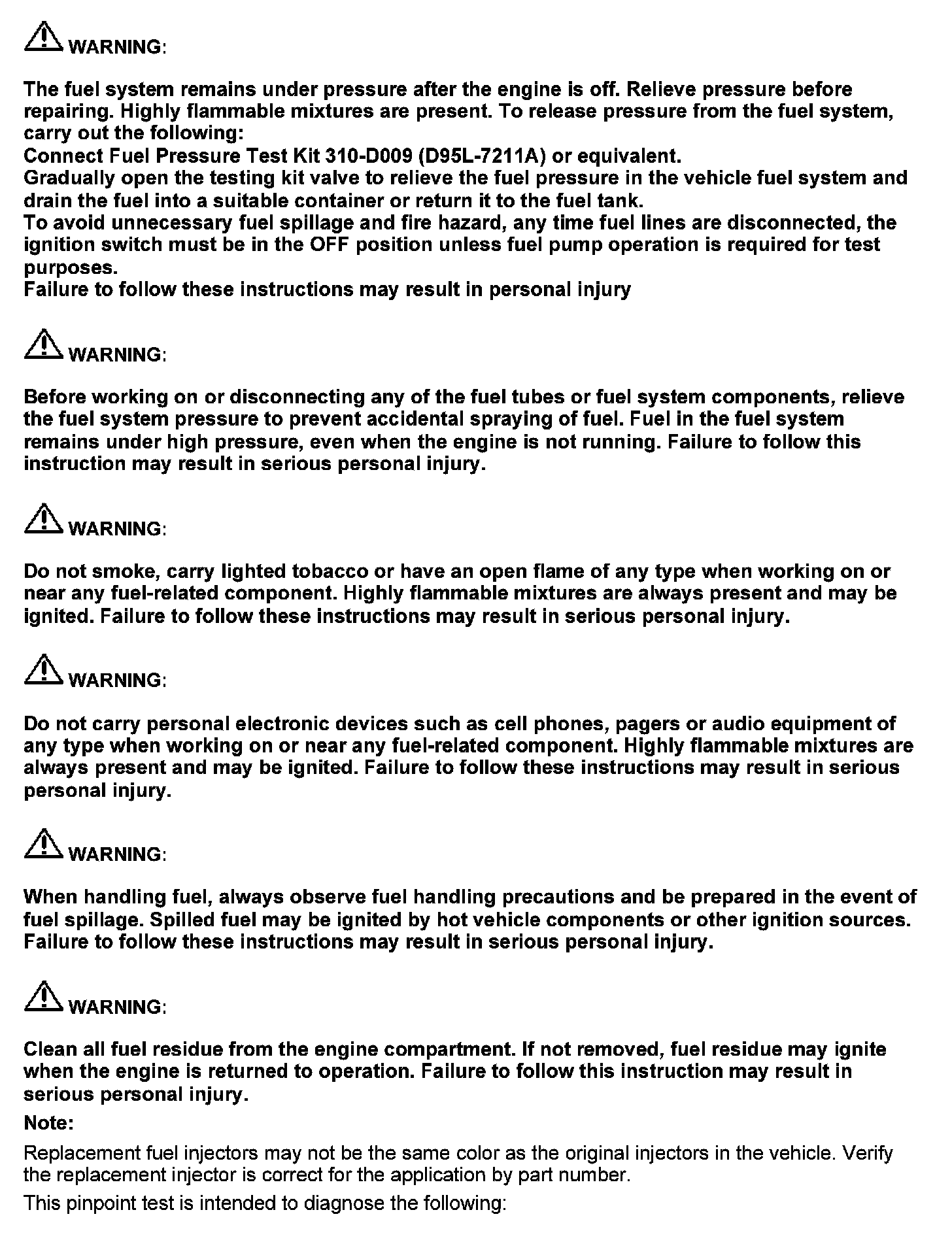

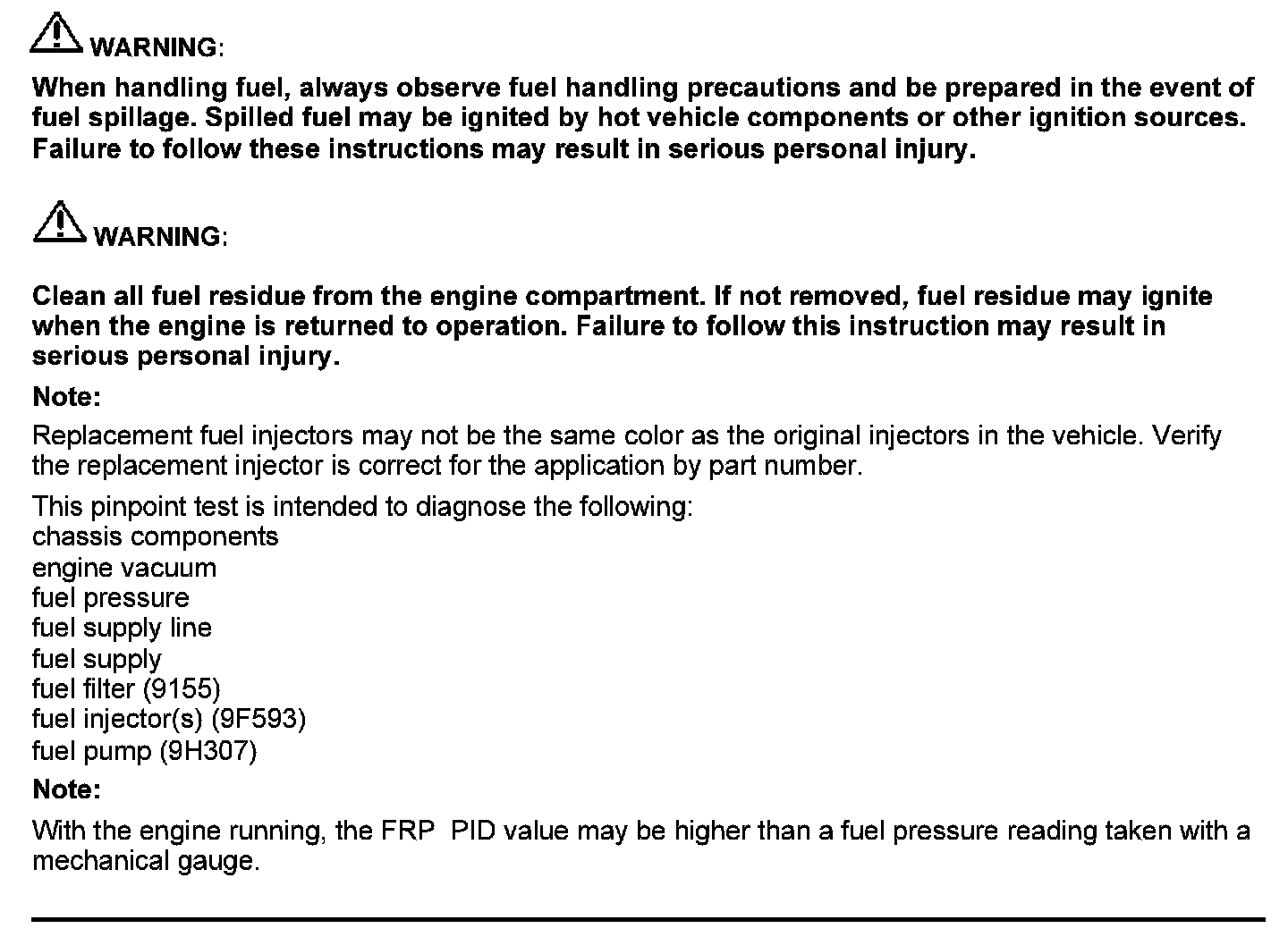

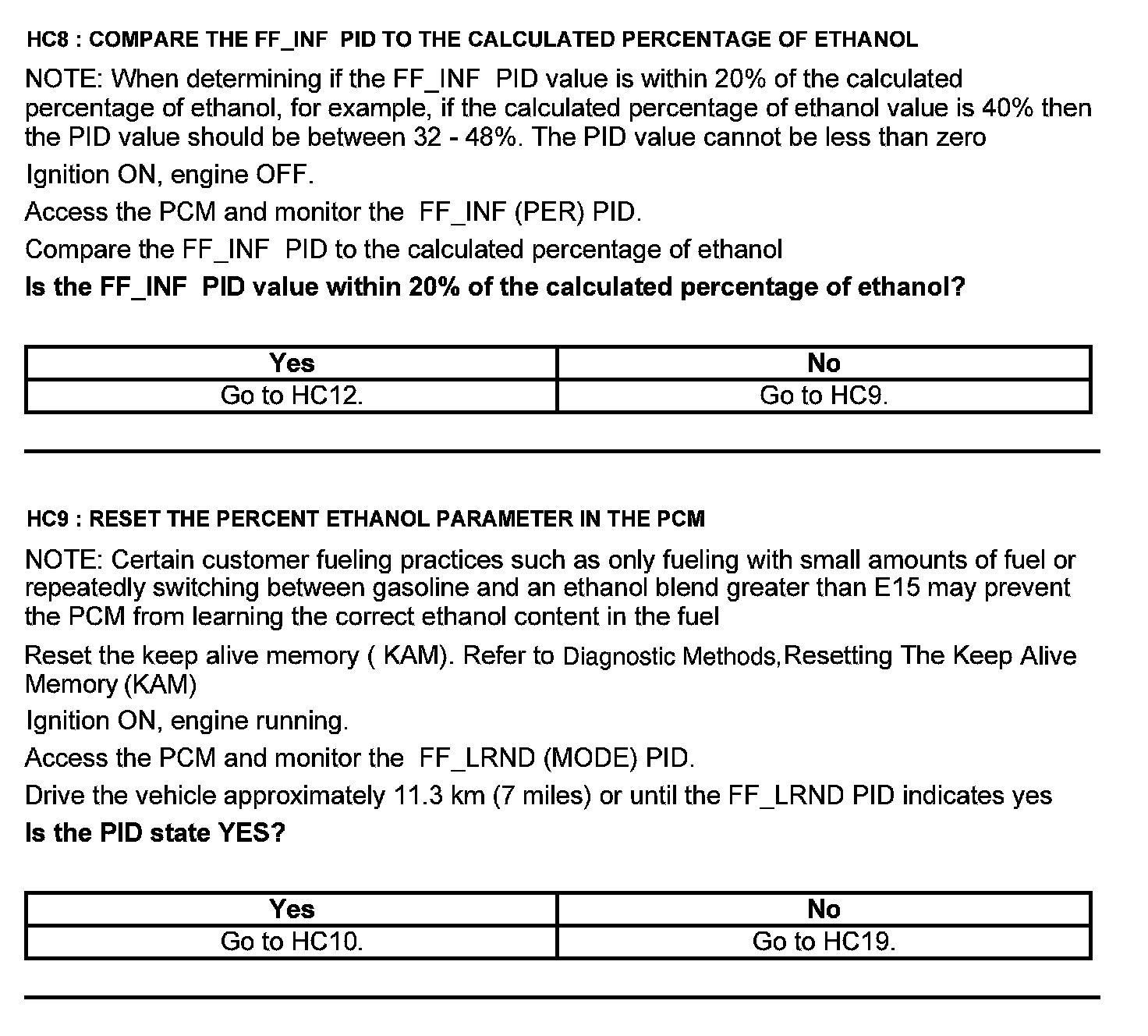

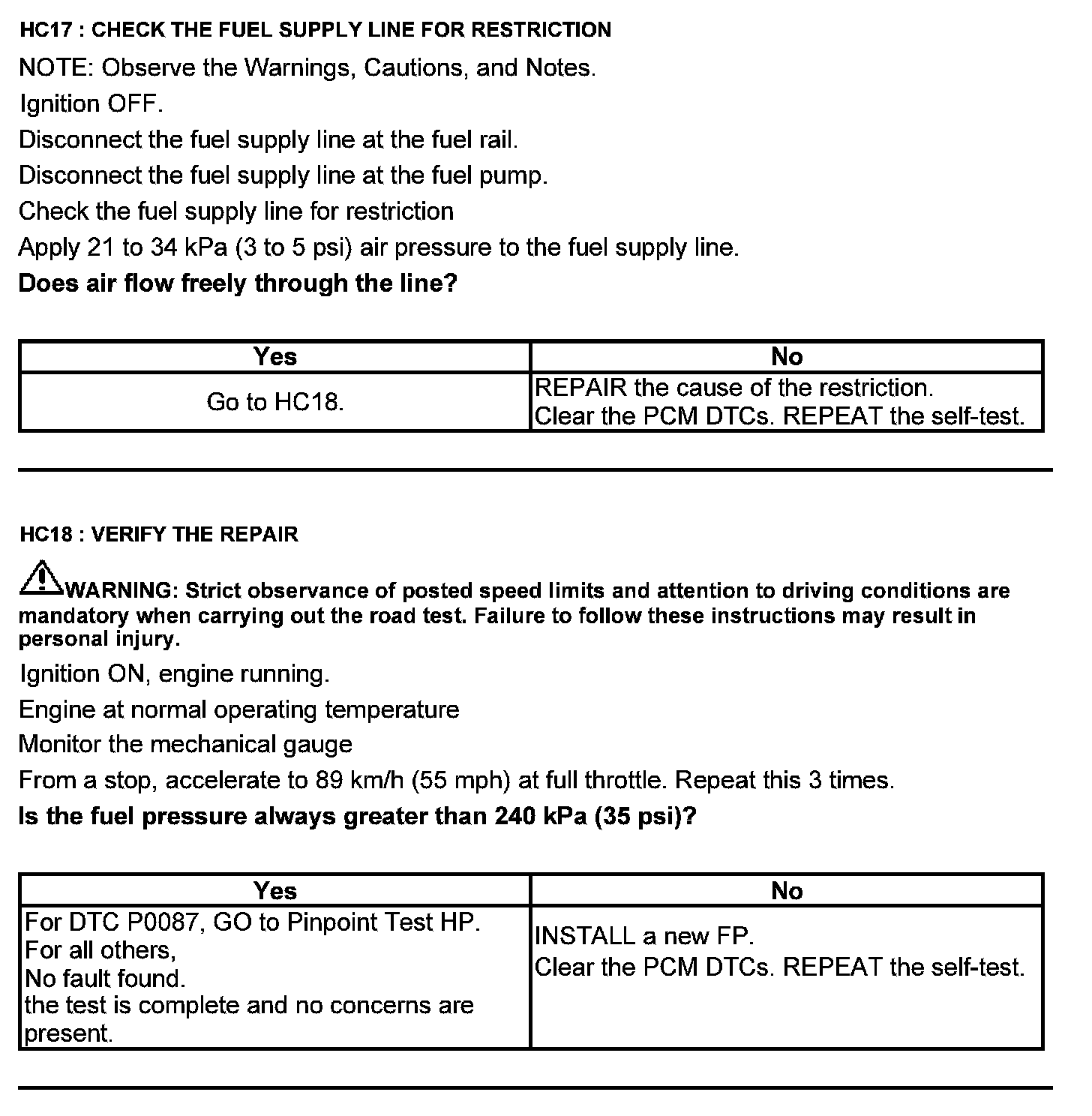

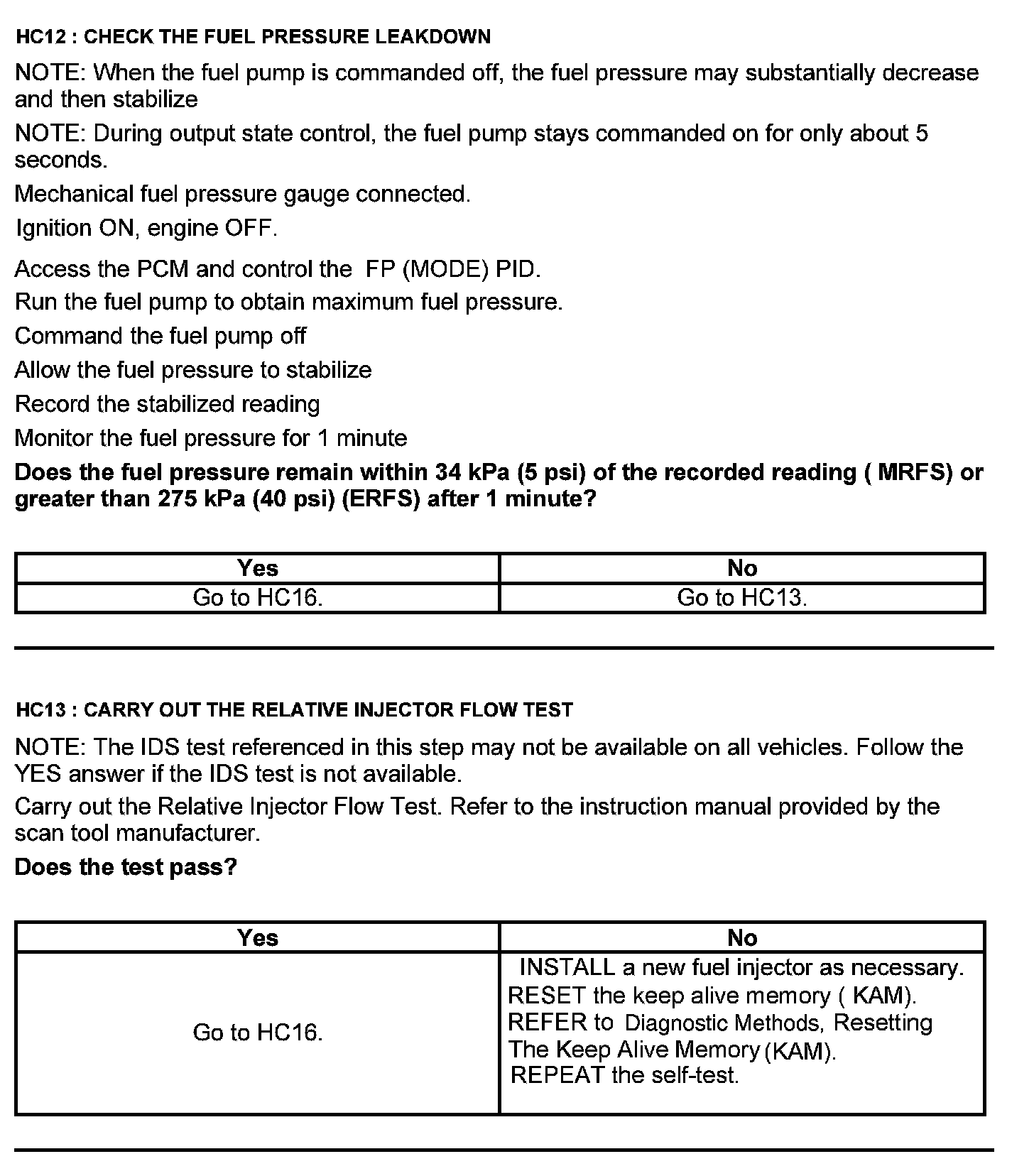

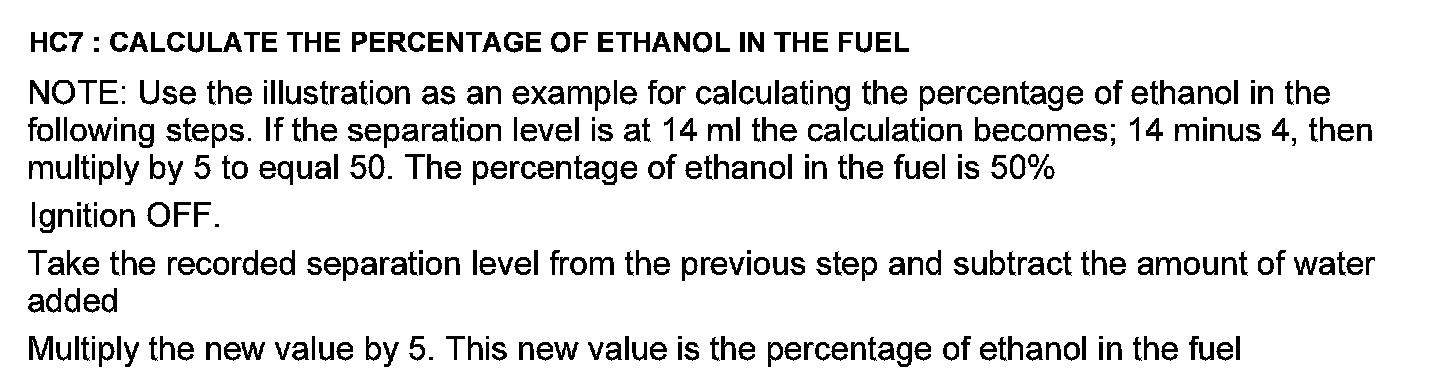

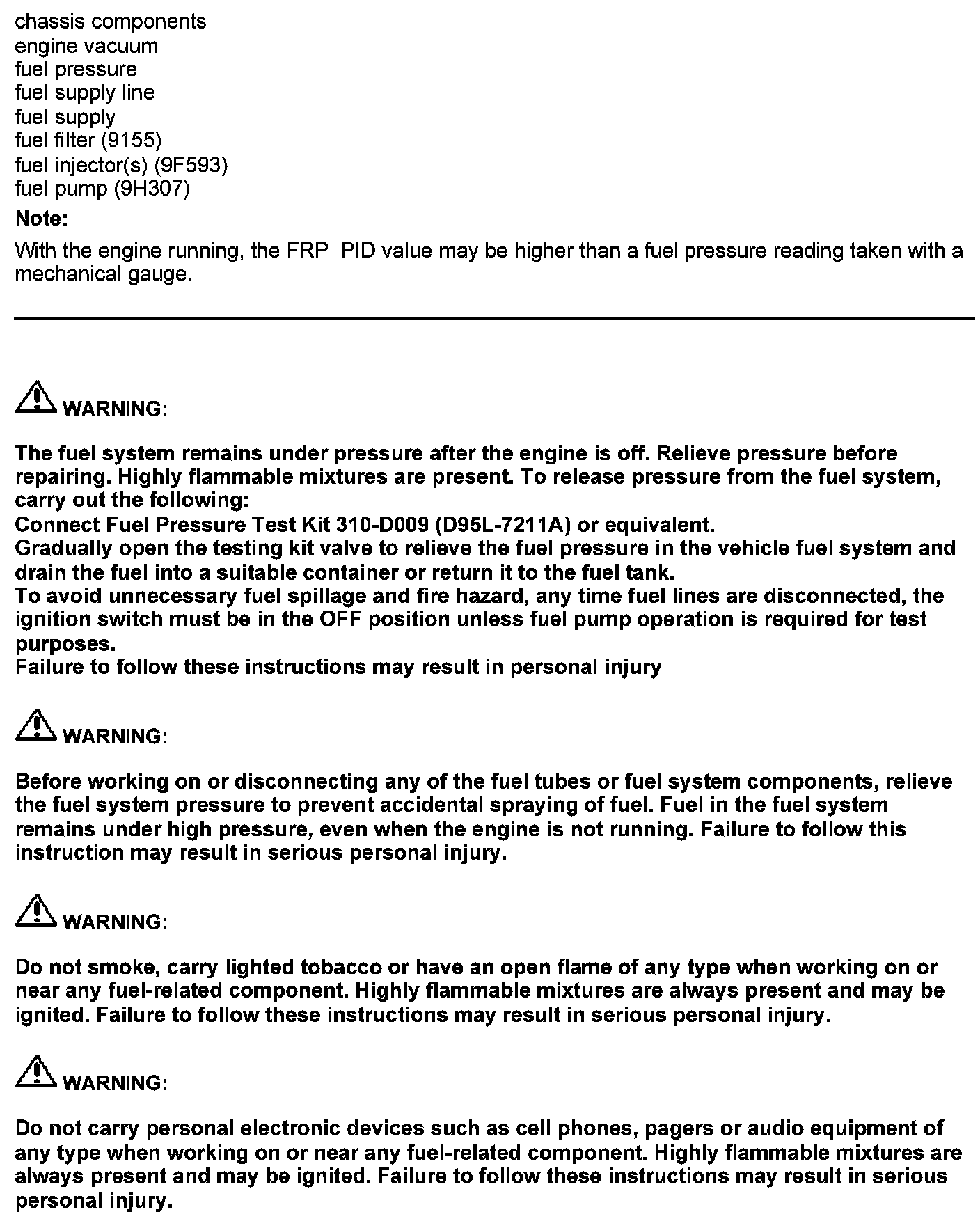

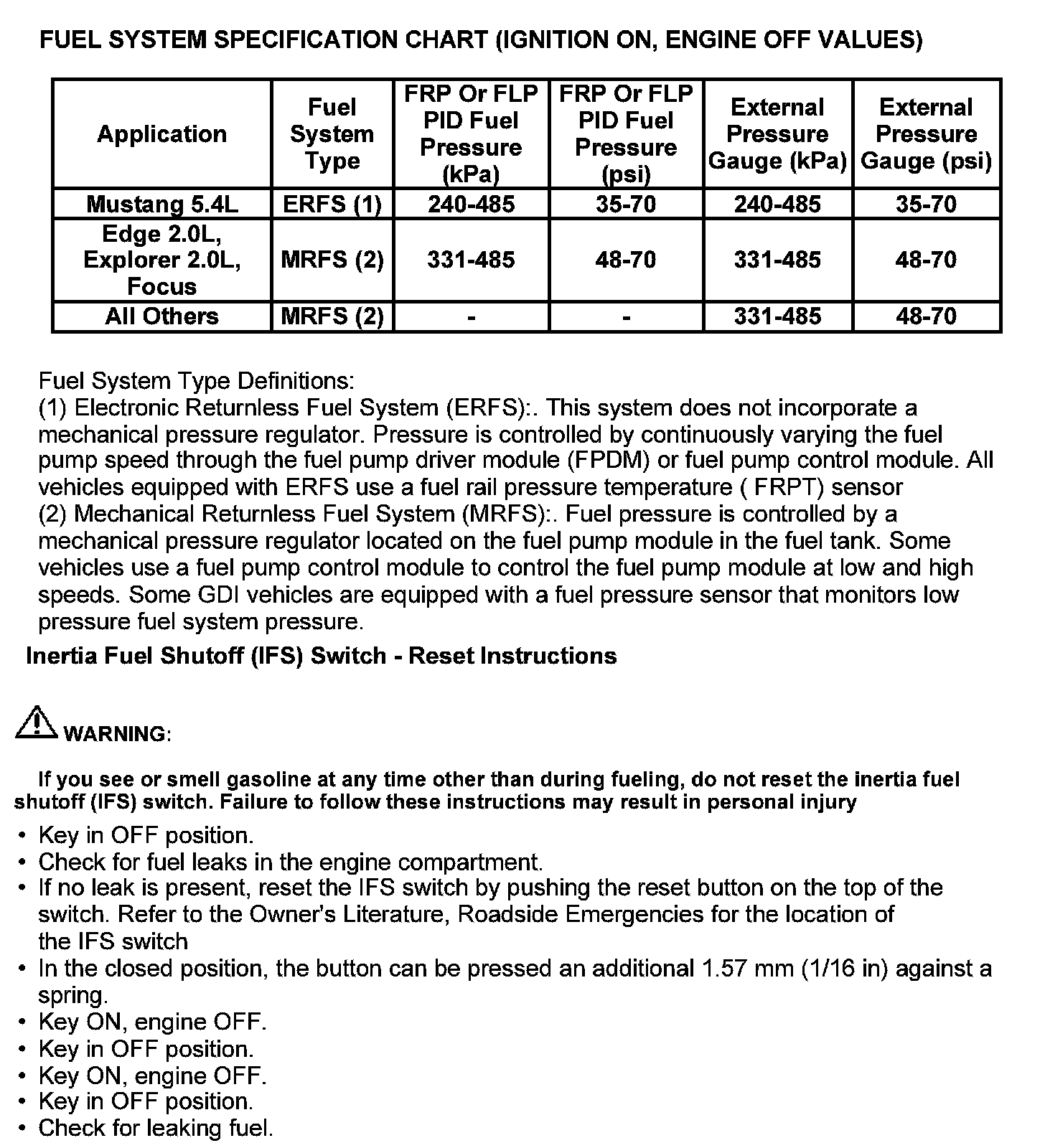

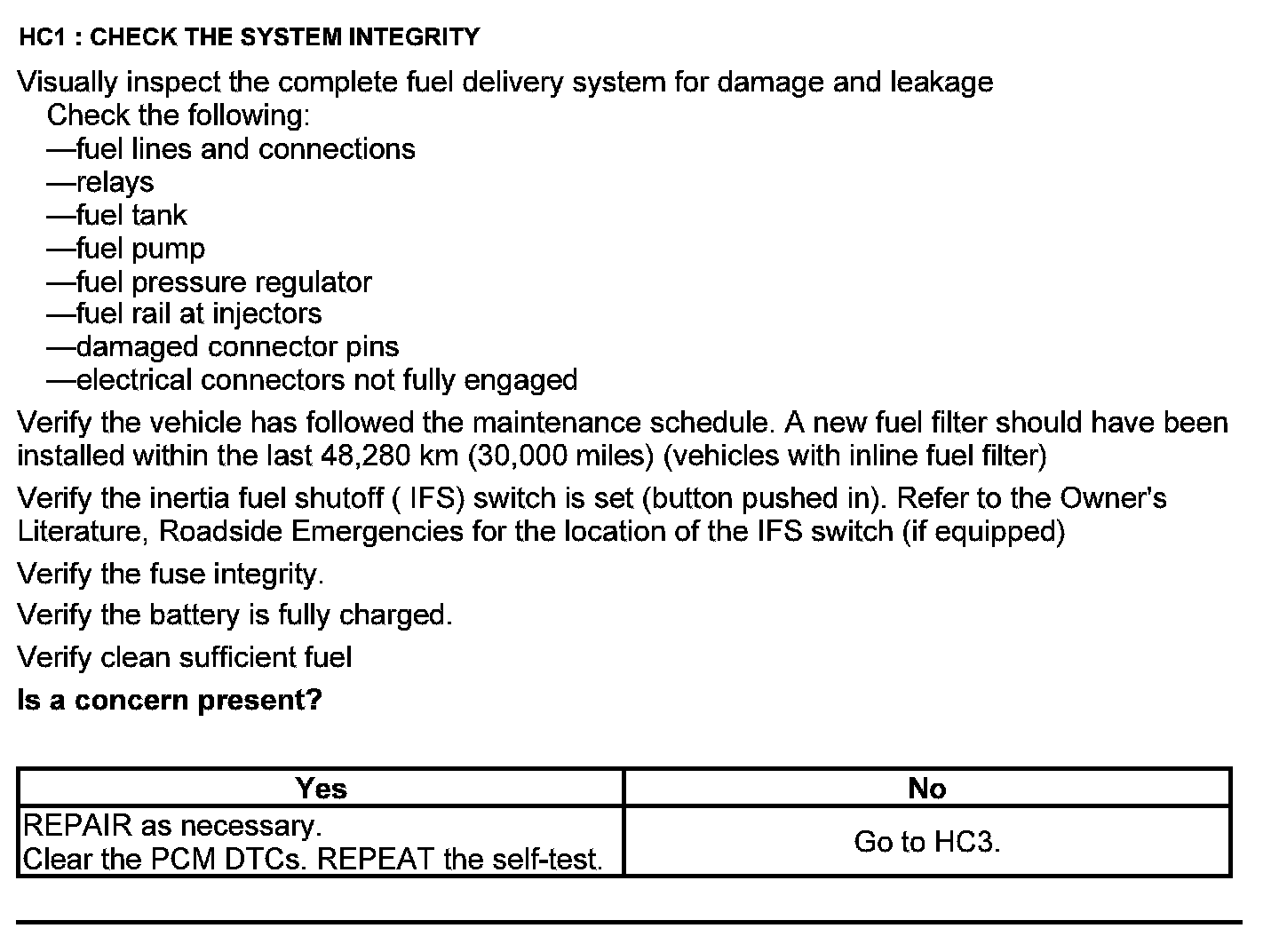

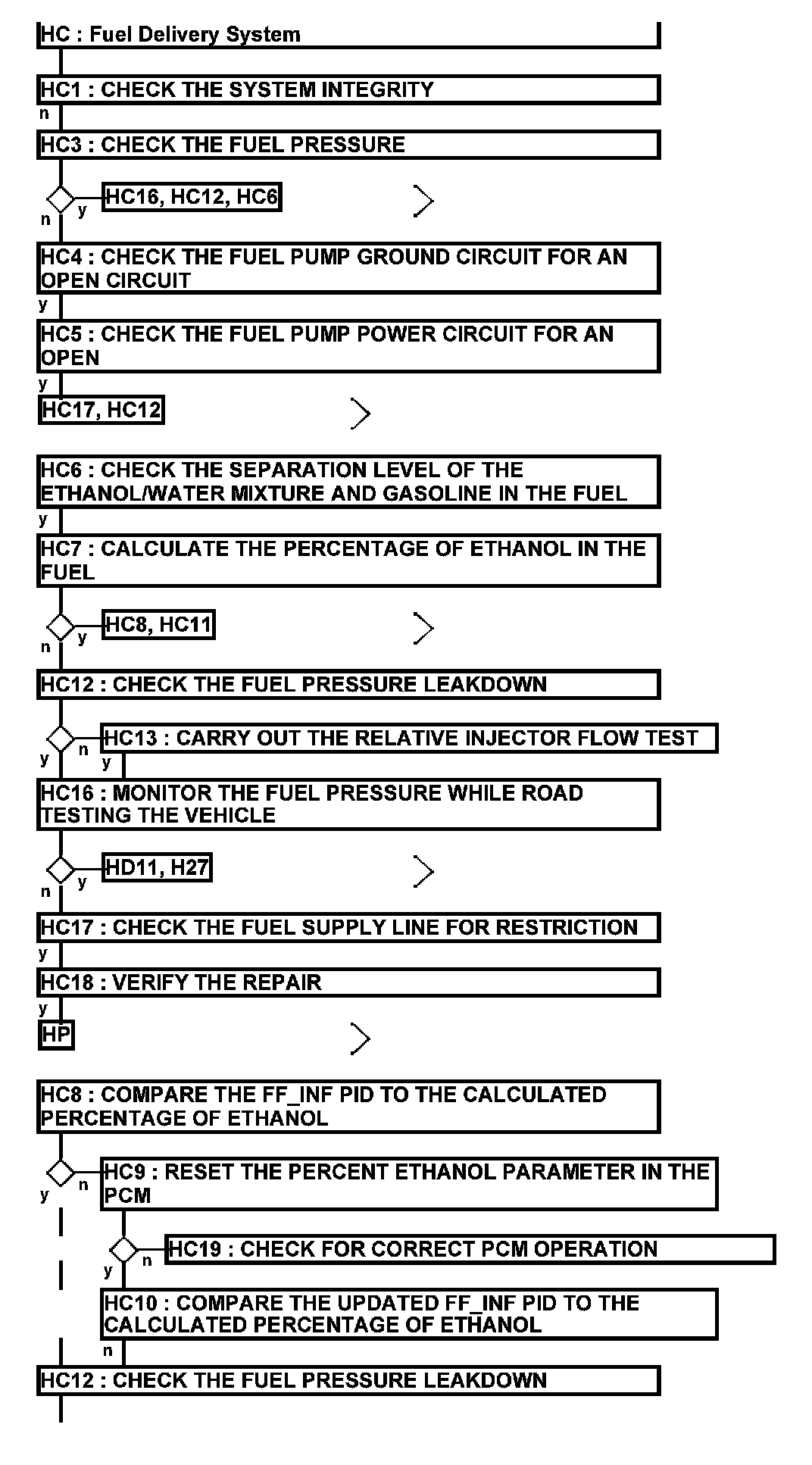

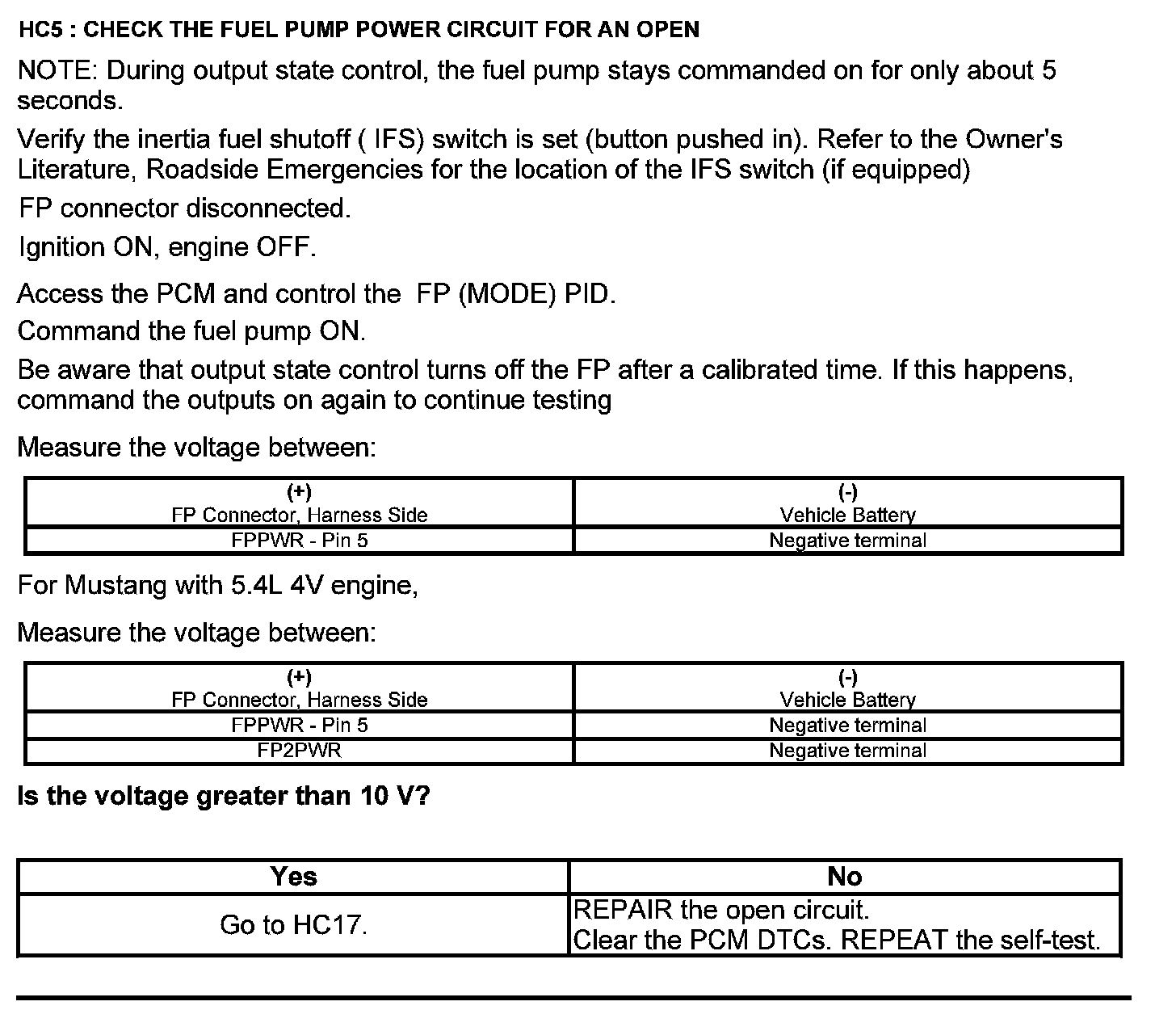

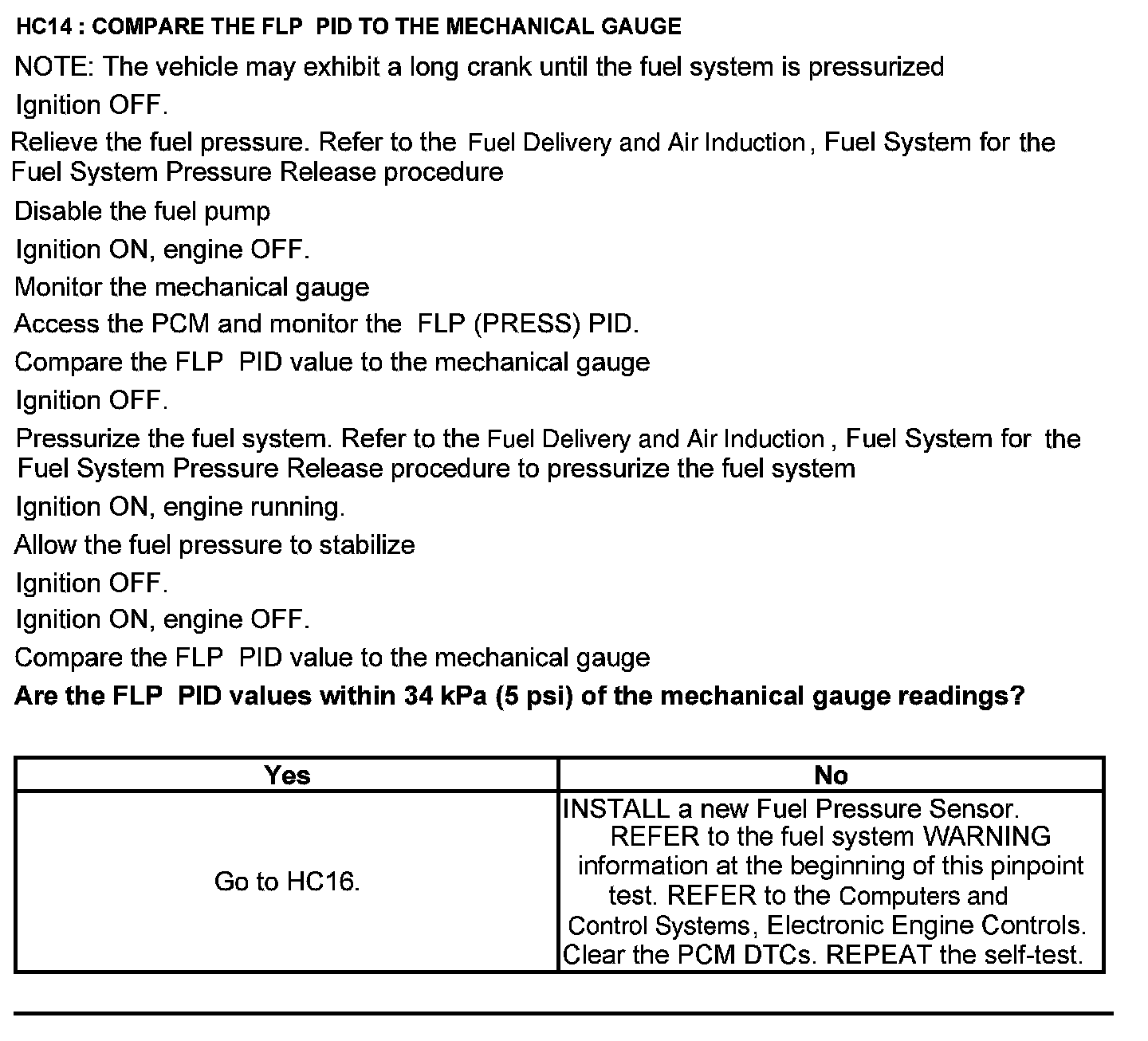

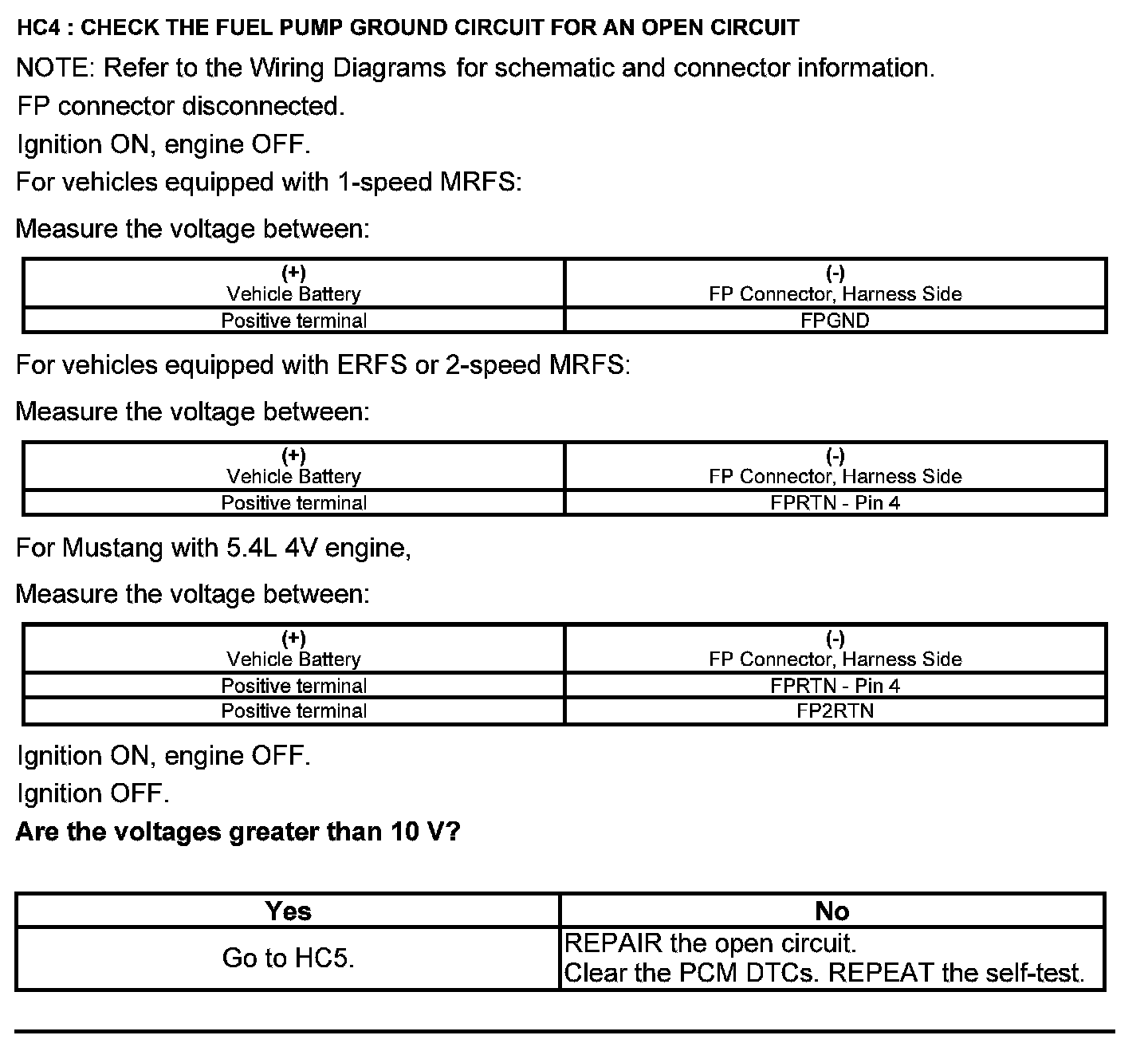

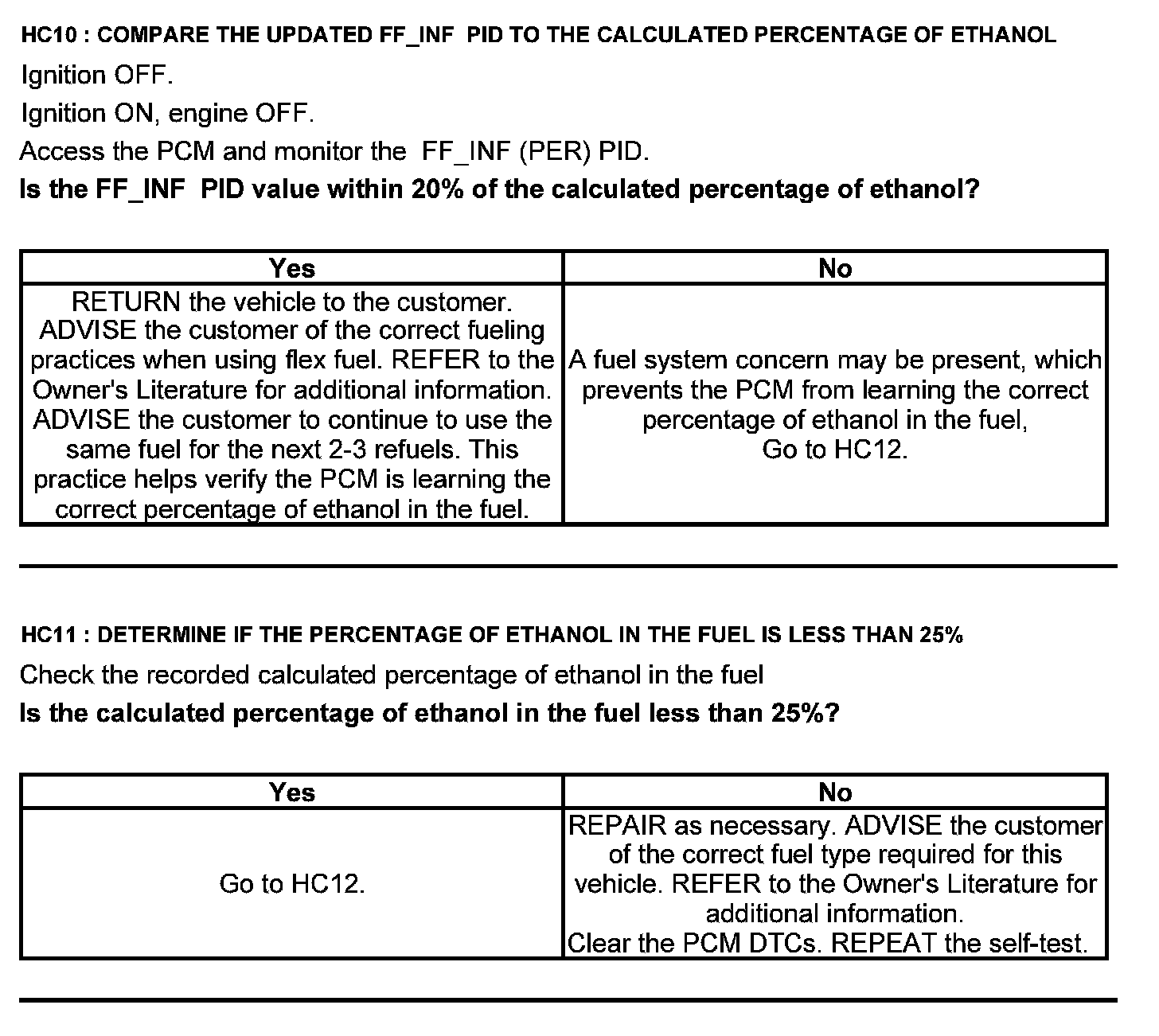

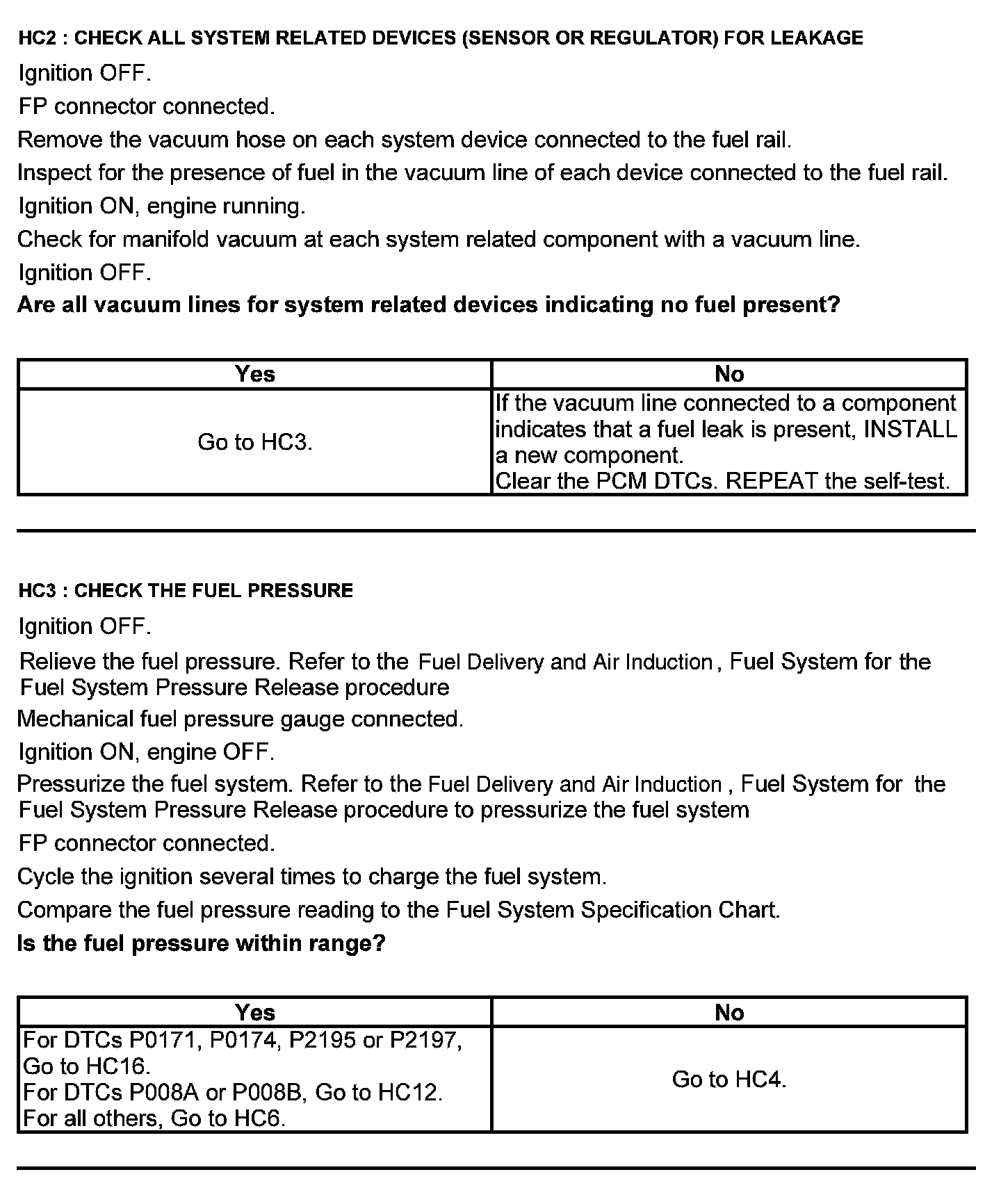

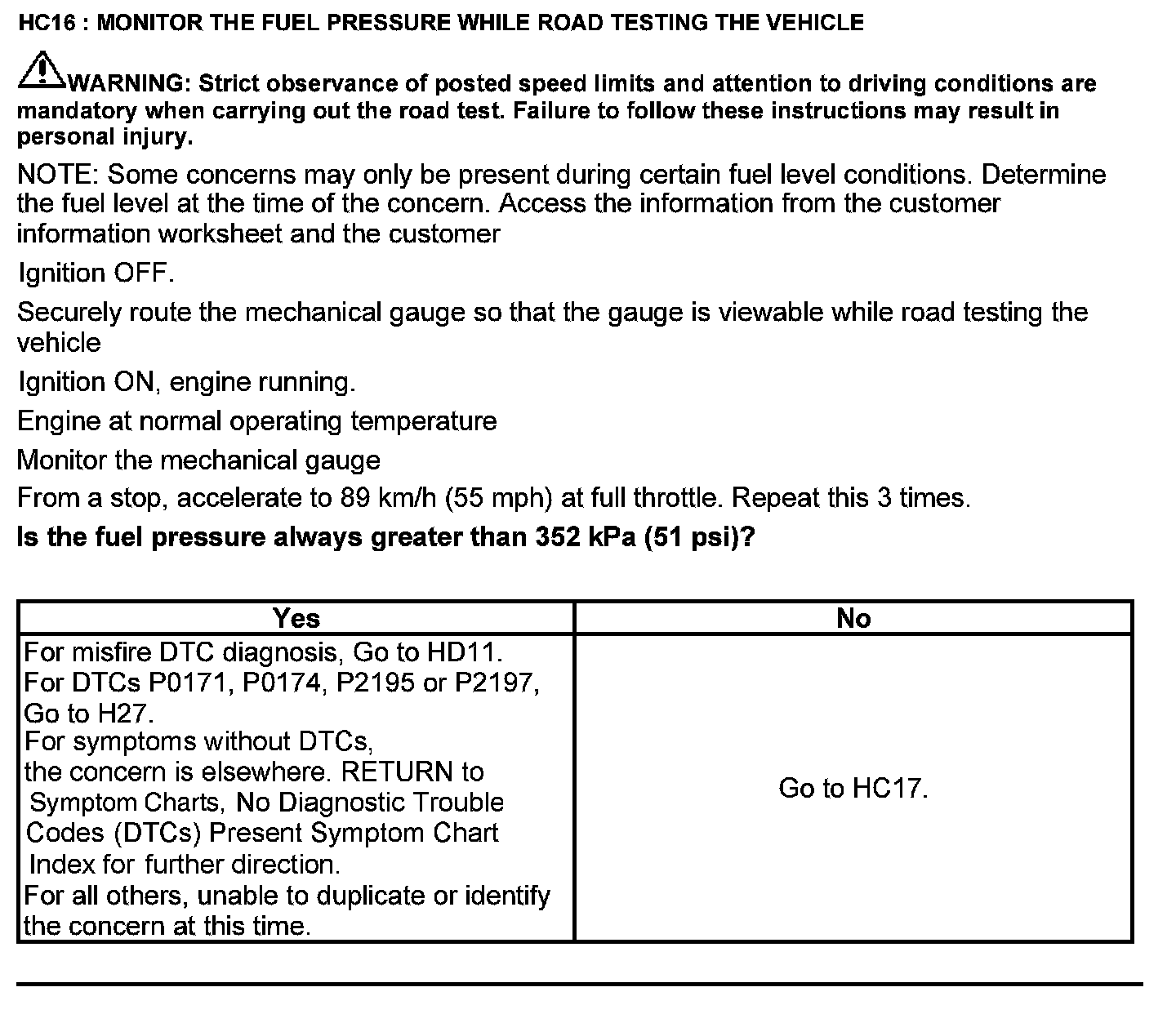

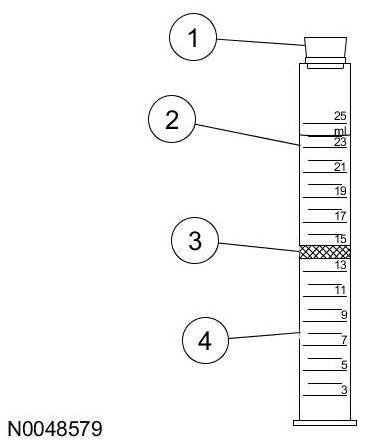

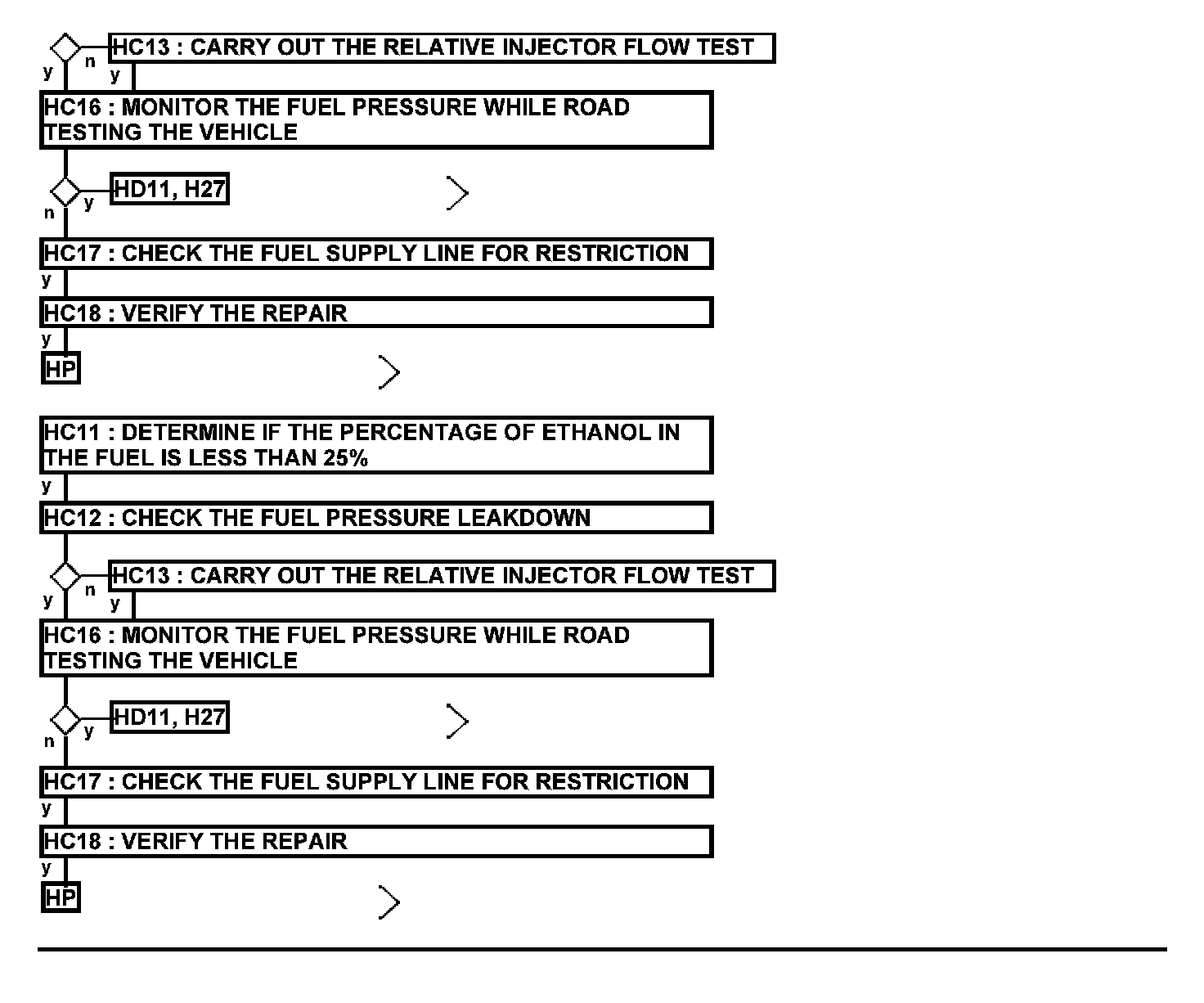

Fuel Delivery System - Vehicles That Don't Start.

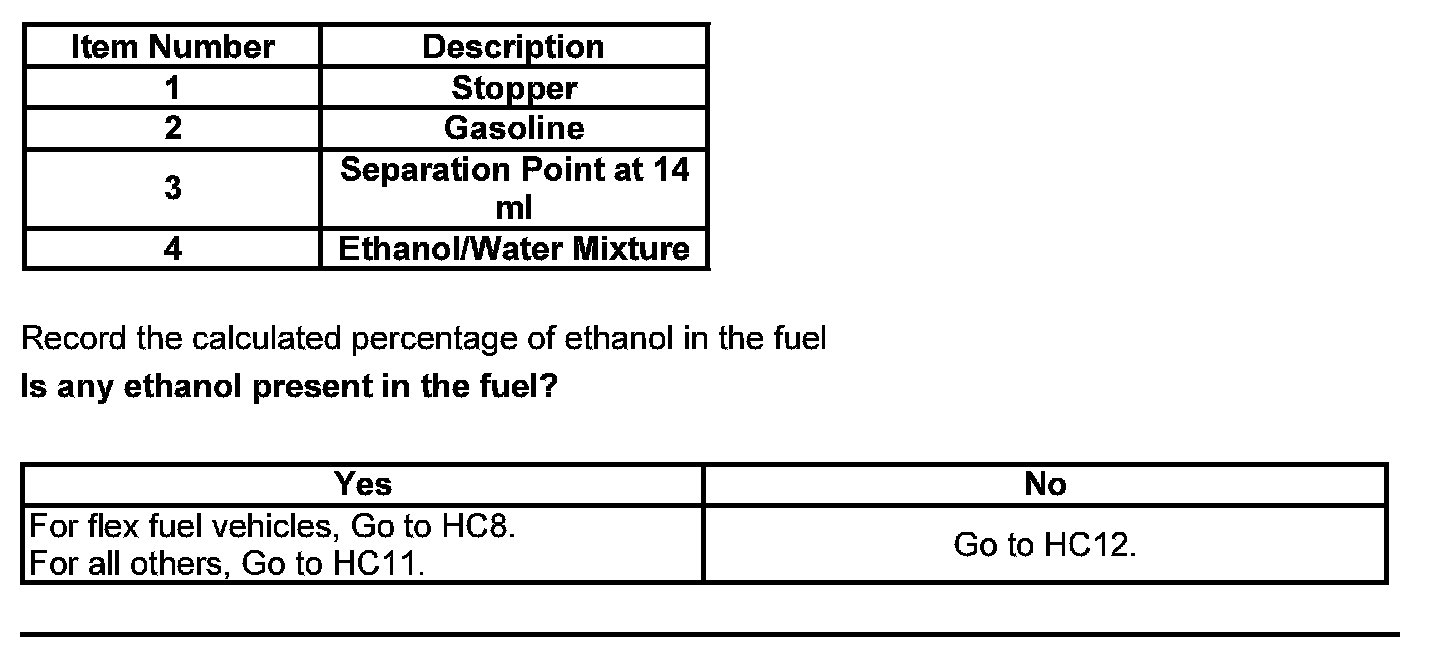

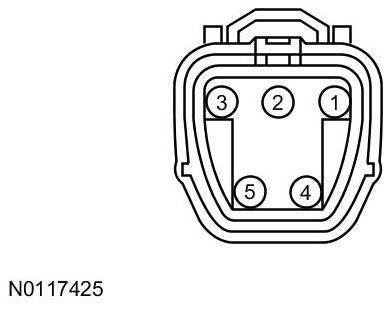

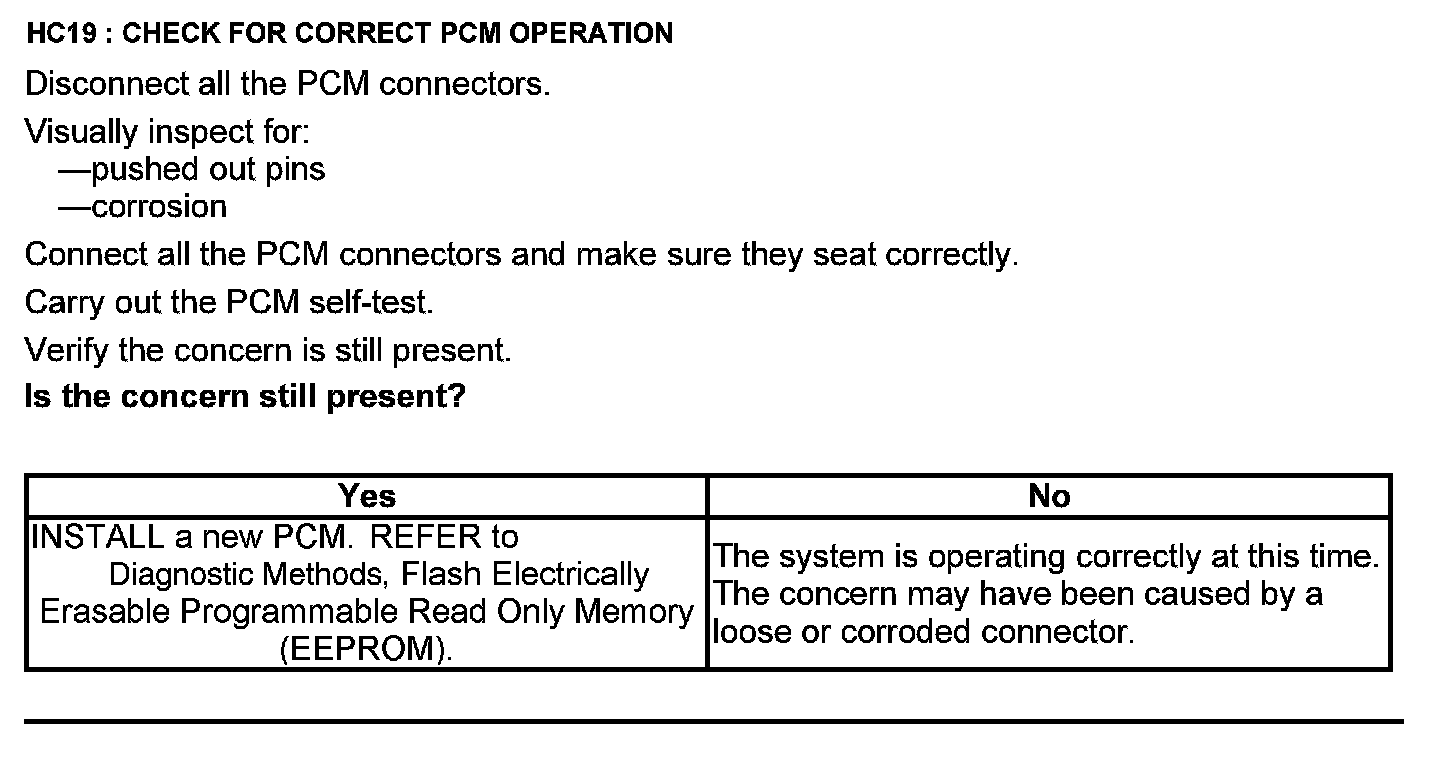

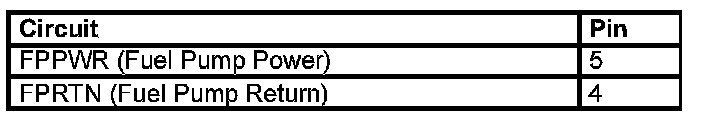

Fuel Pump (FP) Connector






Harness Side
