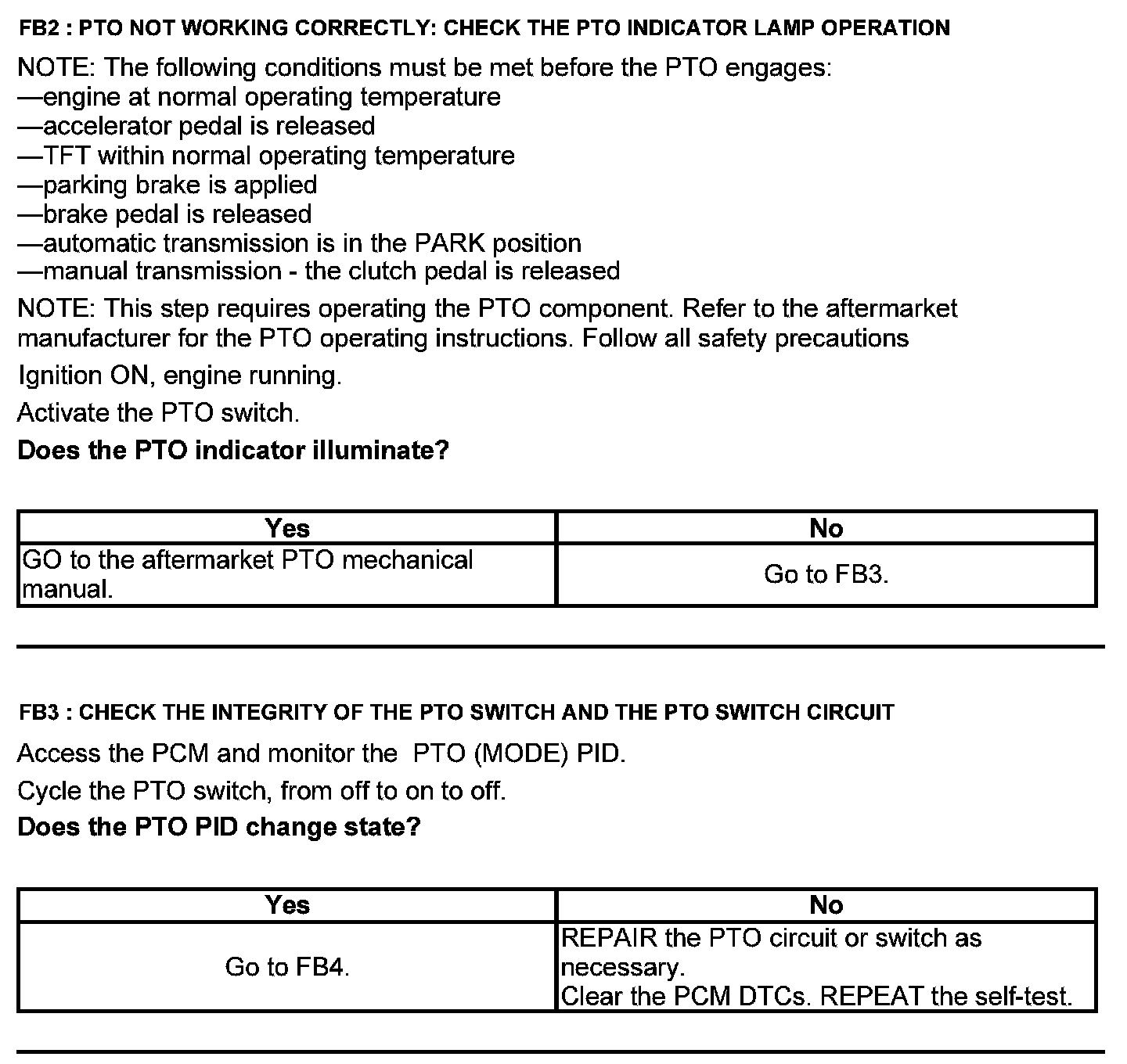

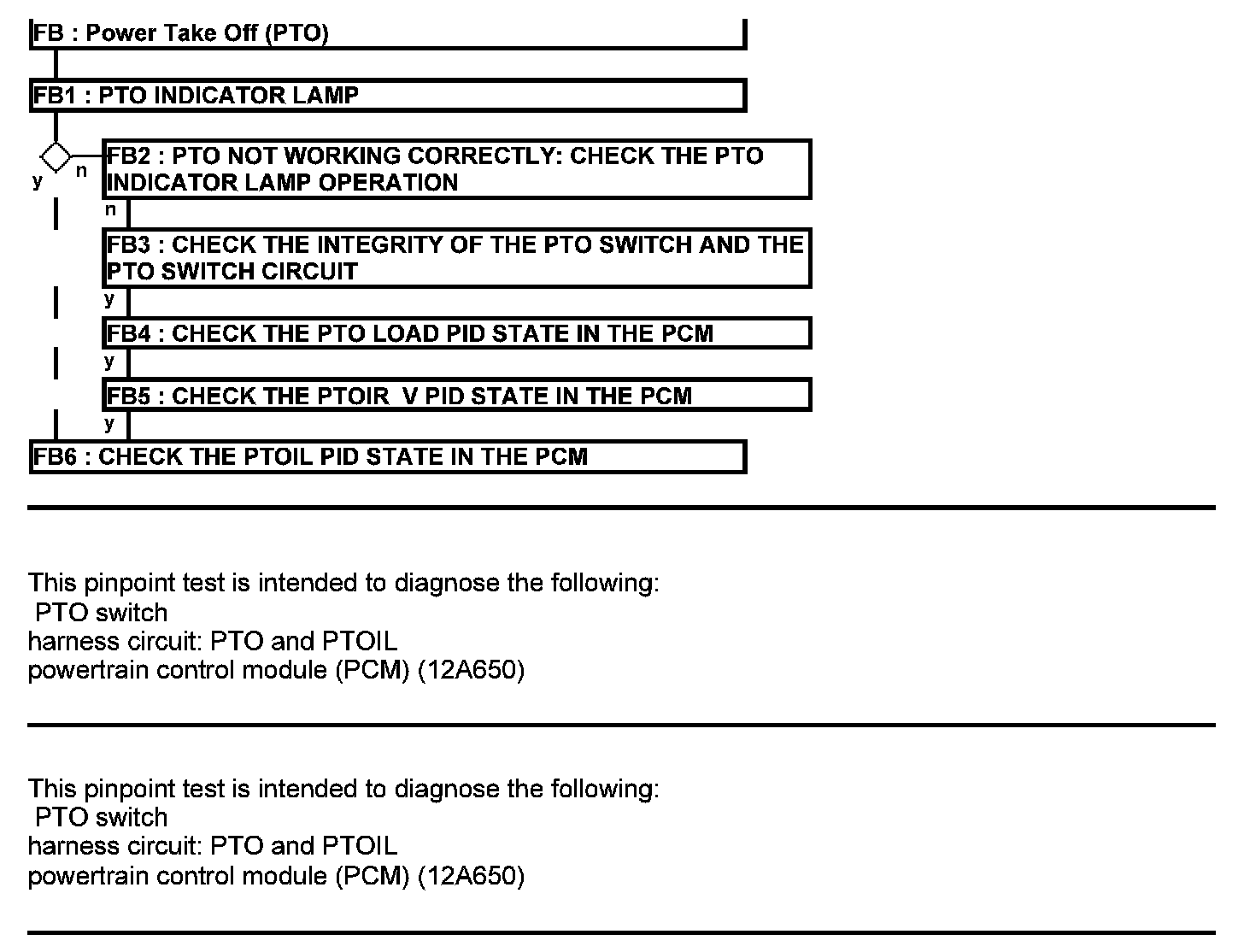

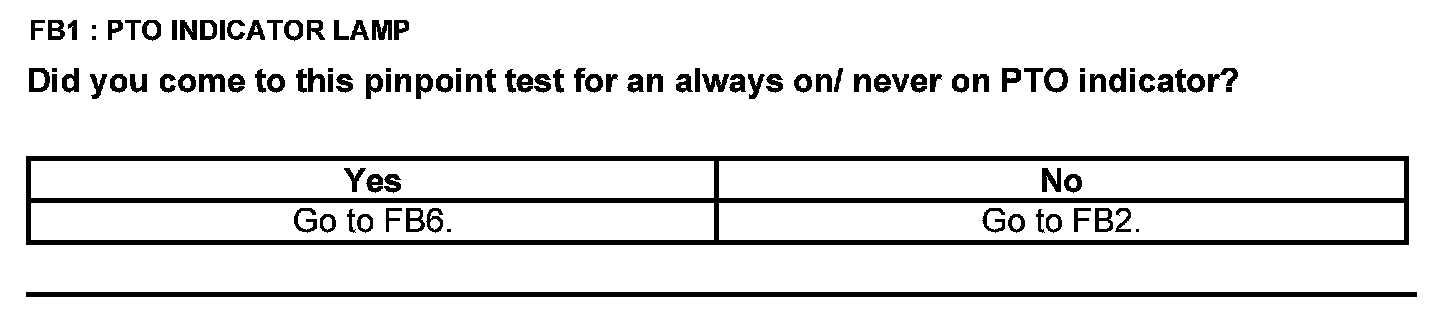

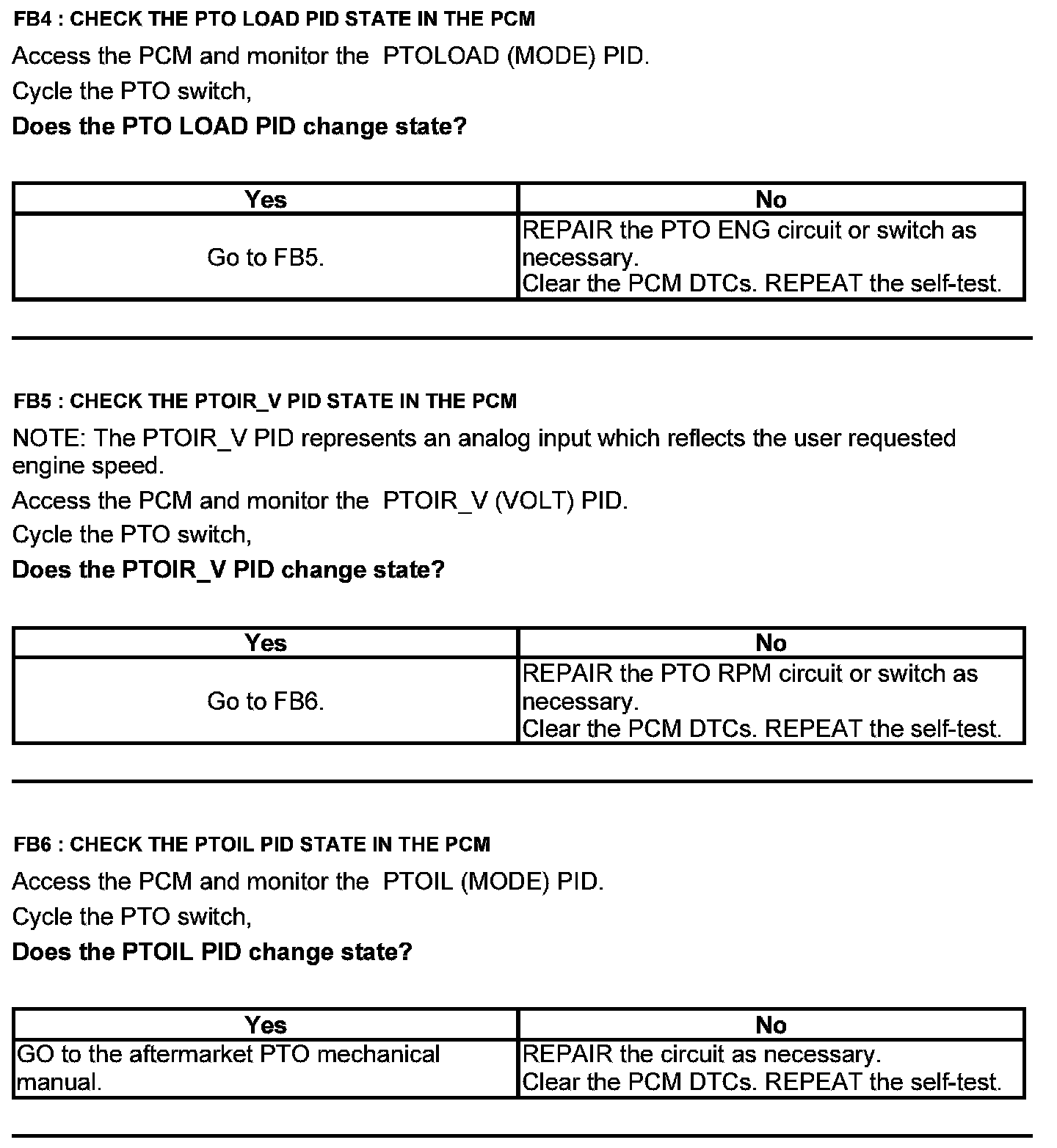

Test FB: Power Take Off (PTO)



Power Take Off (PTO)







Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
