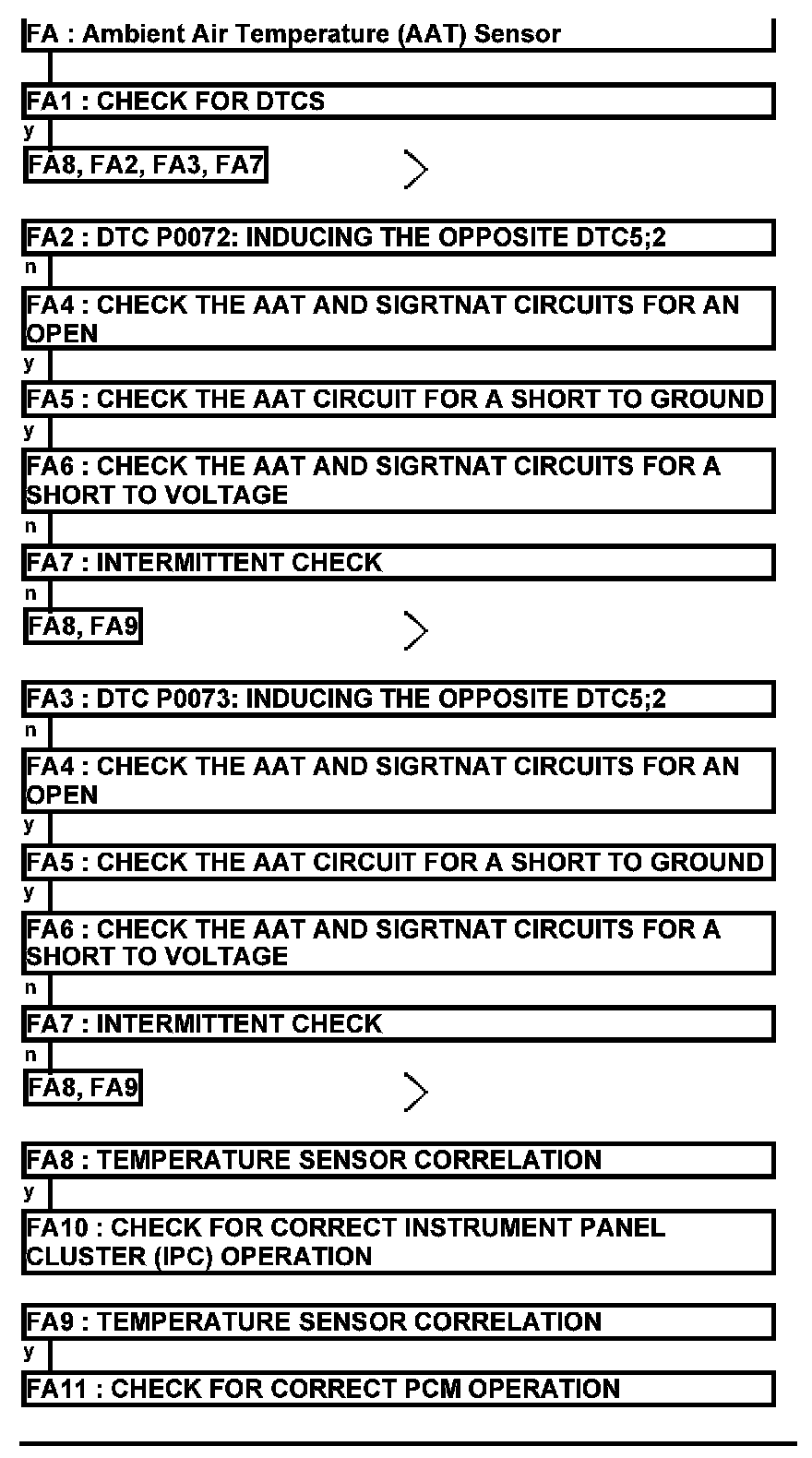

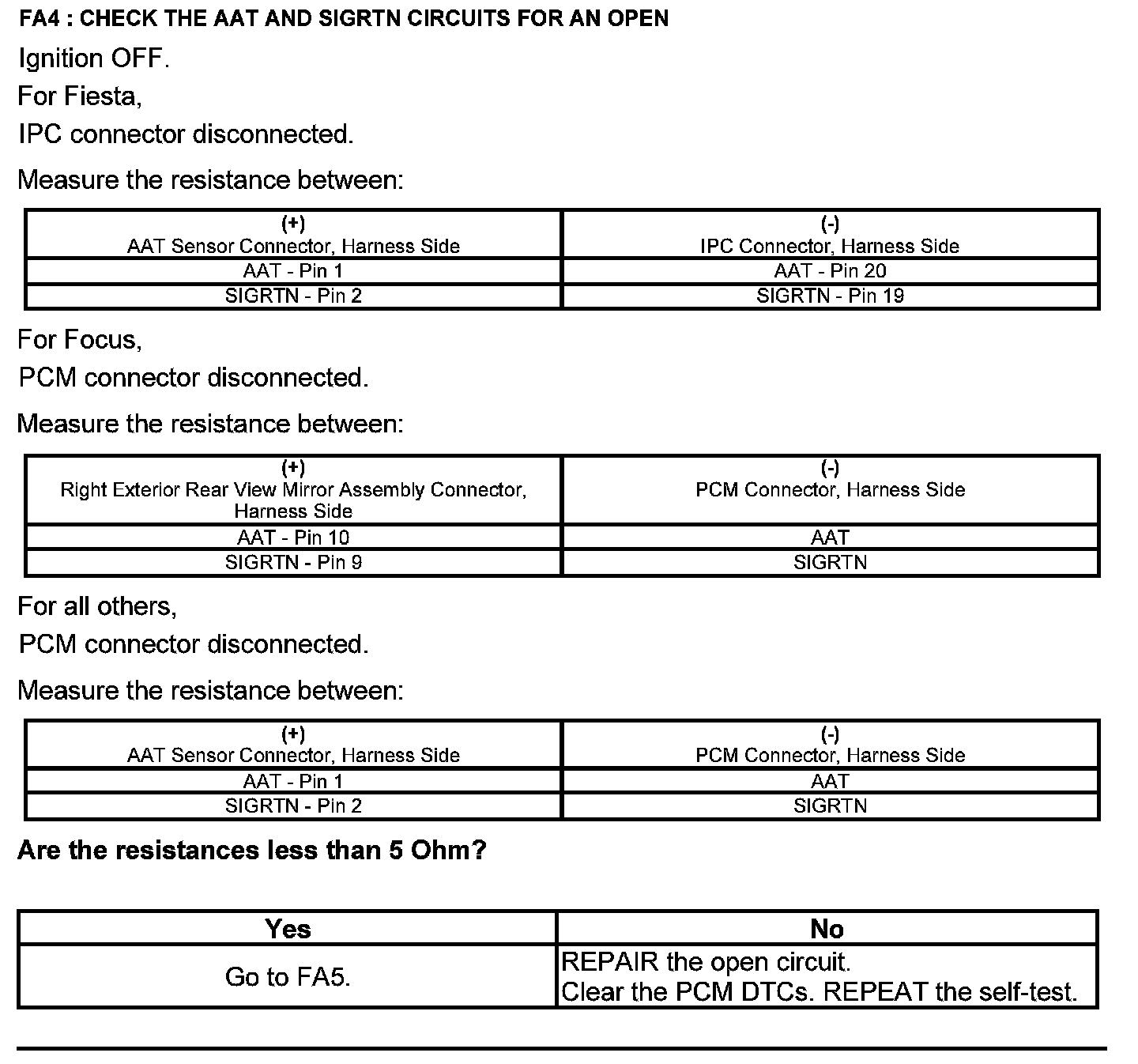

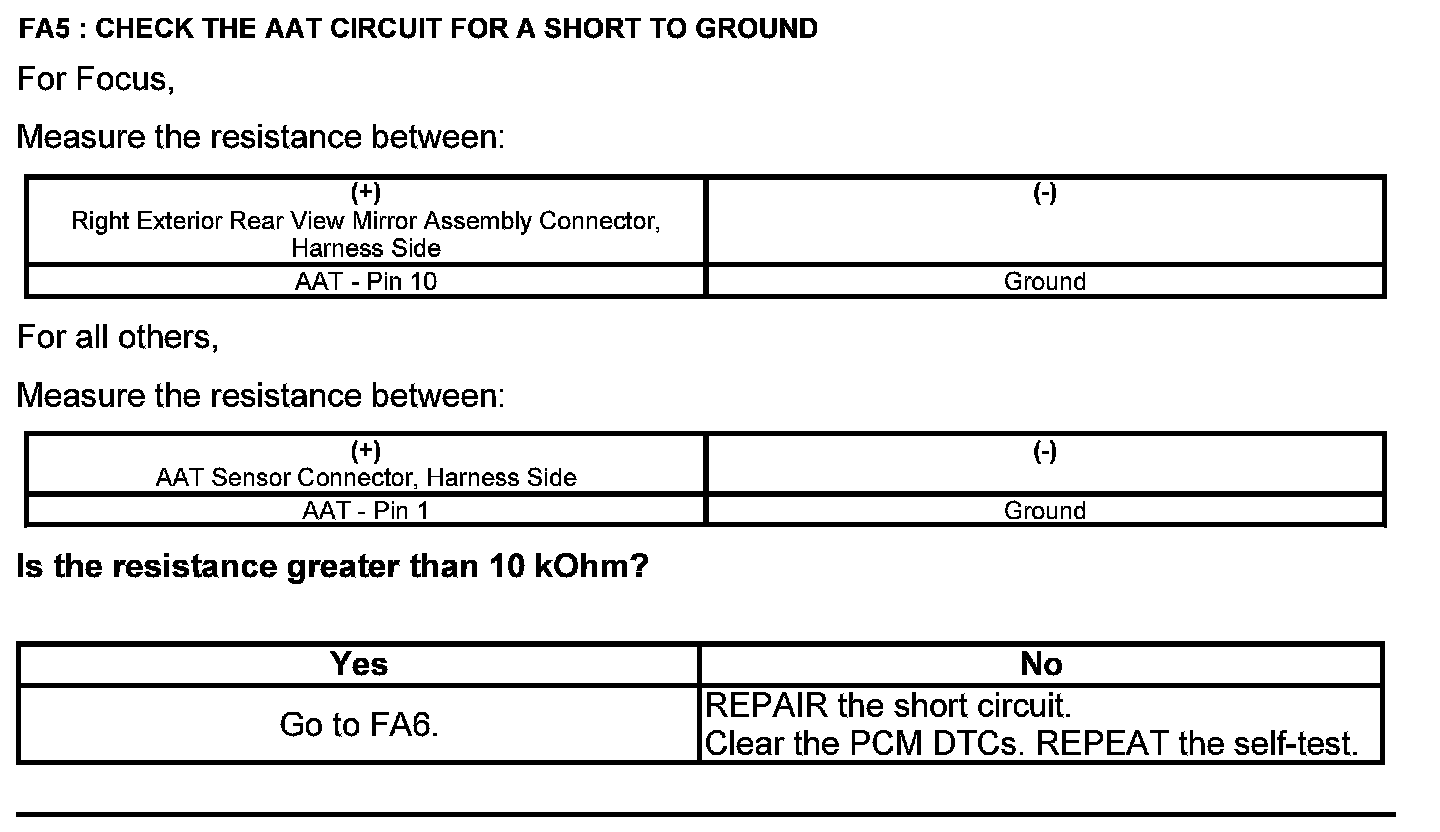

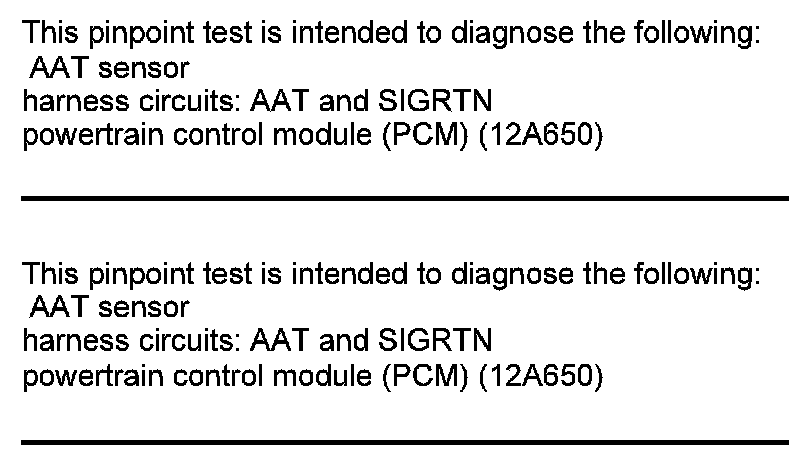

Test FA: Ambient Air Temperature (AAT) Sensor



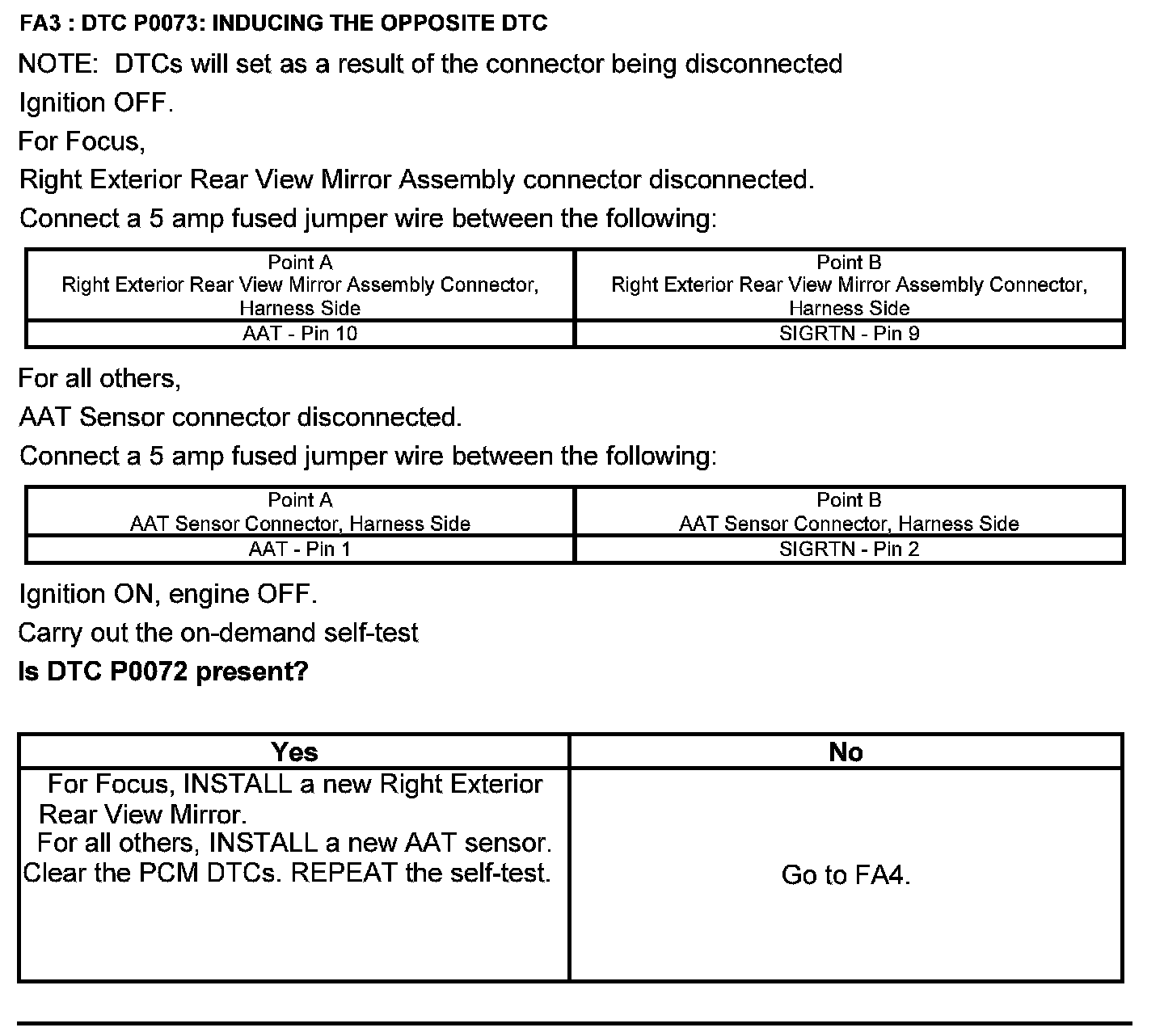

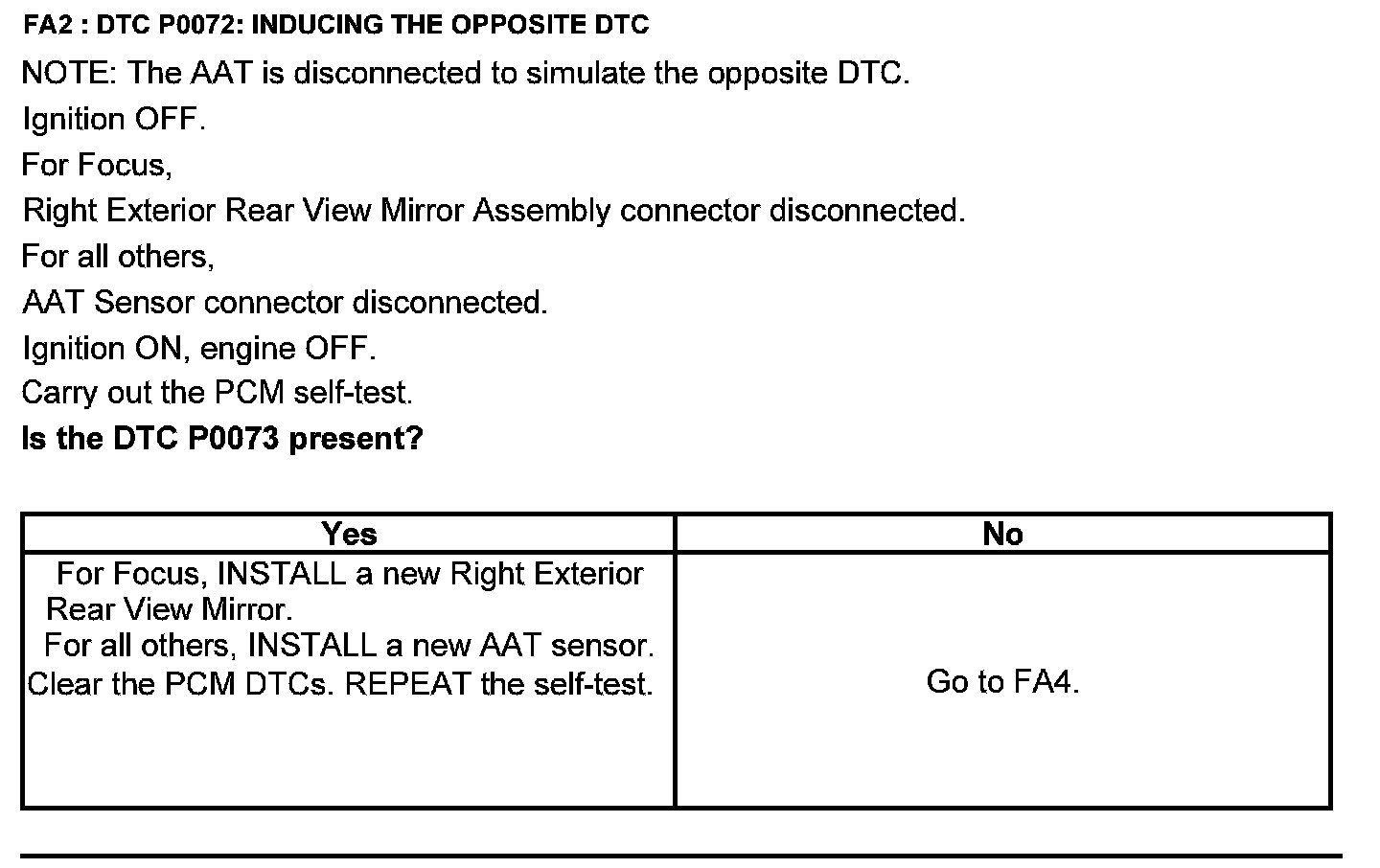

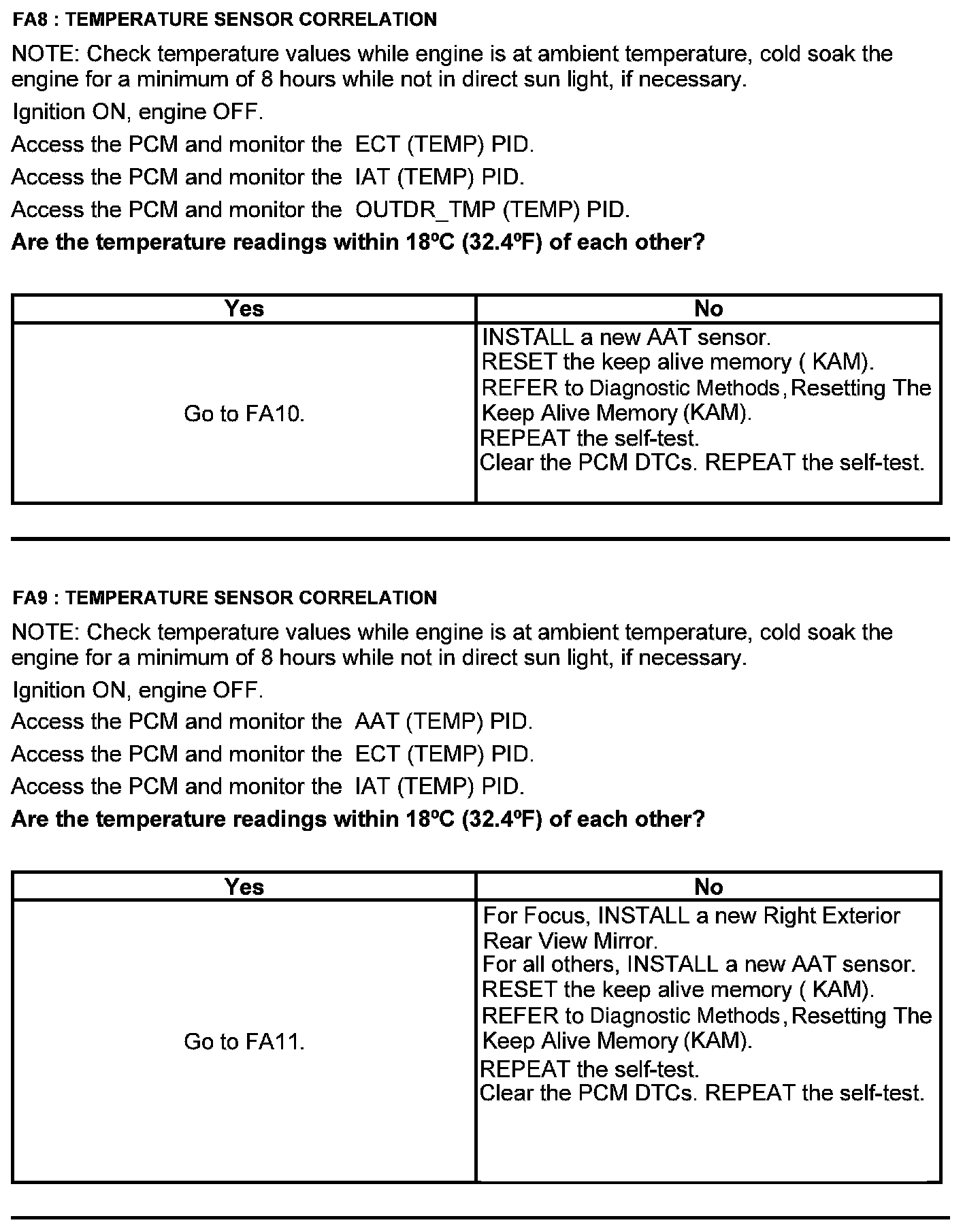

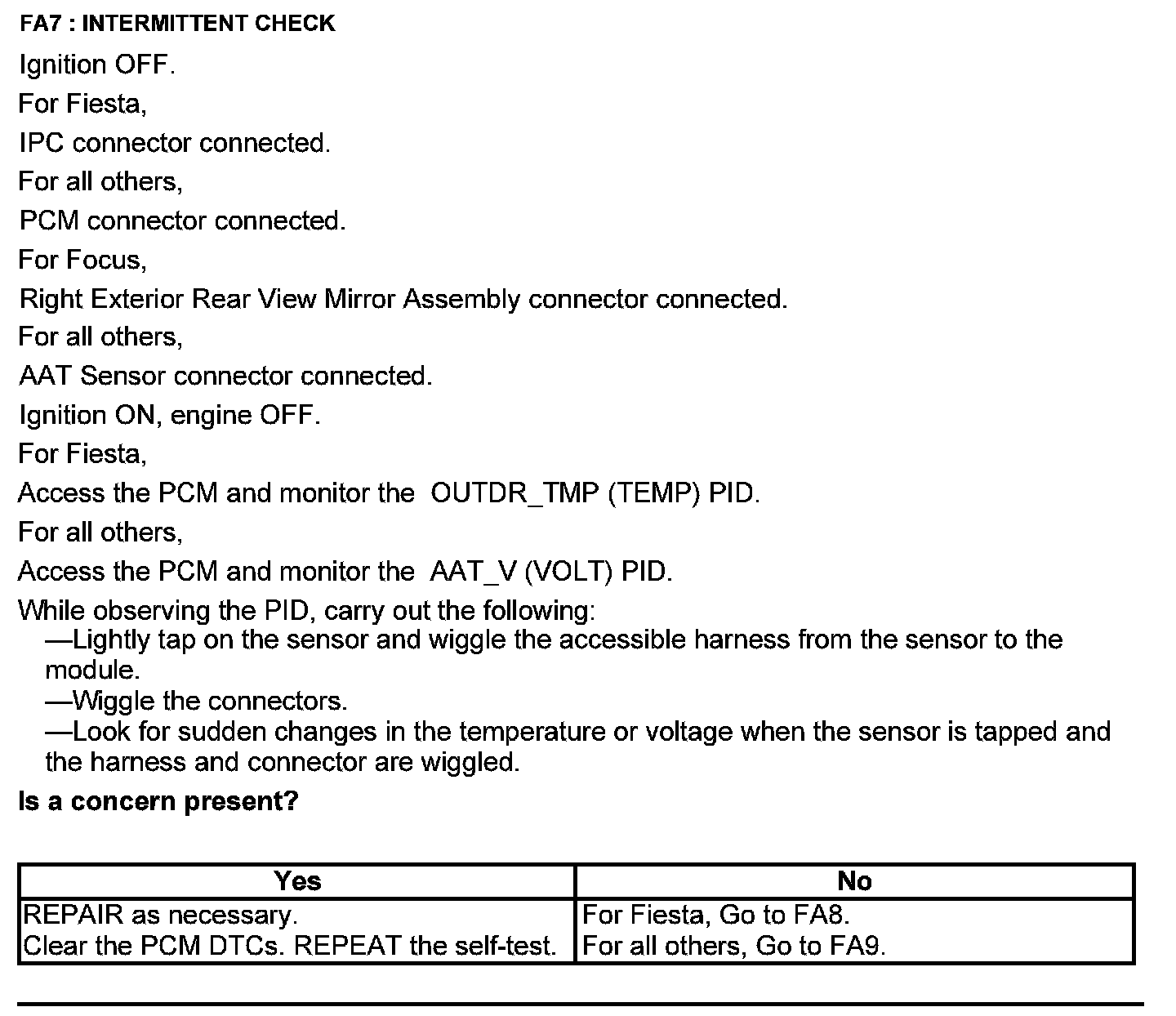

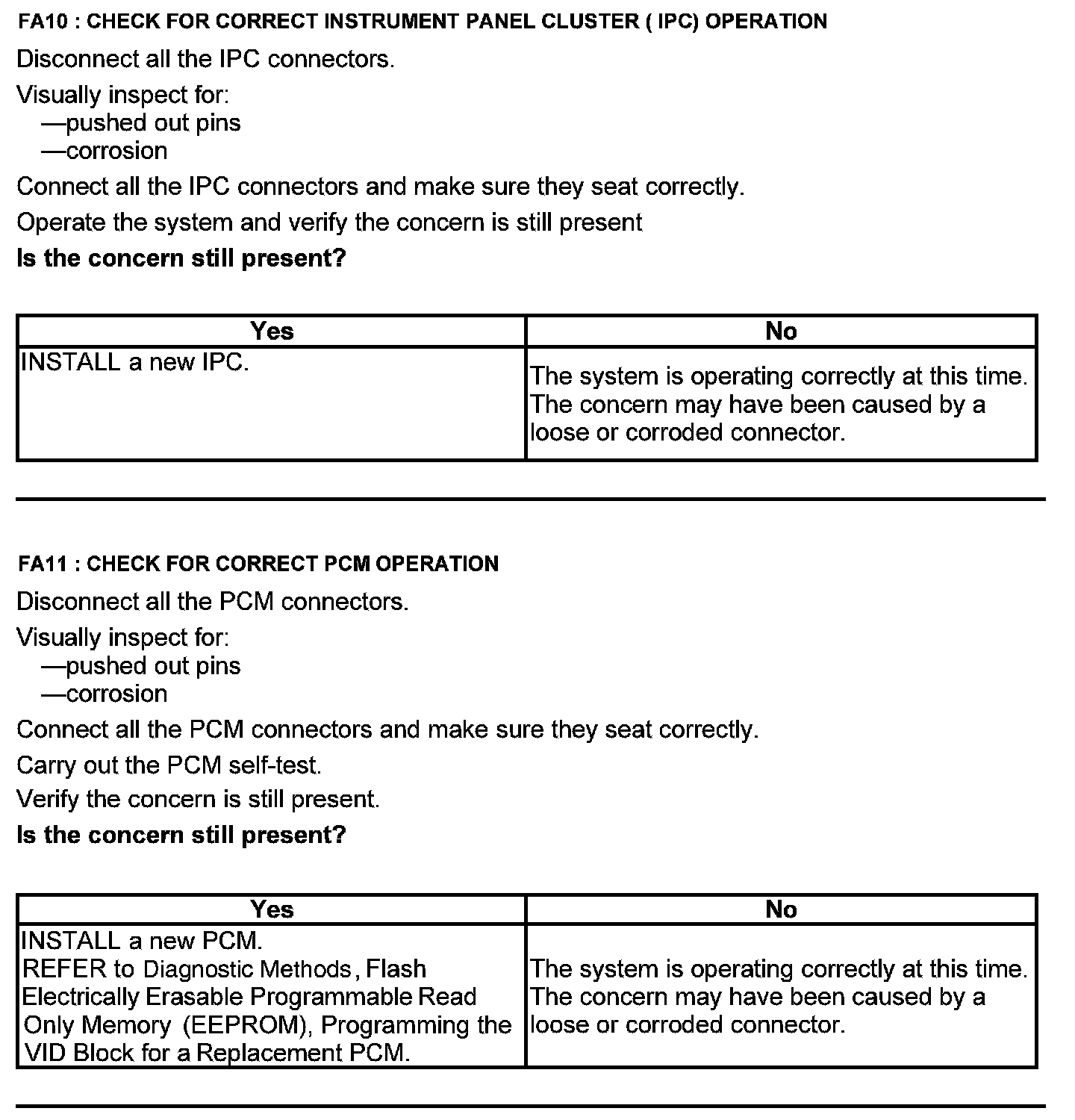

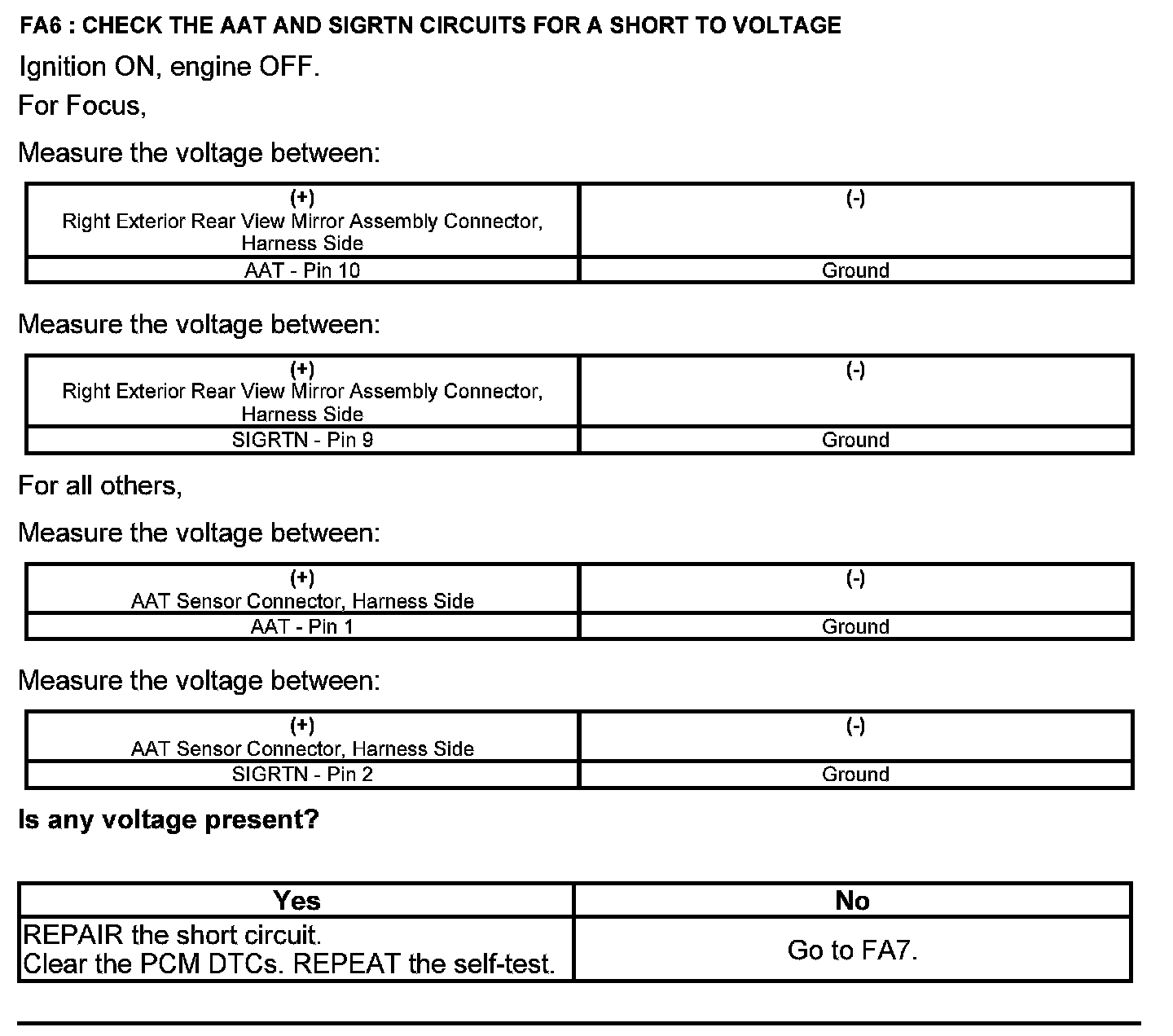

Ambient Air Temperature (AAT) Sensor

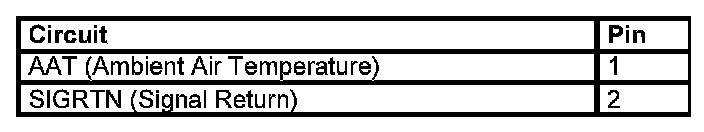

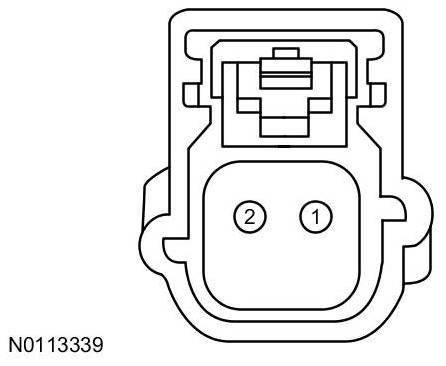

Ambient Air Temperature (AAT) Sensor Connector






Harness Side







Right Exterior Rear View Mirror Assembly Connector






Harness Side

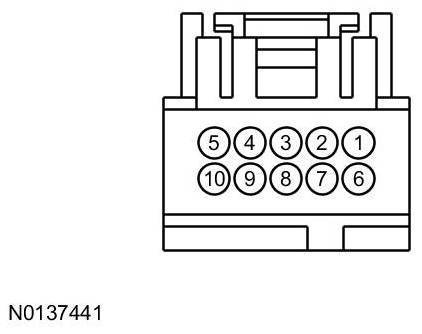

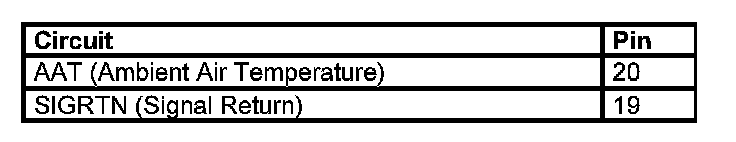

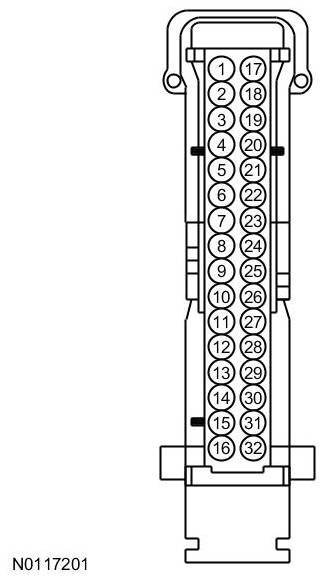

Instrument Panel Cluster (IPC) Connector






Harness Side







Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
