Home >> Ford >> 2012 >> Fusion AWD V6-3.0L Flex Fuel >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test EA: Pressure and Temperature Sensor Correlation

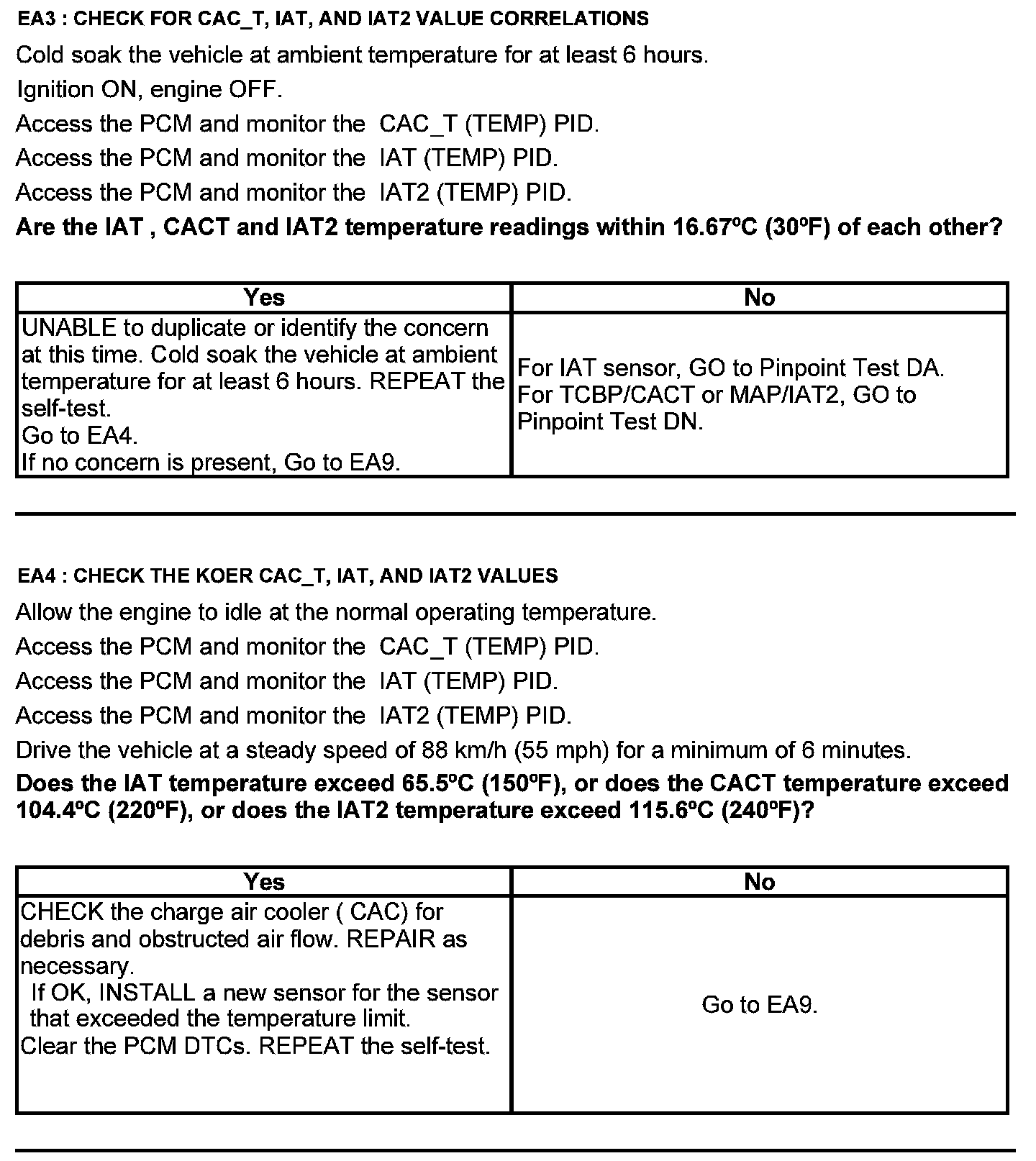

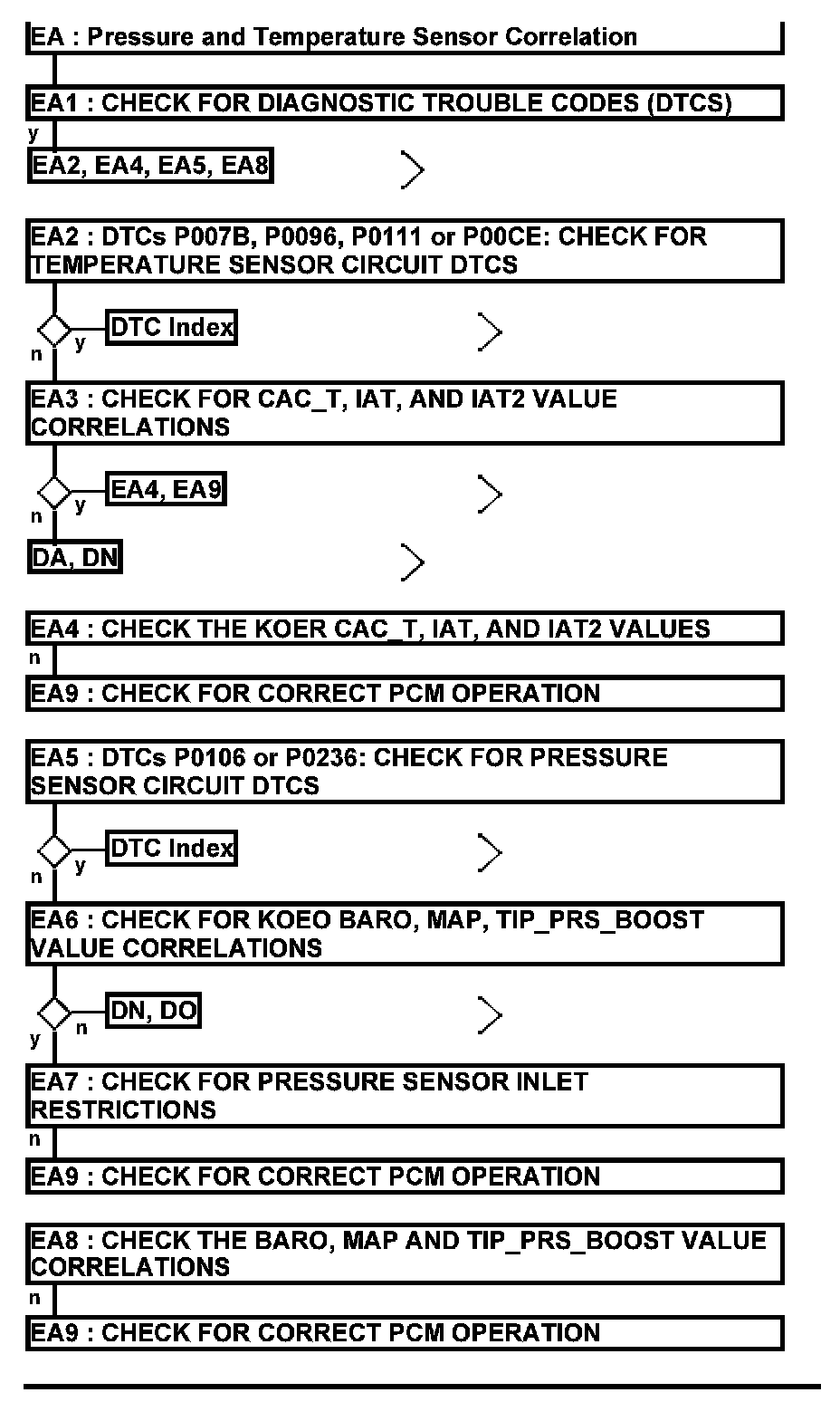

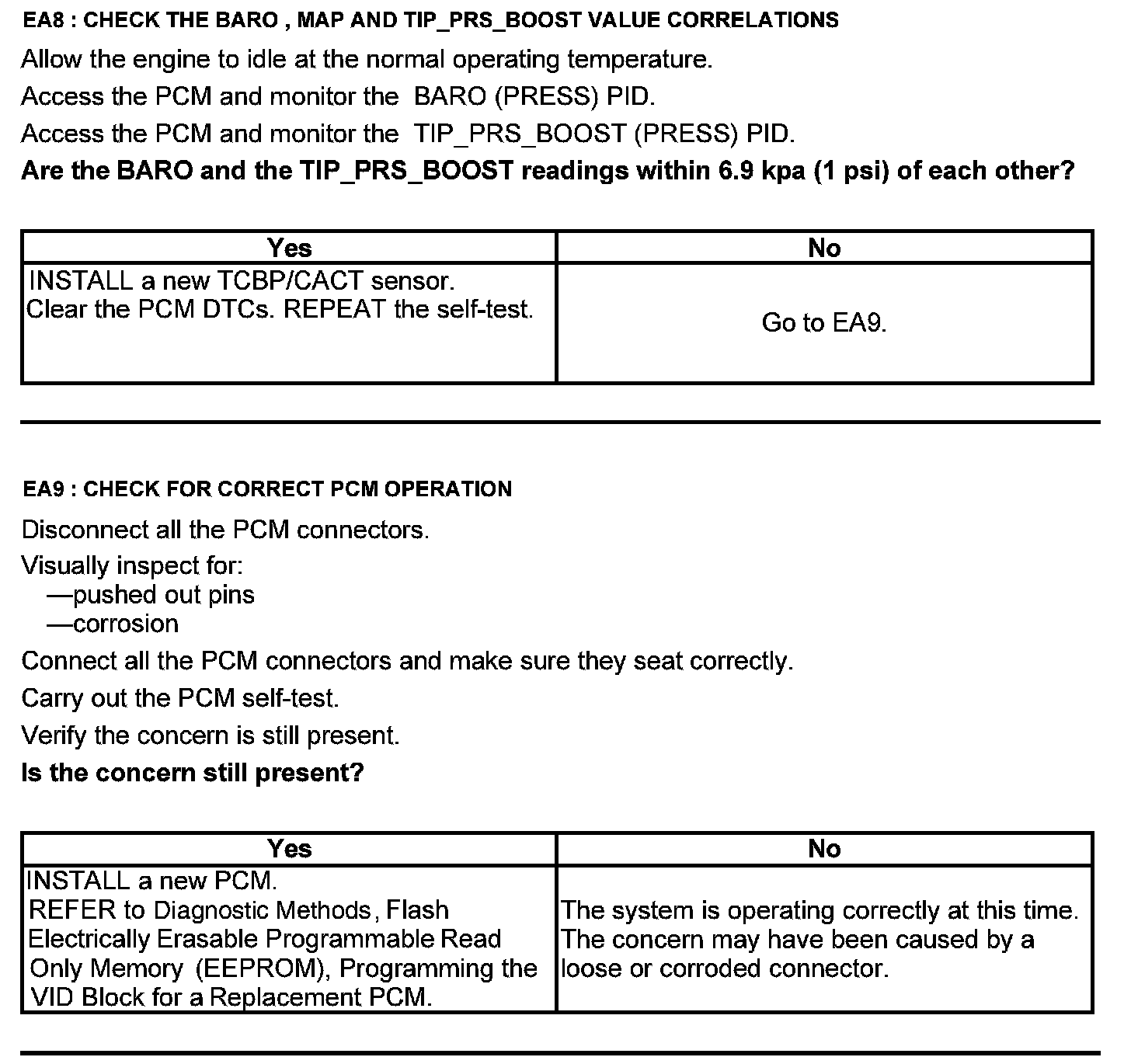

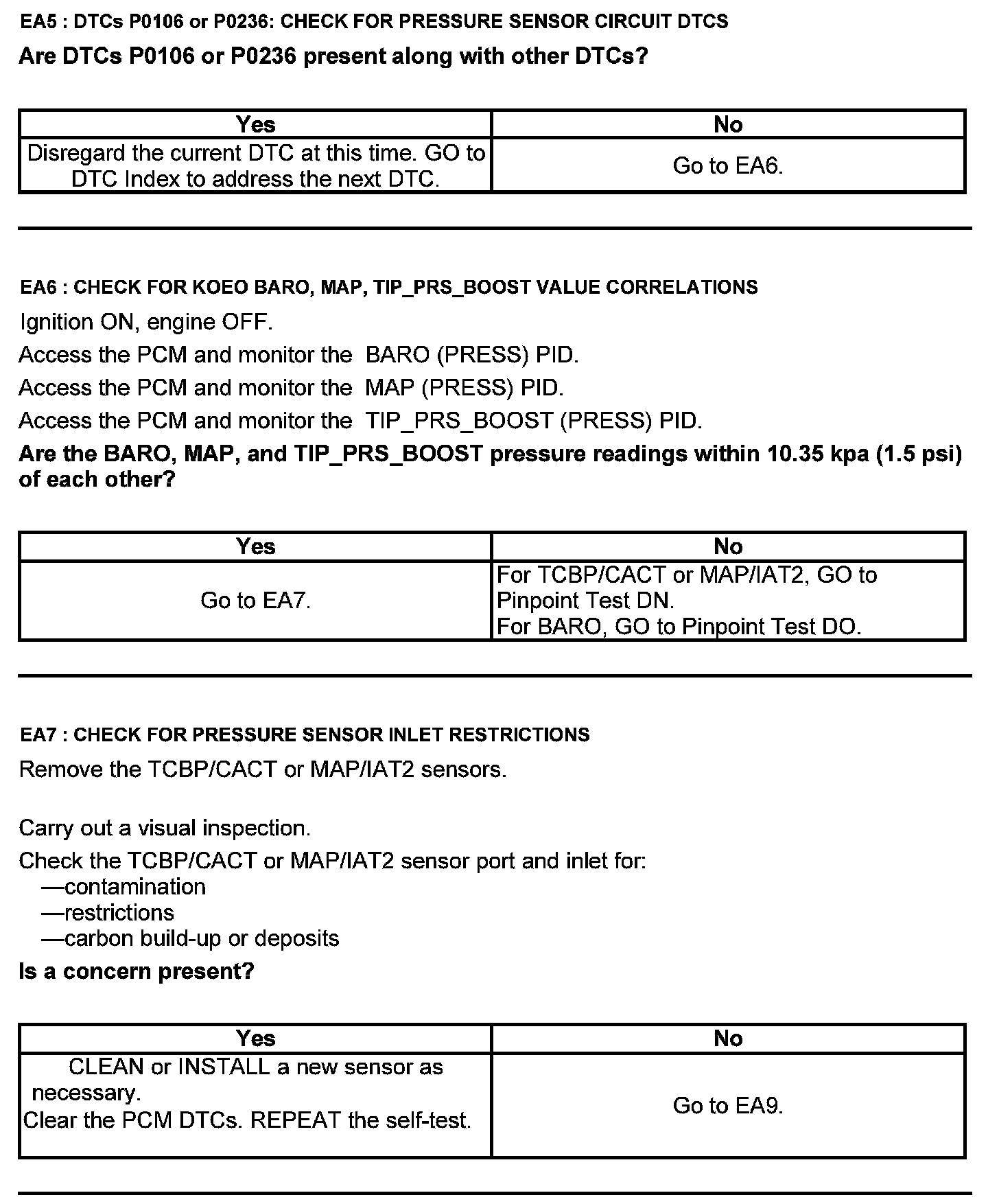

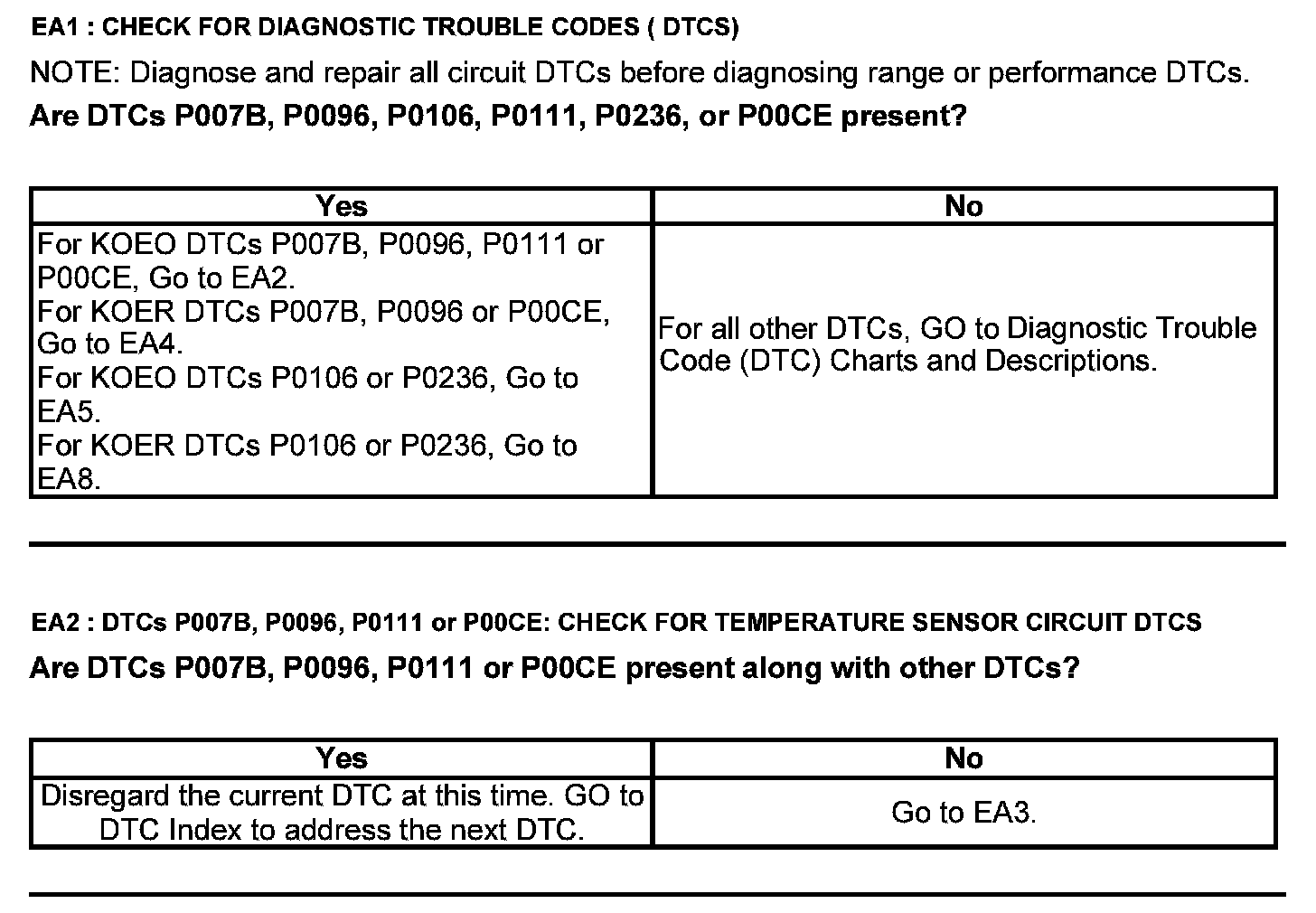

Test EA: Pressure and Temperature Sensor Correlation



Pressure and Temperature Sensor Correlation
