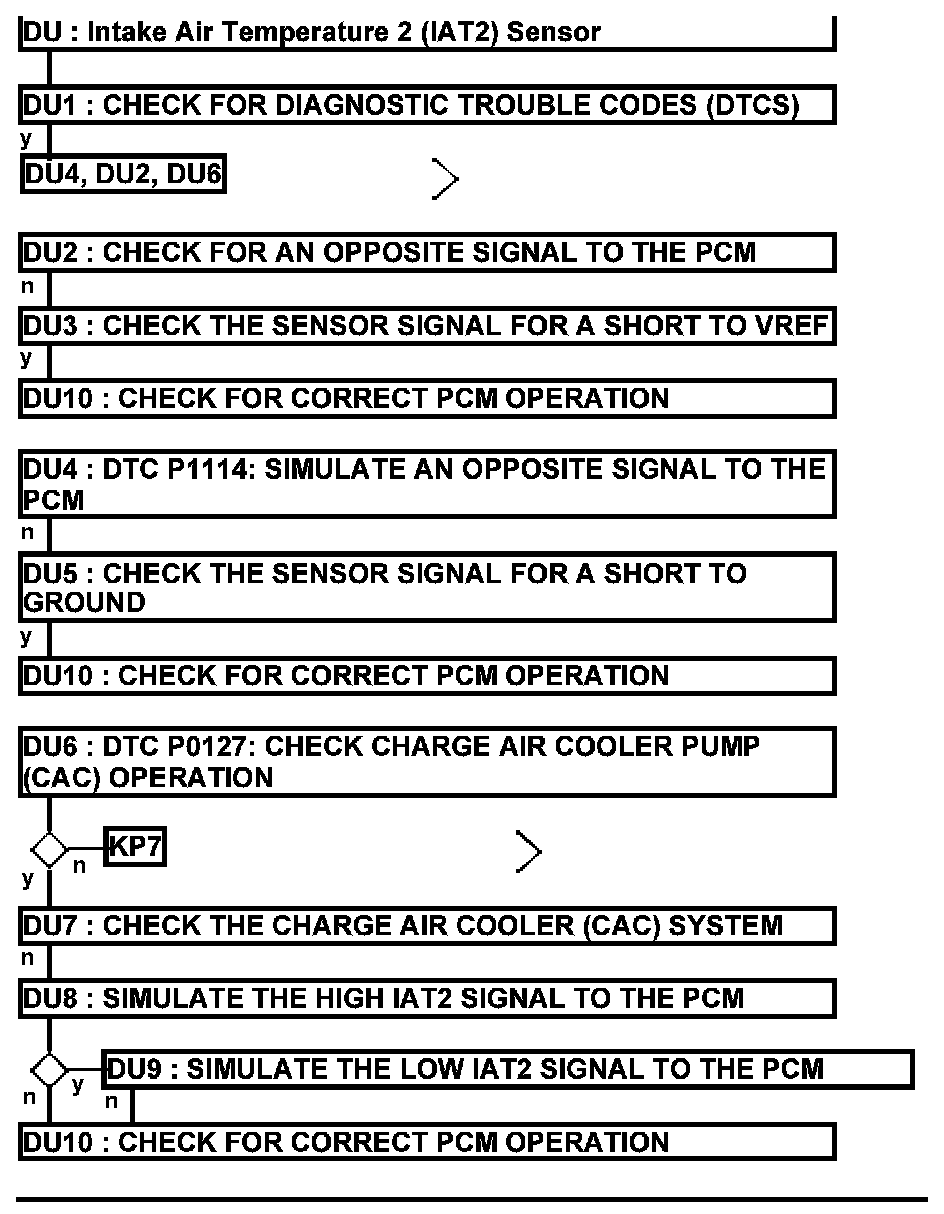

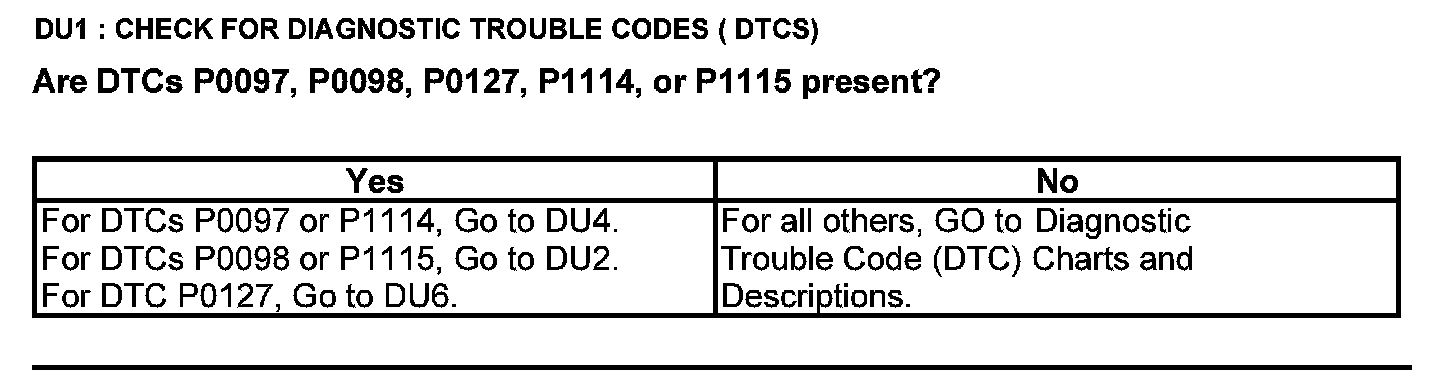

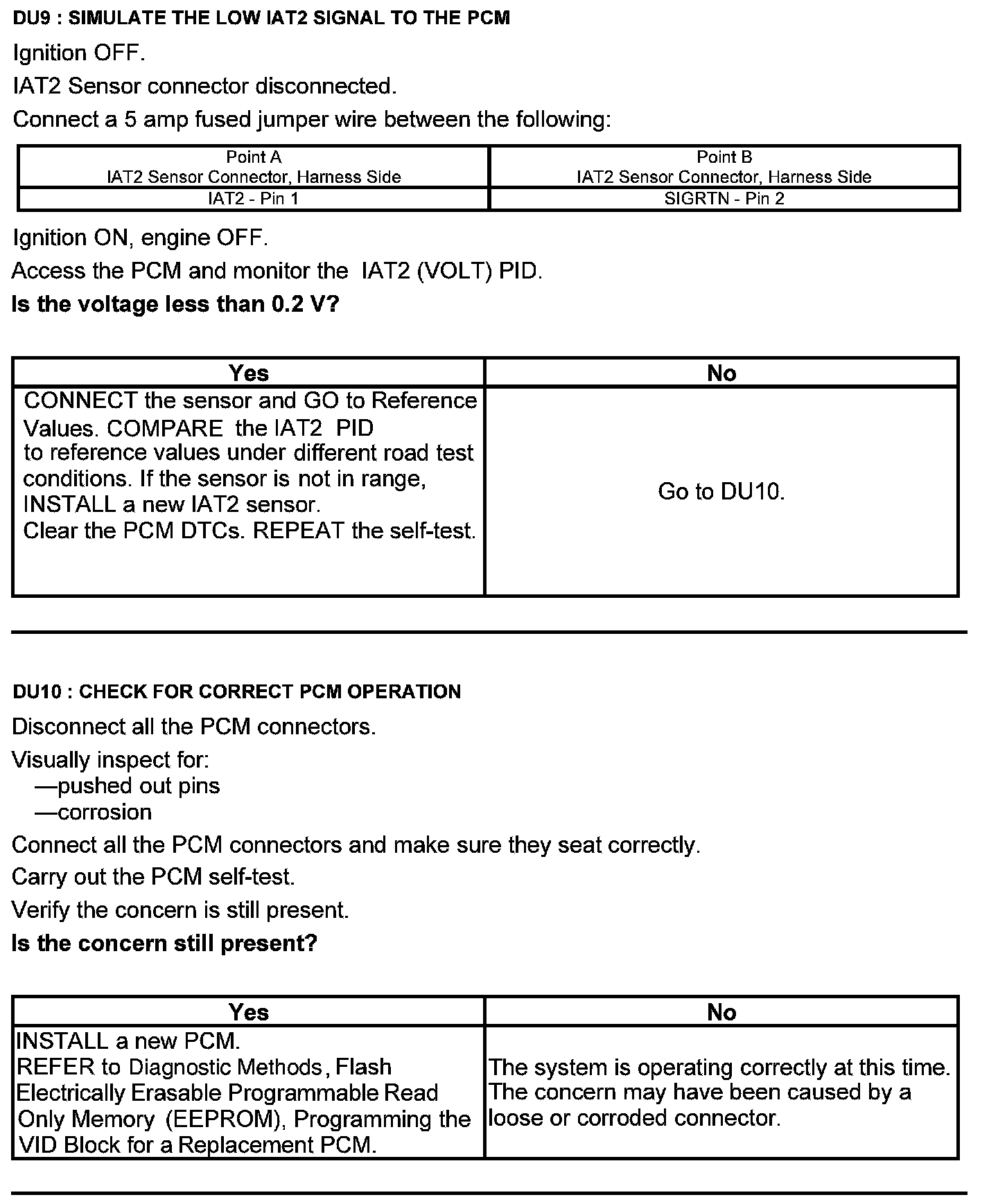

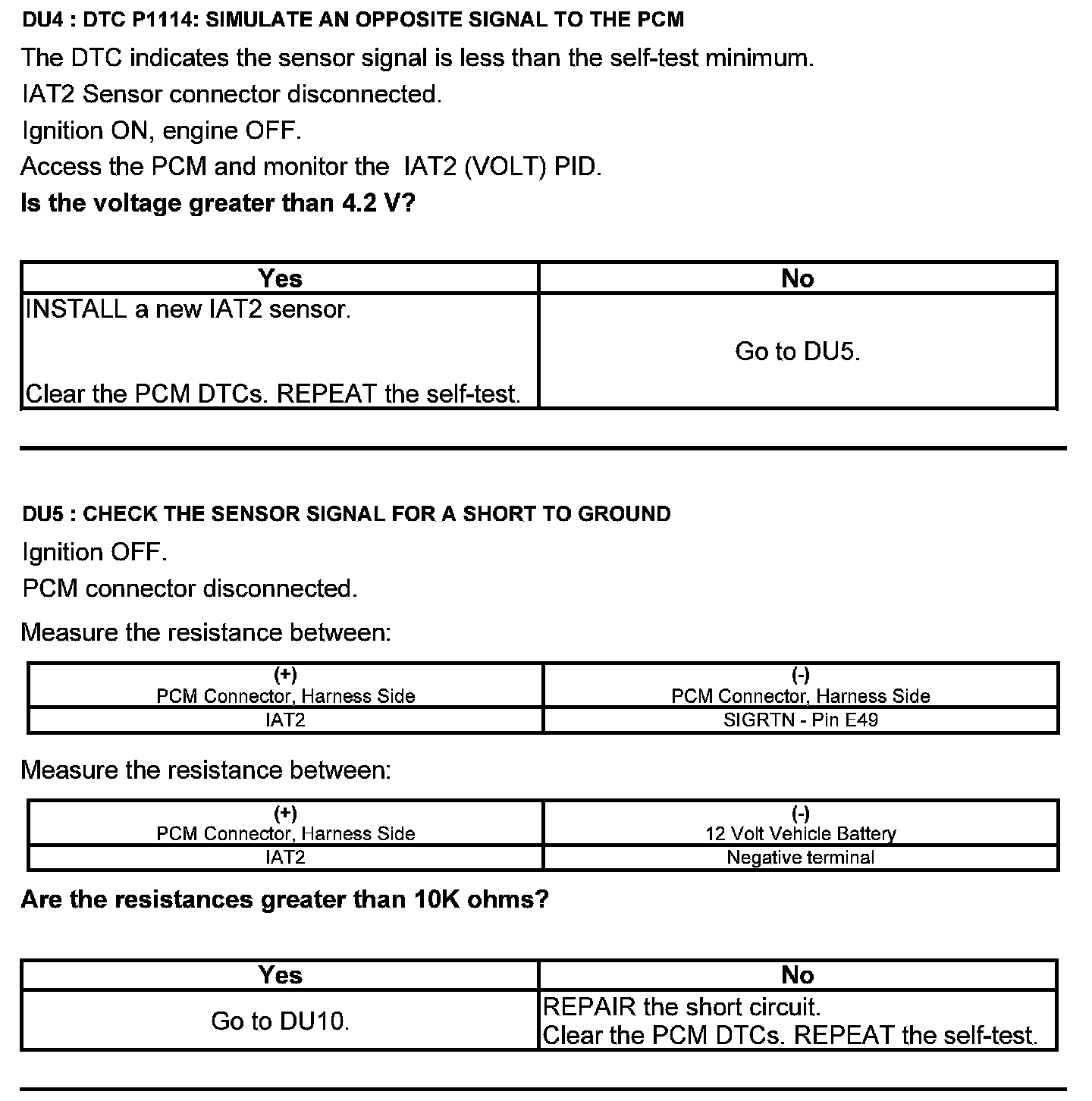

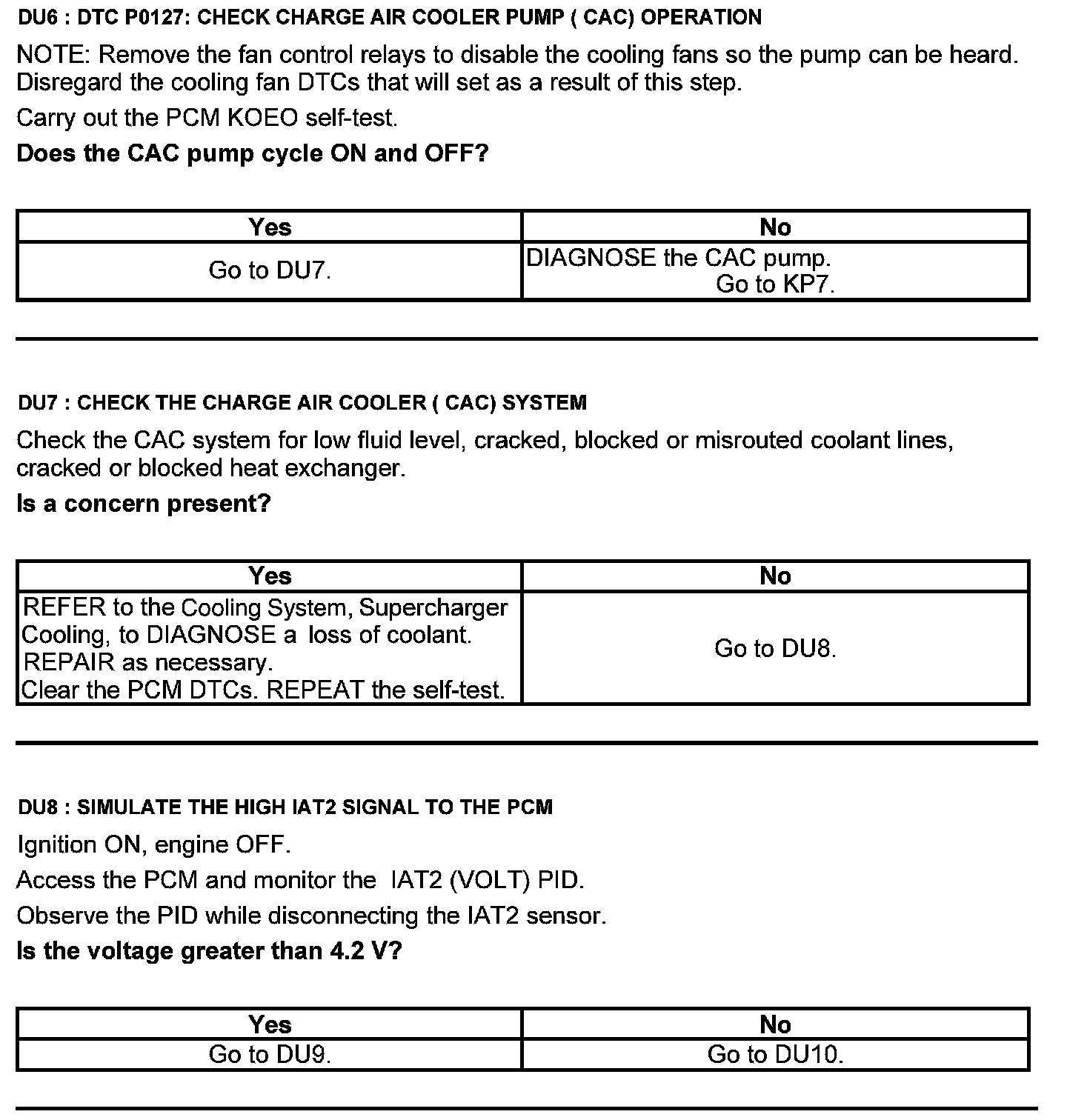

Test DU: Intake Air Temperature 2 (IAT2) Sensor



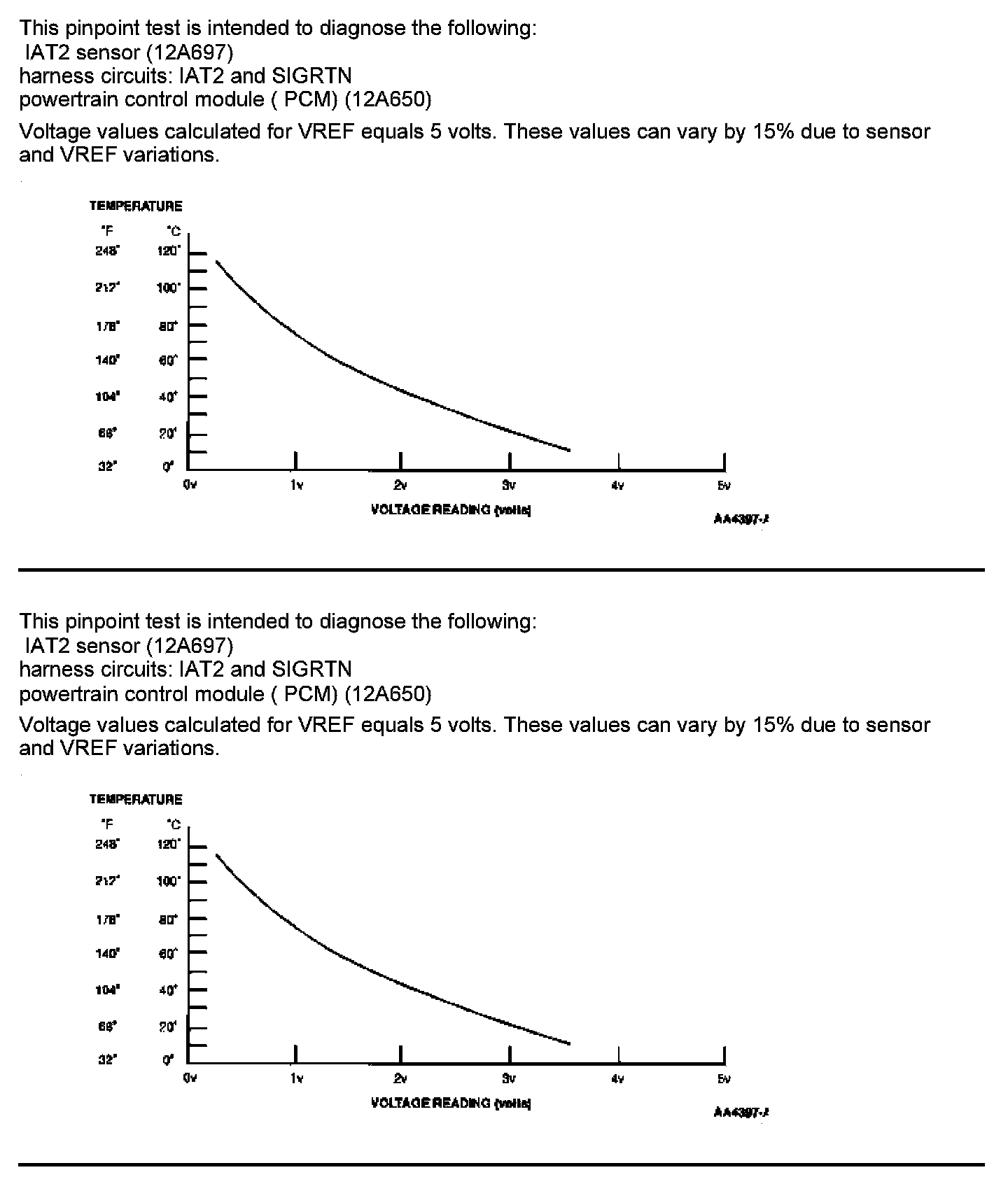

Intake Air Temperature 2 (IAT2) Sensor

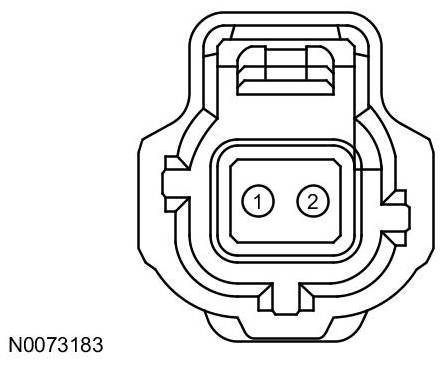

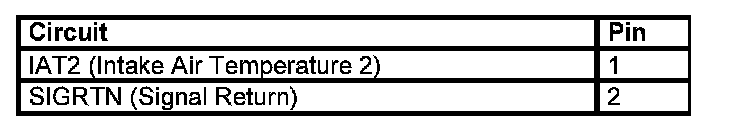

Intake Air Temperature 2 (IAT2) Sensor Connector






Harness Side

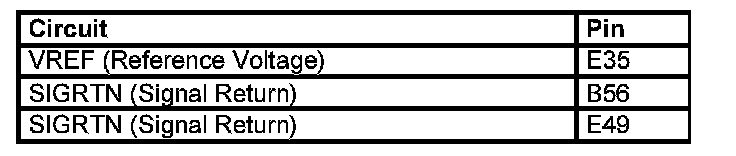

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
