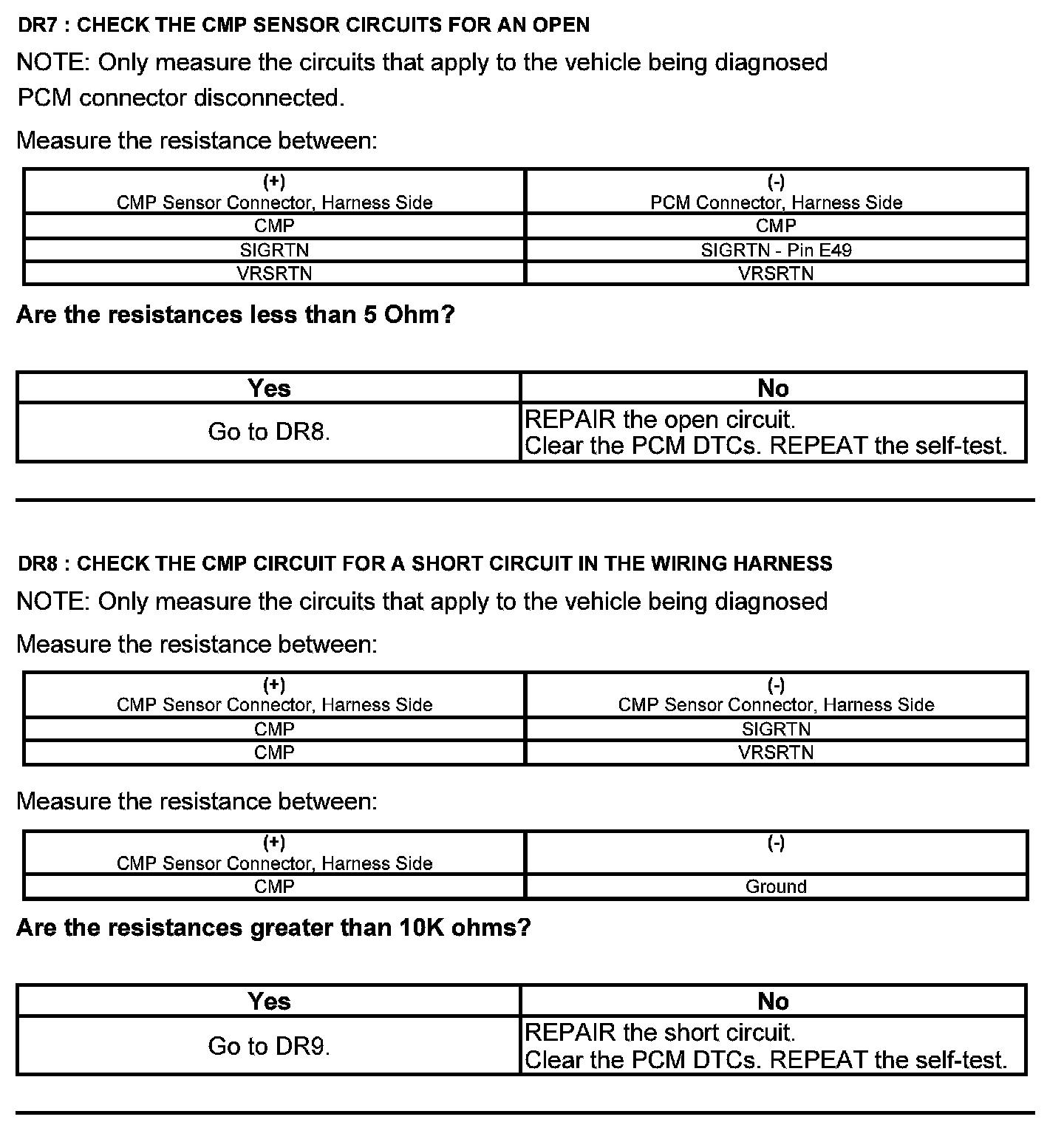

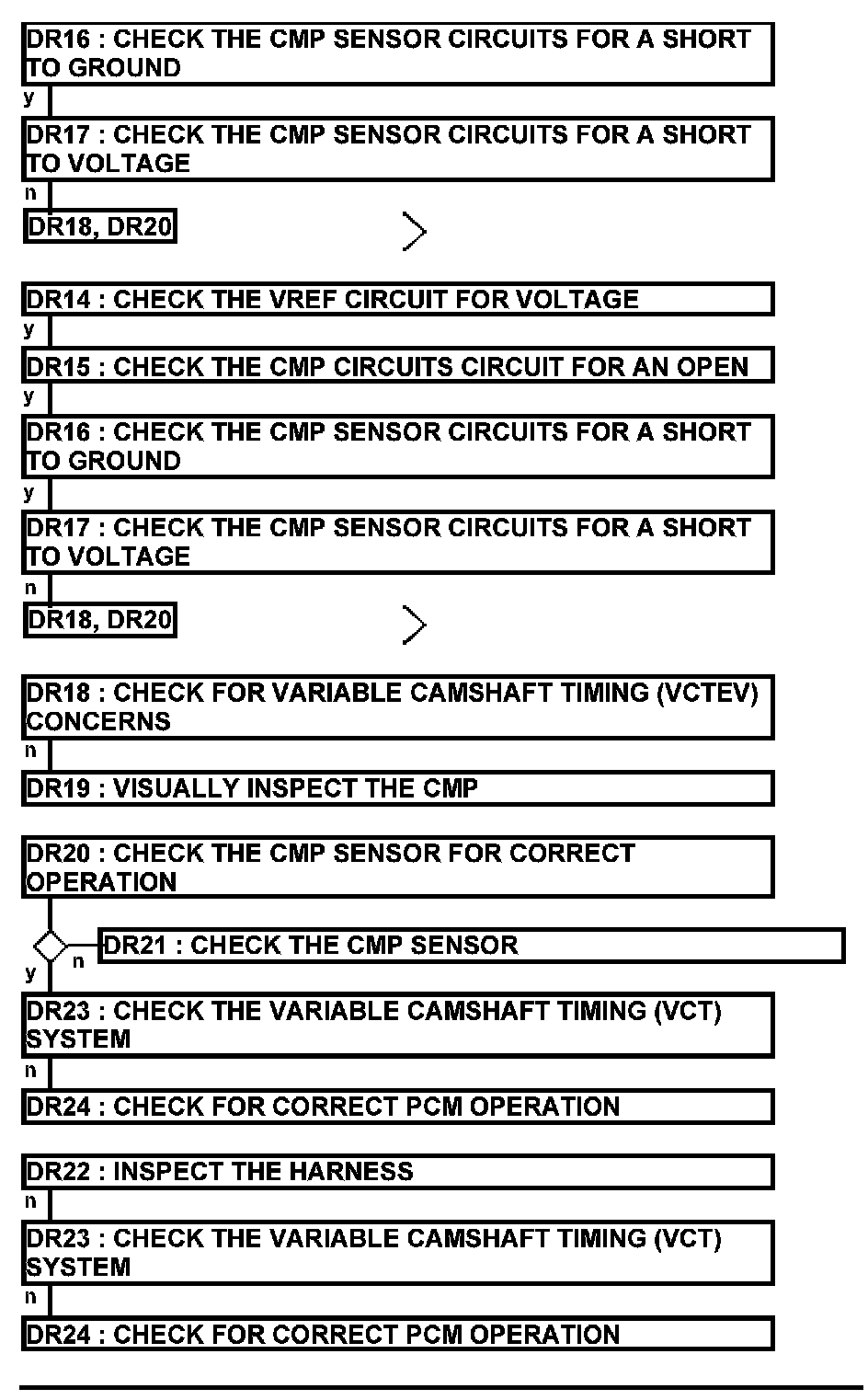

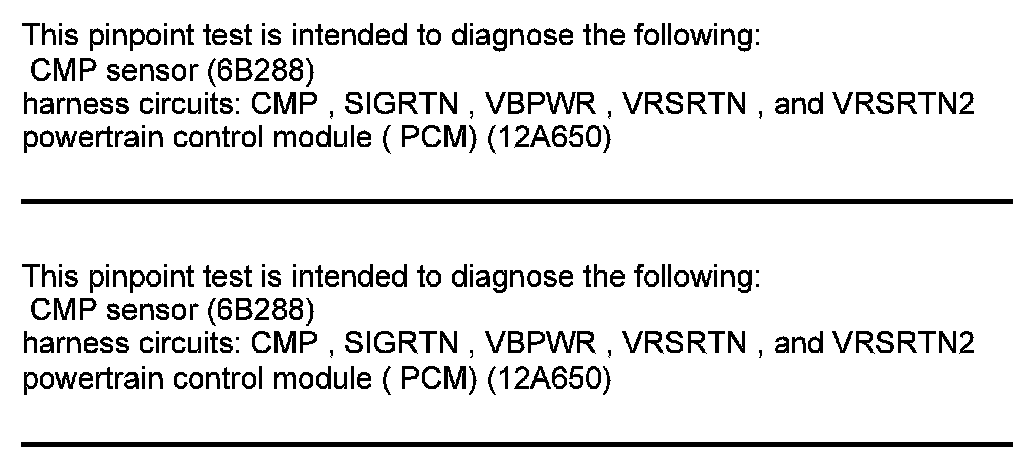

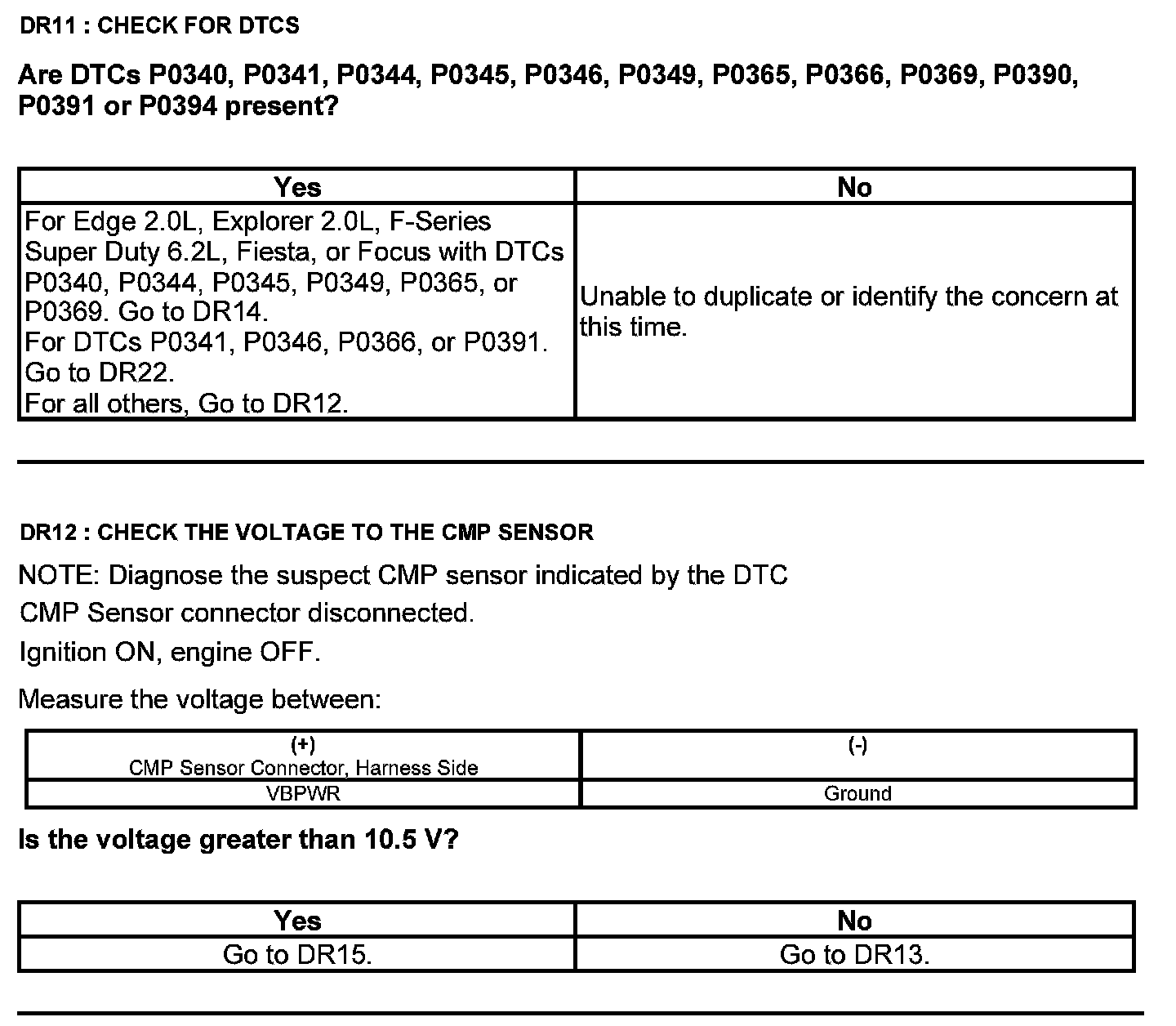

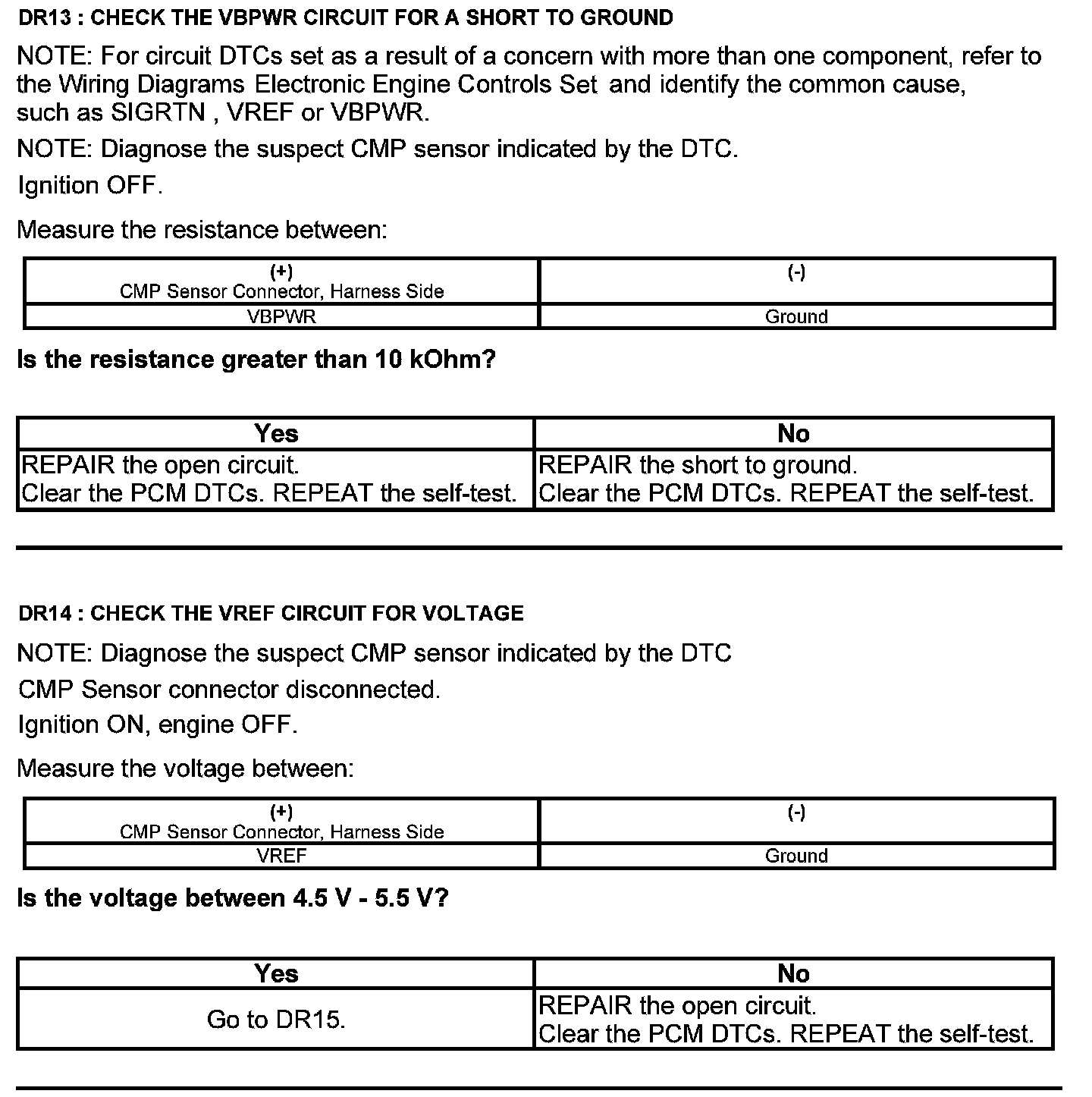

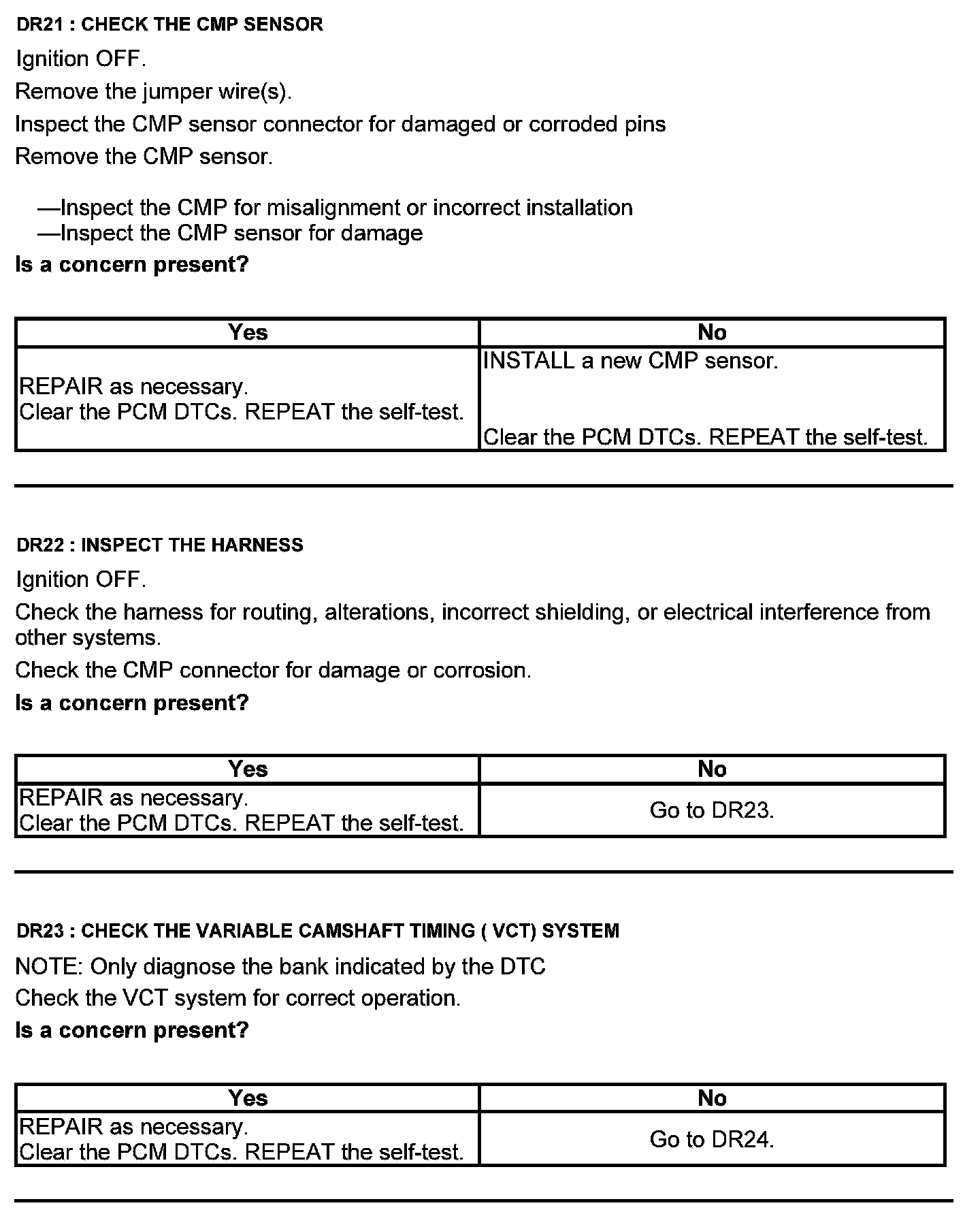

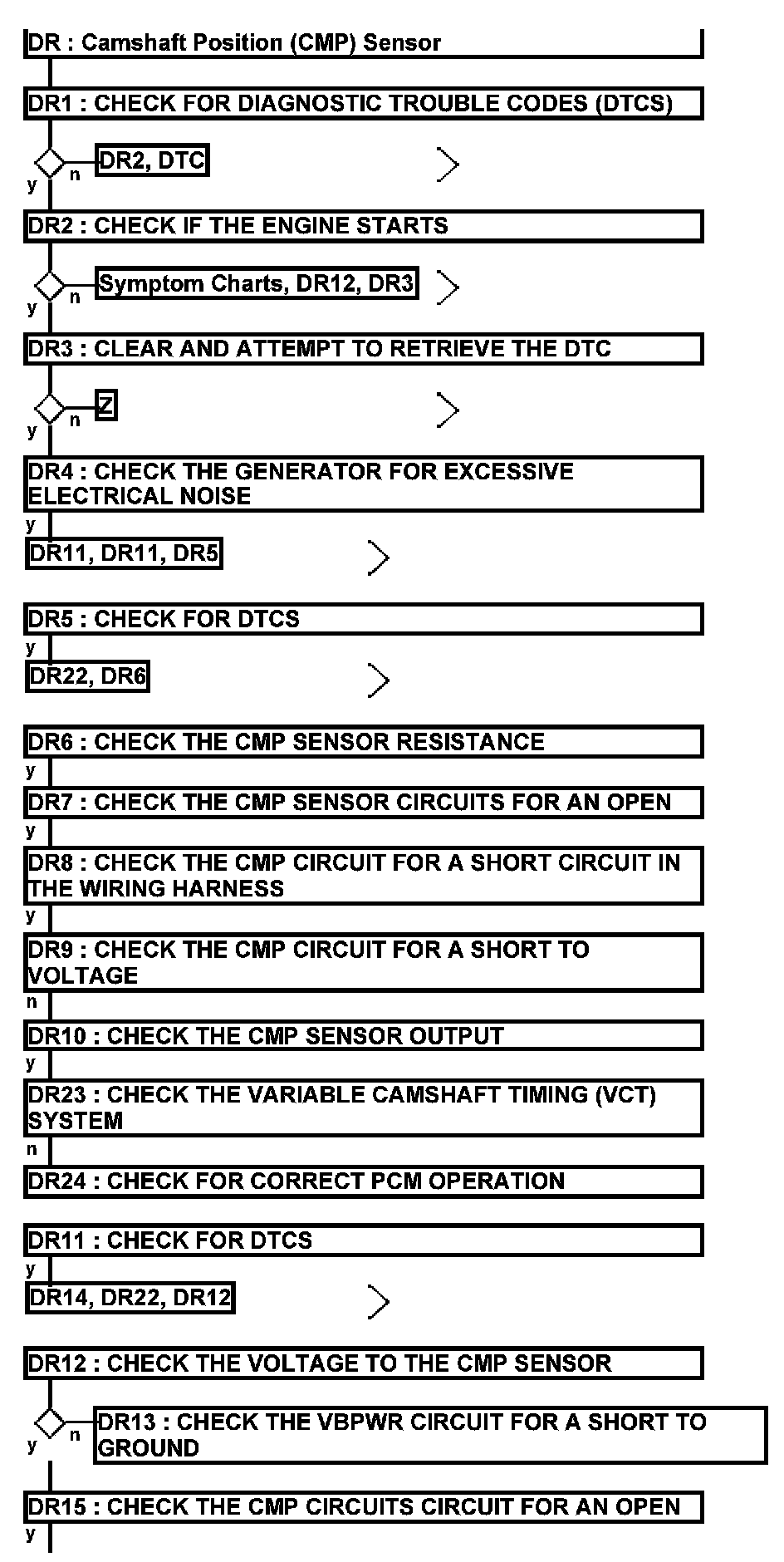

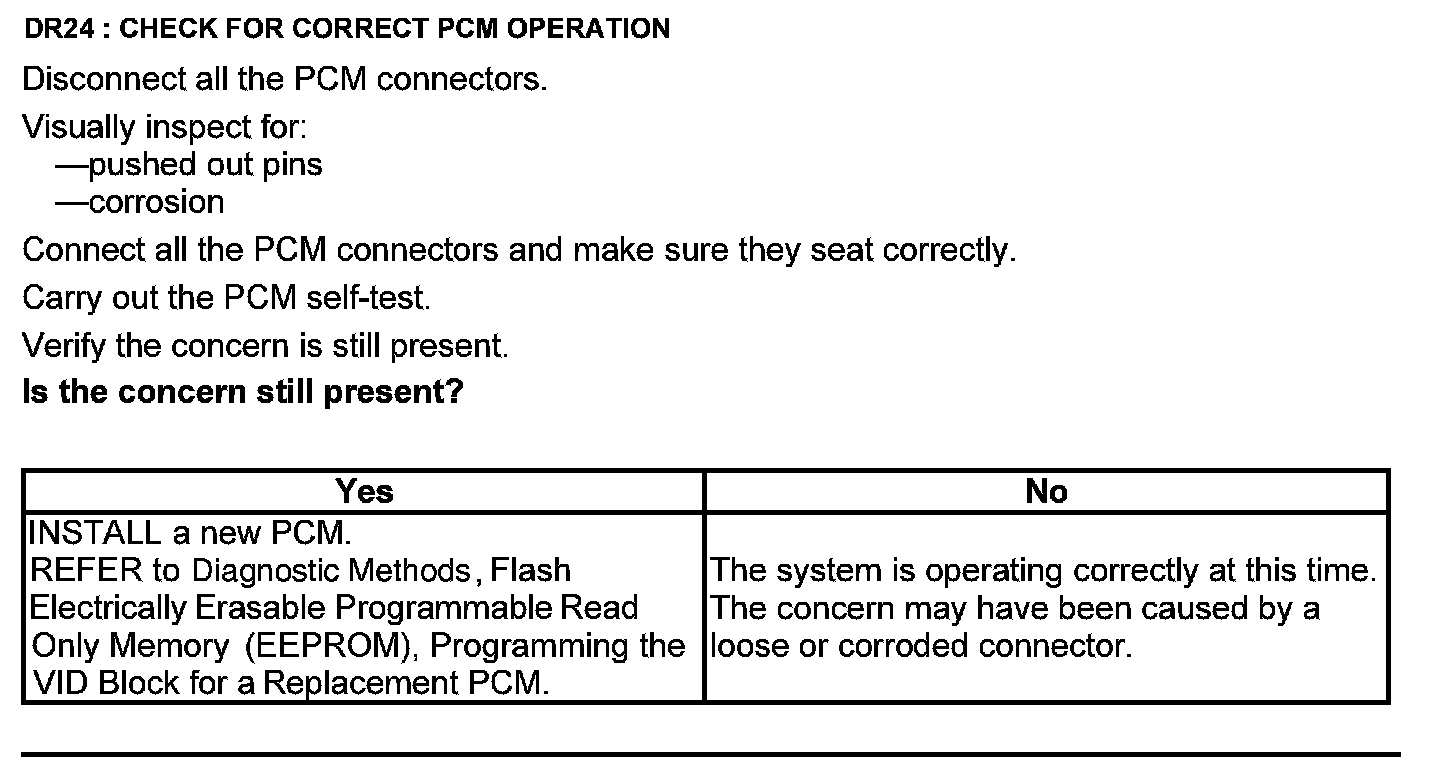

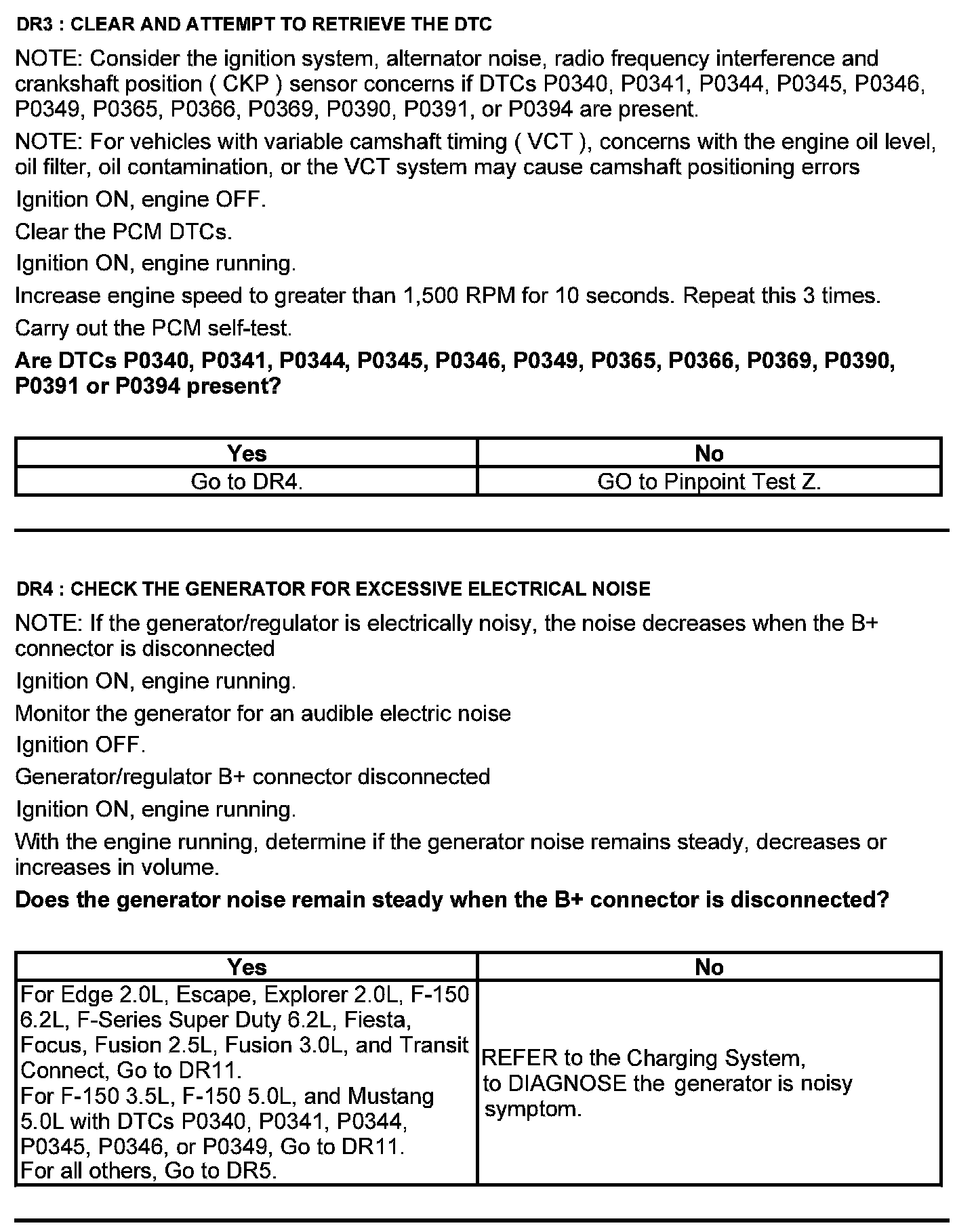

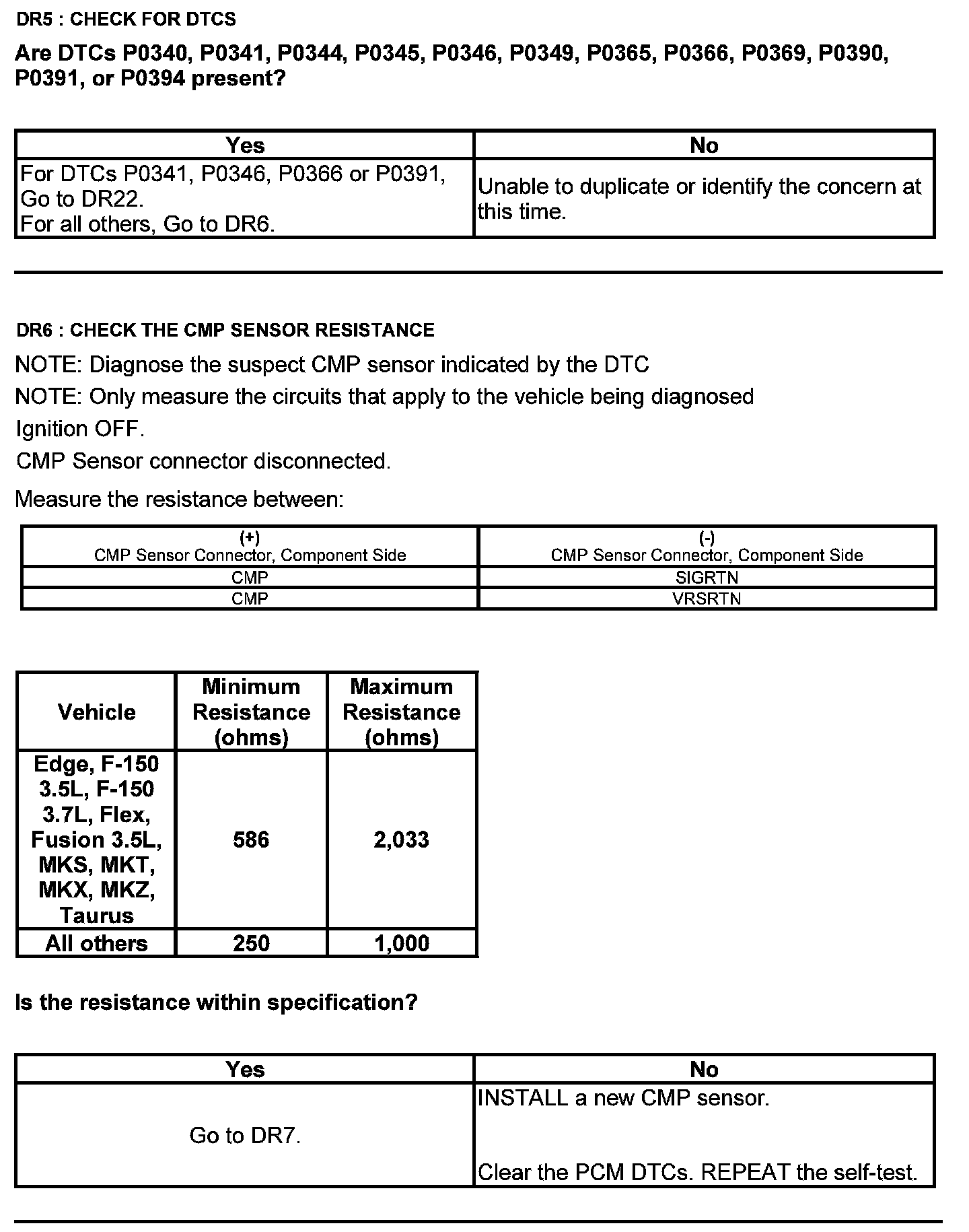

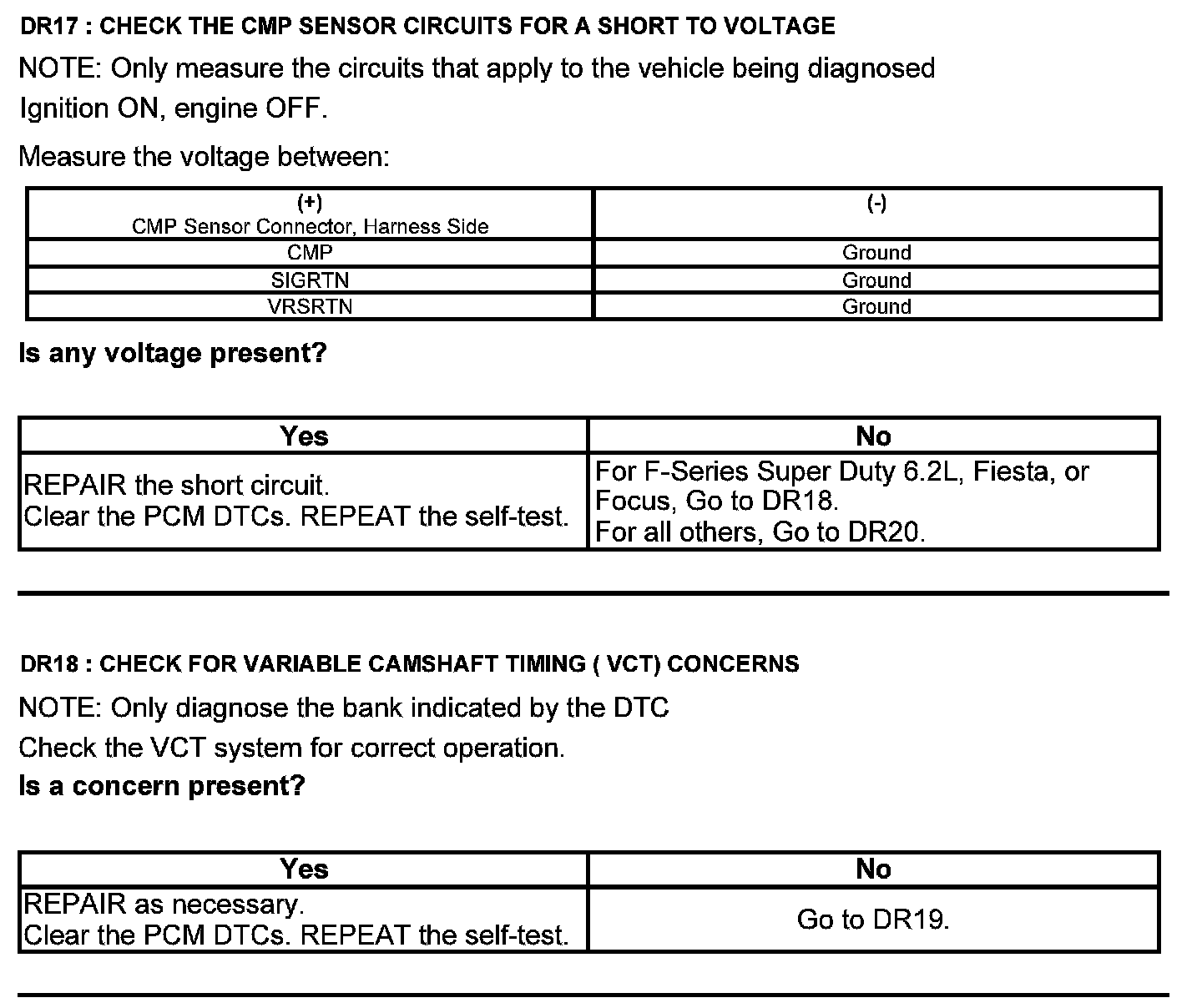

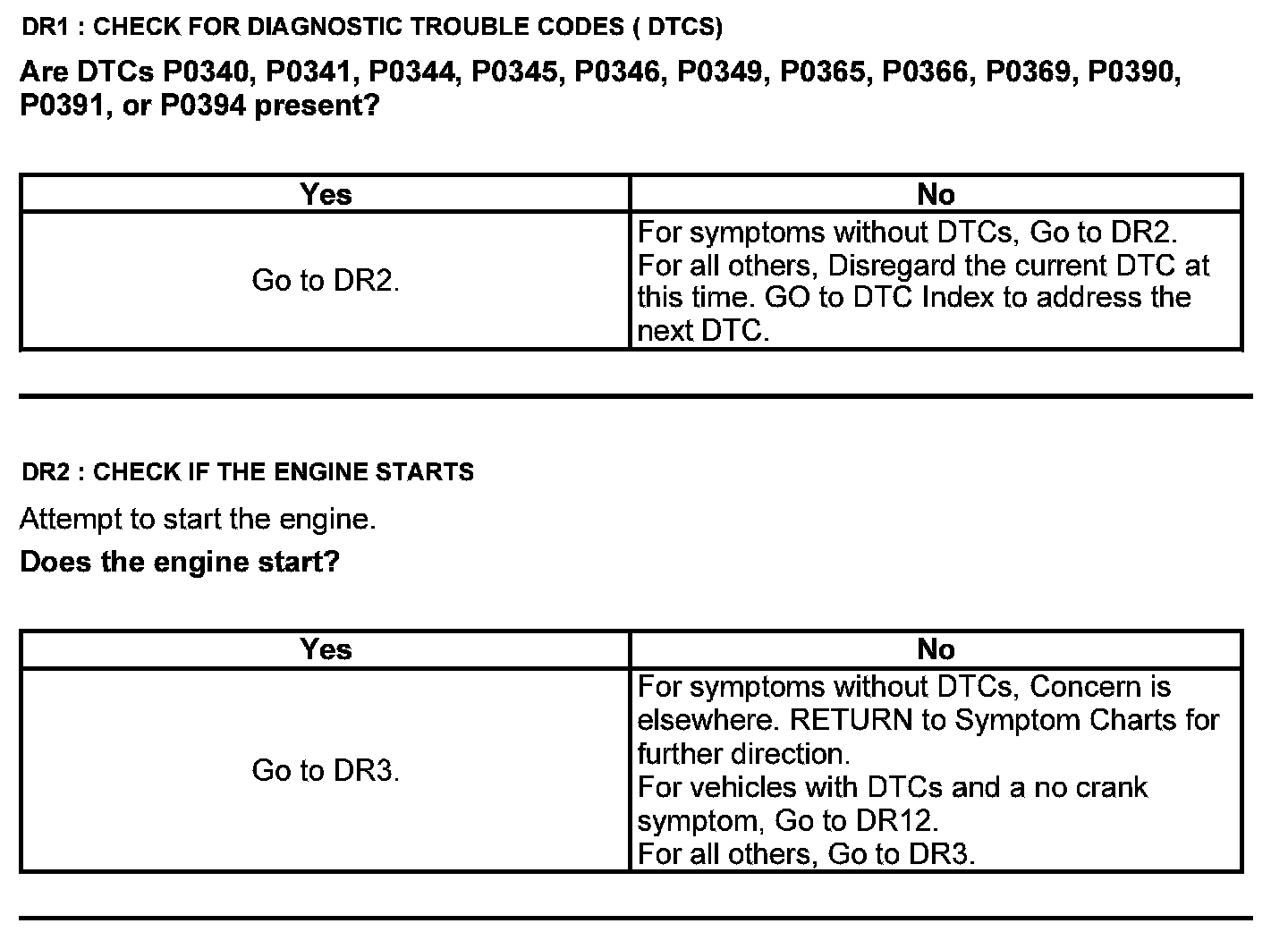

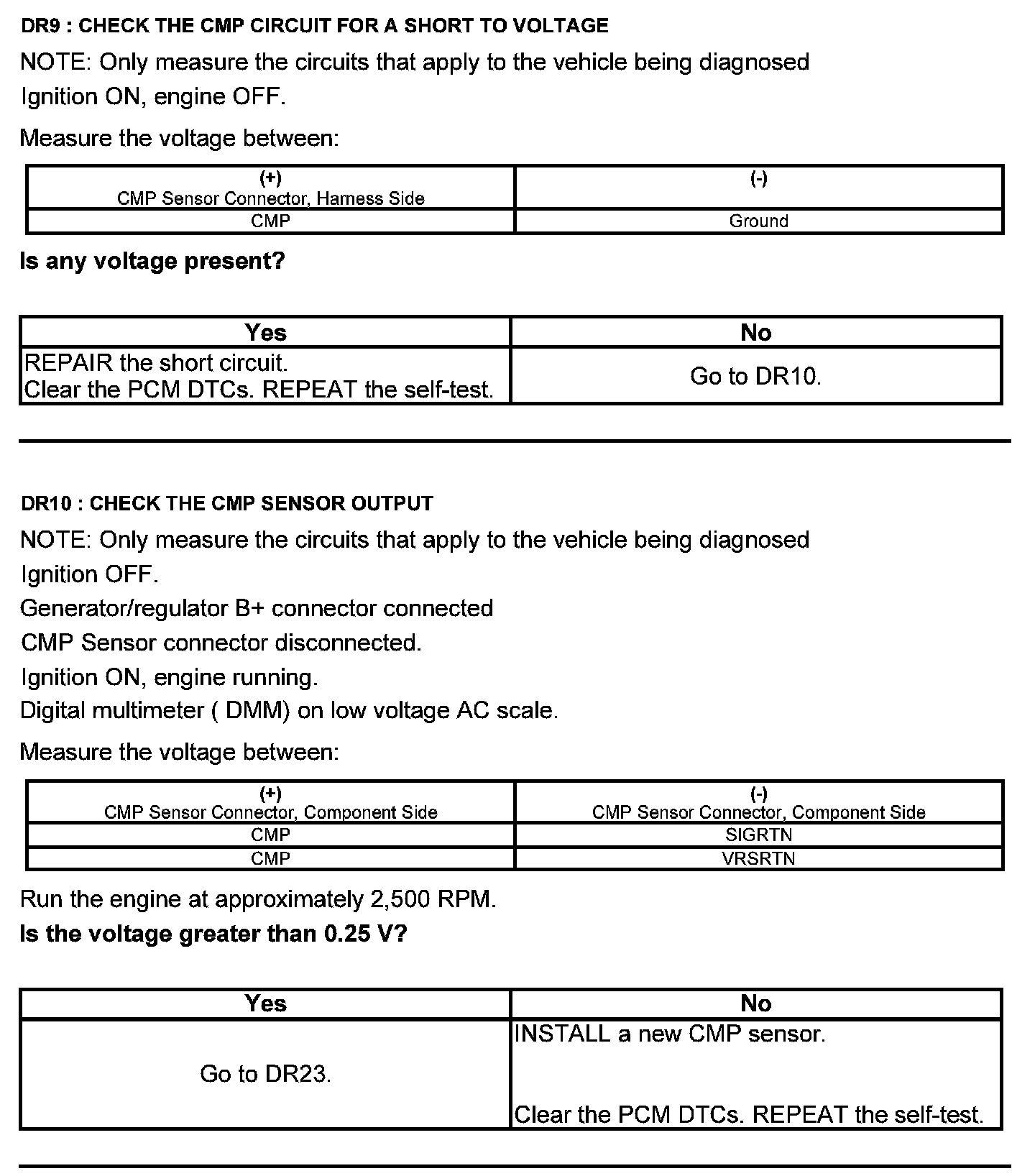

Test DR: Camshaft Position (CMP) Sensor



Camshaft Position (CMP) Sensor

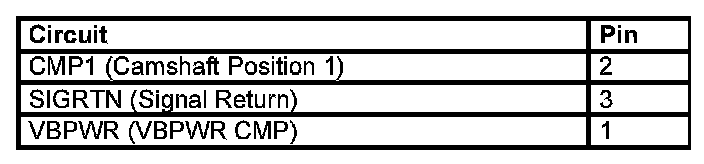

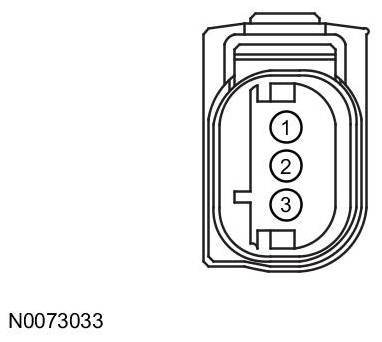

Camshaft Position 1 (CMP1) Sensor Connector






Harness Side

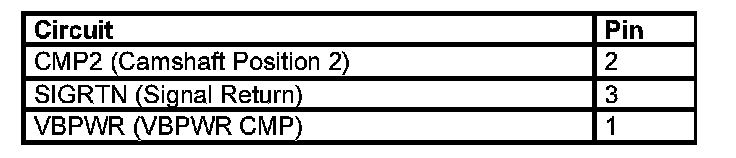

Camshaft Position 2 (CMP2) Sensor Connector






Harness Side

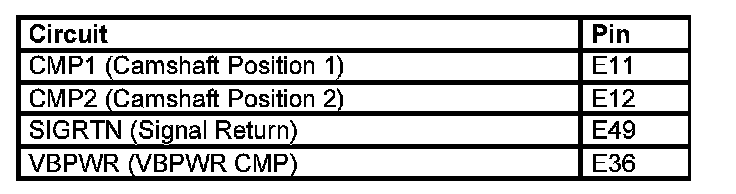

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
