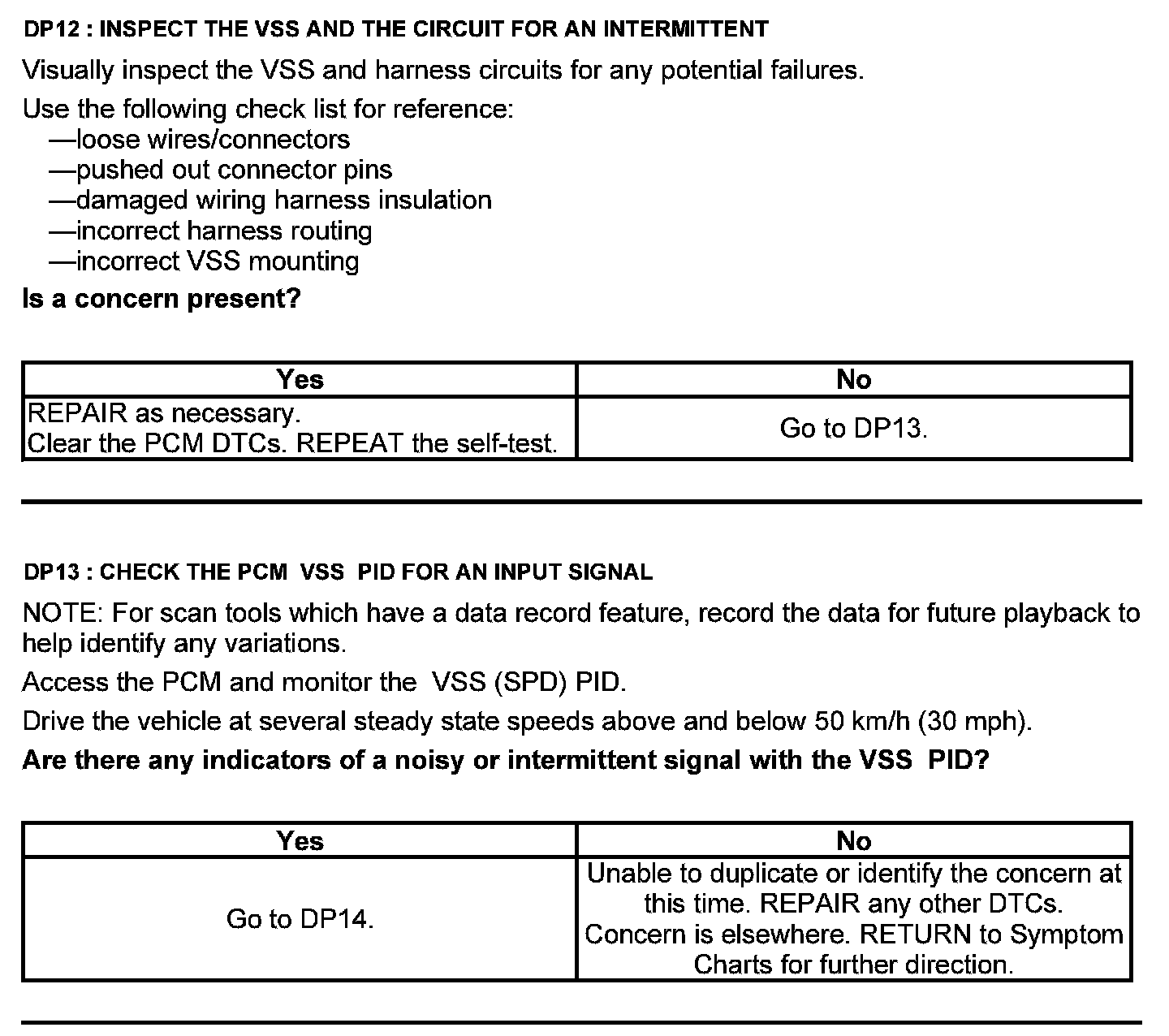

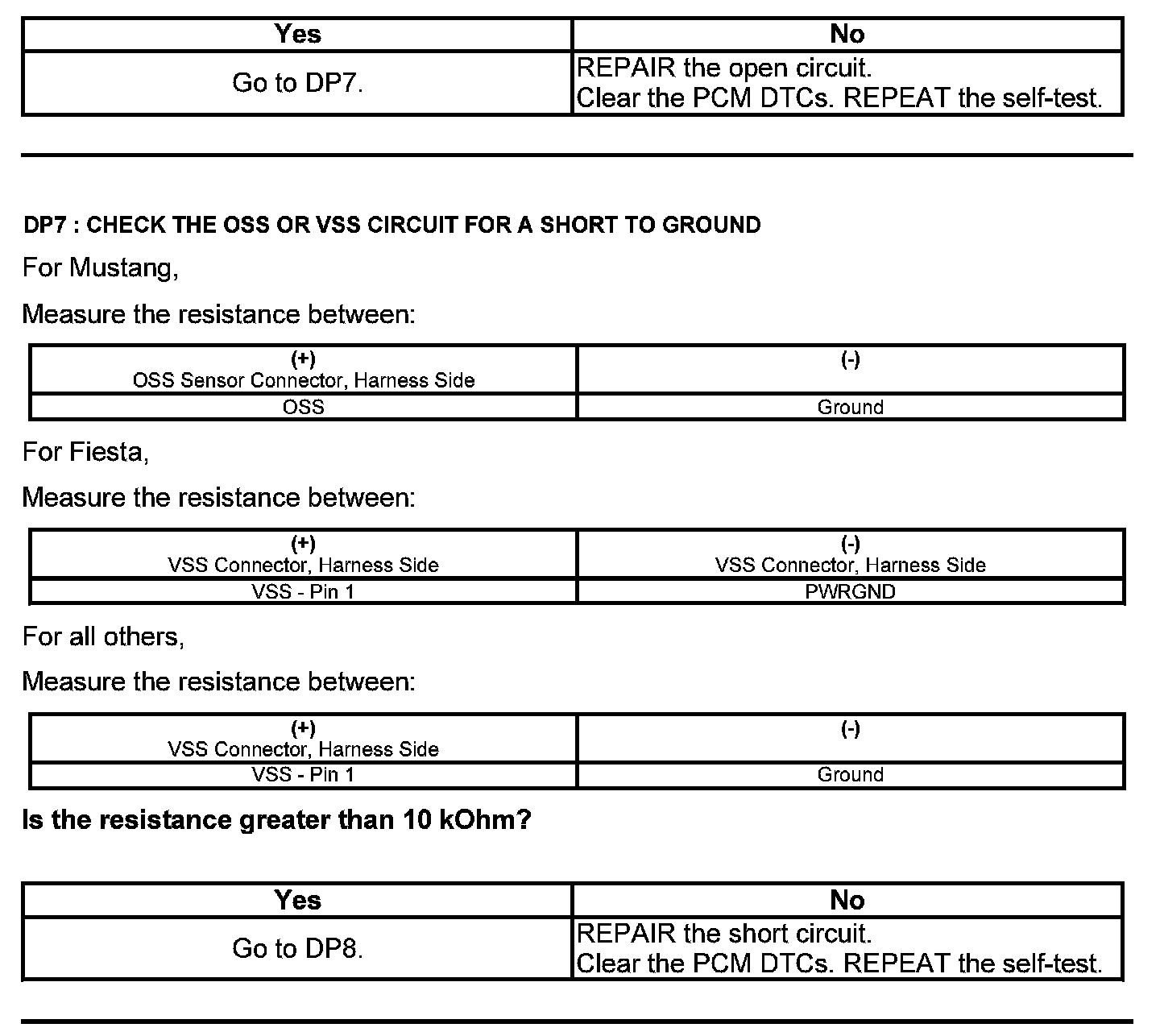

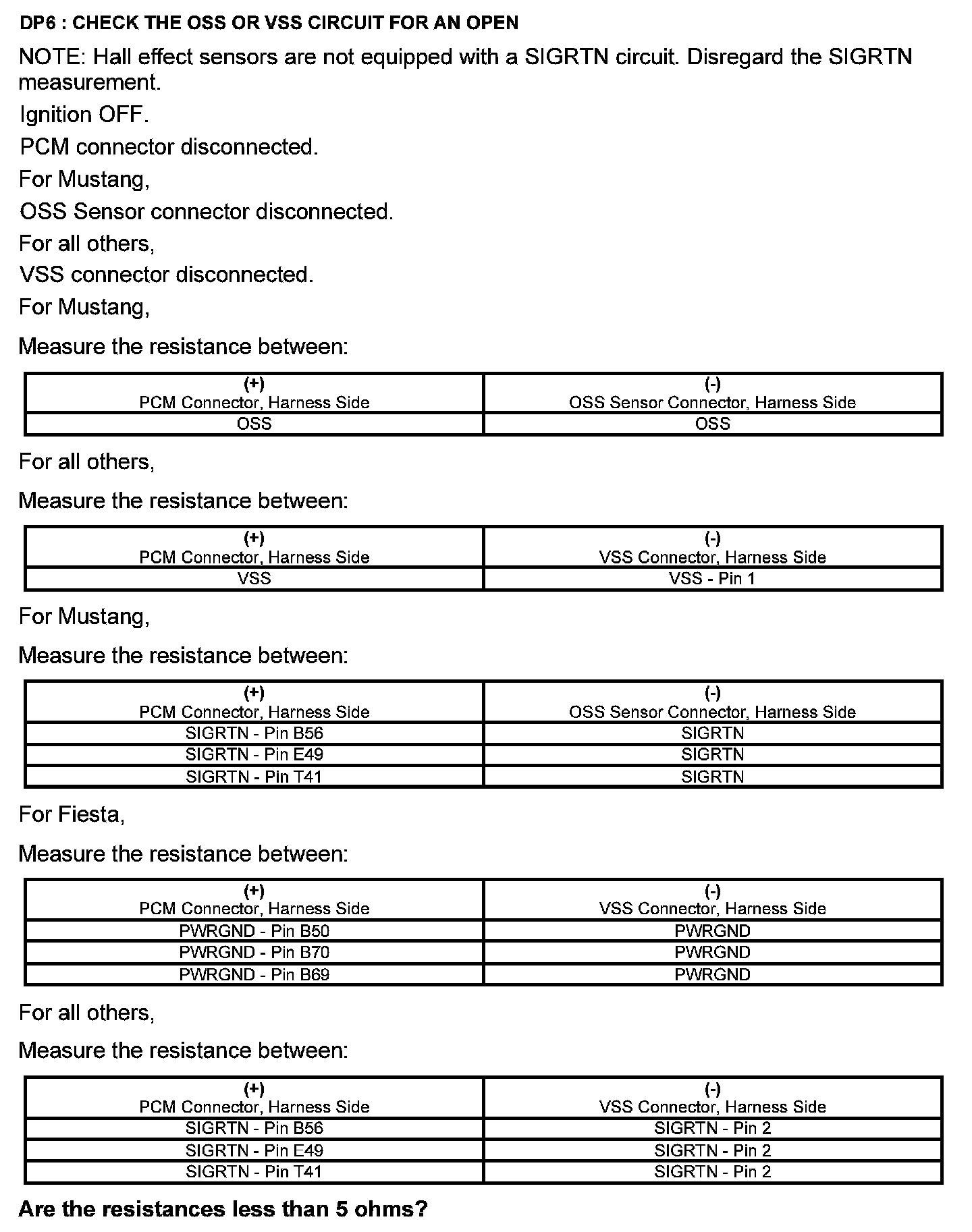

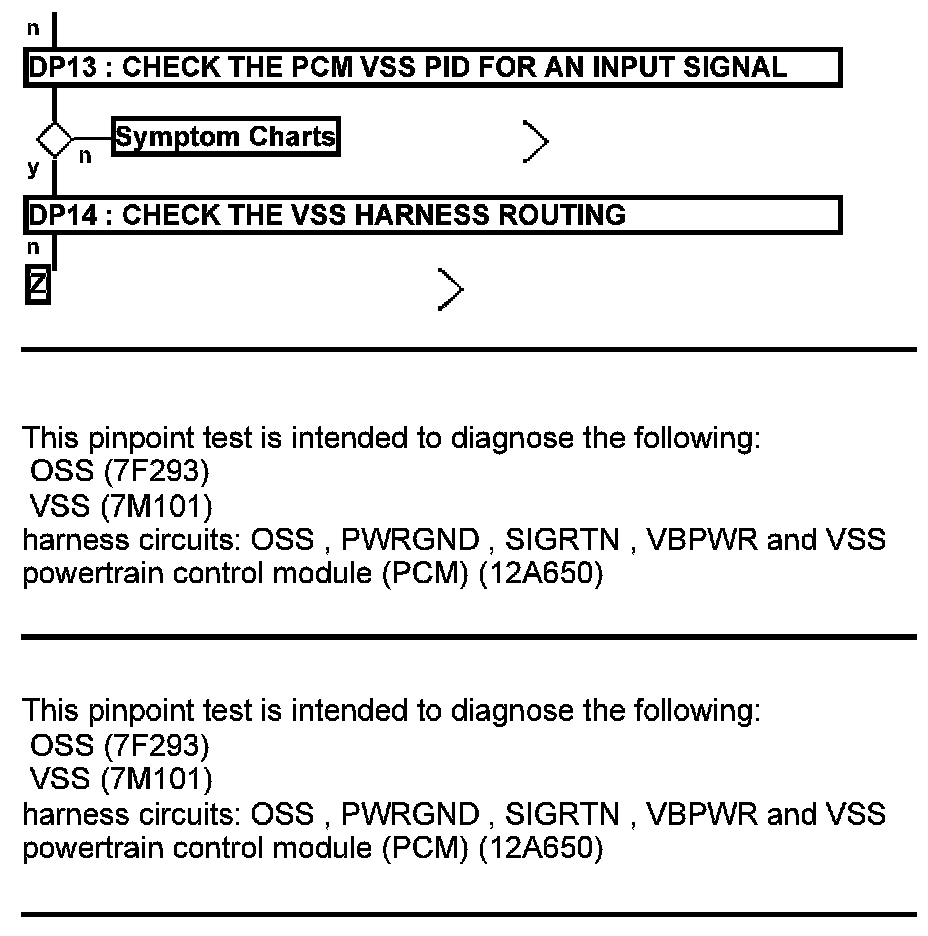

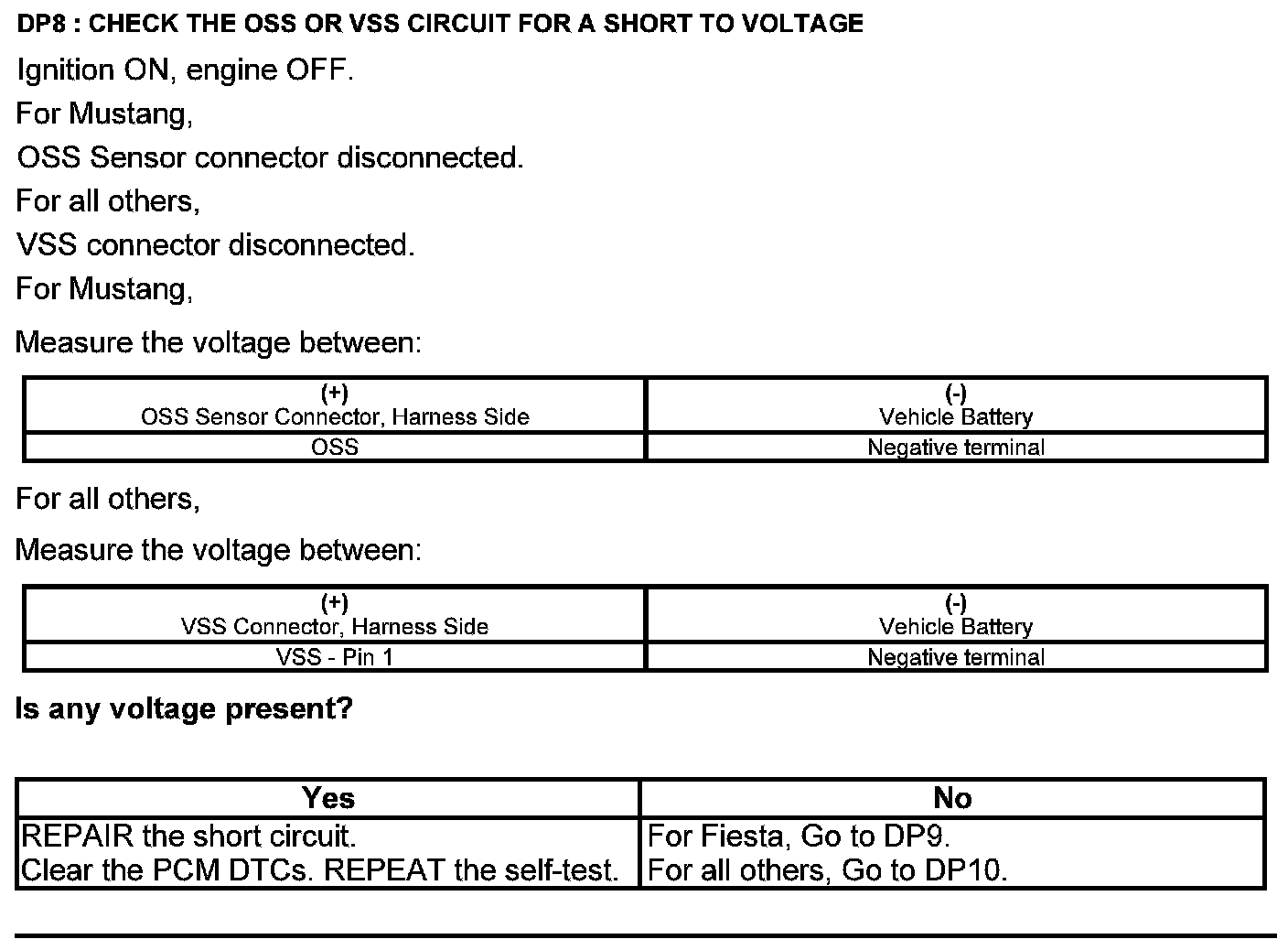

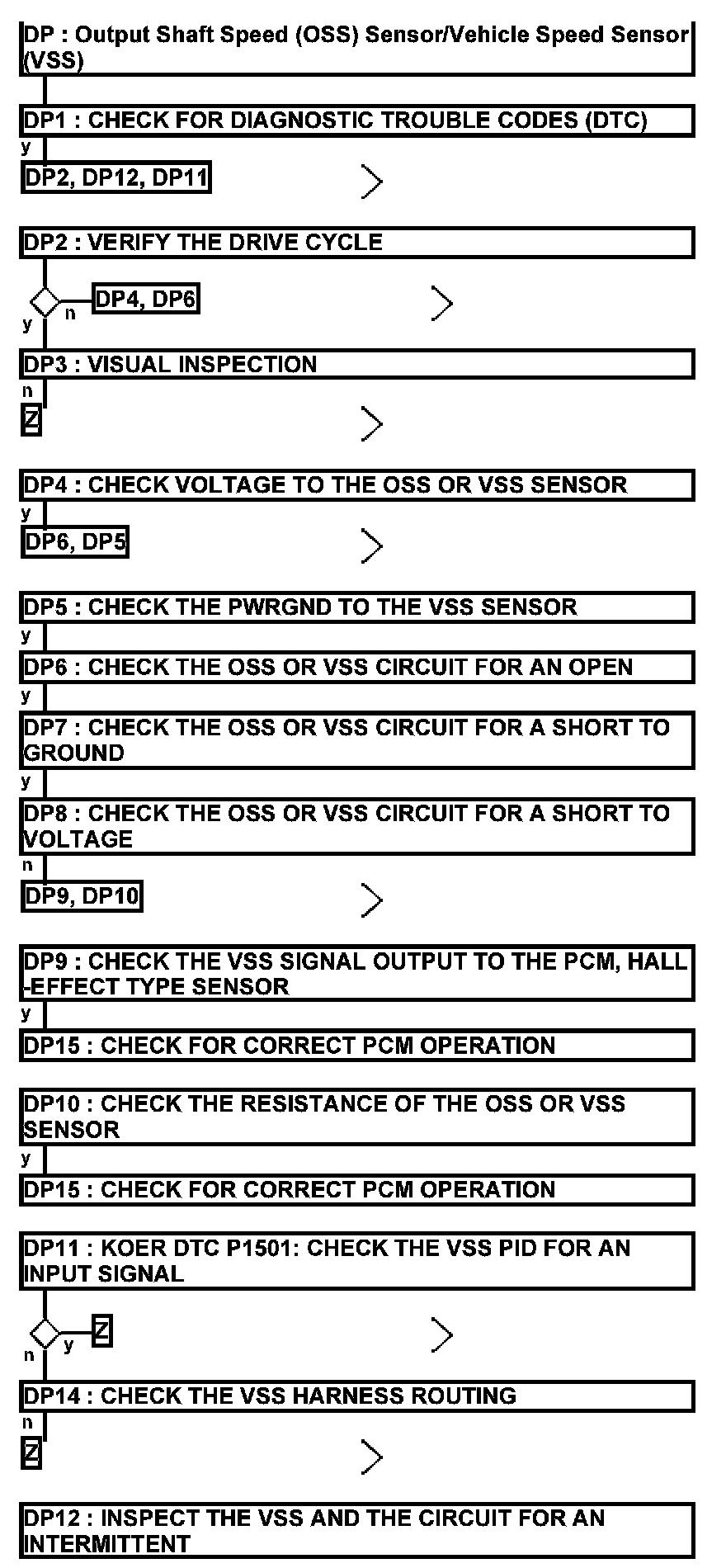

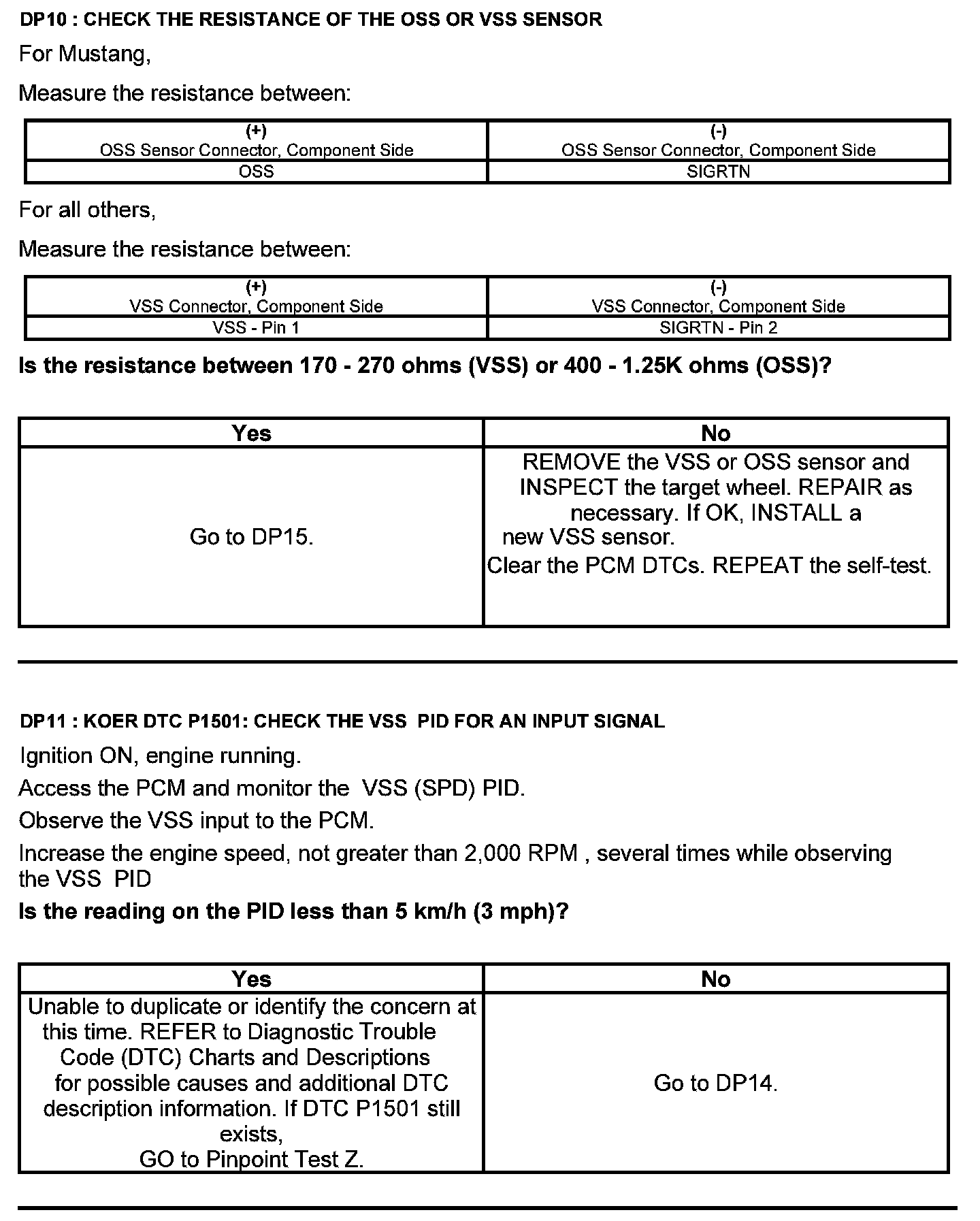

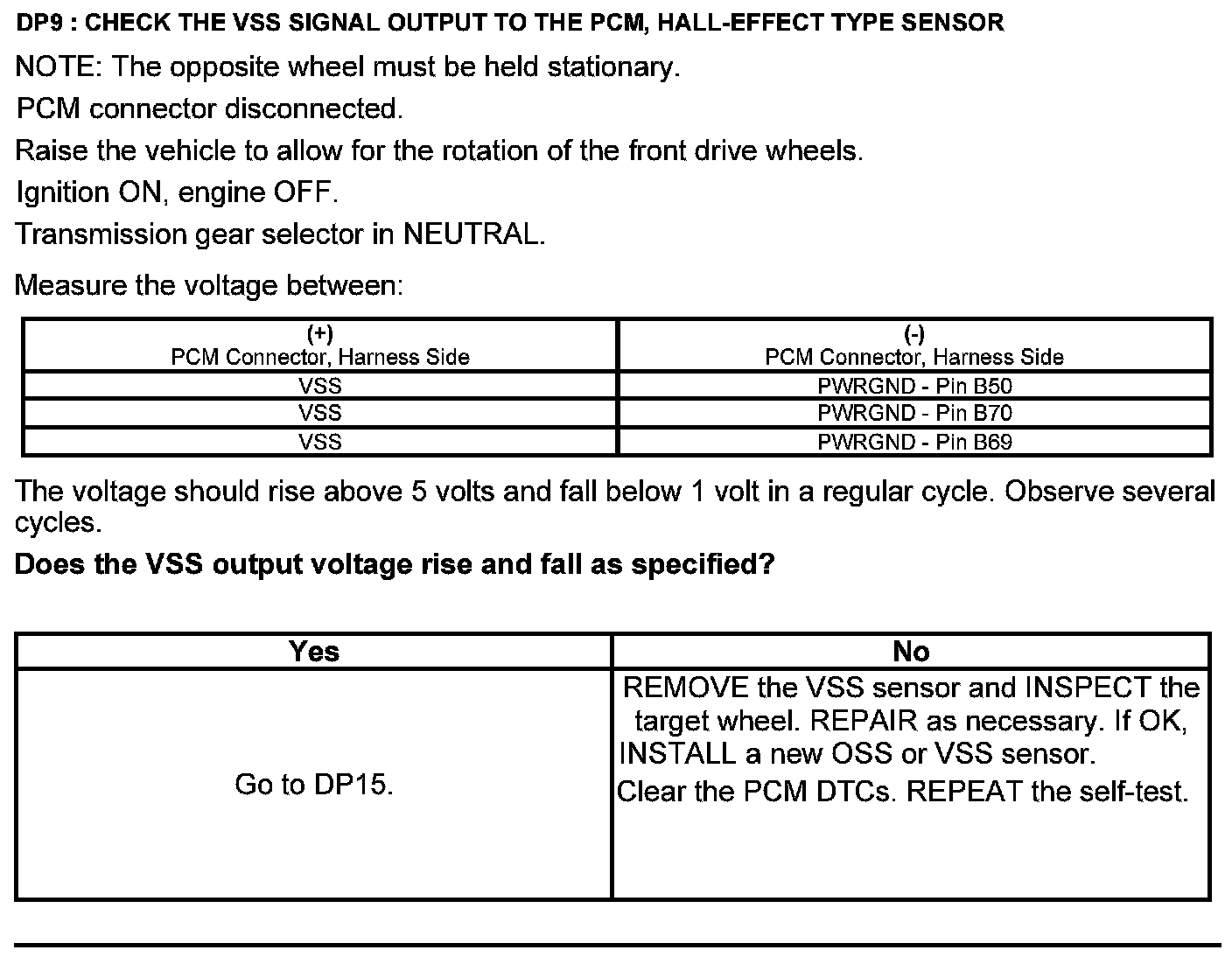

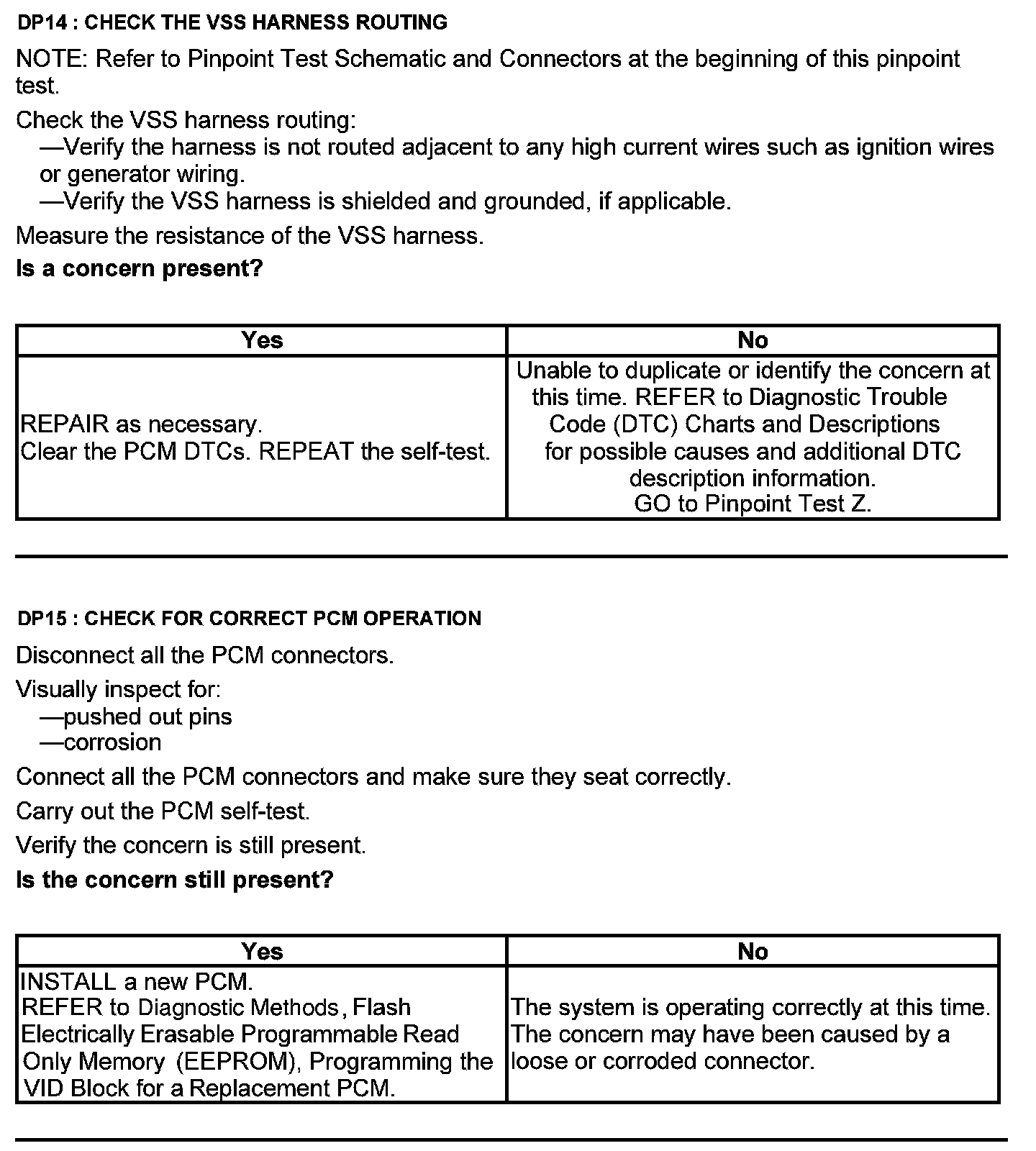

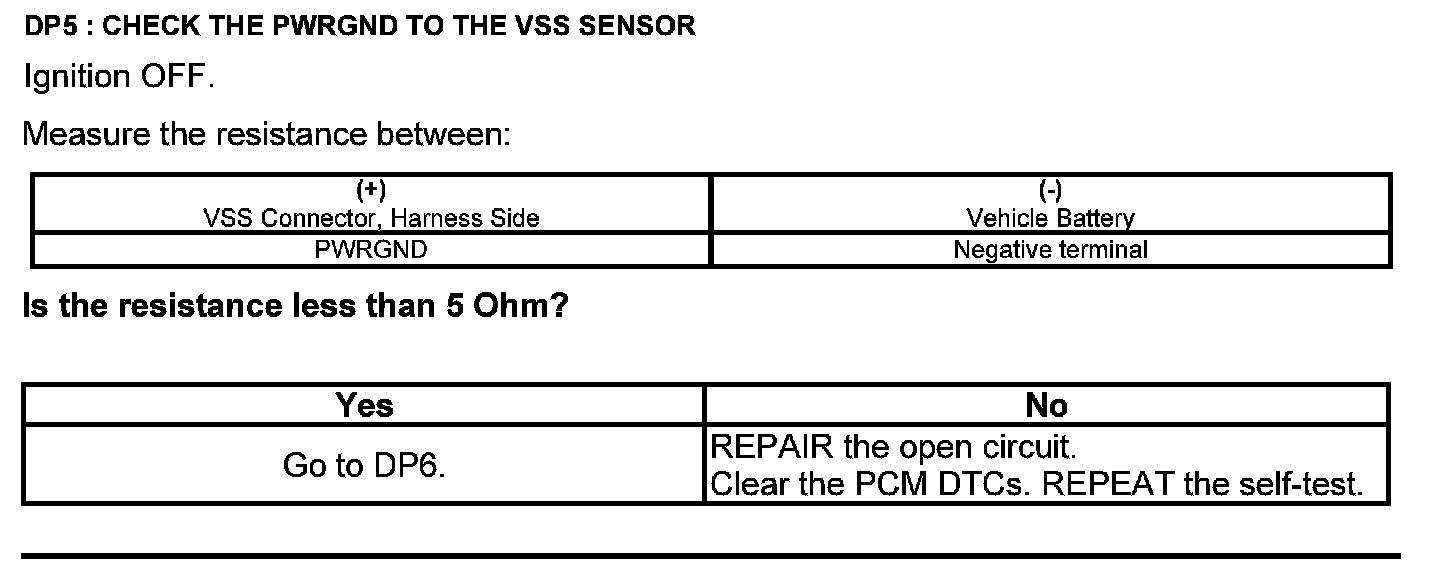

Test DP: Output Shaft Speed (OSS) Sensor/Vehicle Speed Sensor (VSS)



Output Shaft Speed (OSS) Sensor/Vehicle Speed Sensor (VSS)

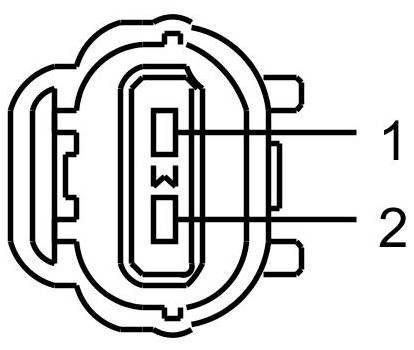

Vehicle Speed Sensor (VSS) Connector






Harness Side

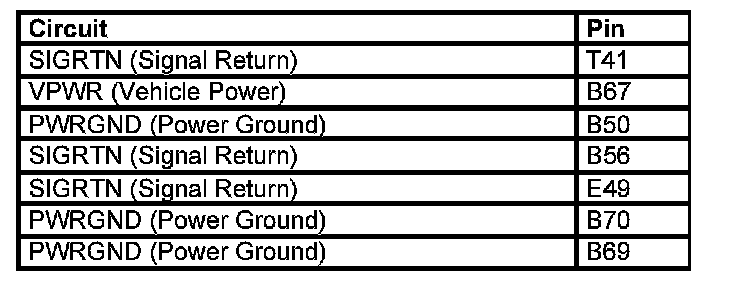

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
