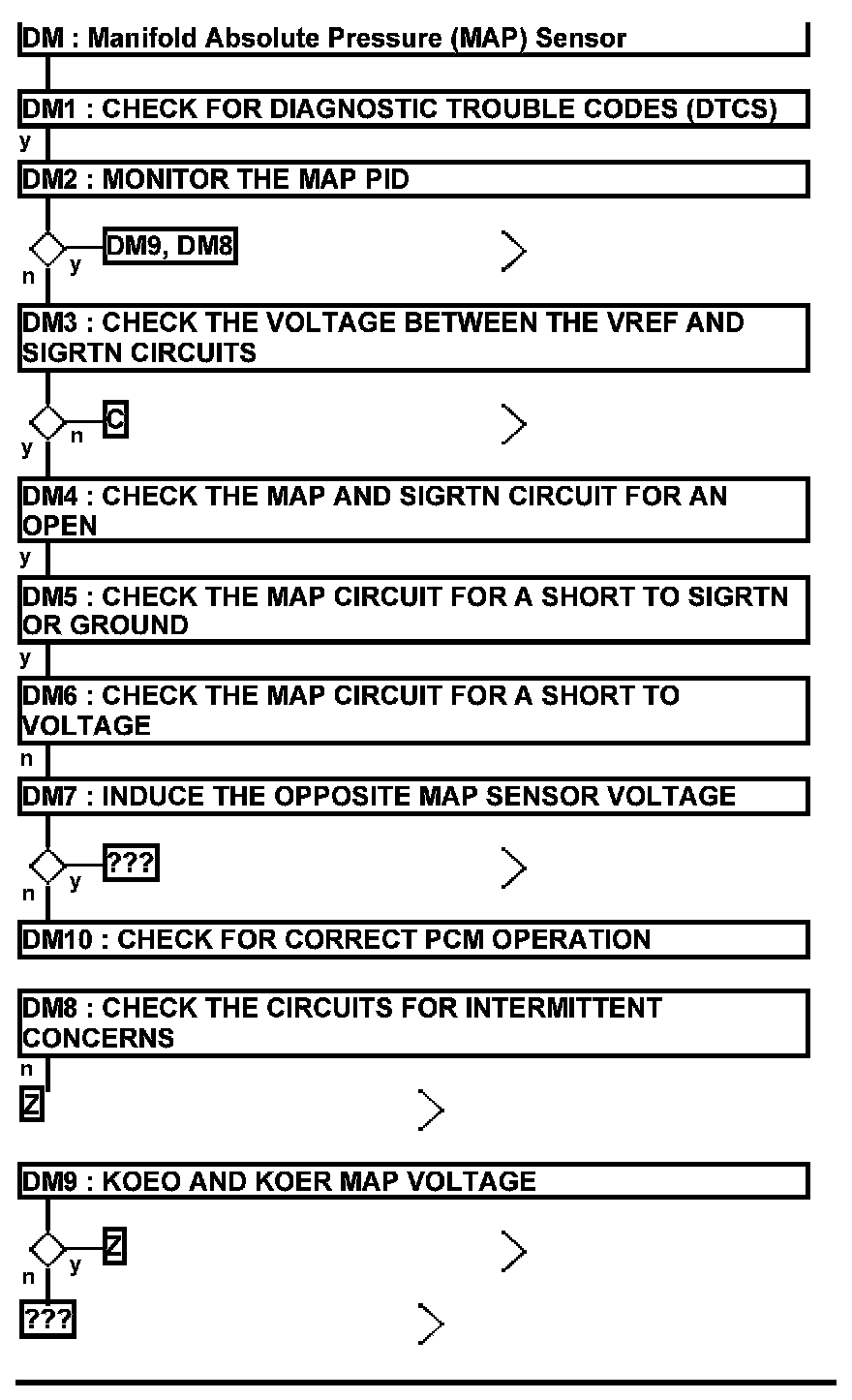

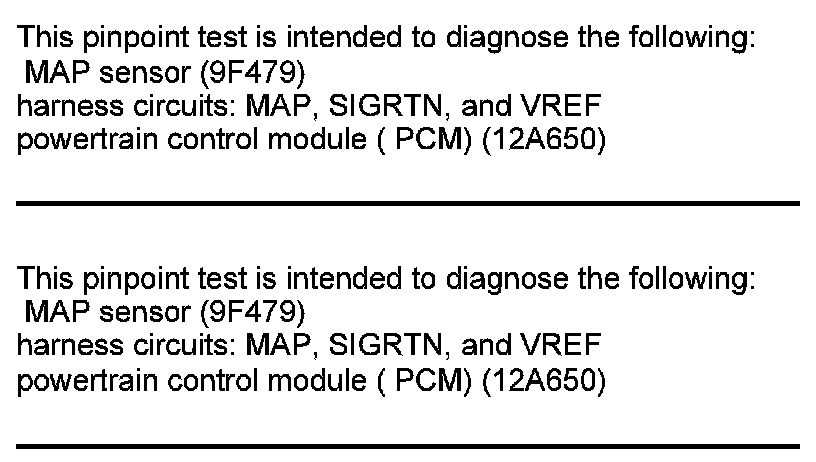

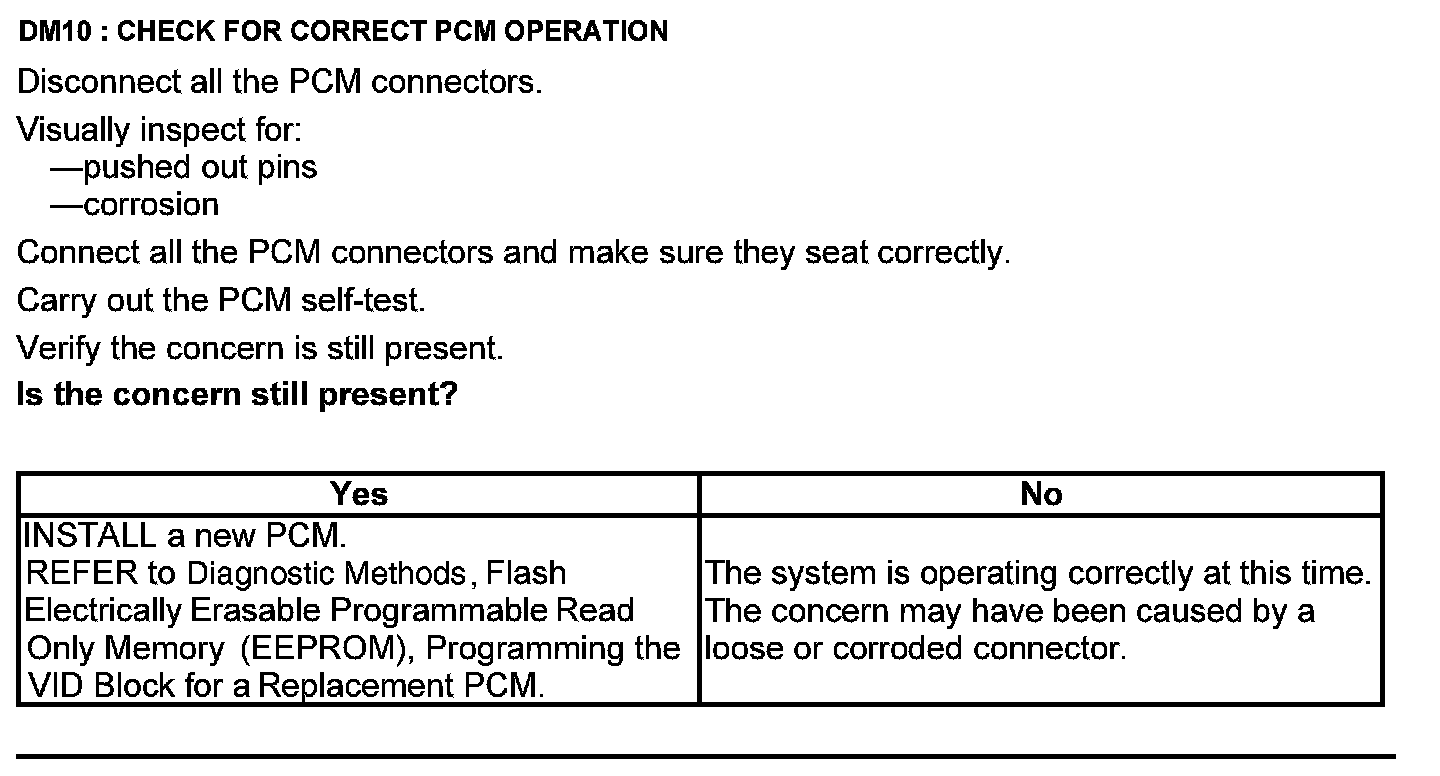

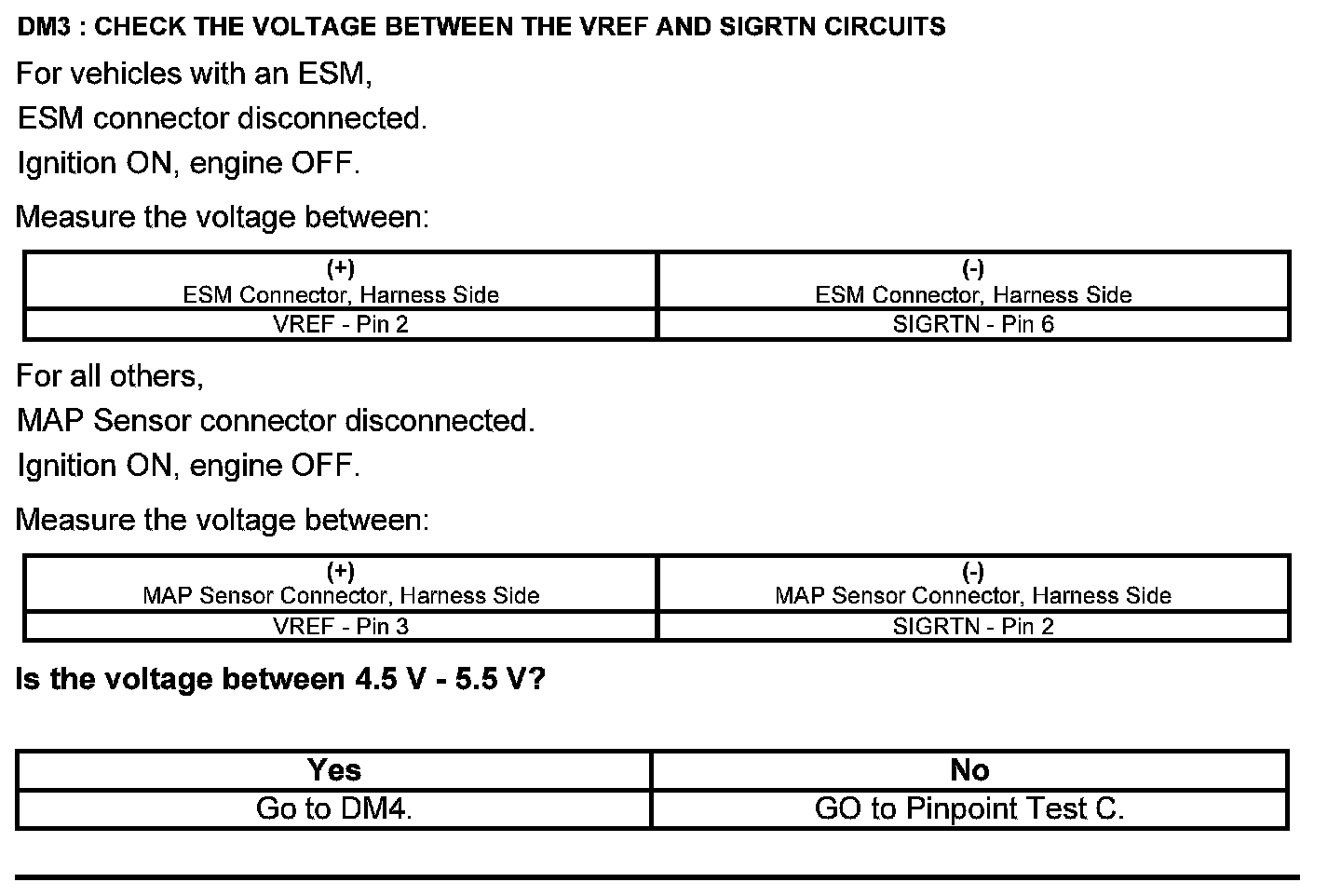

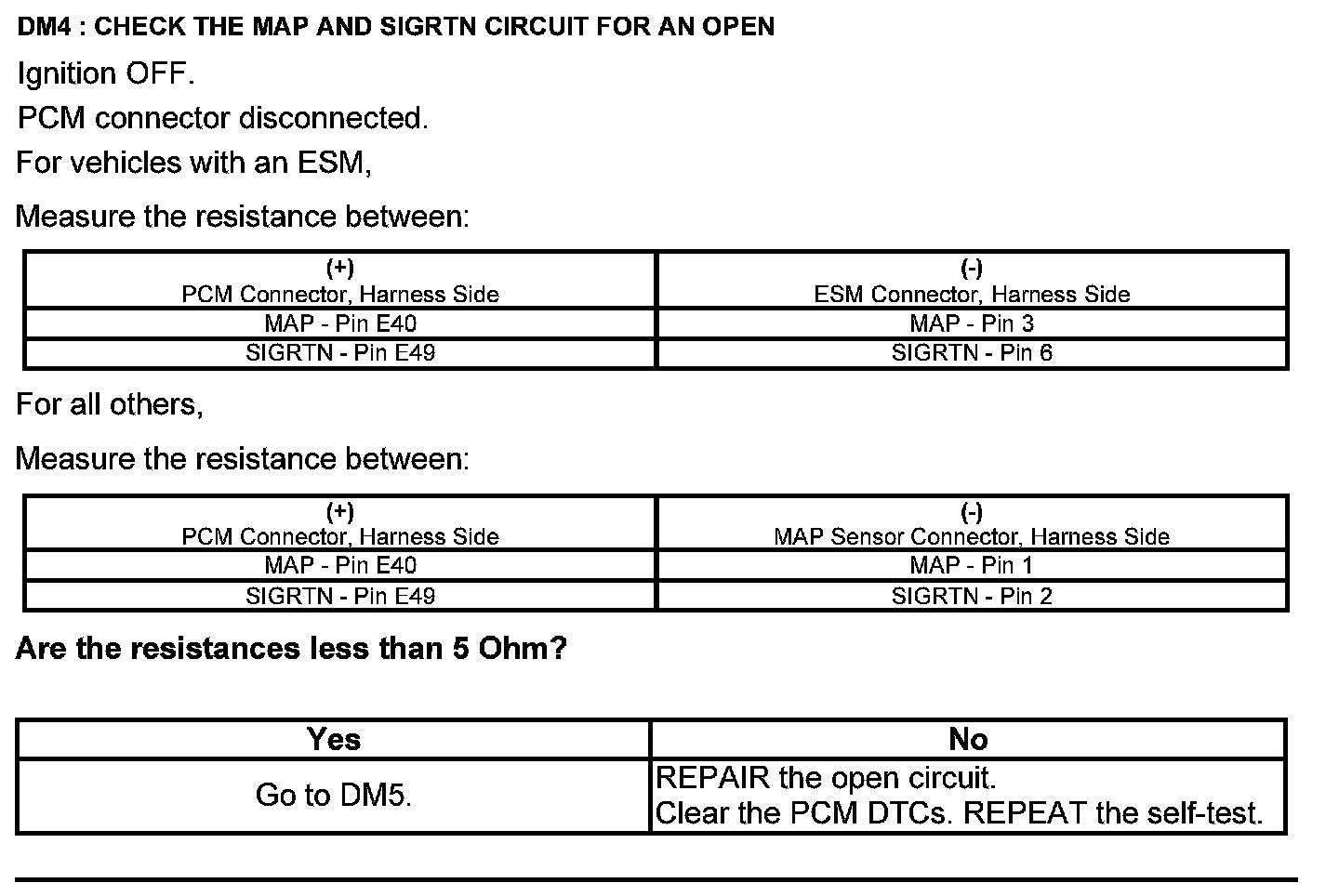

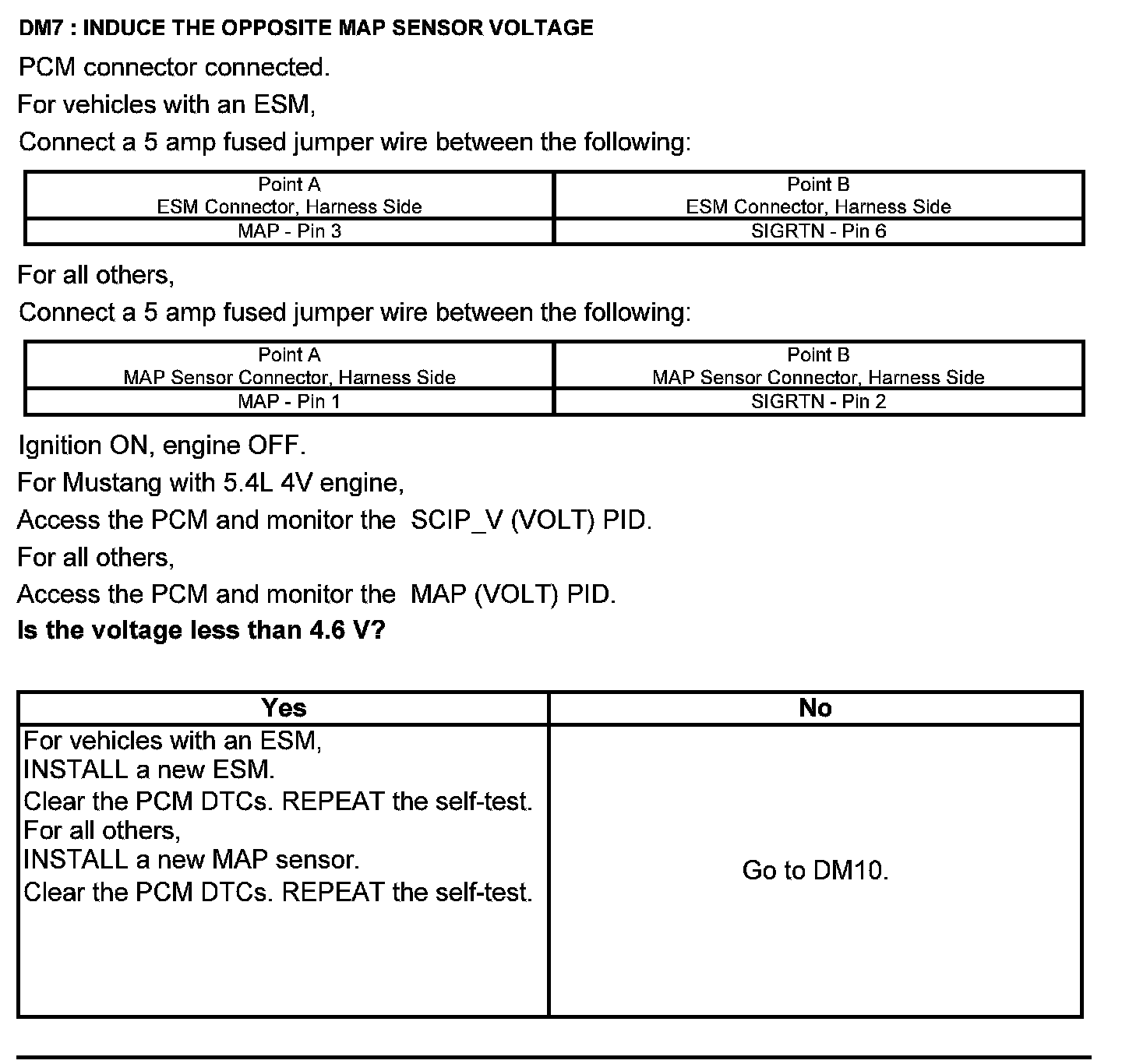

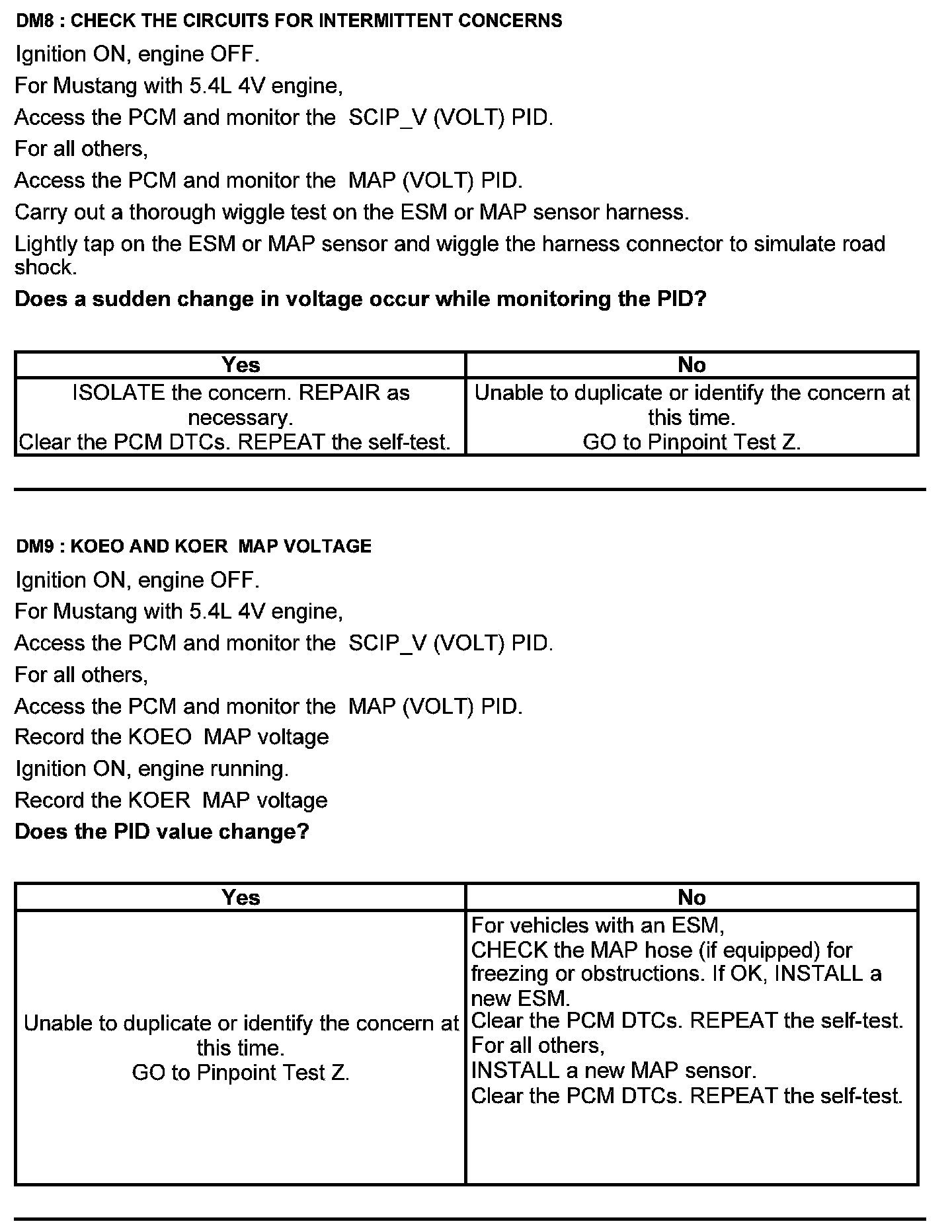

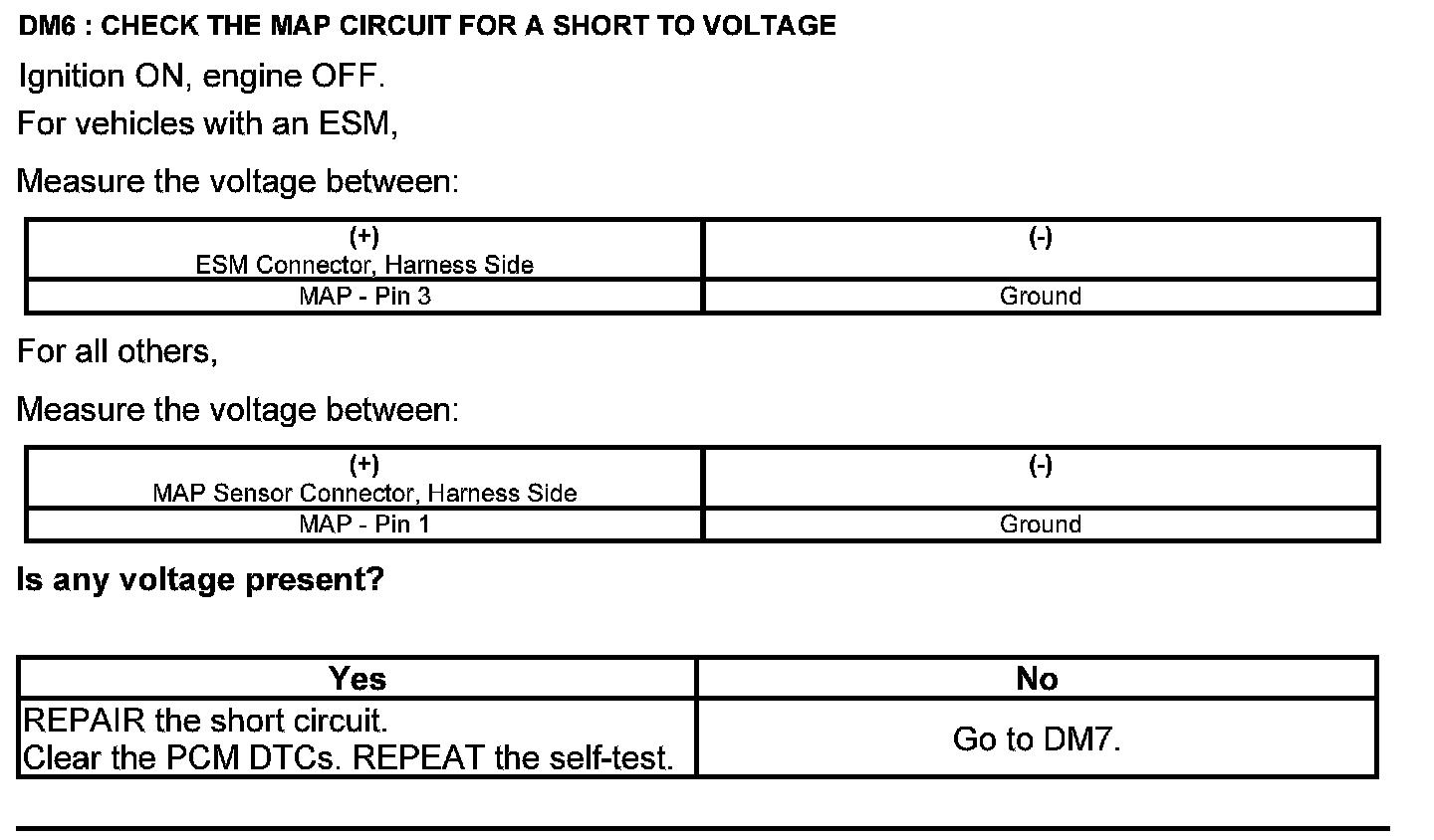

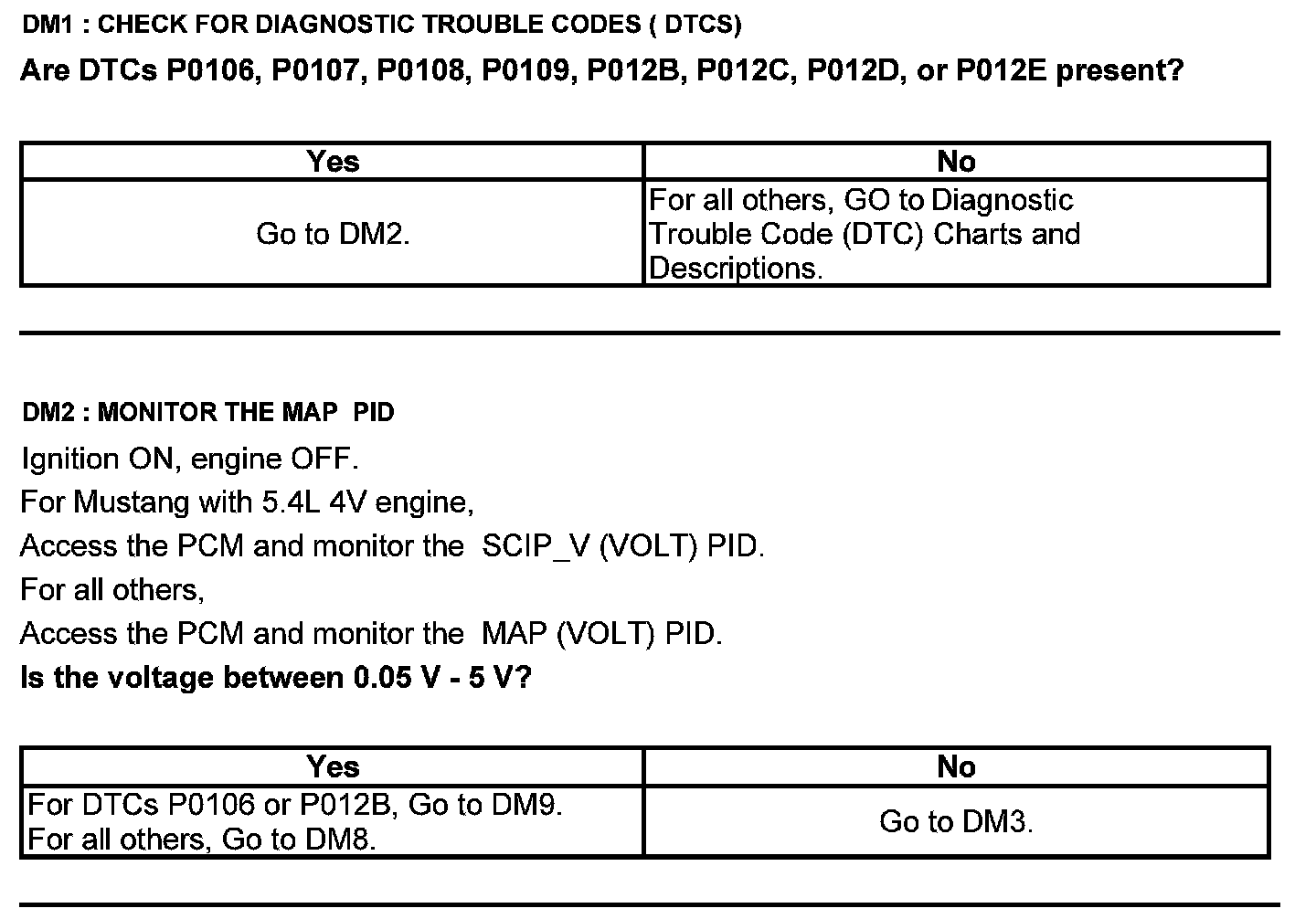

Test DM: Manifold Absolute Pressure (MAP) Sensor



Manifold Absolute Pressure (MAP) Sensor

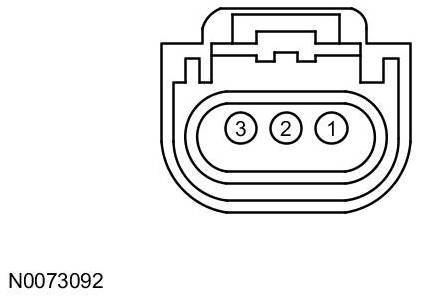

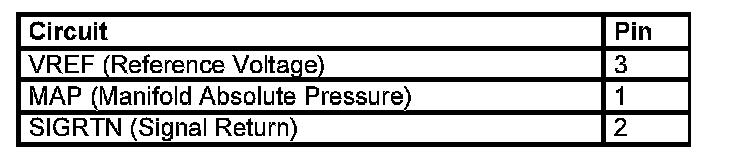

Manifold Absolute Pressure (MAP) Sensor Connector






Harness Side

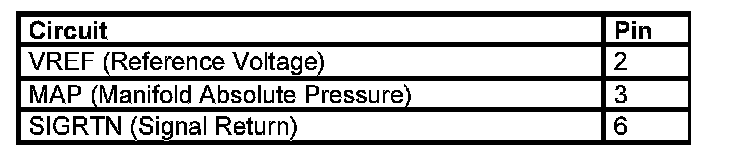

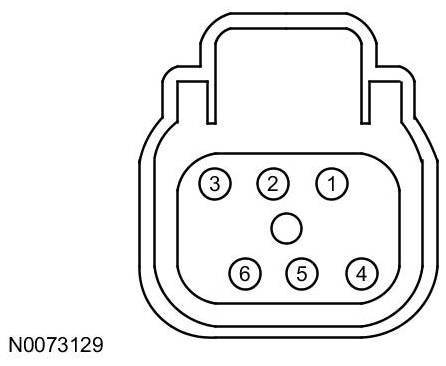

EGR System Module (ESM) Connector






Harness Side

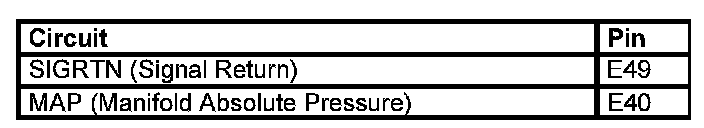

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
