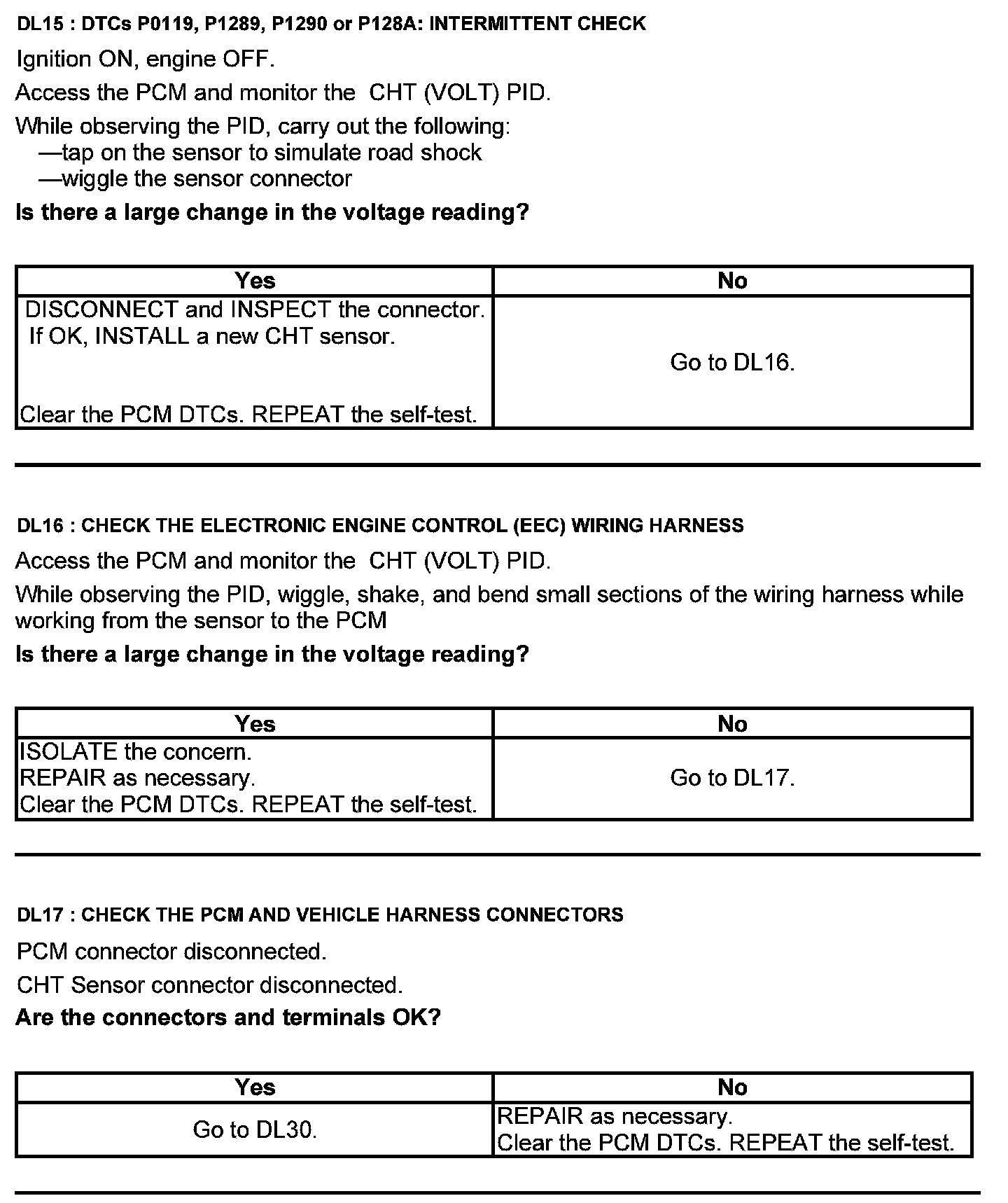

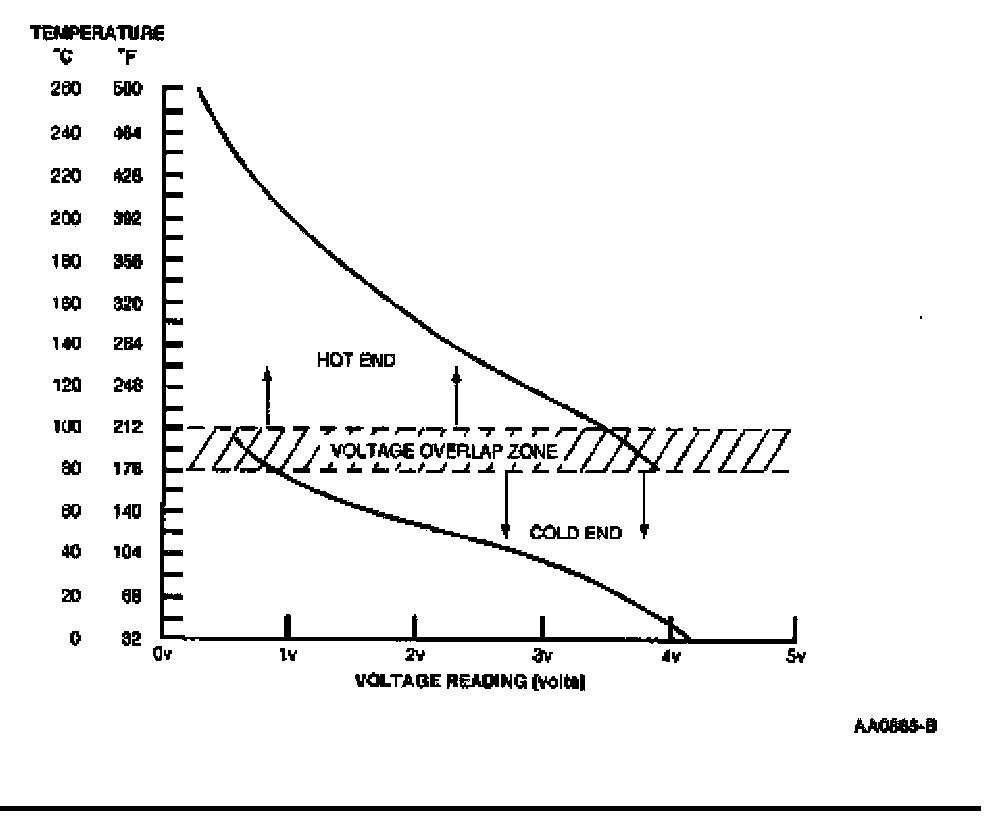

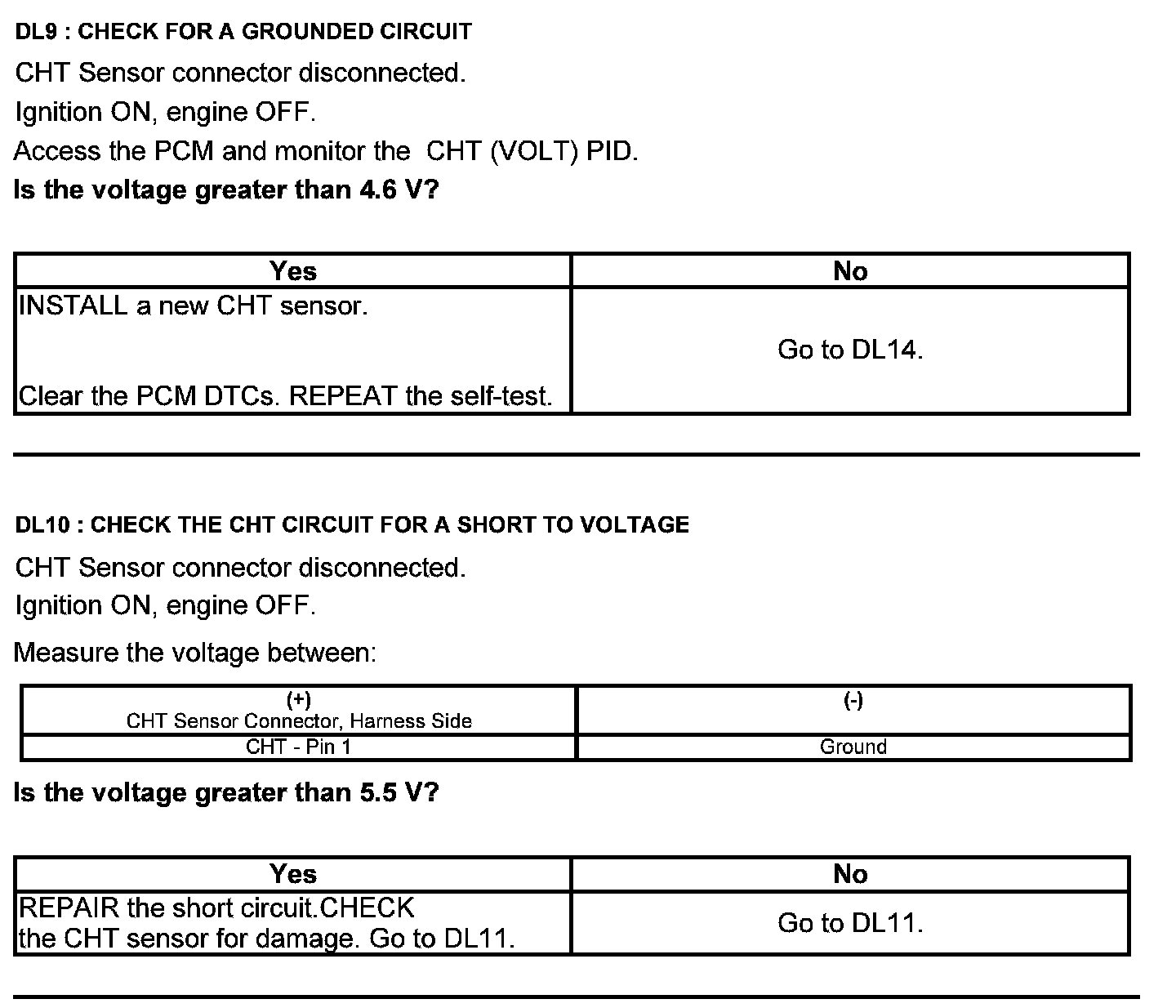

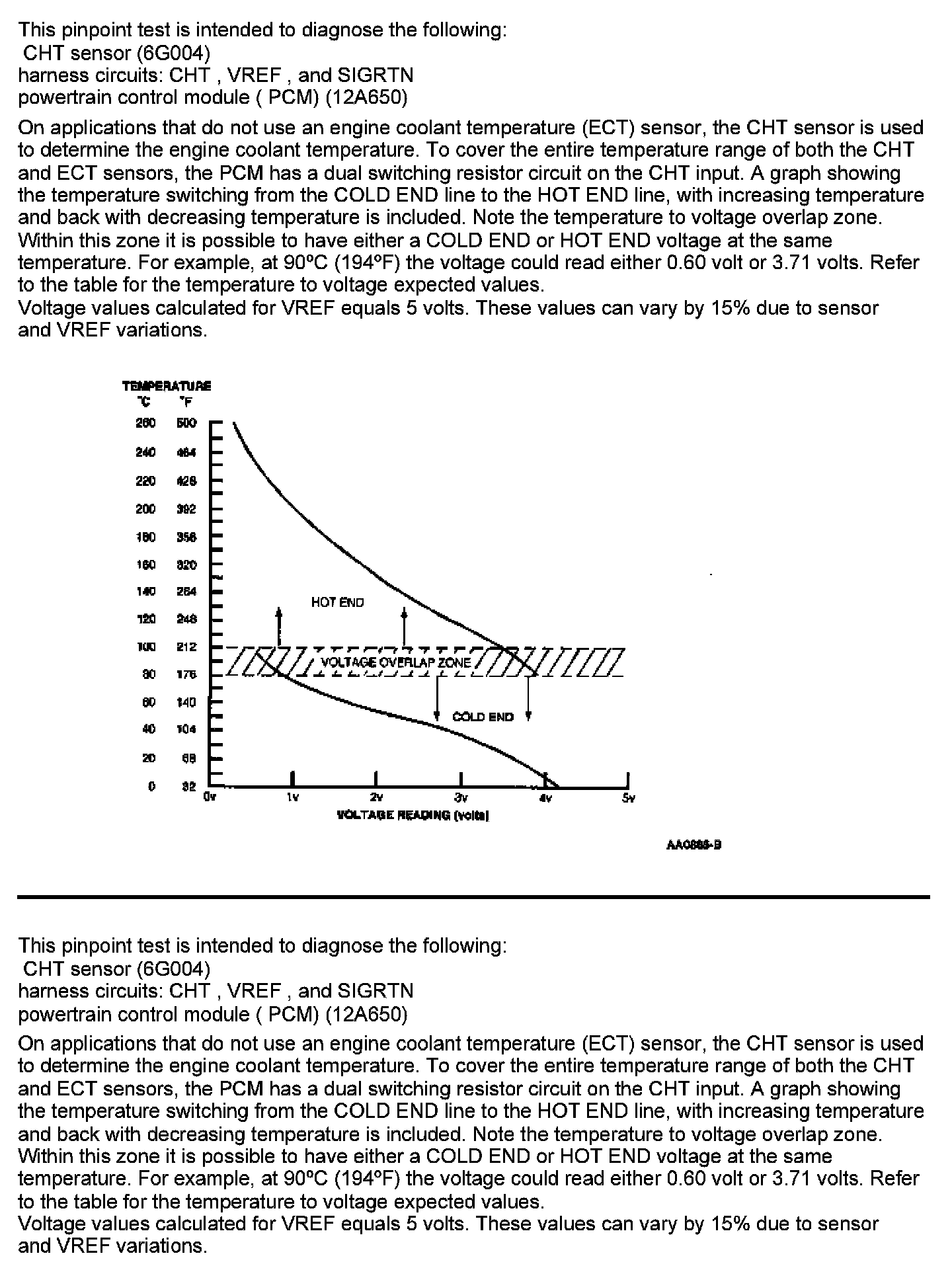

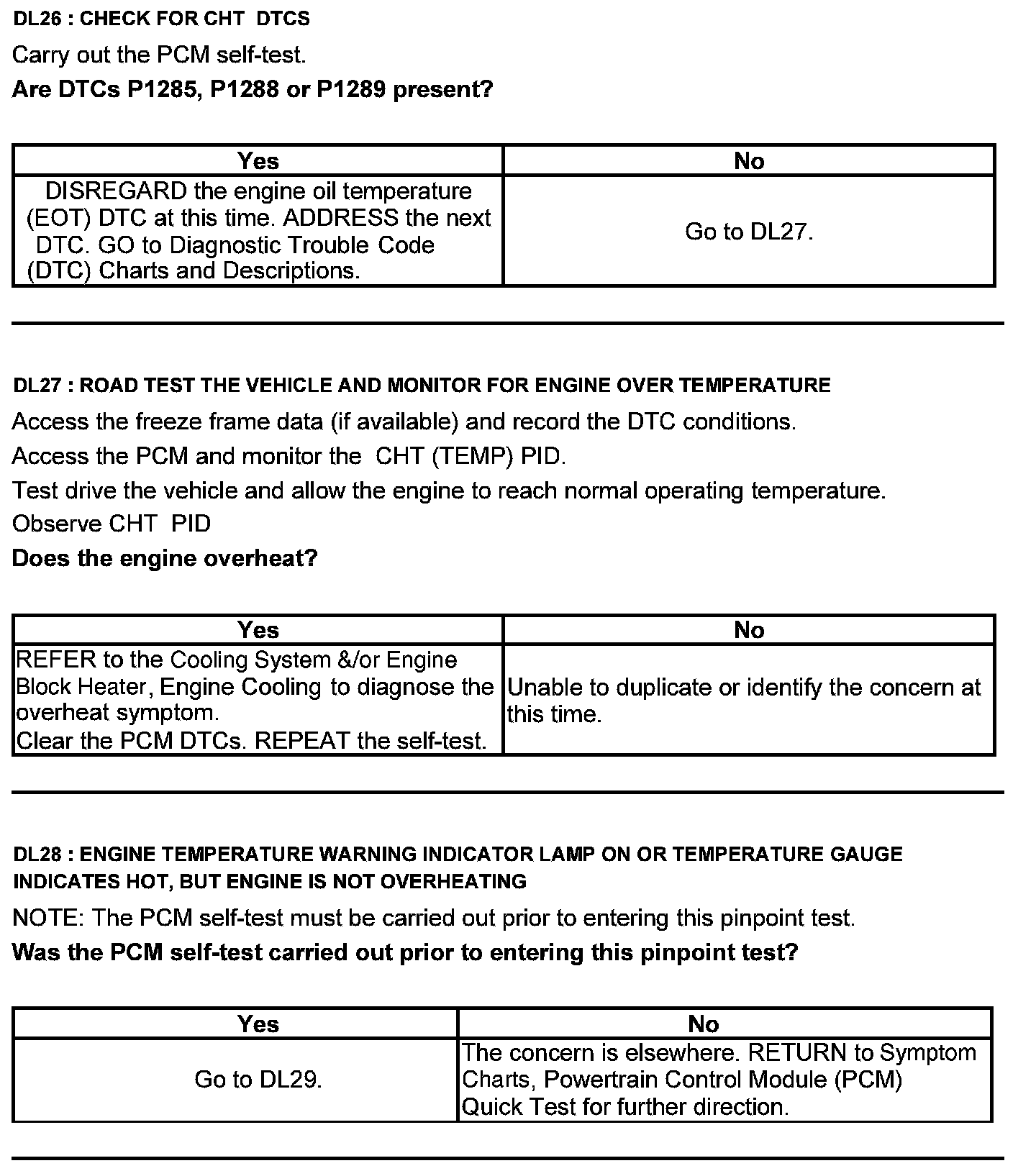

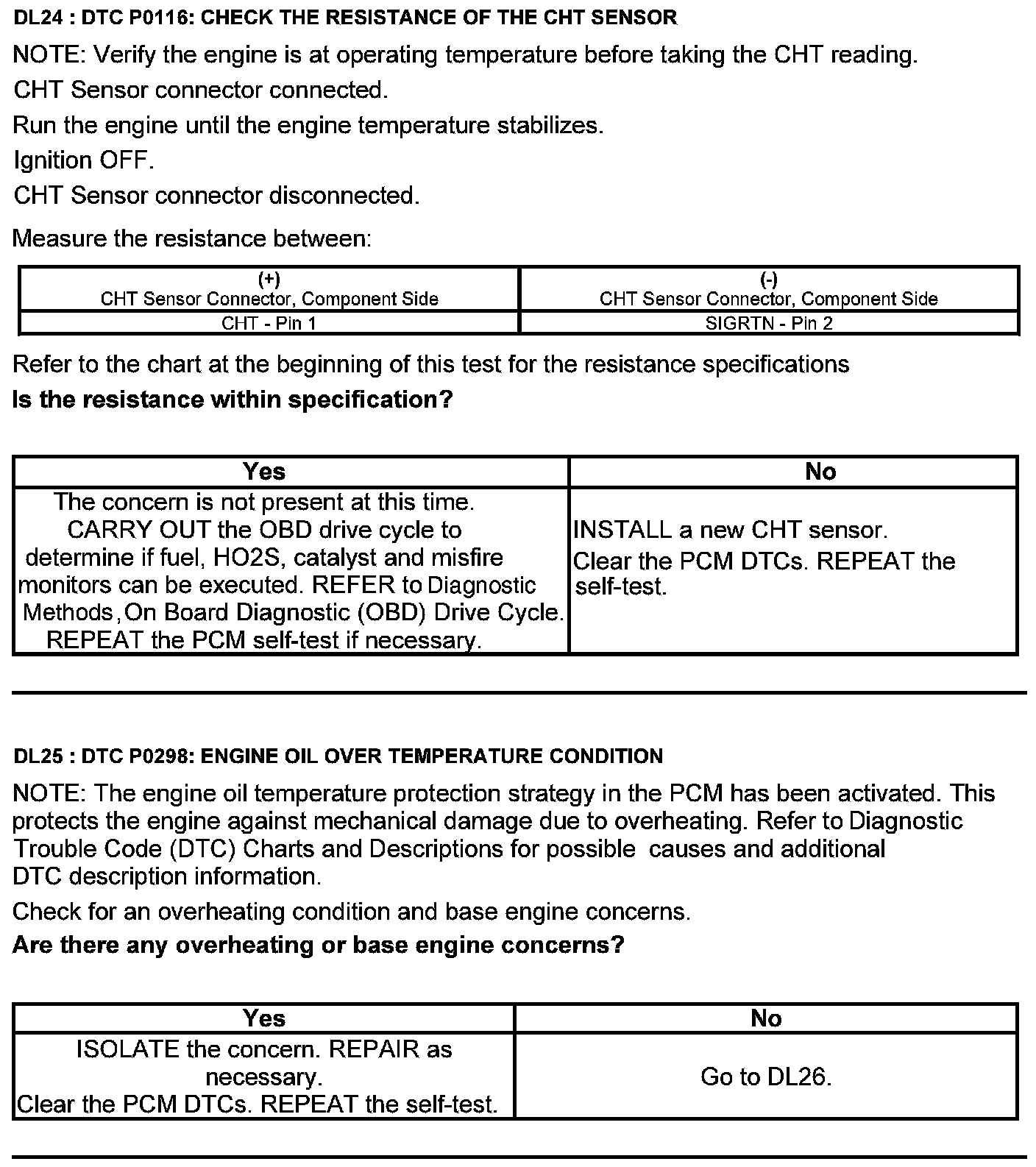

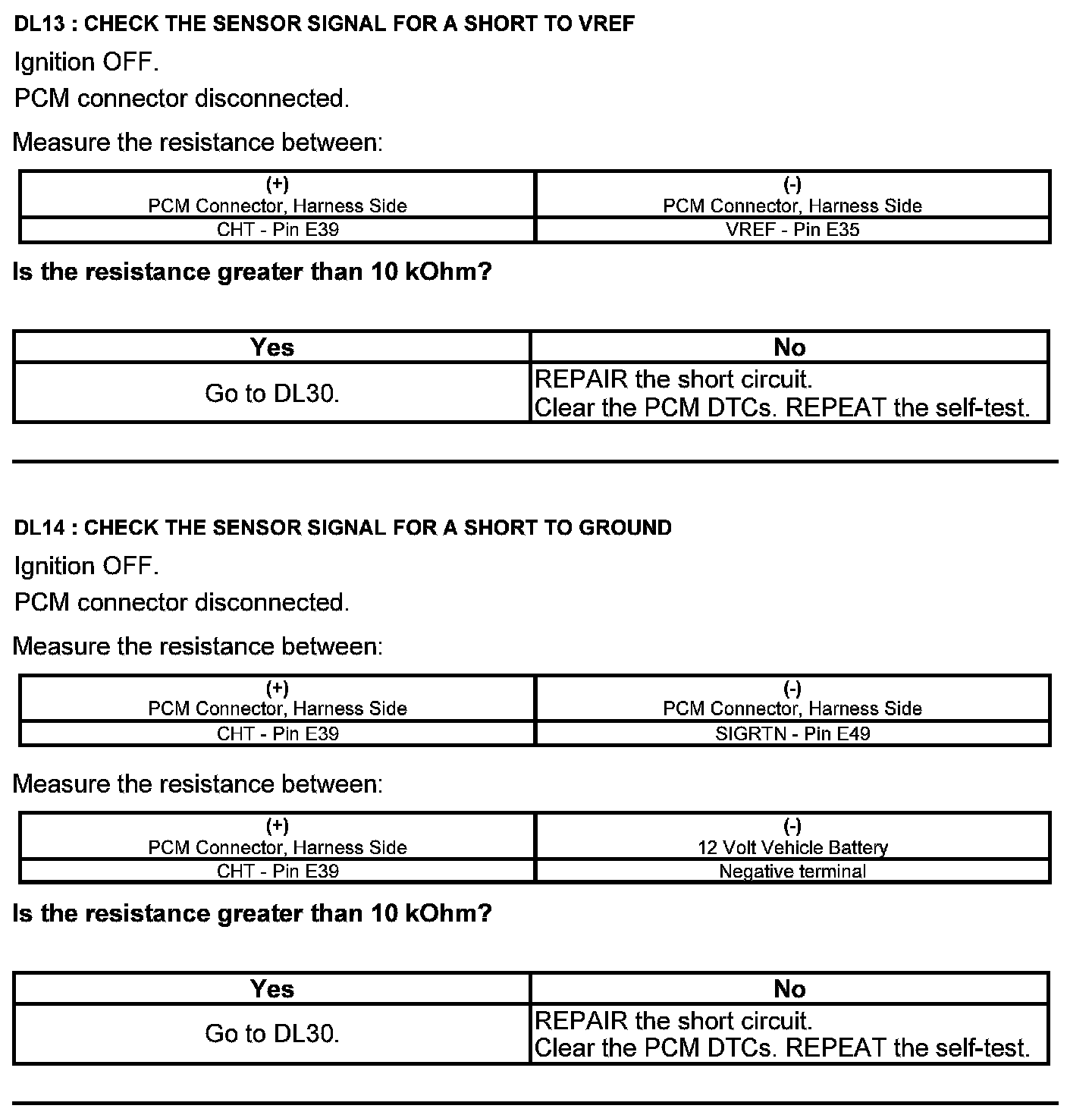

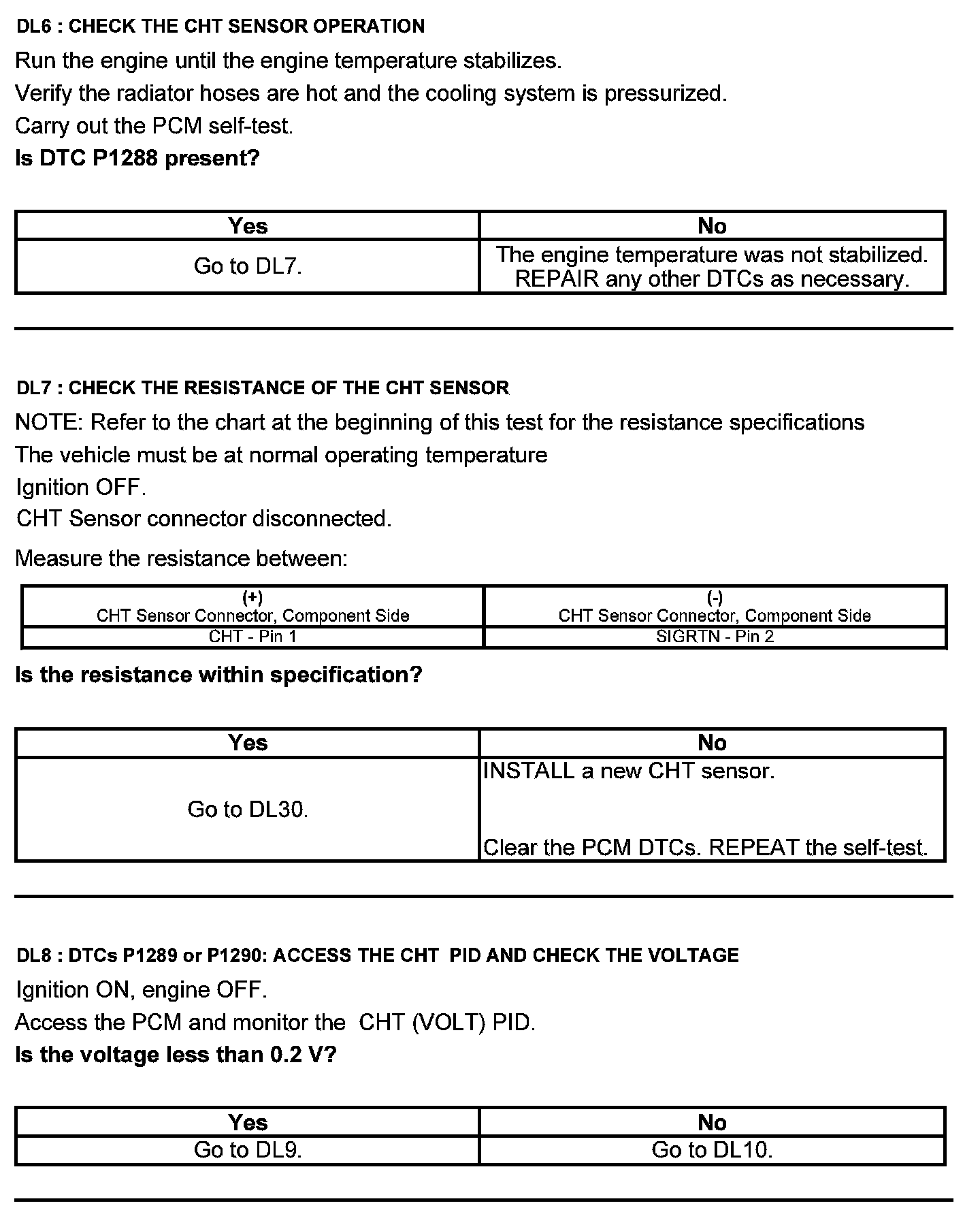

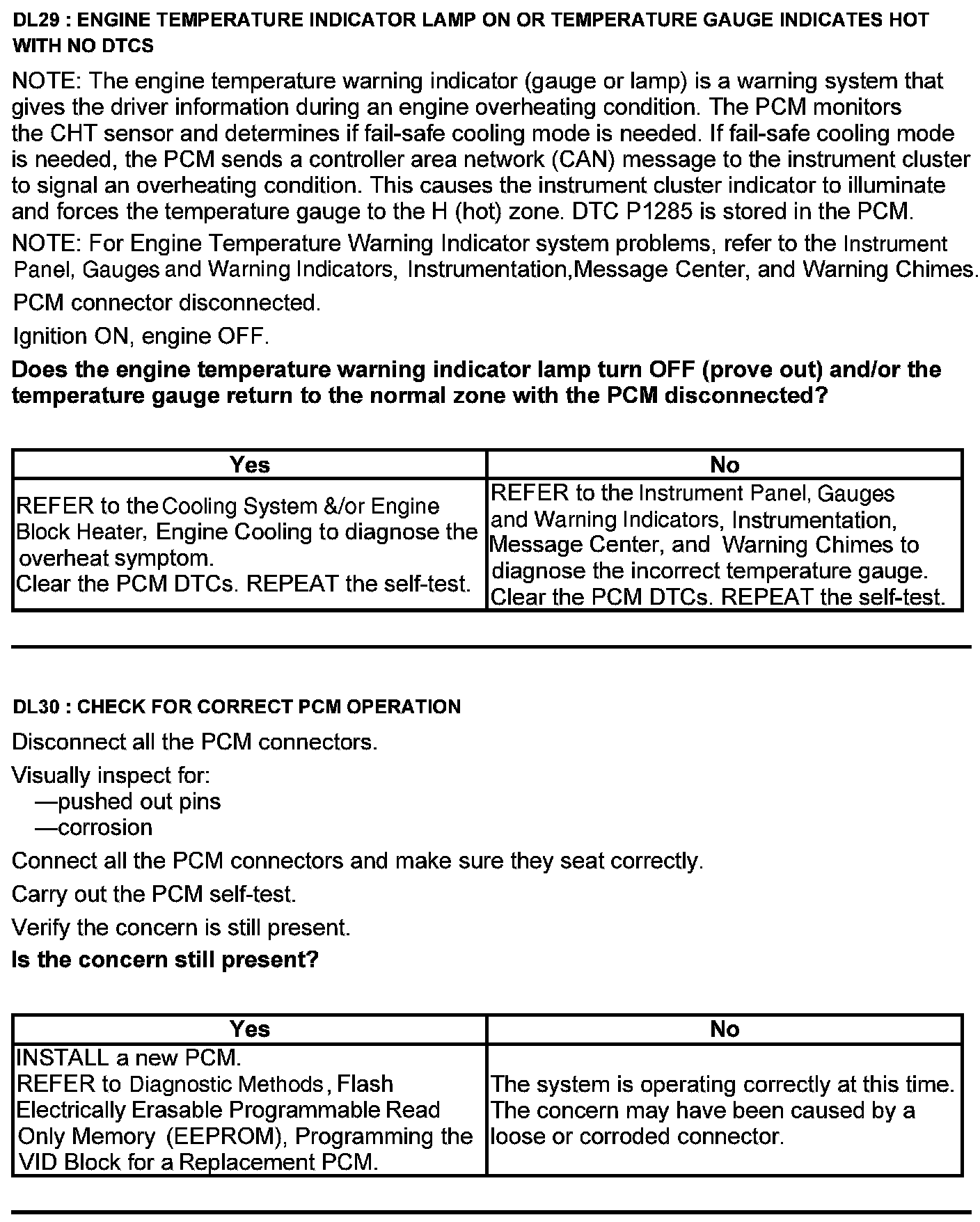

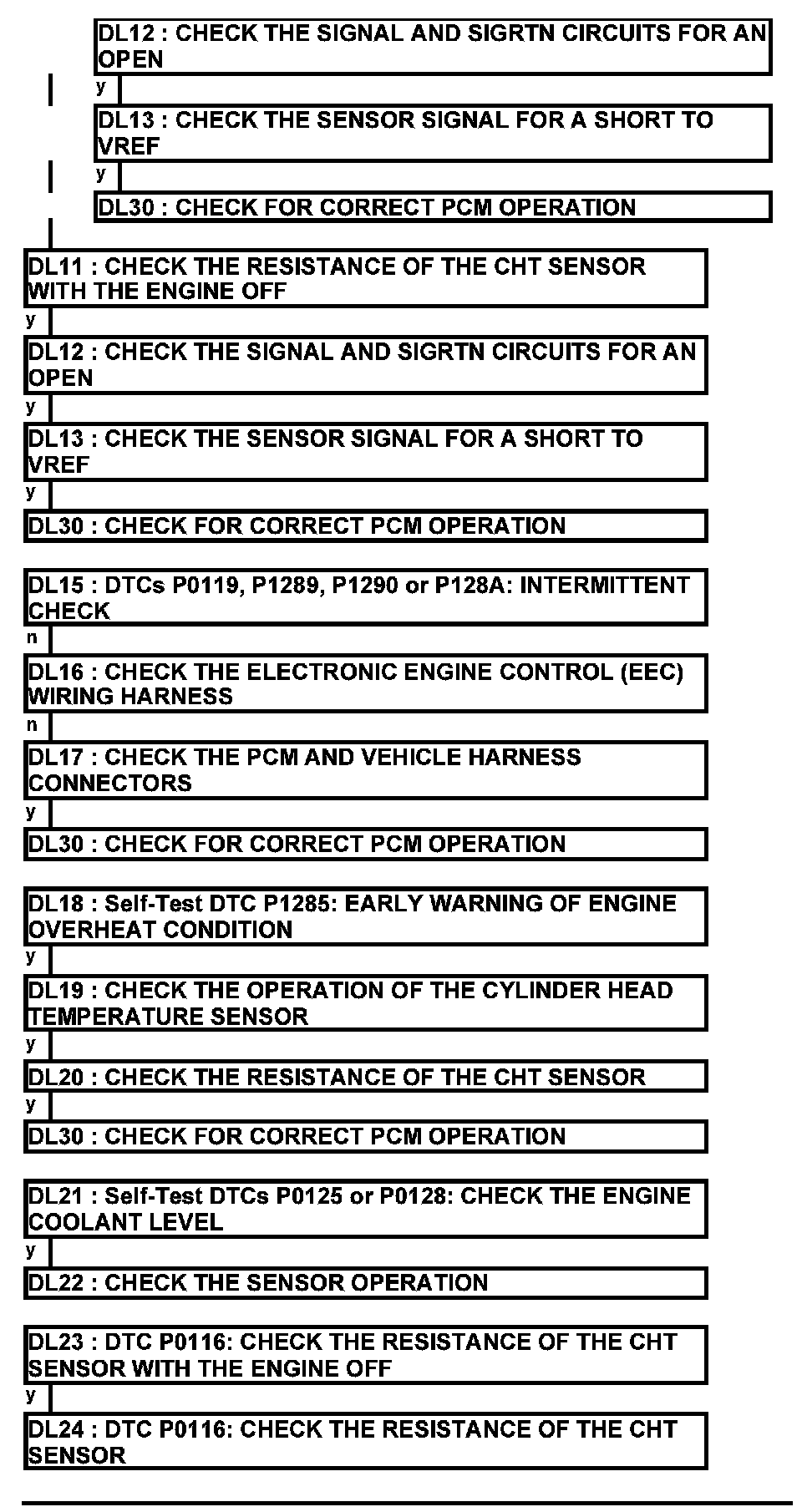

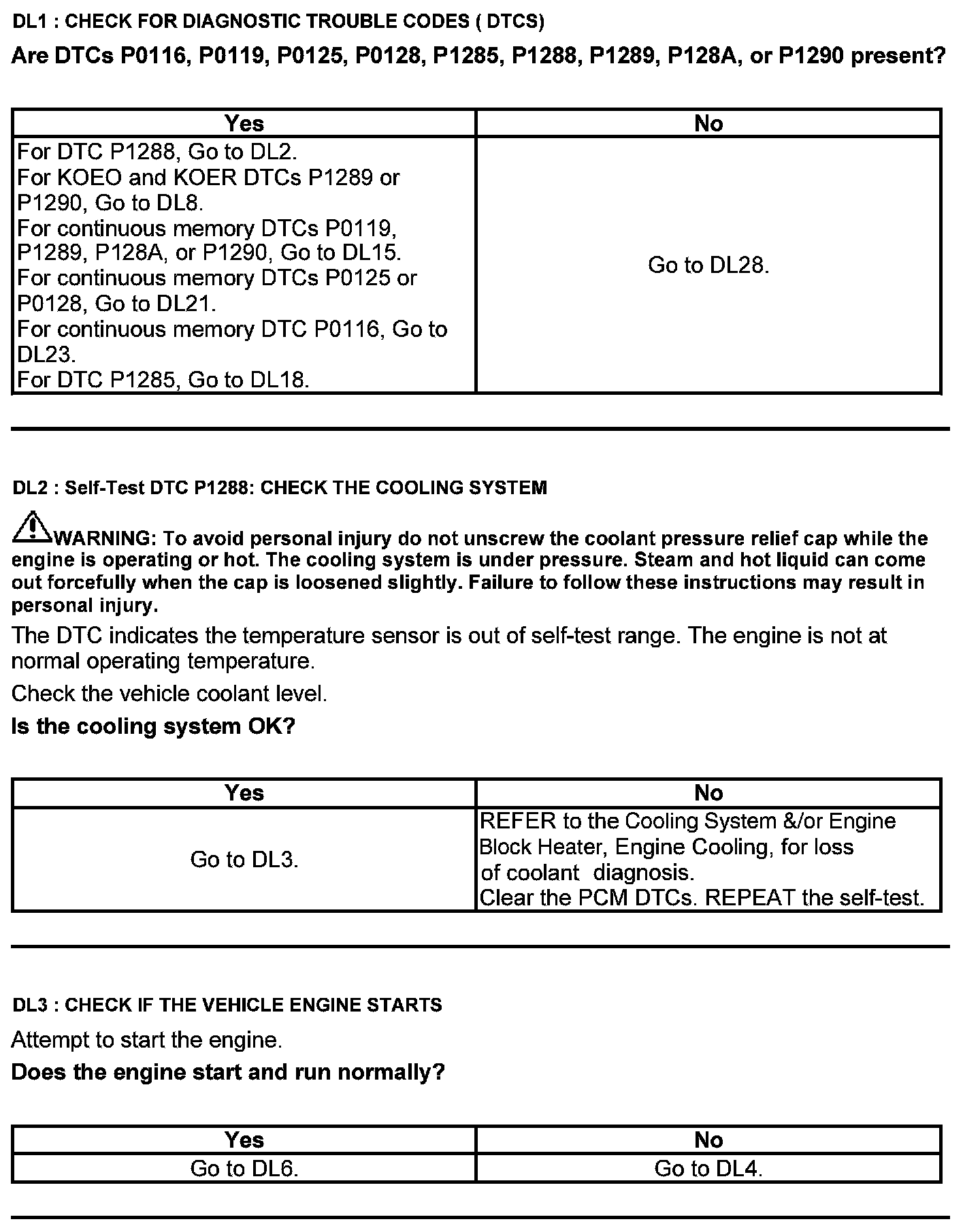

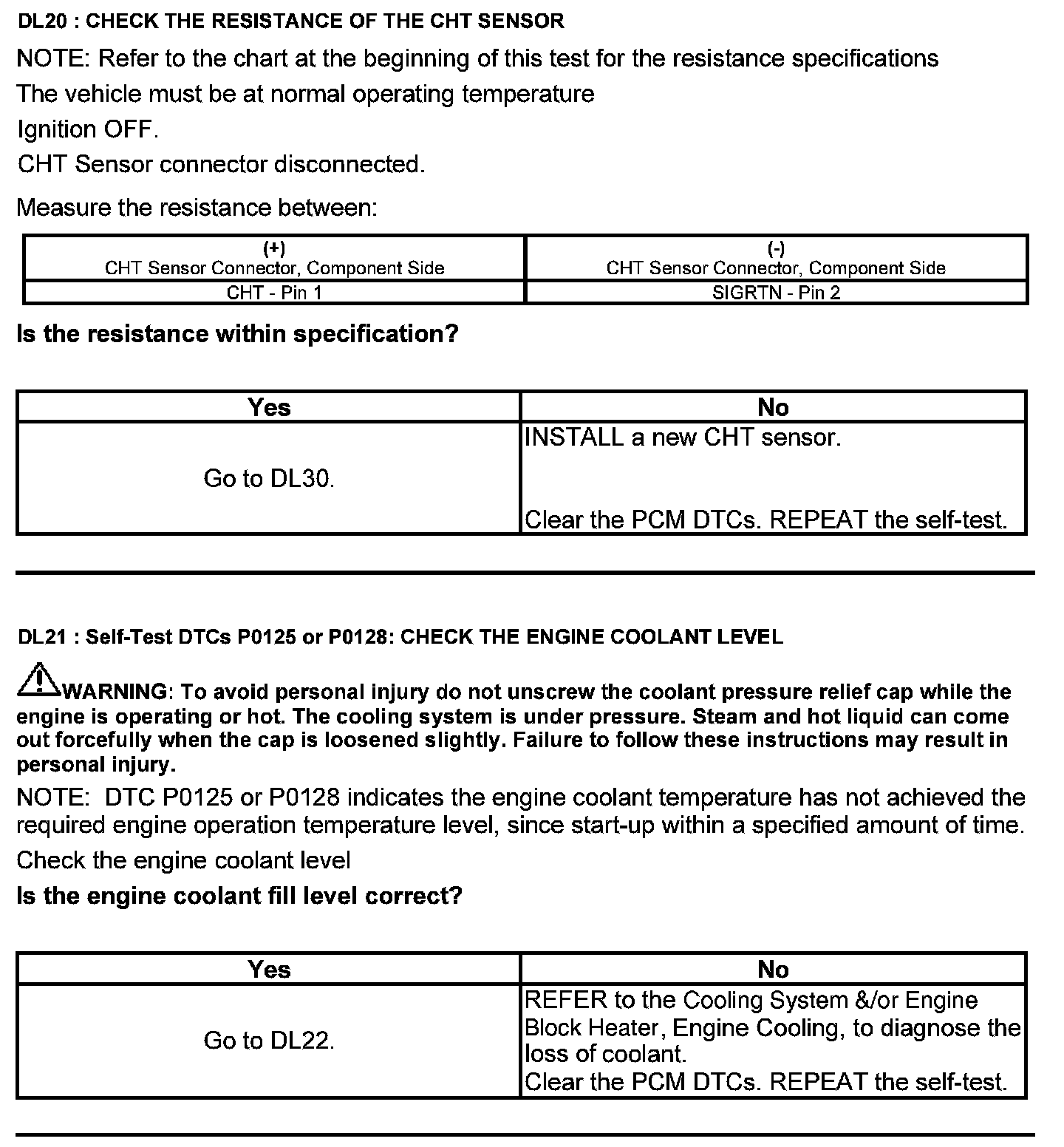

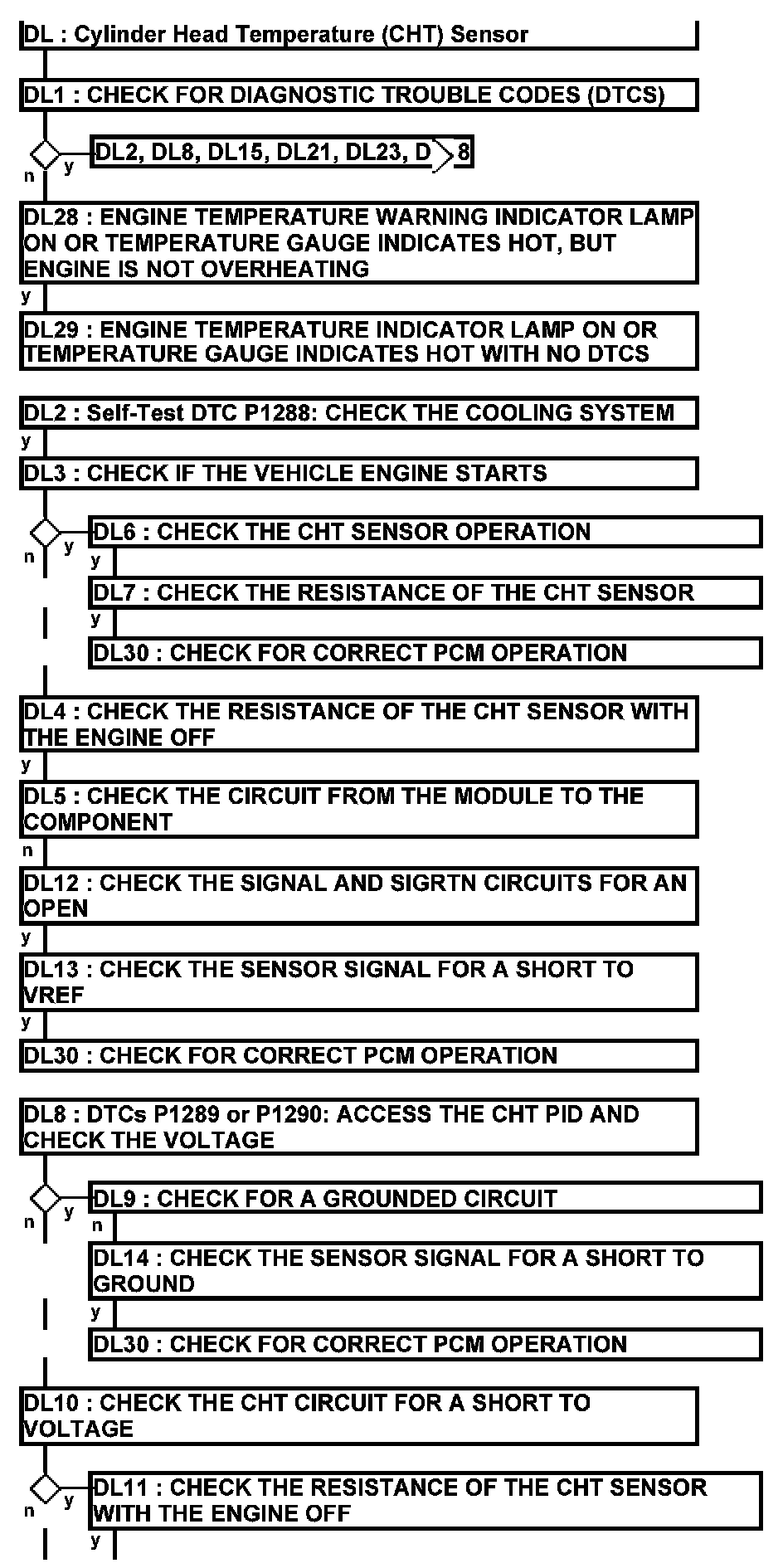

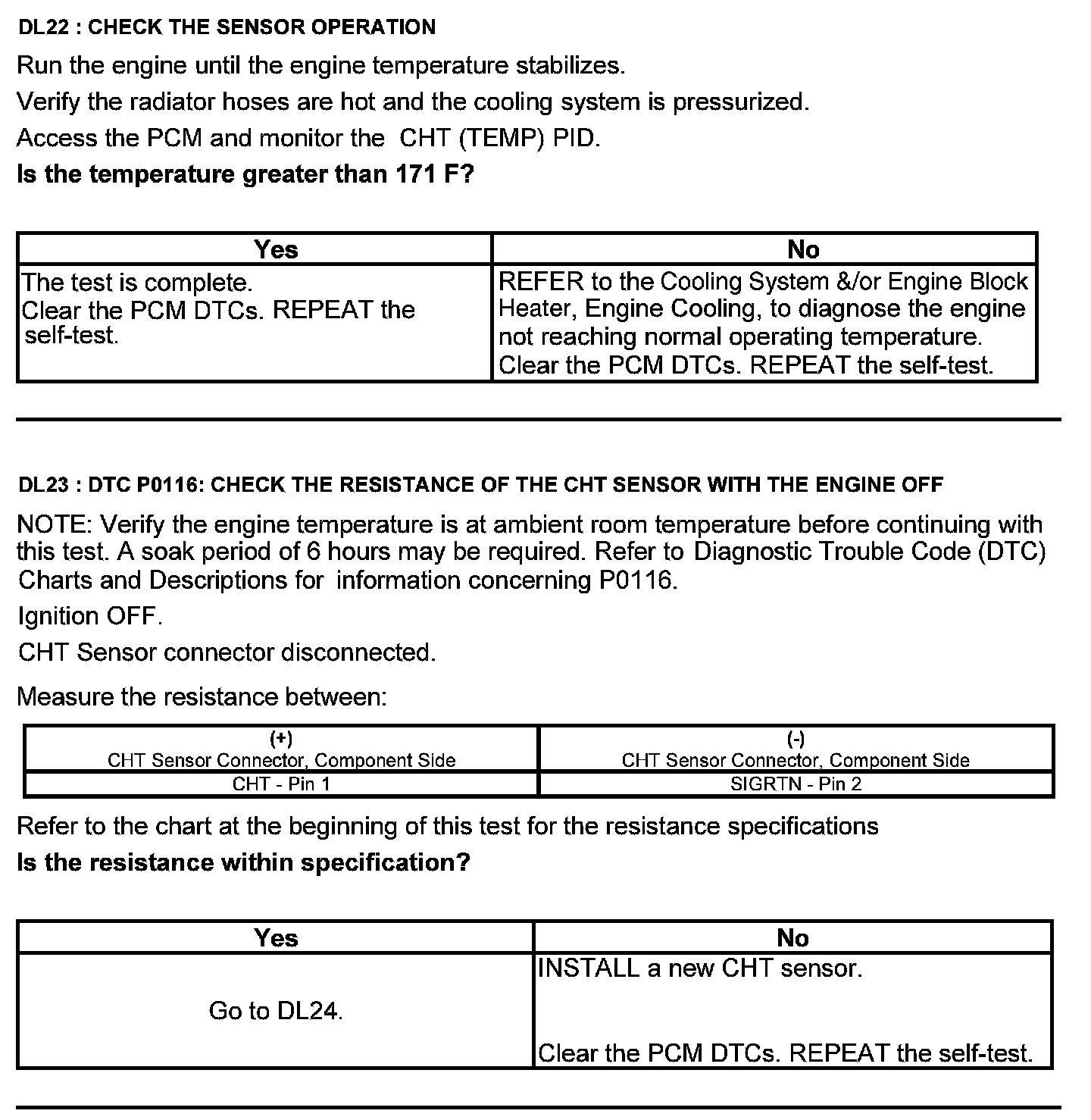

Test DL: Cylinder Head Temperature (CHT) Sensor



Cylinder Head Temperature (CHT) Sensor

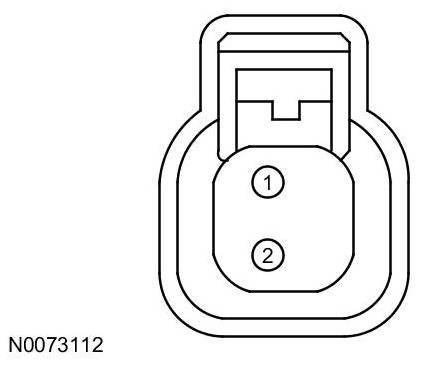

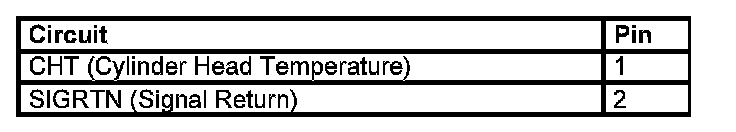

Cylinder Head Temperature (CHT) Sensor Connector






Harness Side

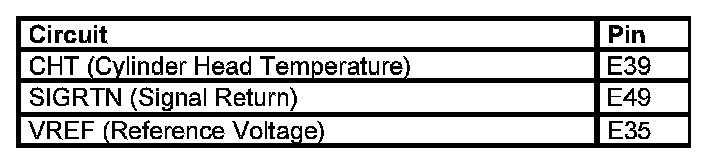

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
