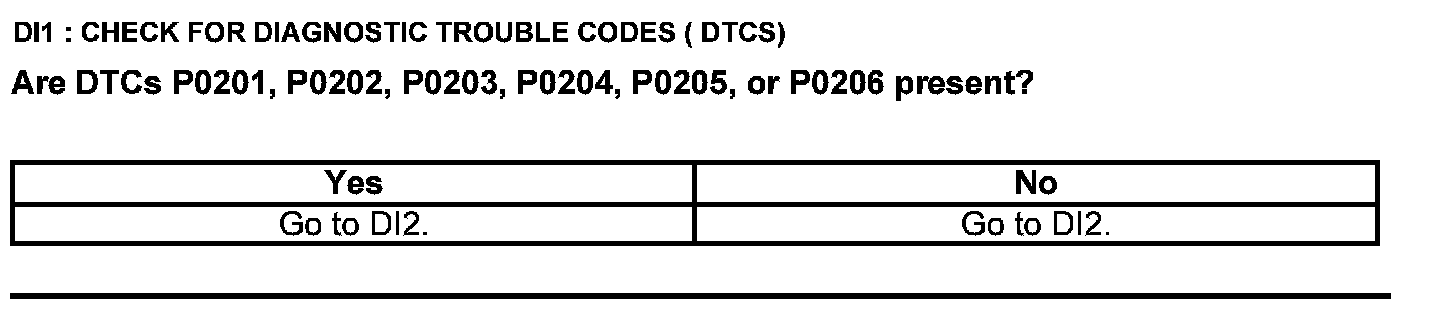

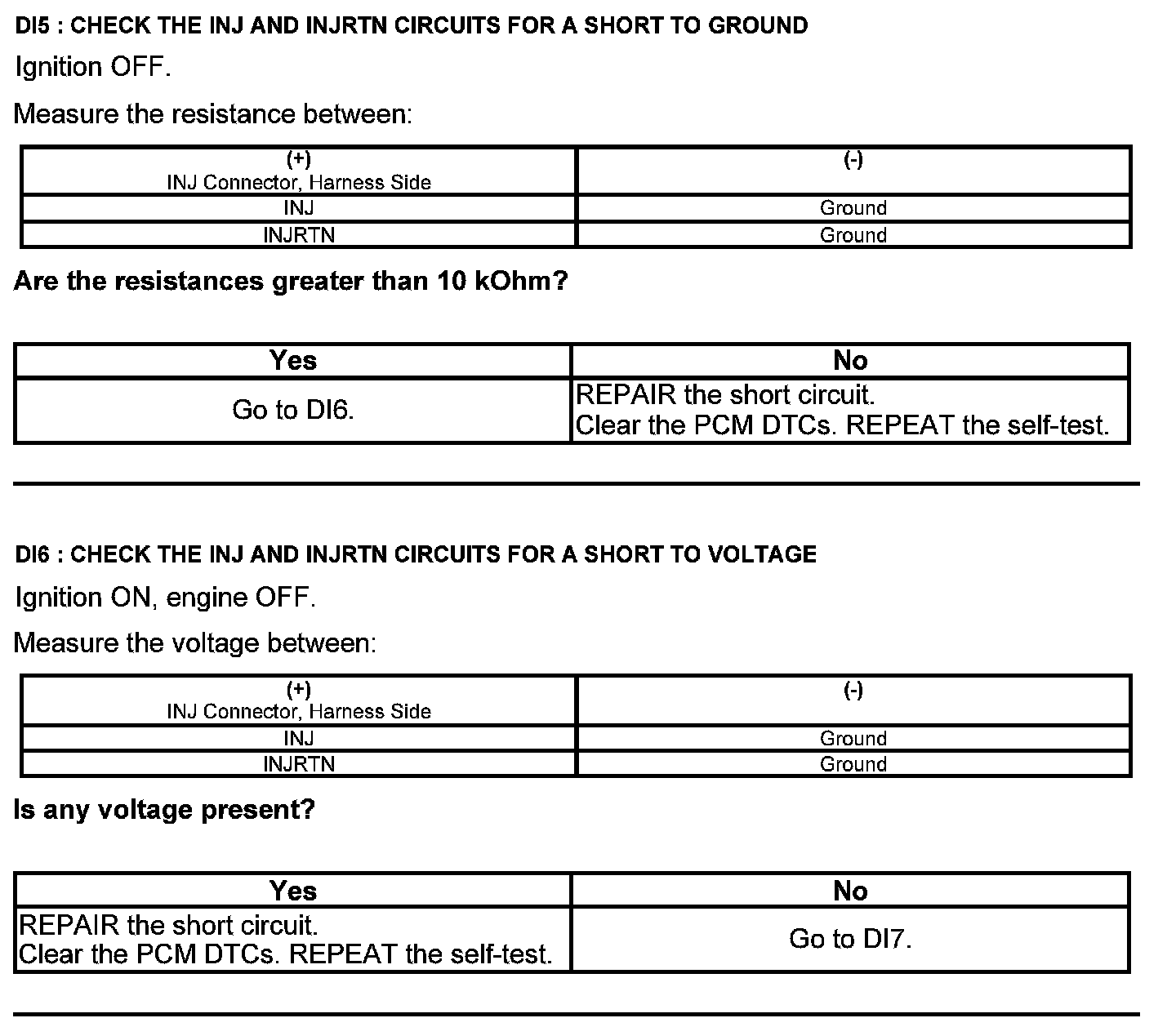

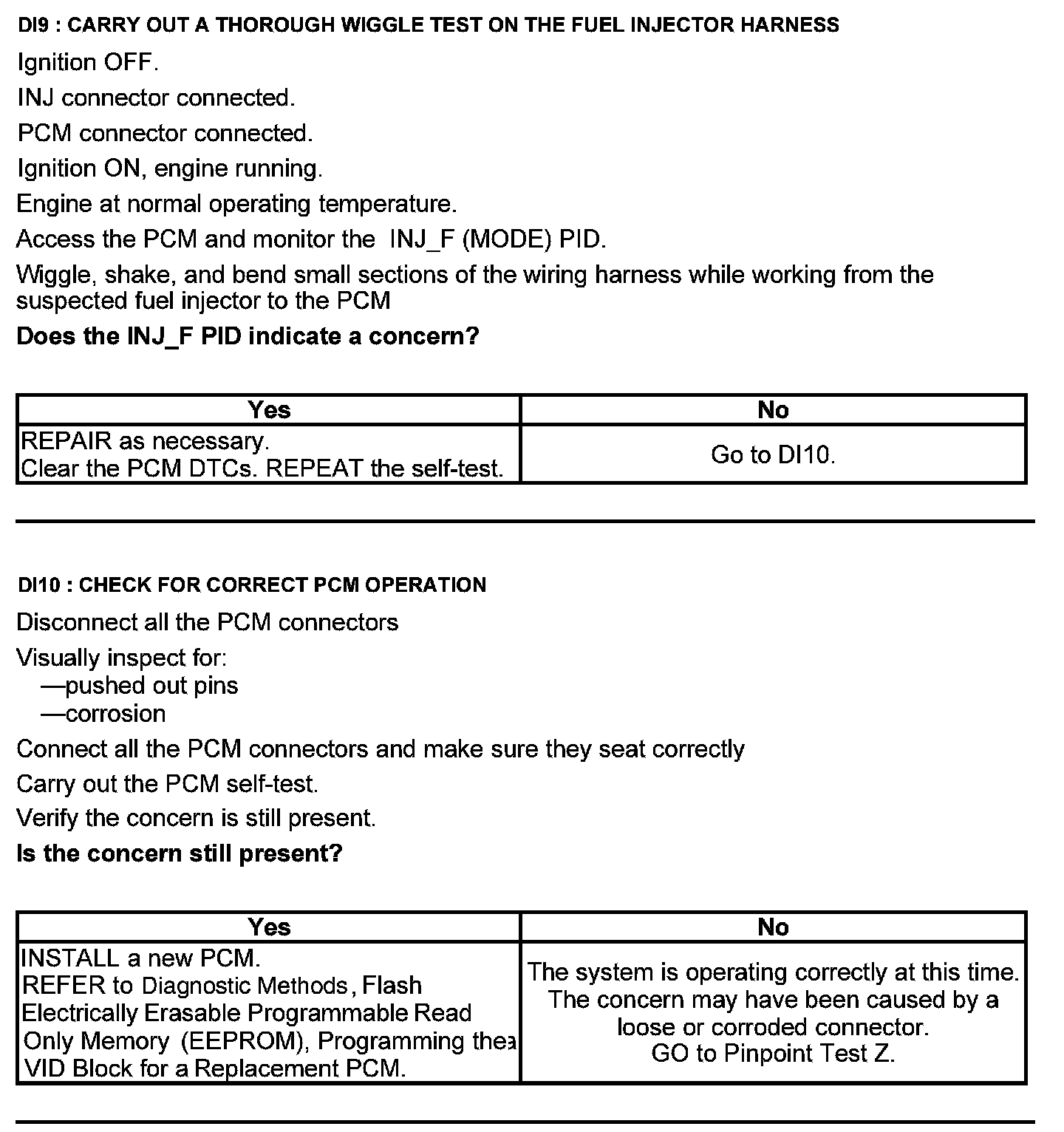

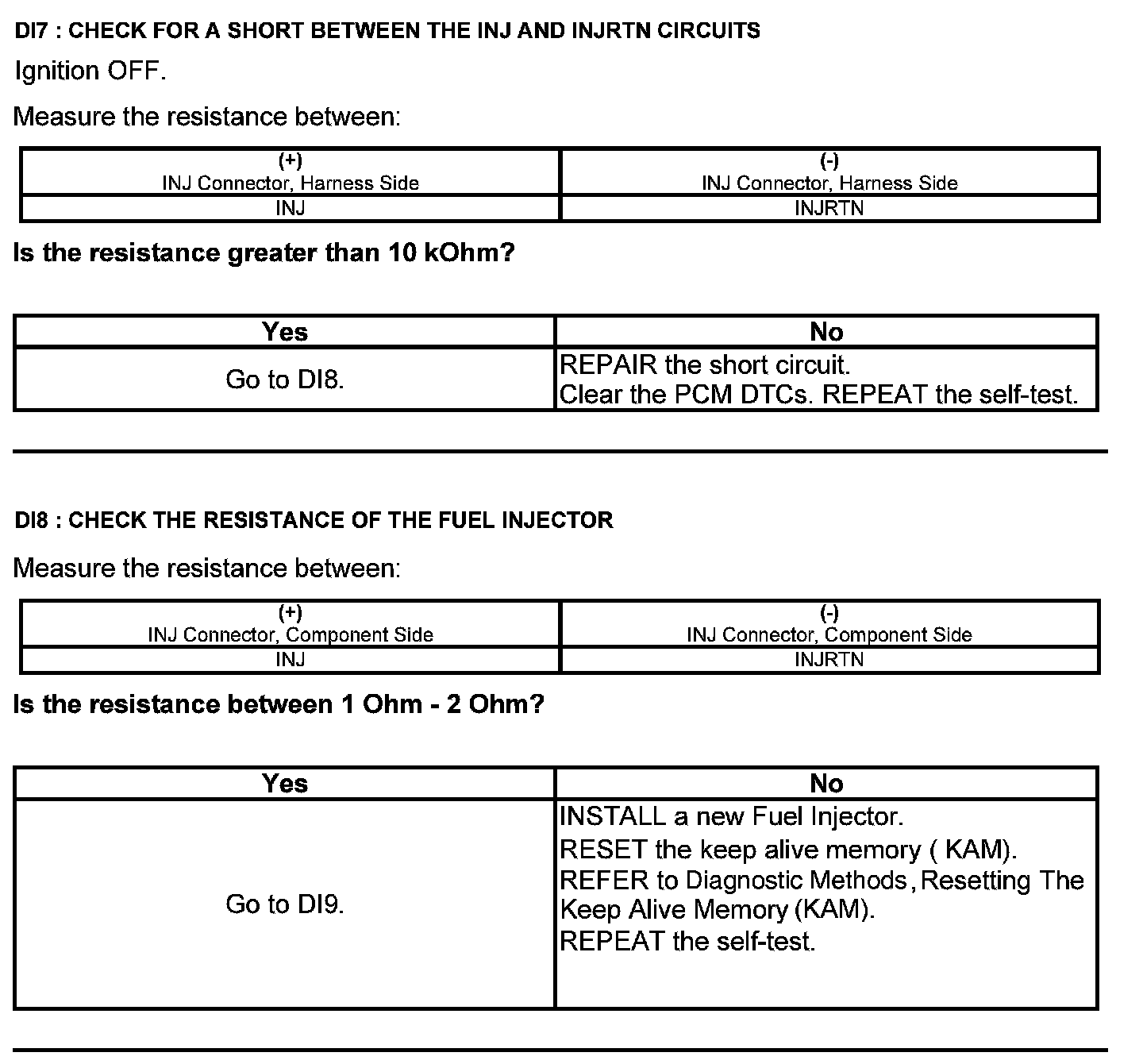

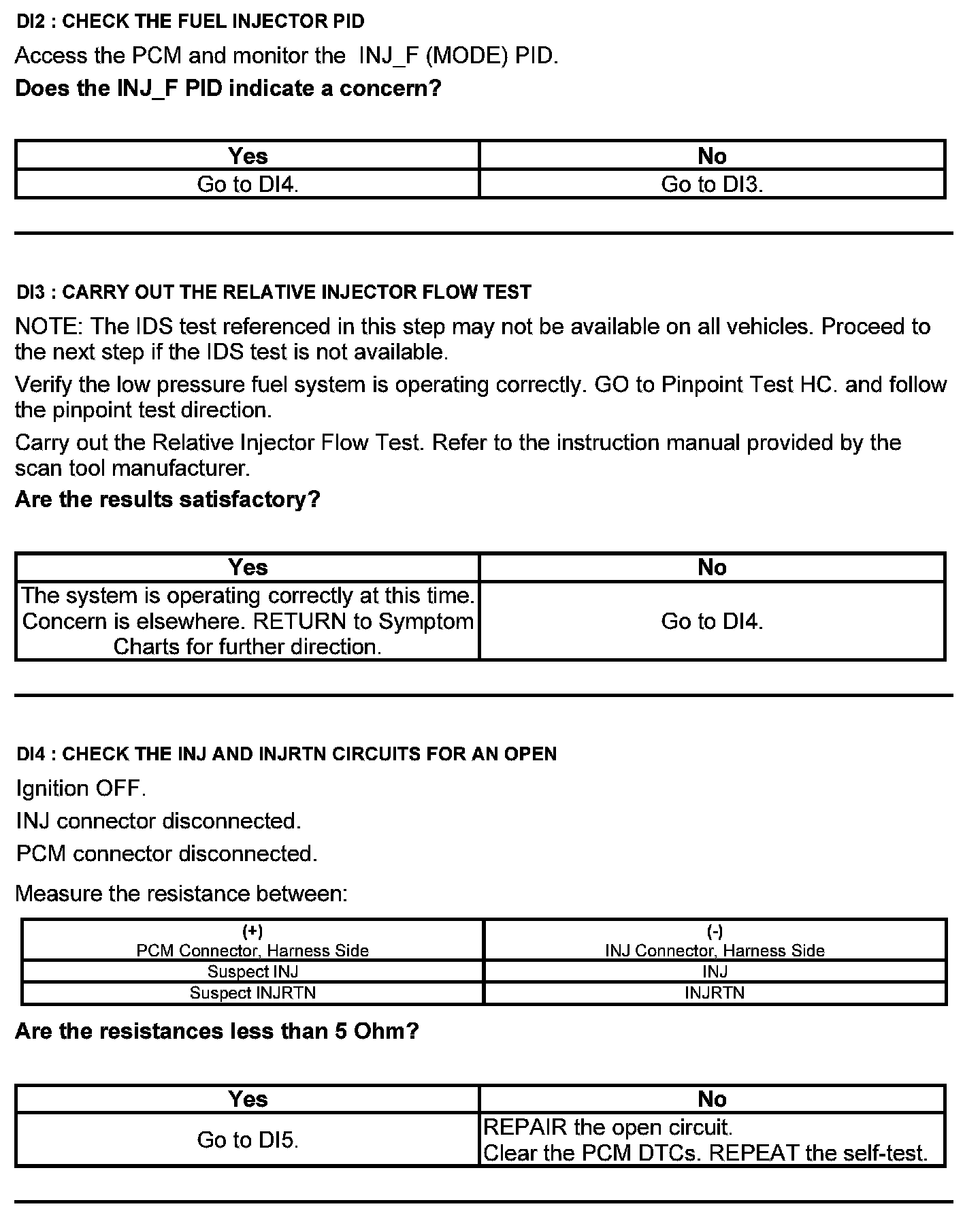

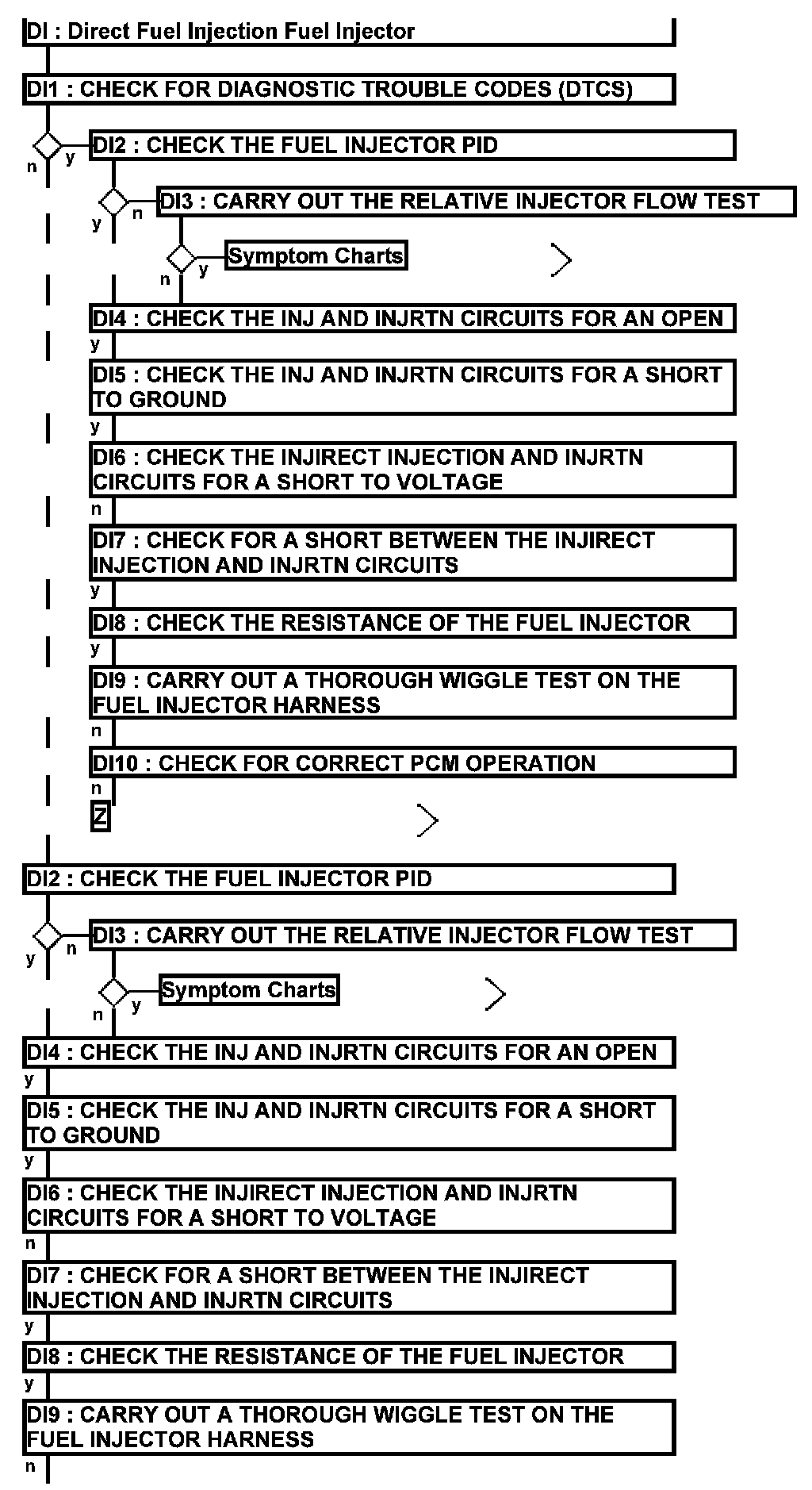

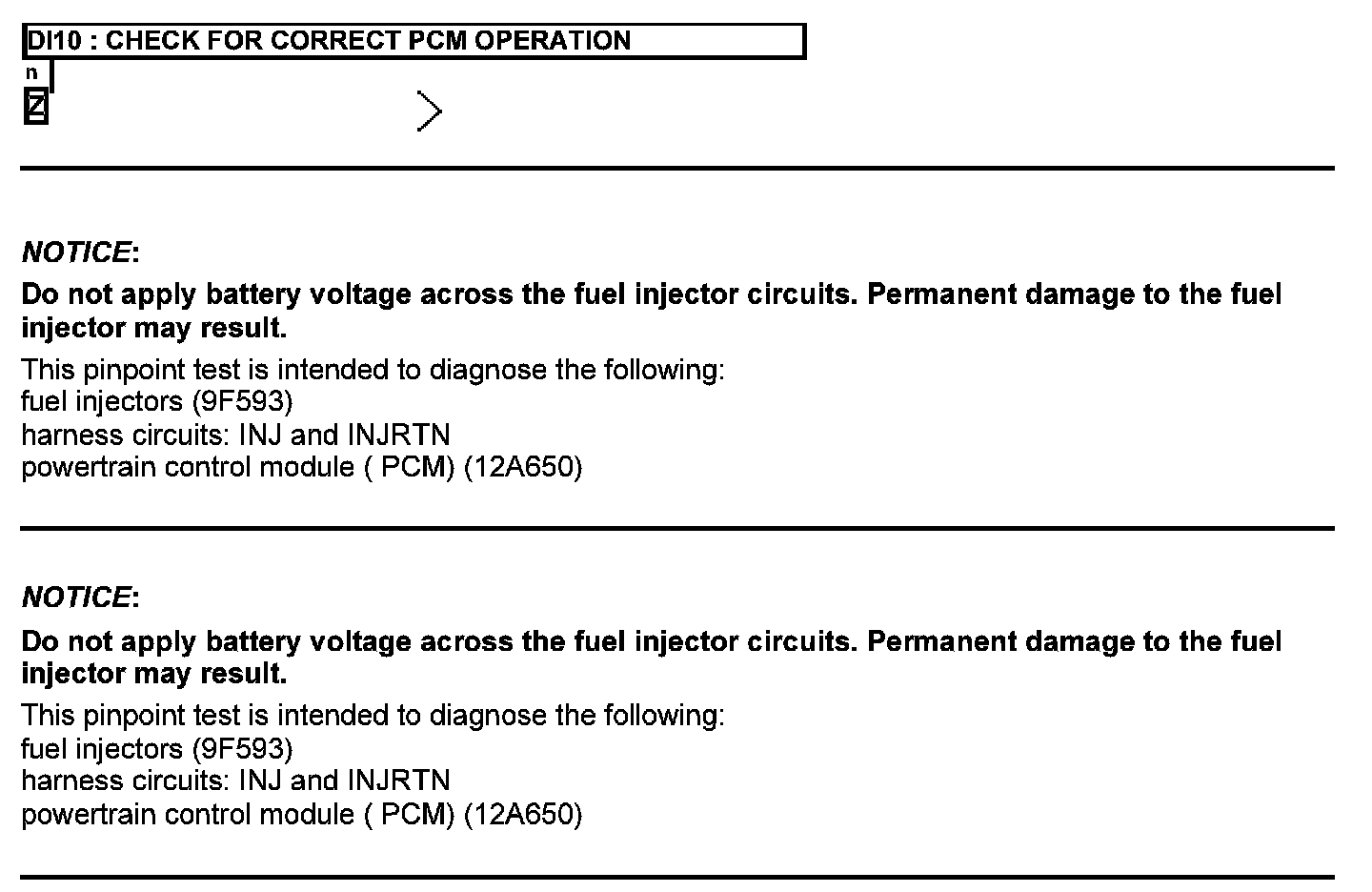

Test DI: Direct Fuel Injection Fuel Injector



Direct Fuel Injection Fuel Injector

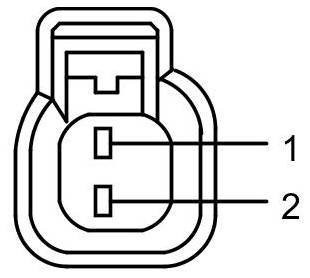

Injector (INJ) Connector






Harness Side







Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
