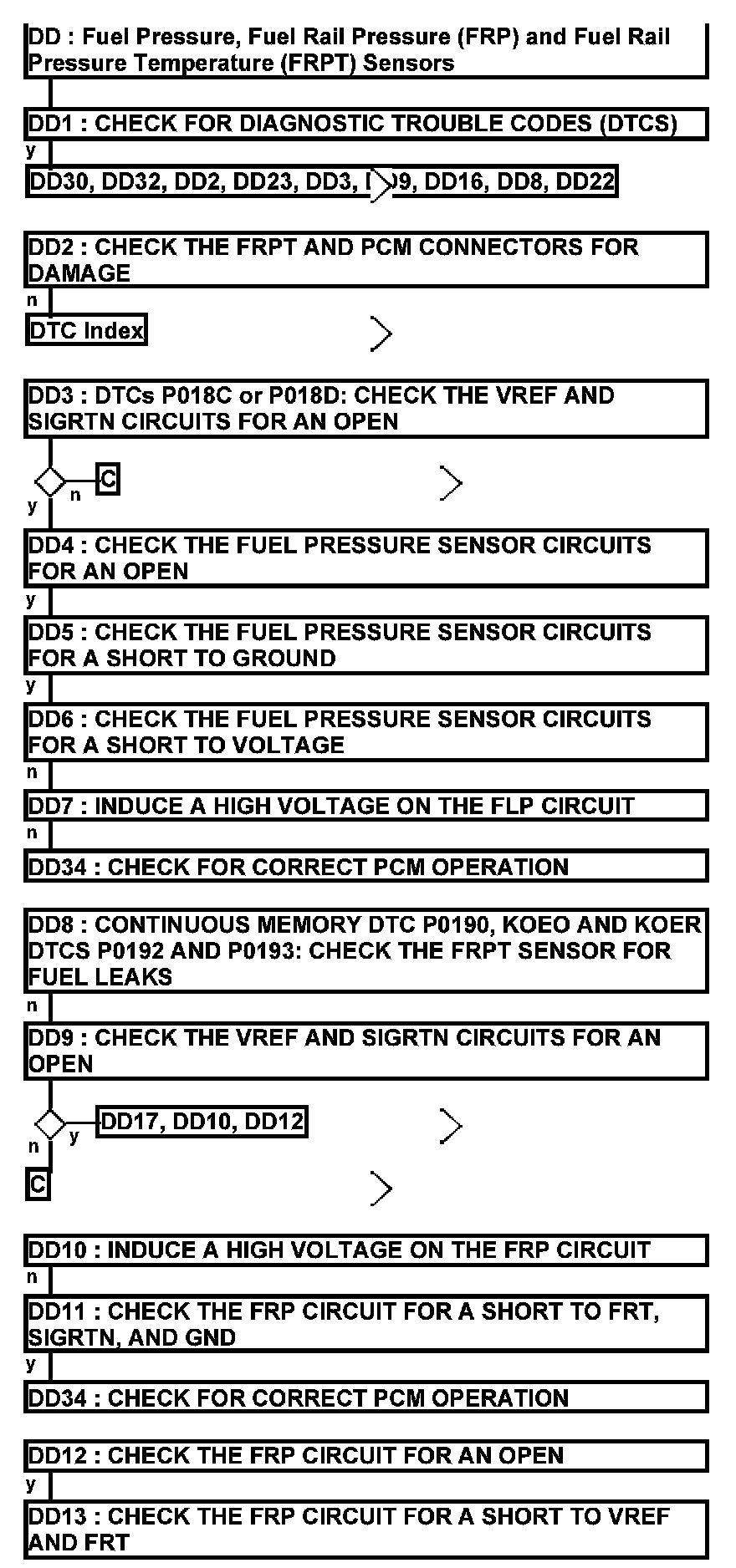

Test DD: Fuel Pressure, Fuel Rail Pressure (FRP) and Fuel Rail Pressure Temperature (FRPT) Sensors



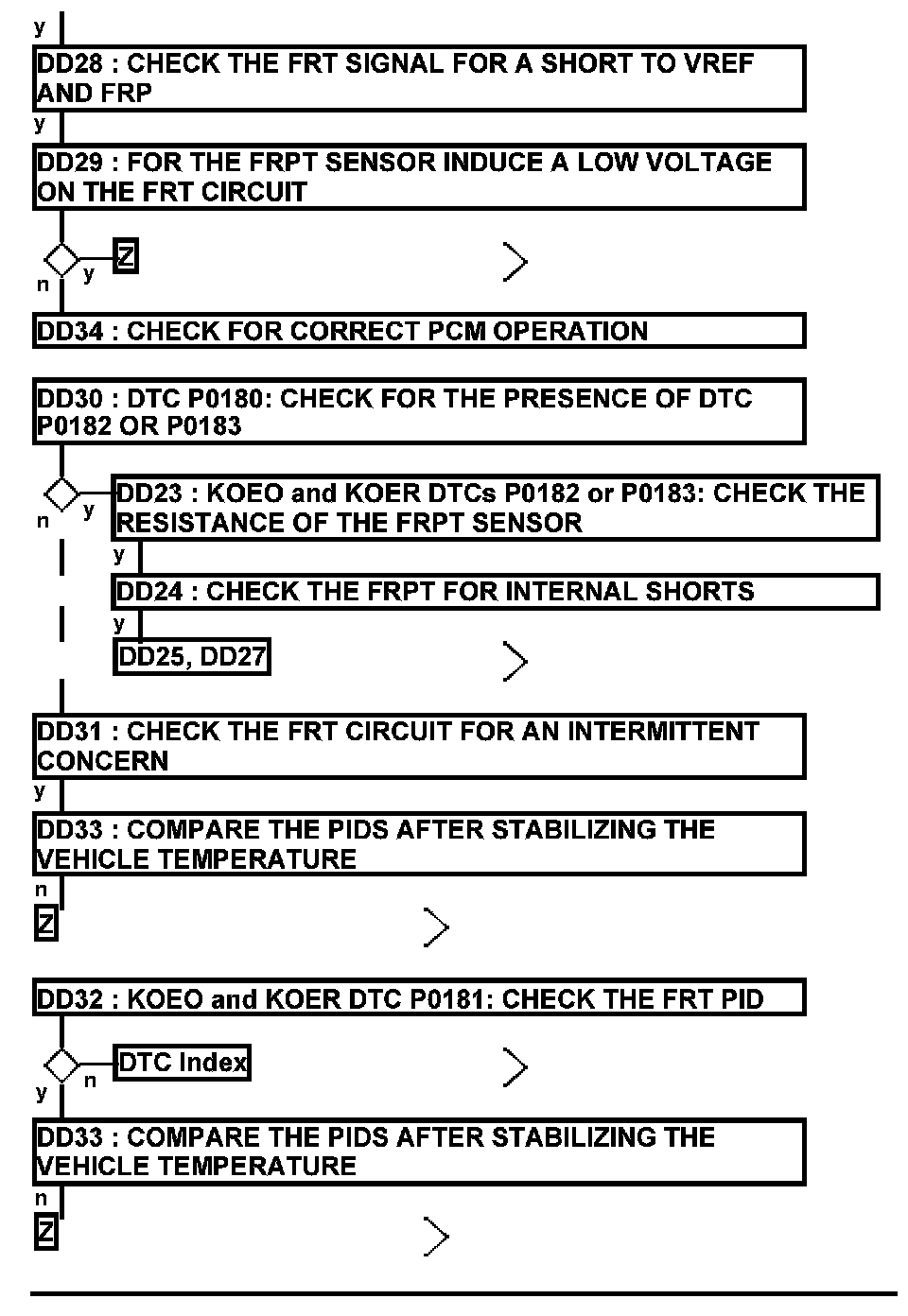

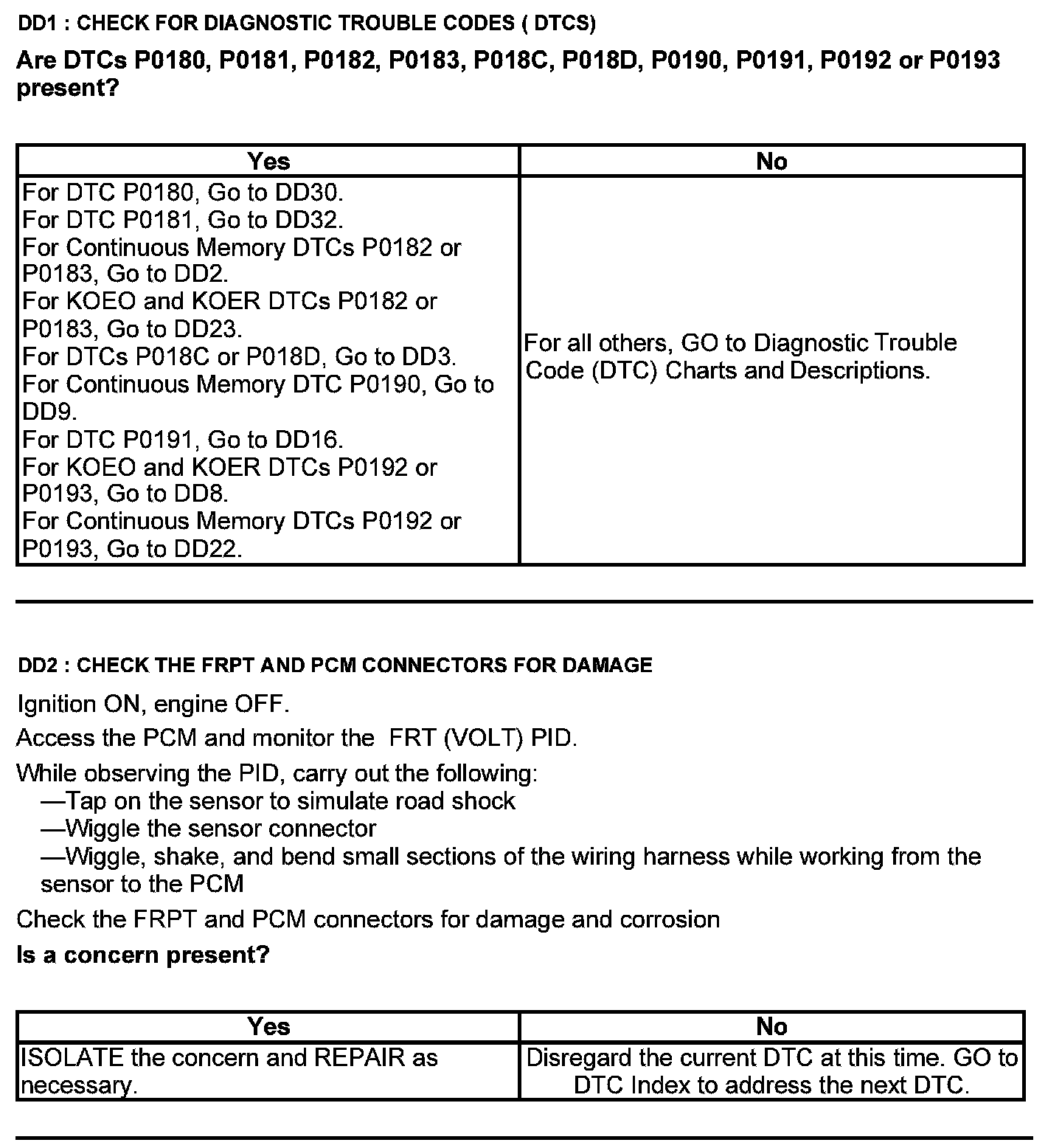

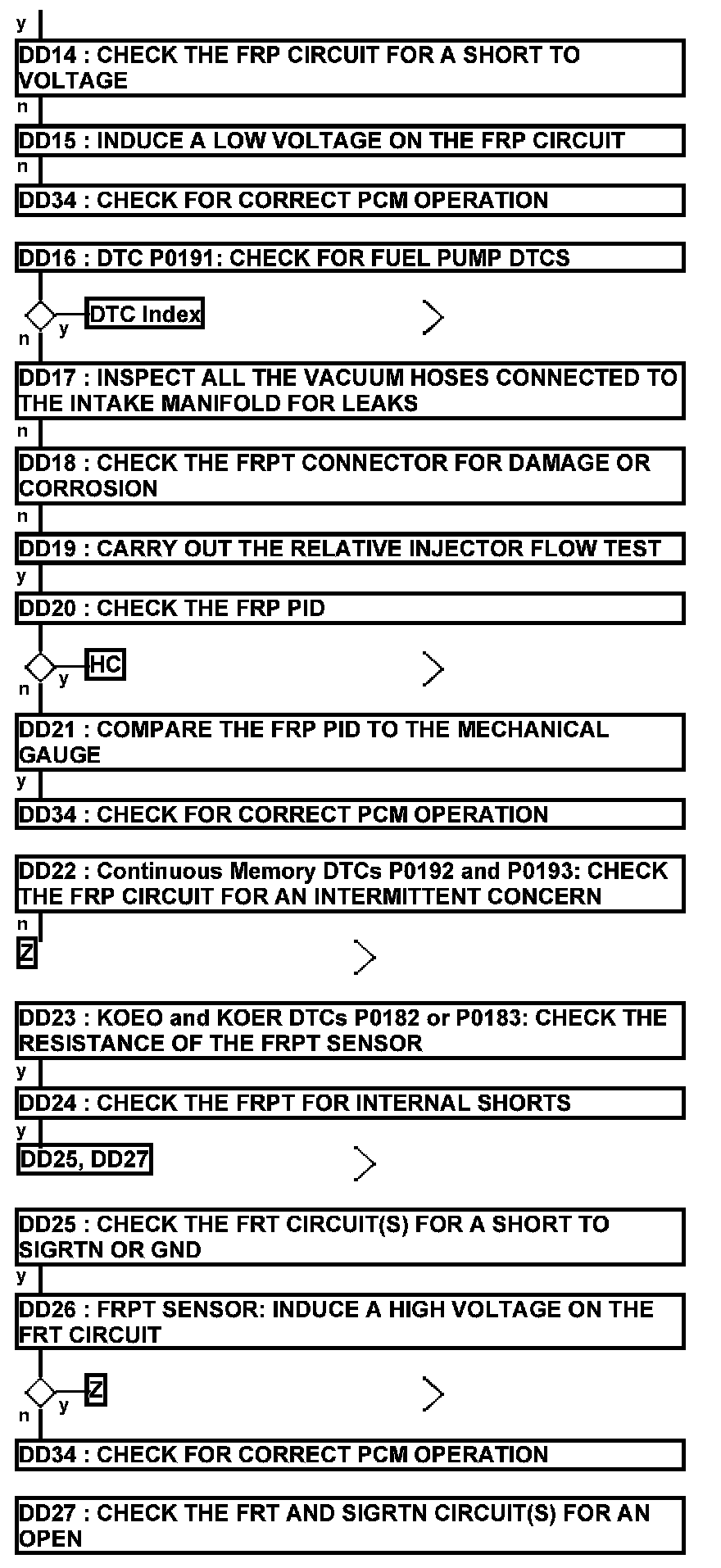

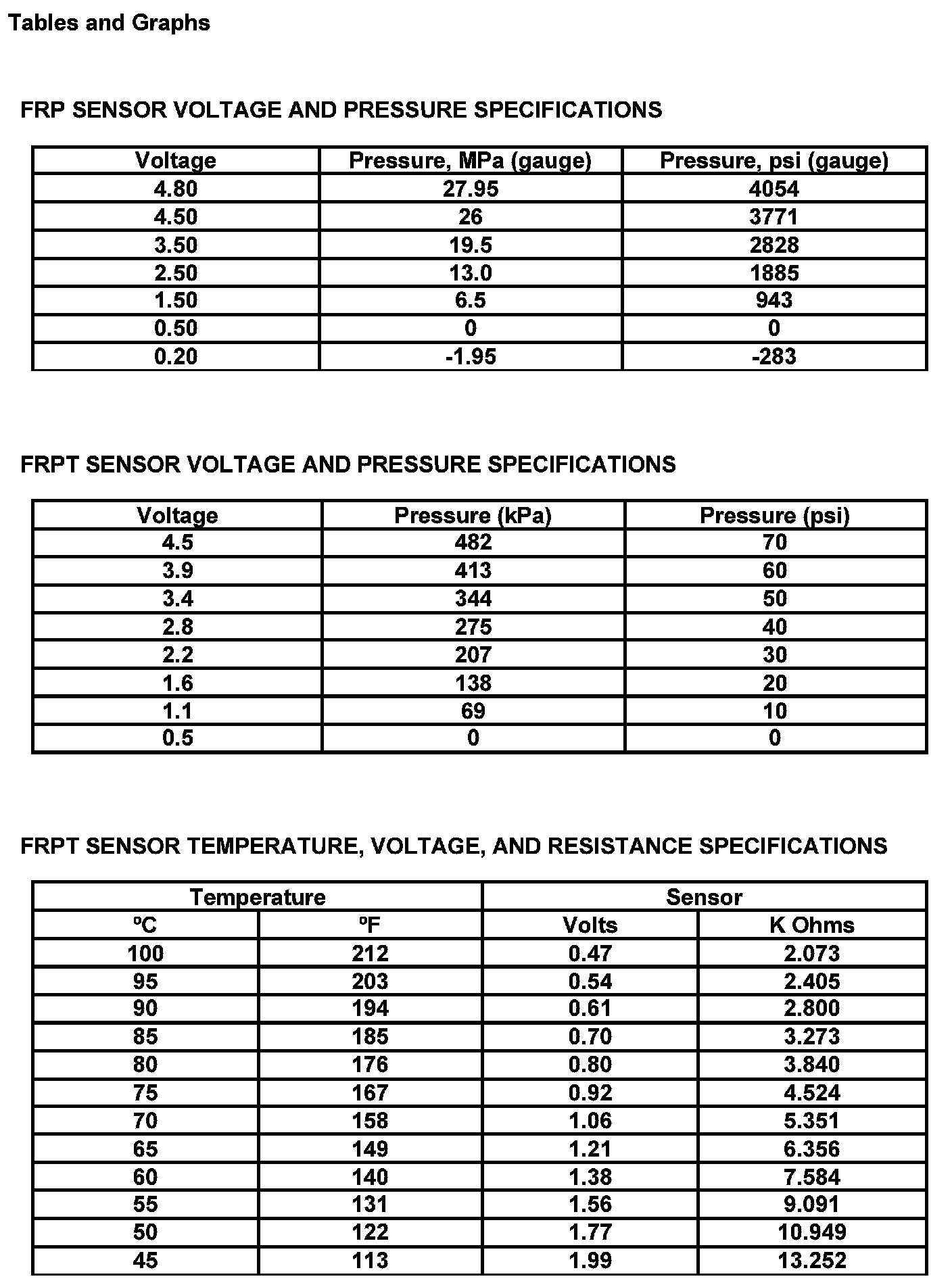

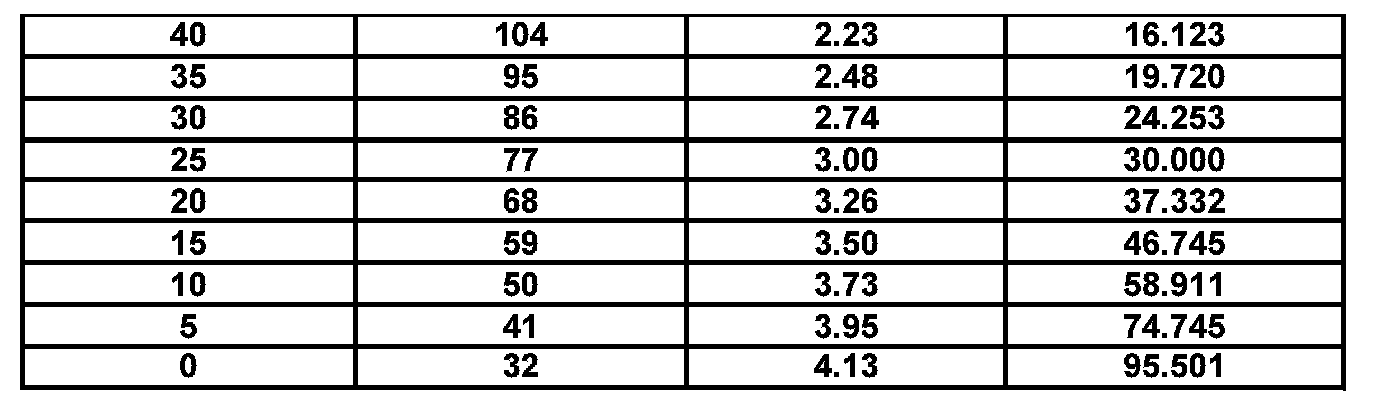

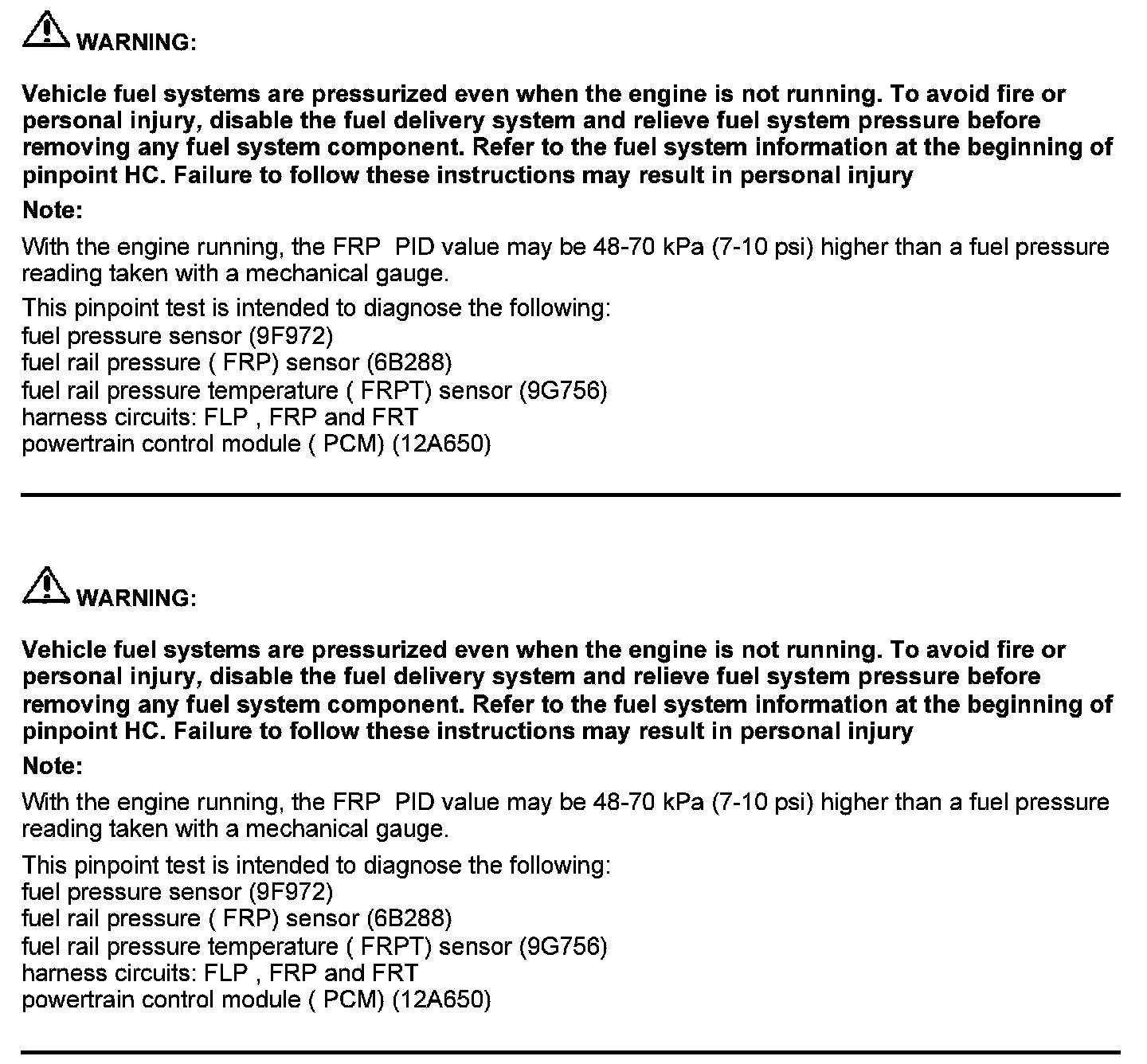

Fuel Pressure, Fuel Rail Pressure (FRP) and Fuel Rail Pressure Temperature (FRPT) Sensors

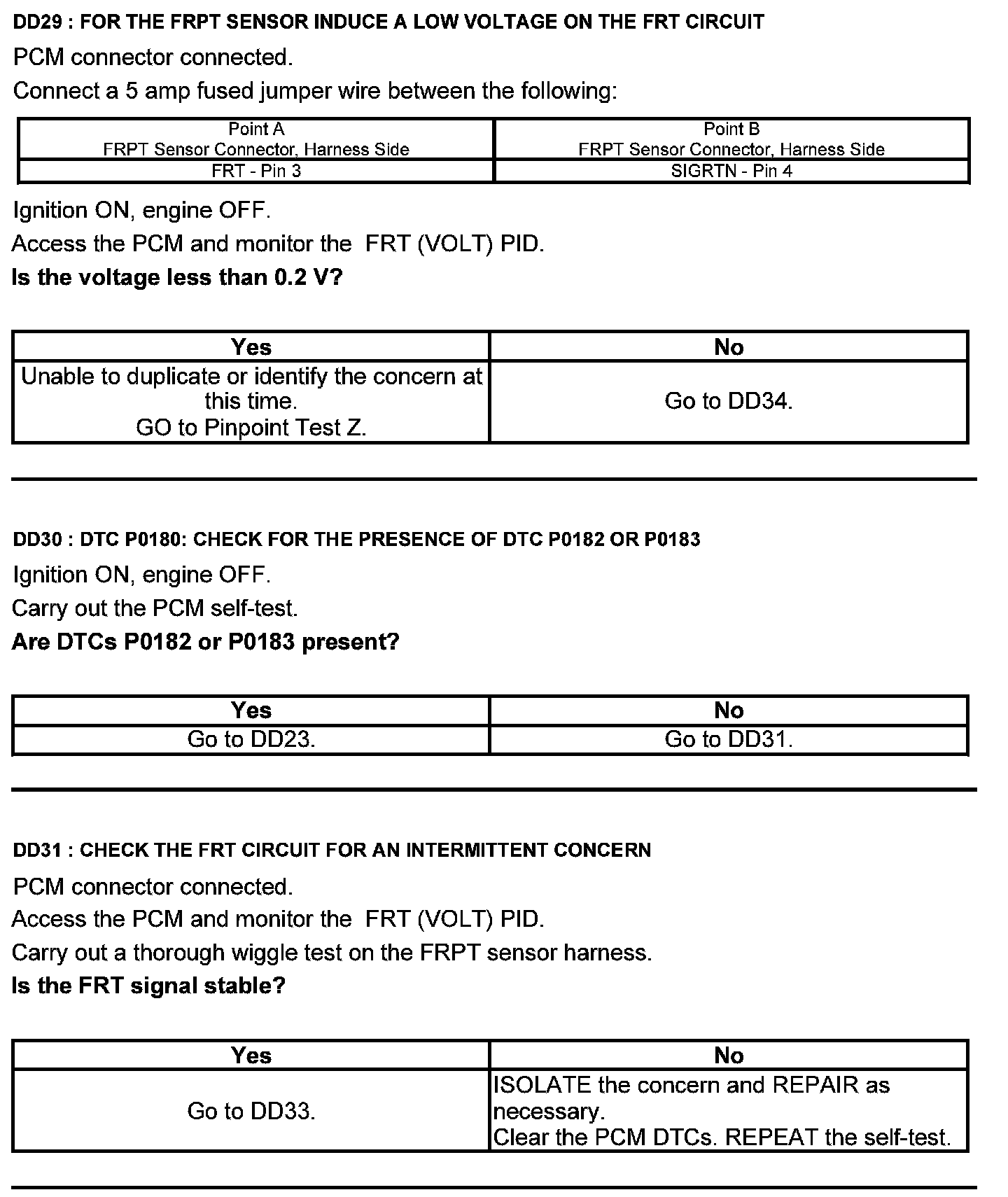

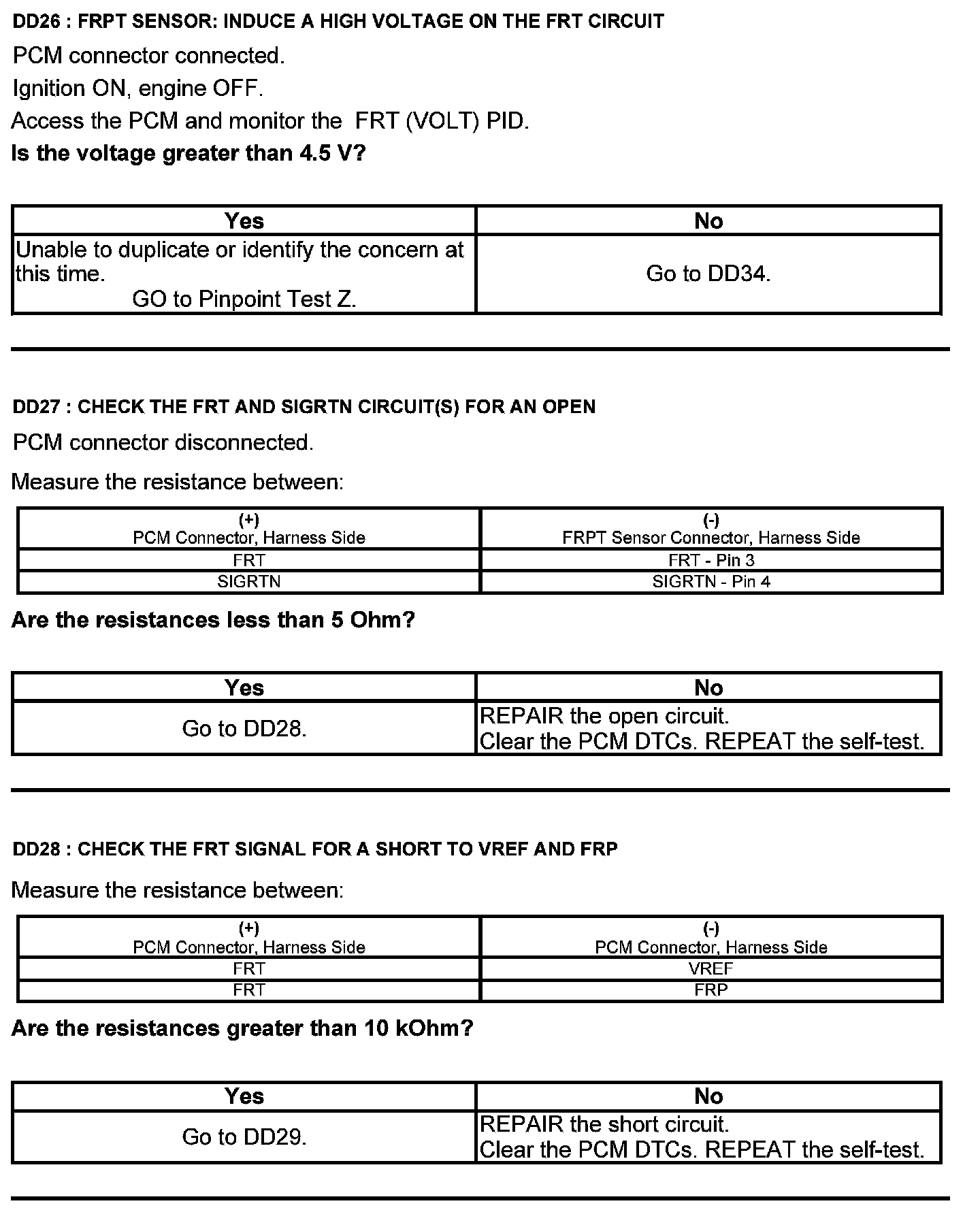

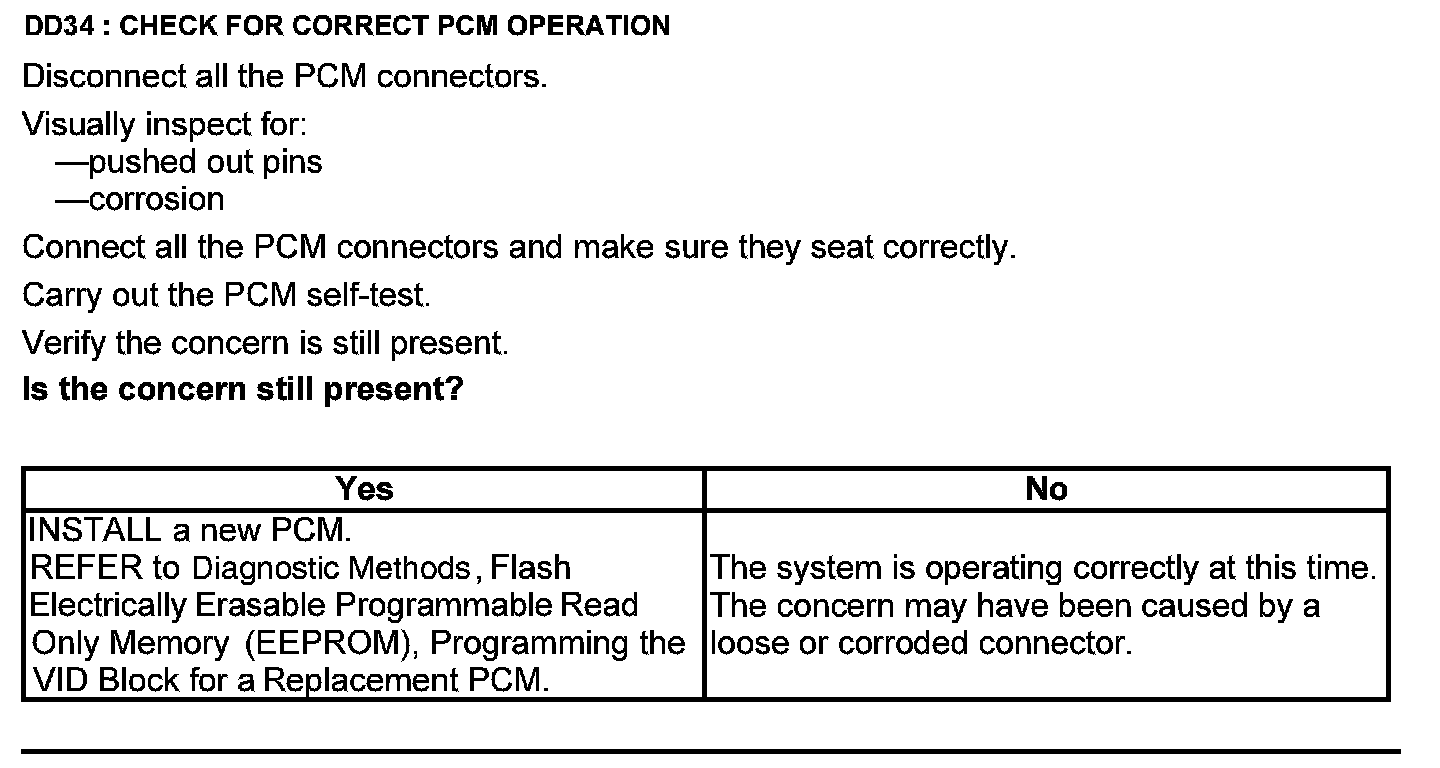

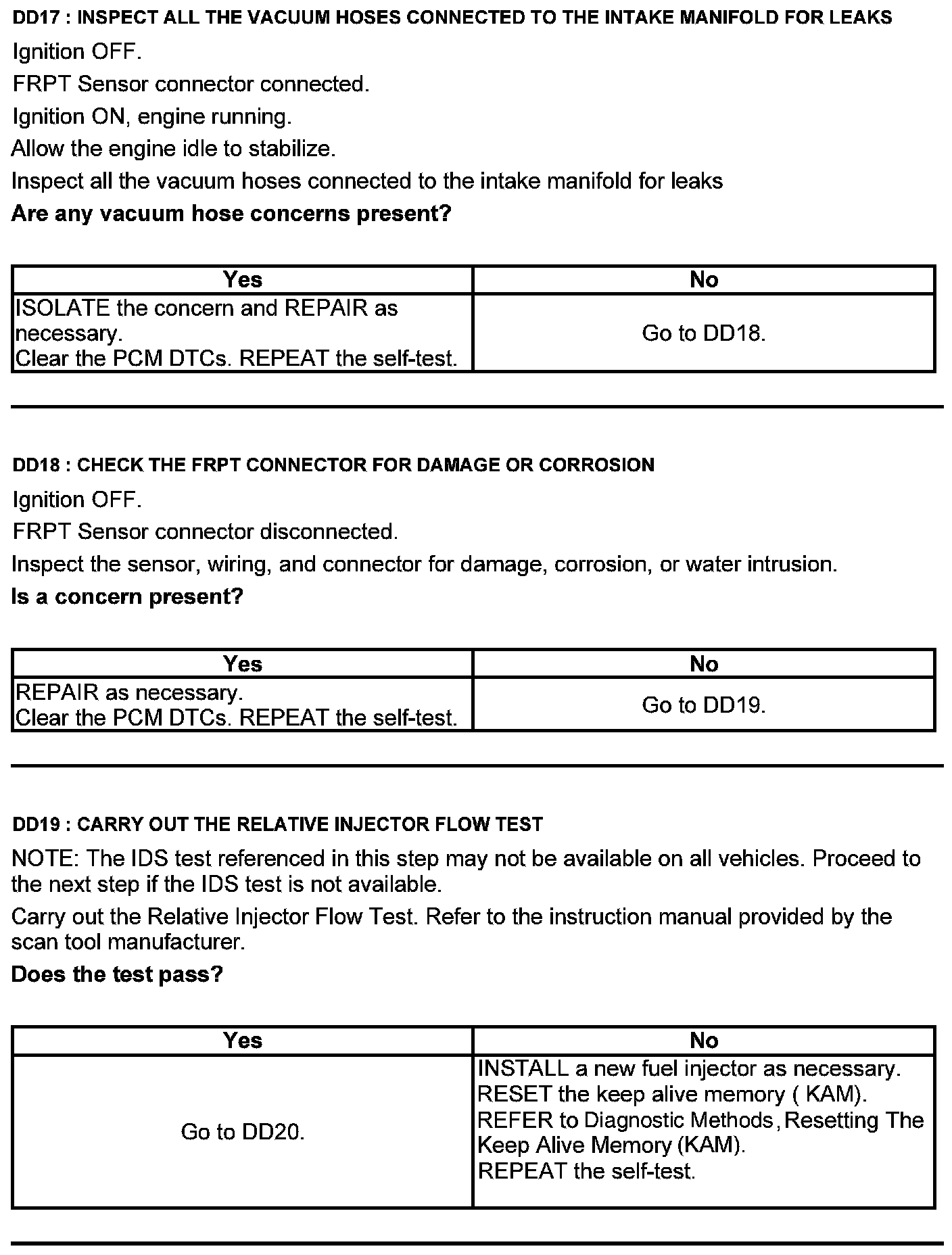

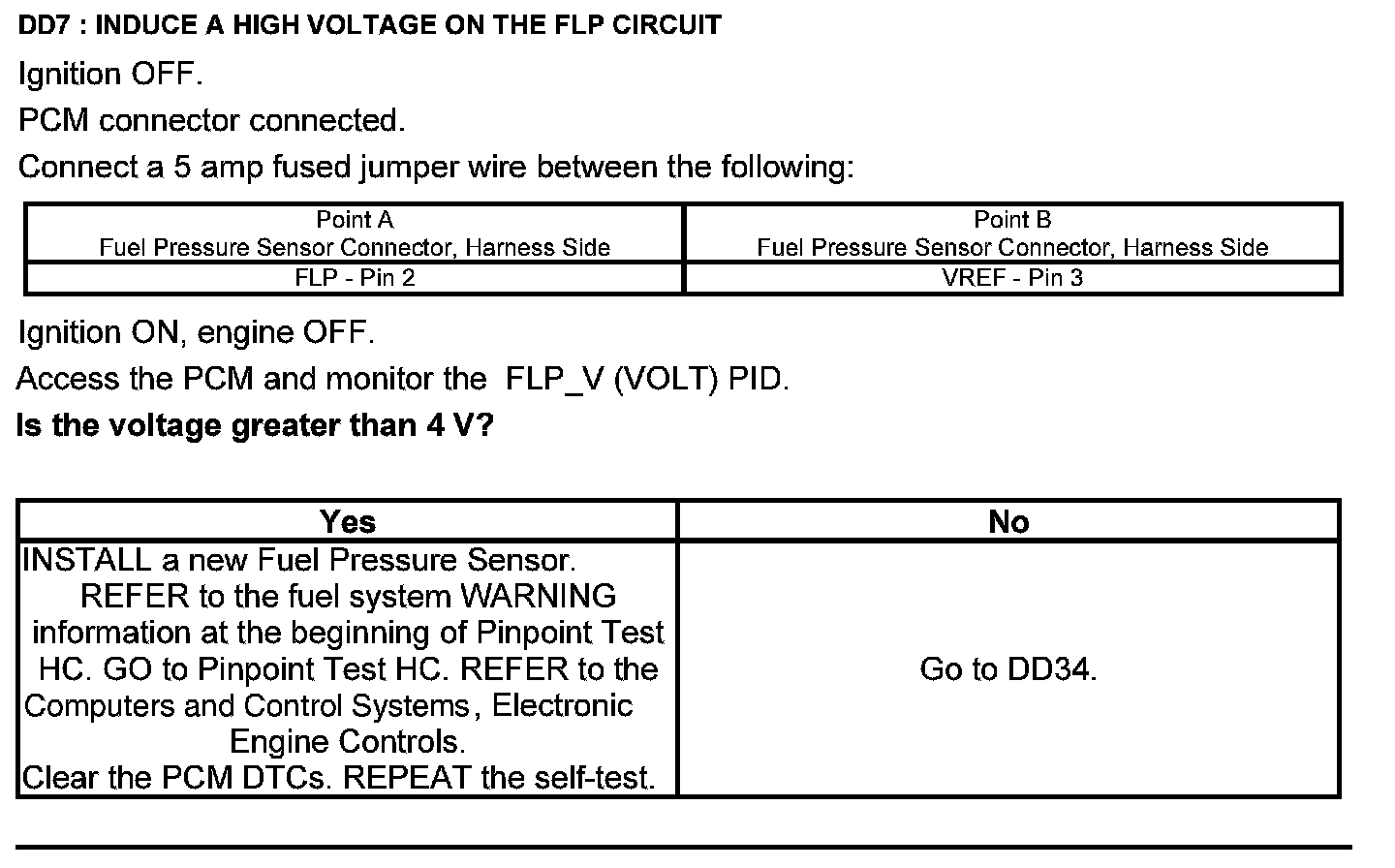

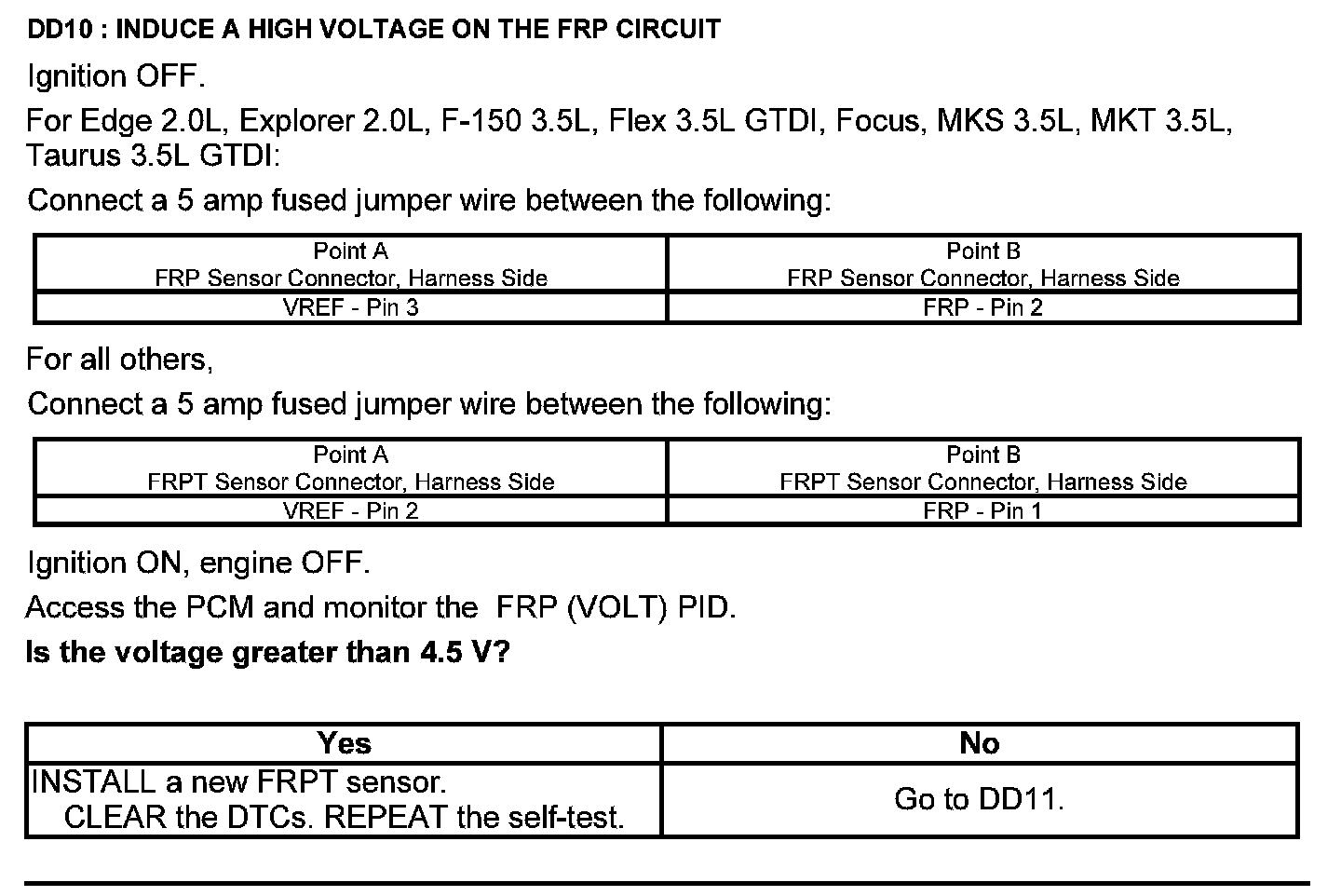

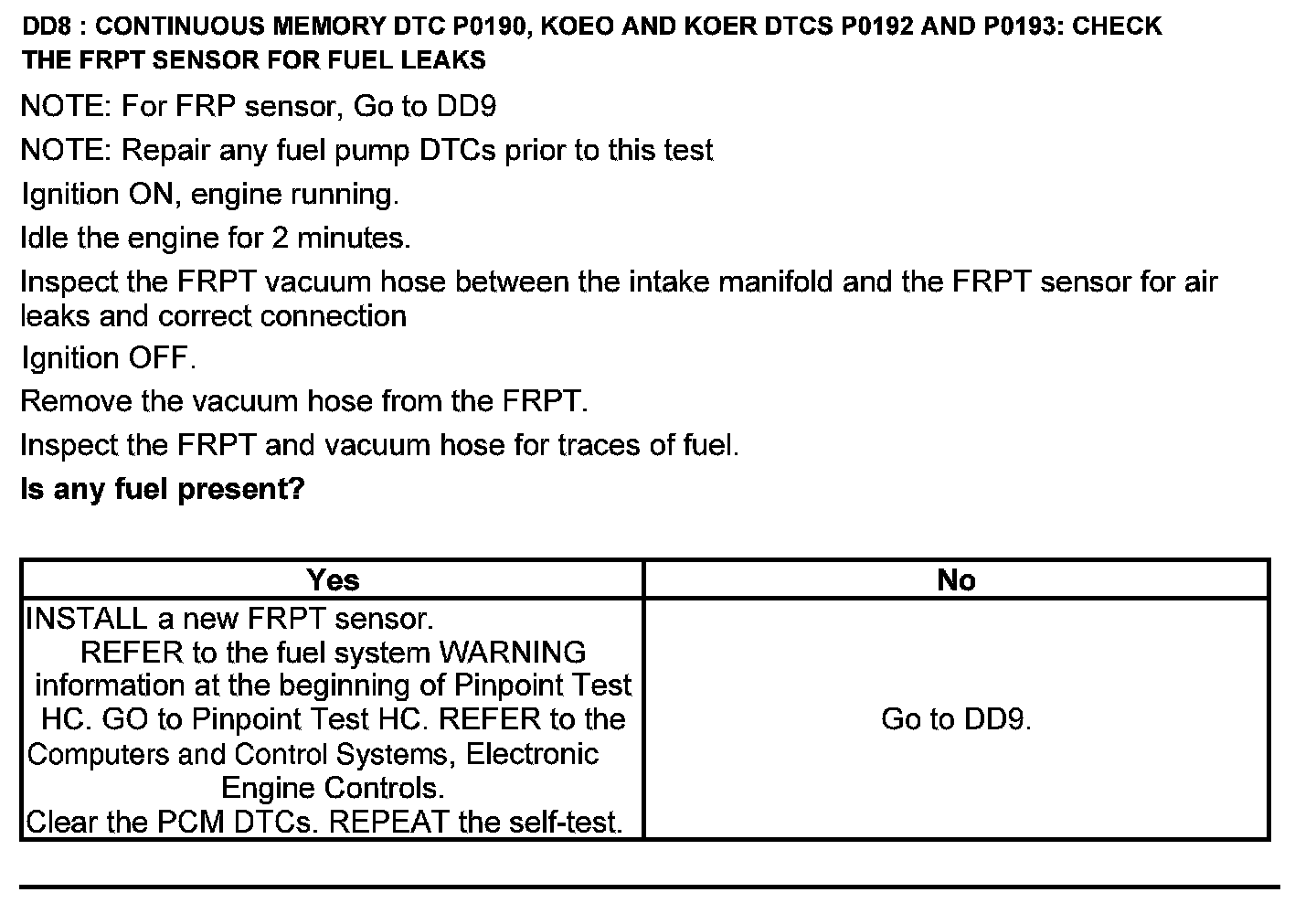

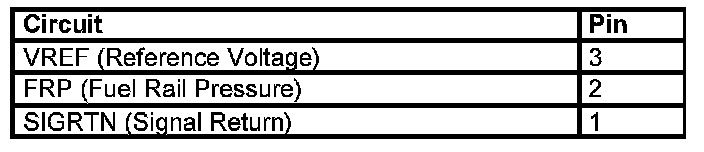

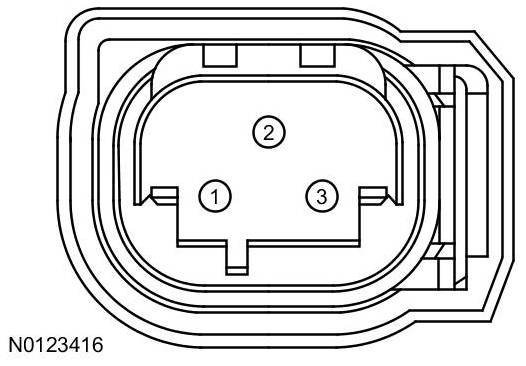

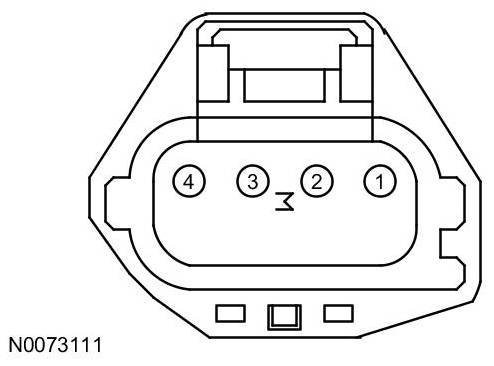

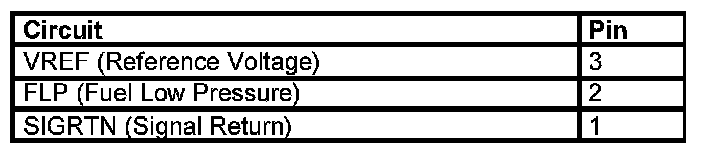

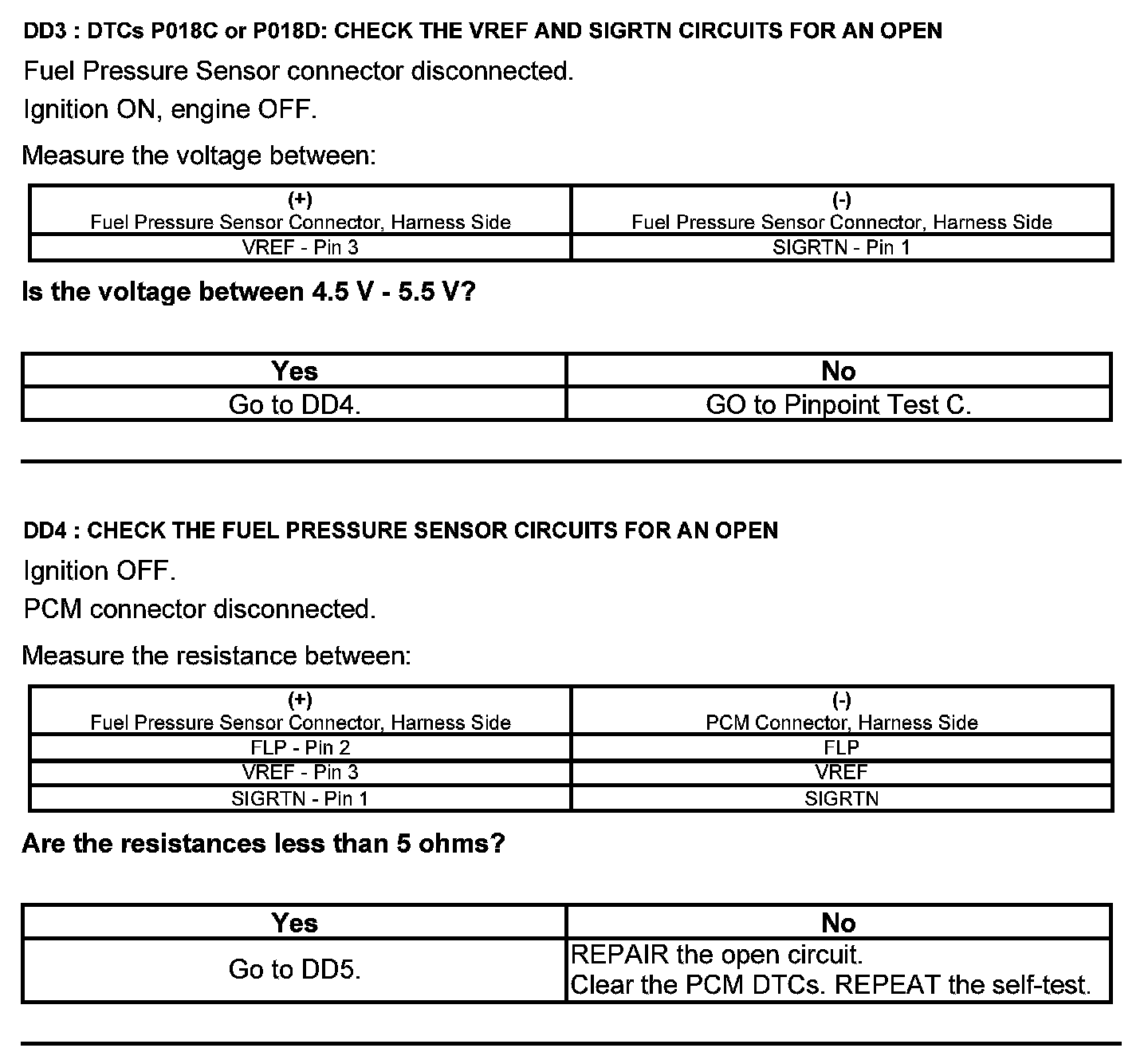

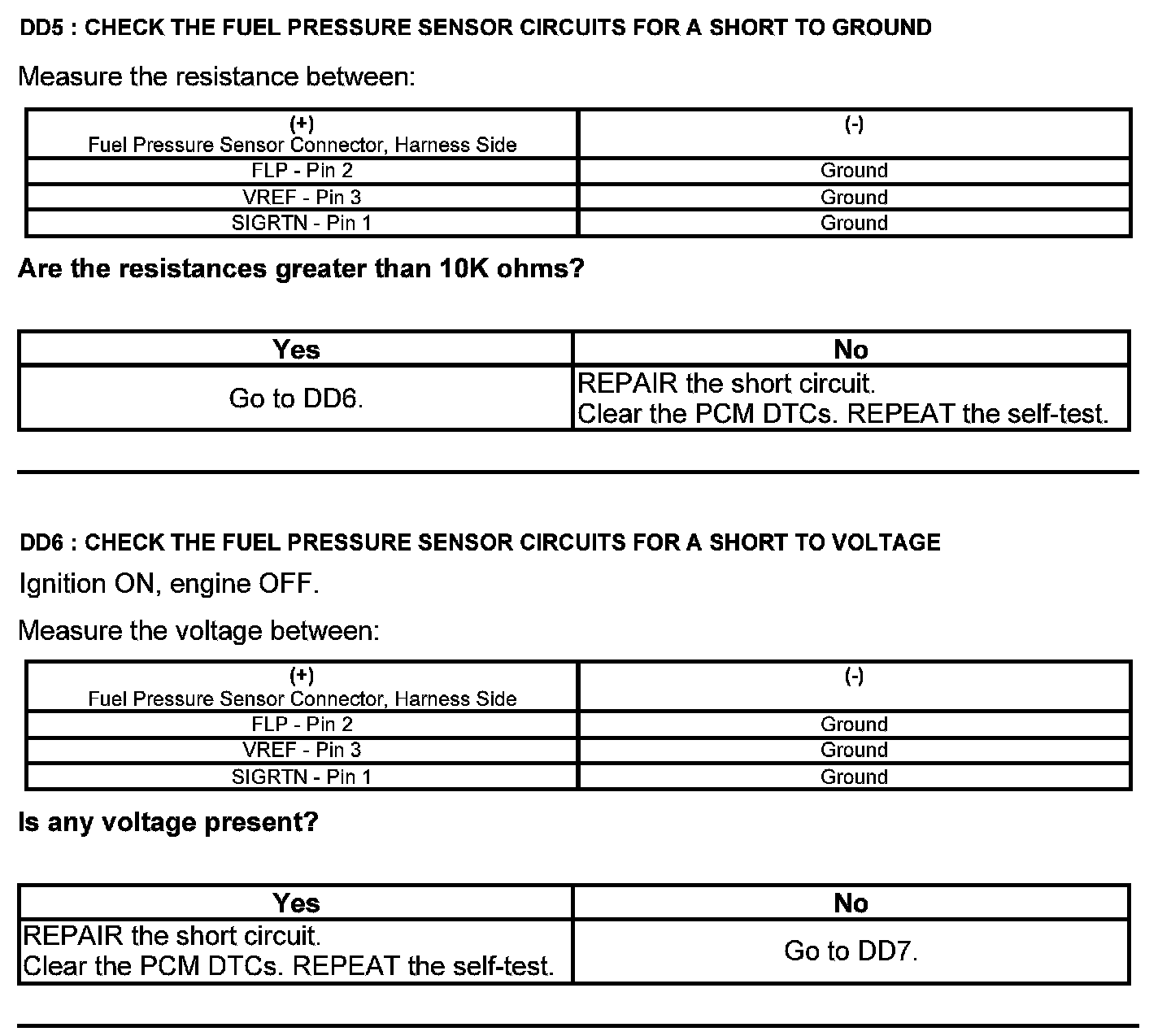

Fuel Pressure Sensor Connector






Harness Side







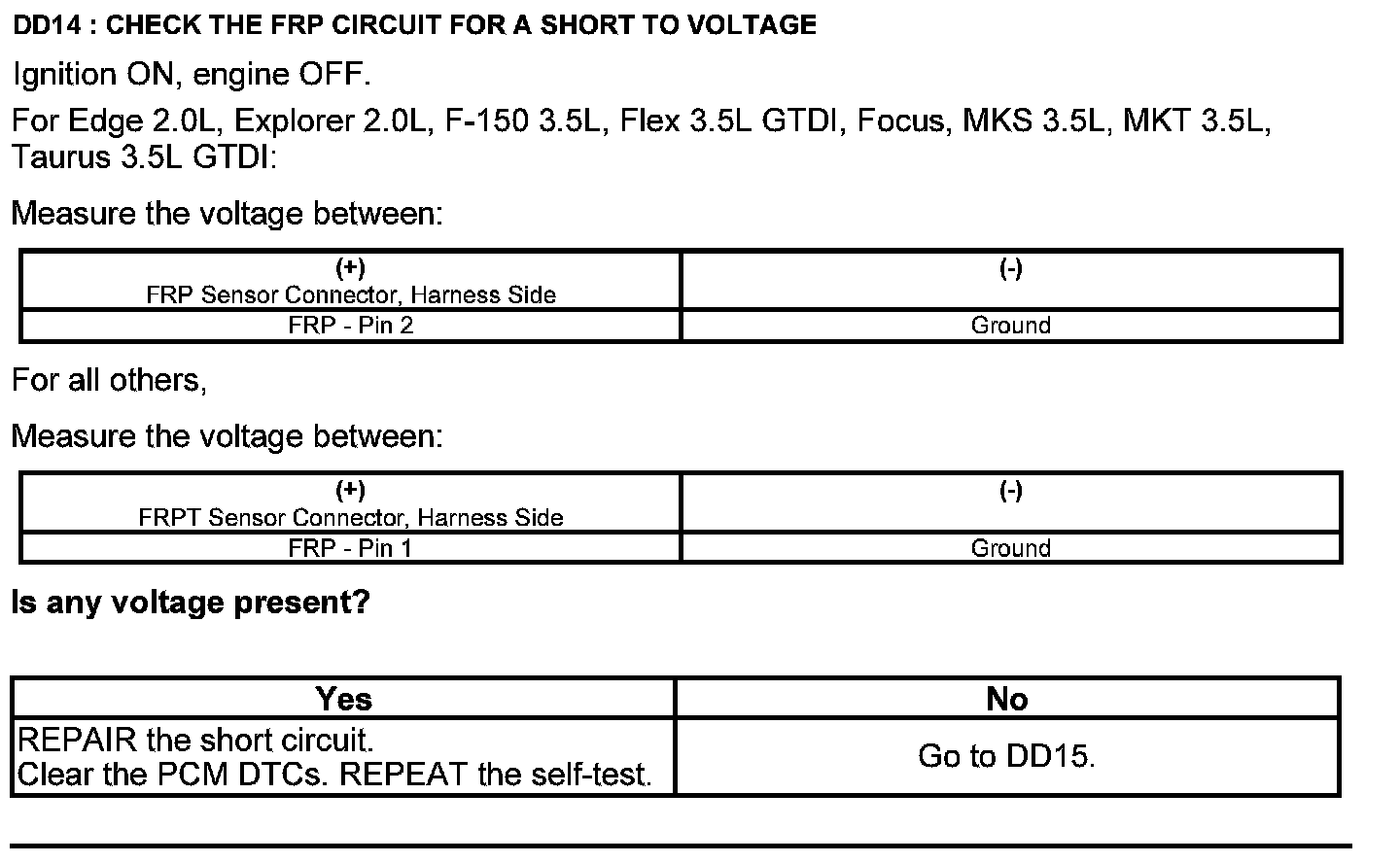

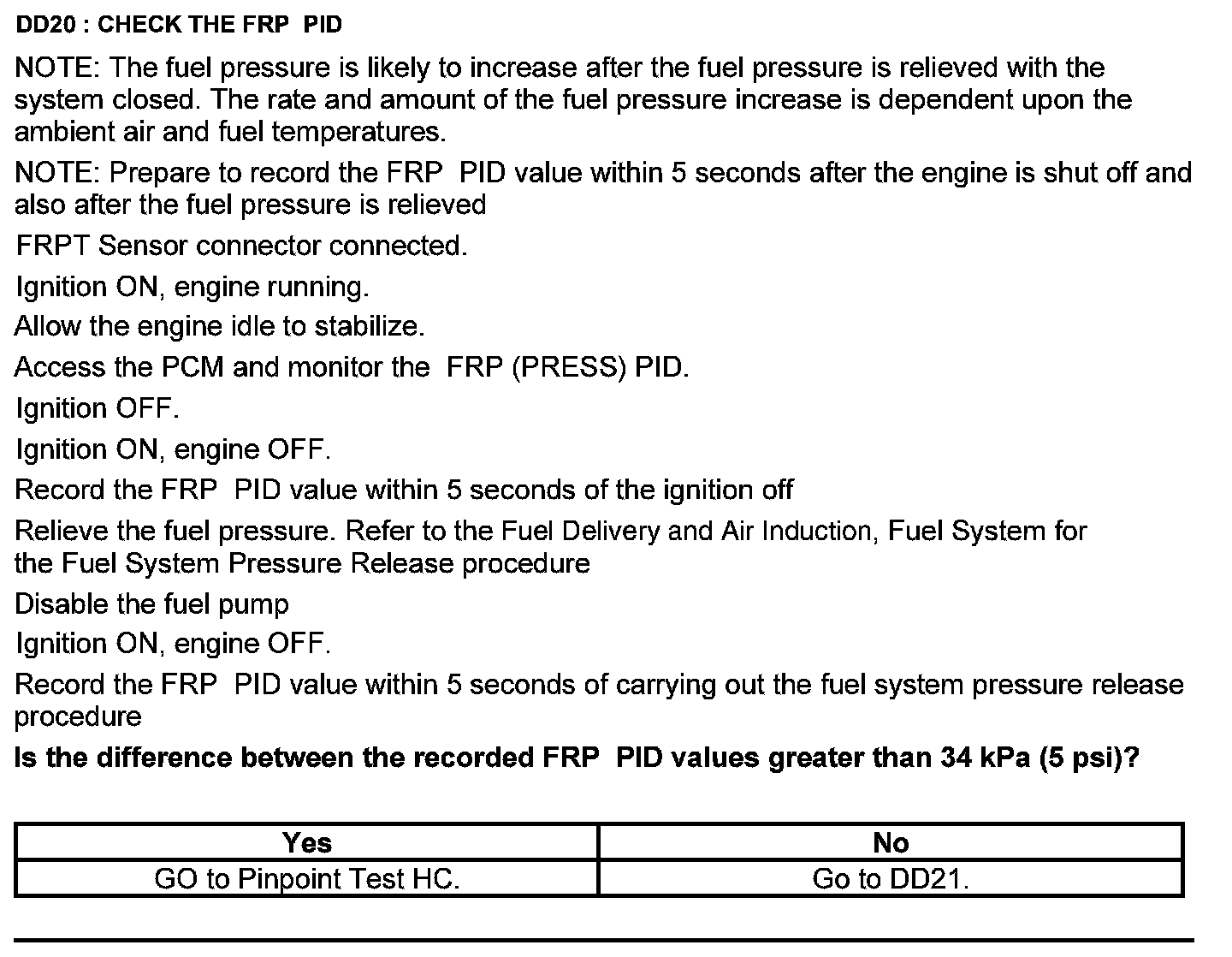

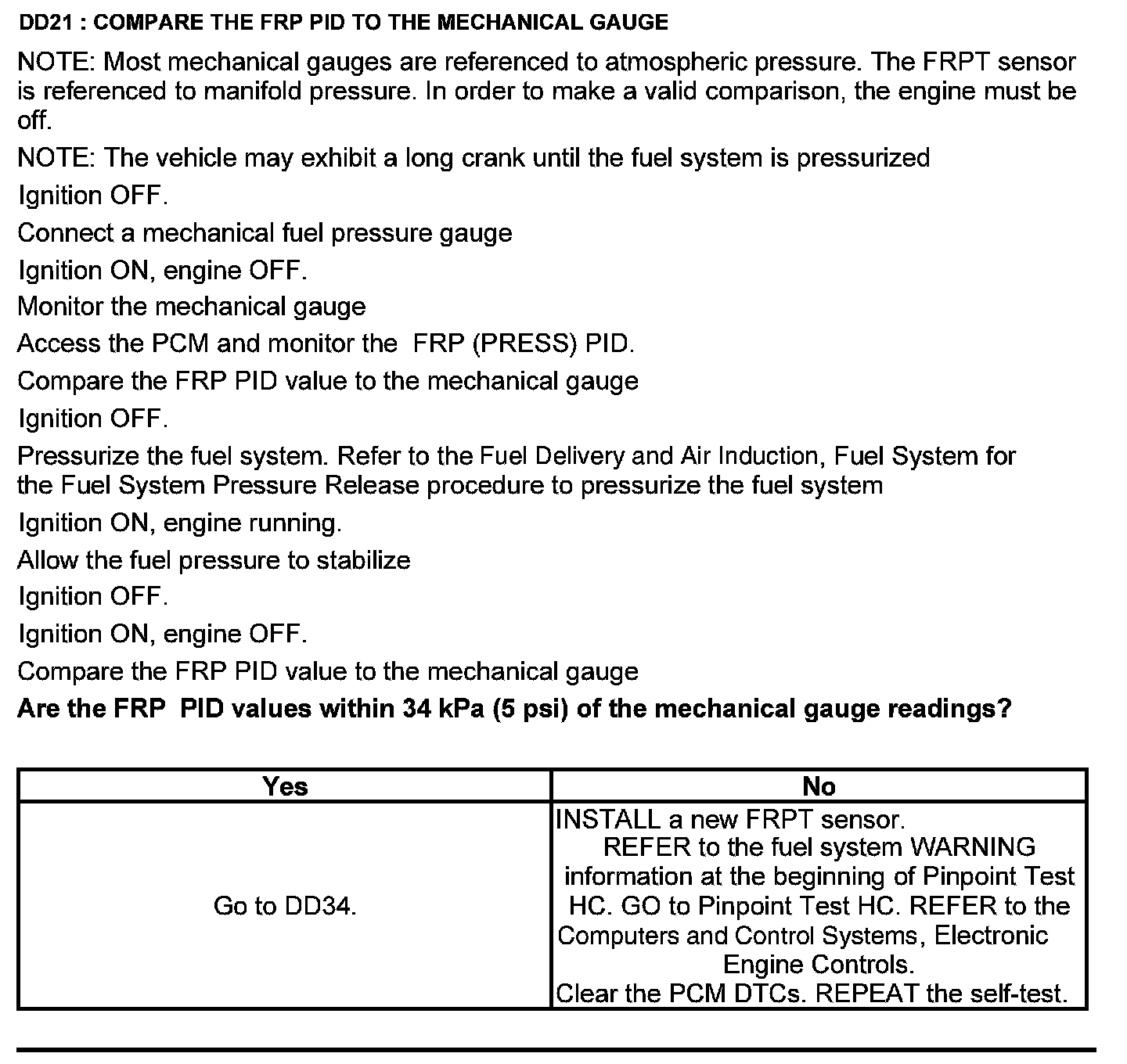

Fuel Rail Pressure (FRP) Sensor Connector






Harness Side







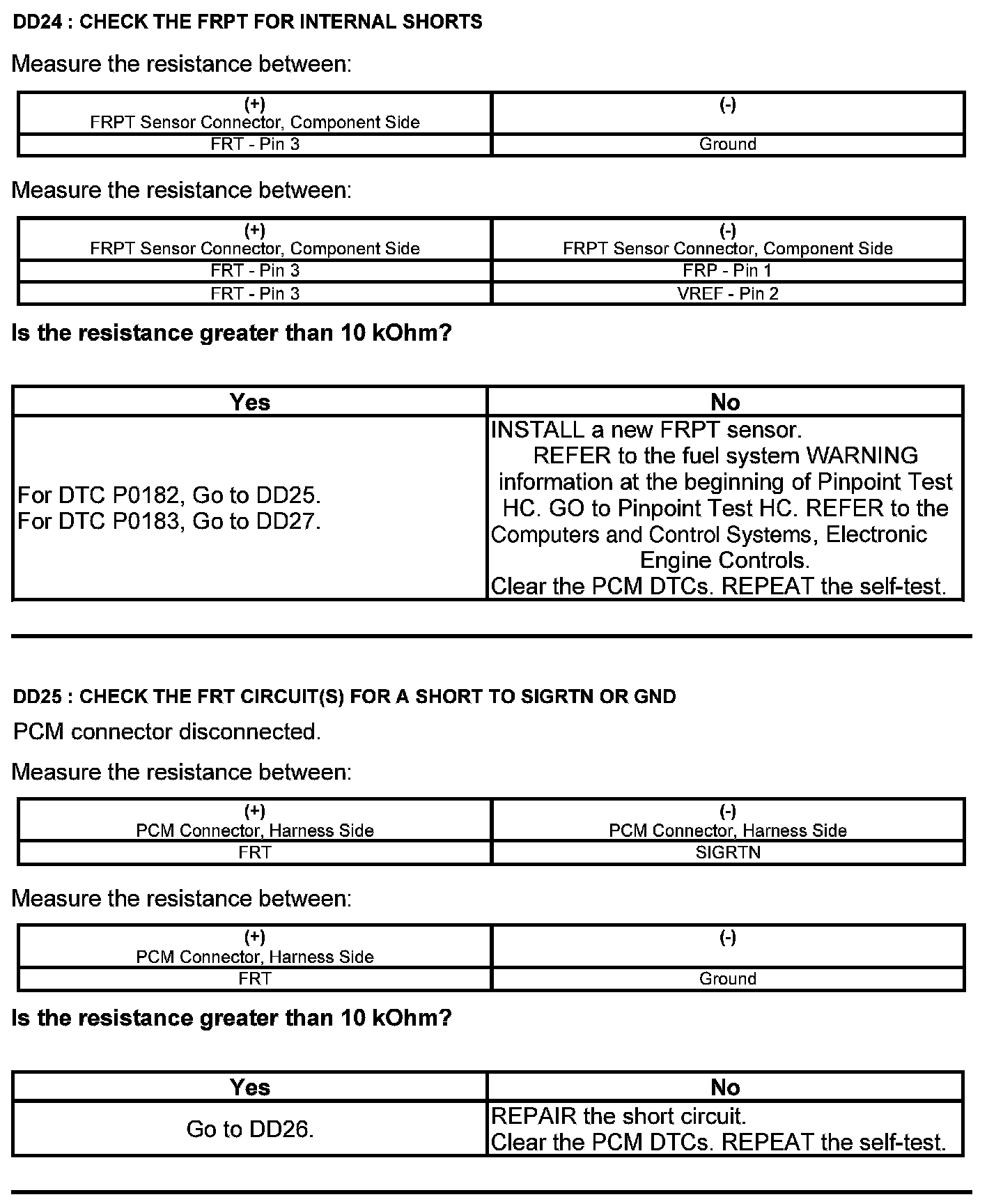

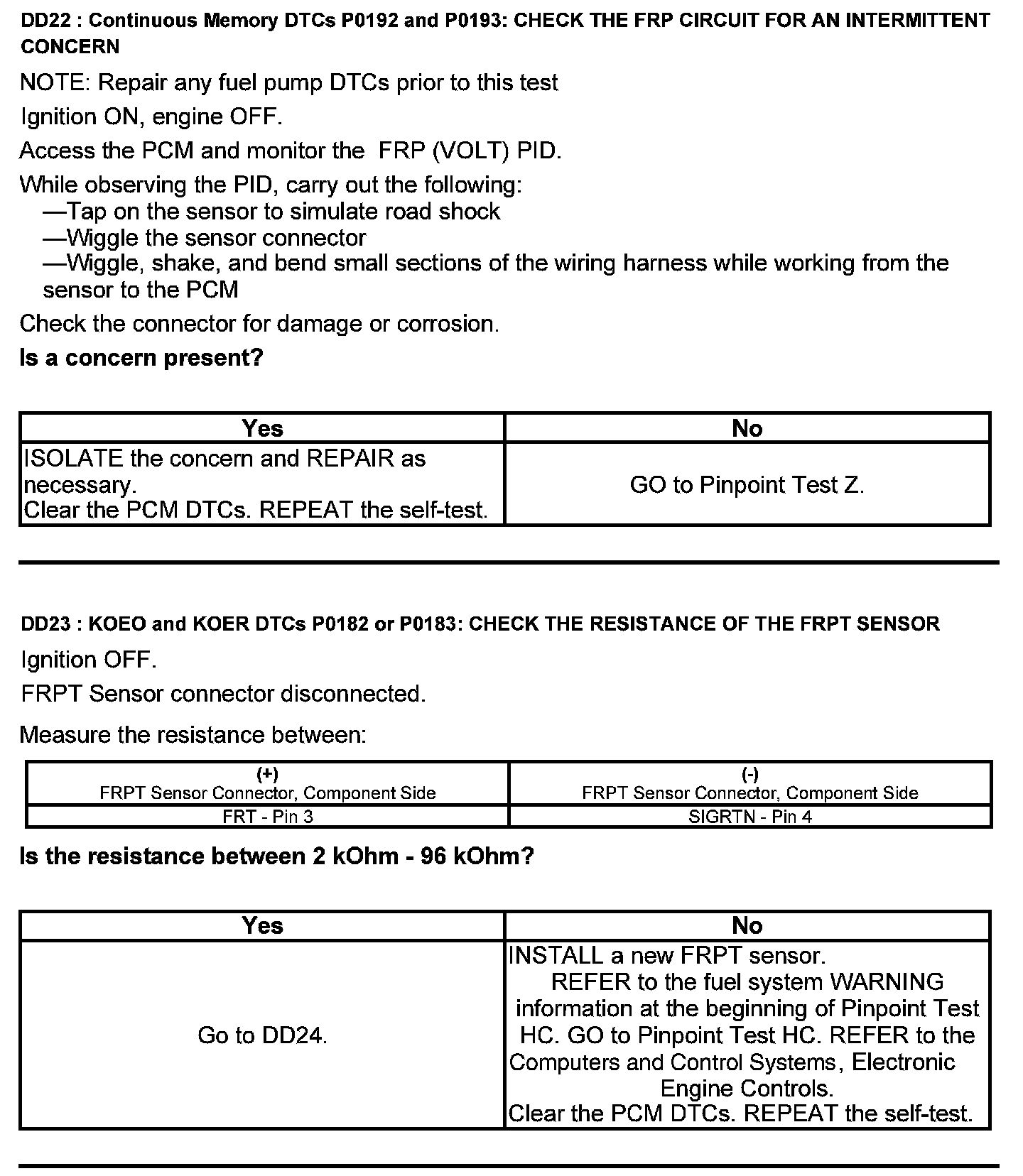

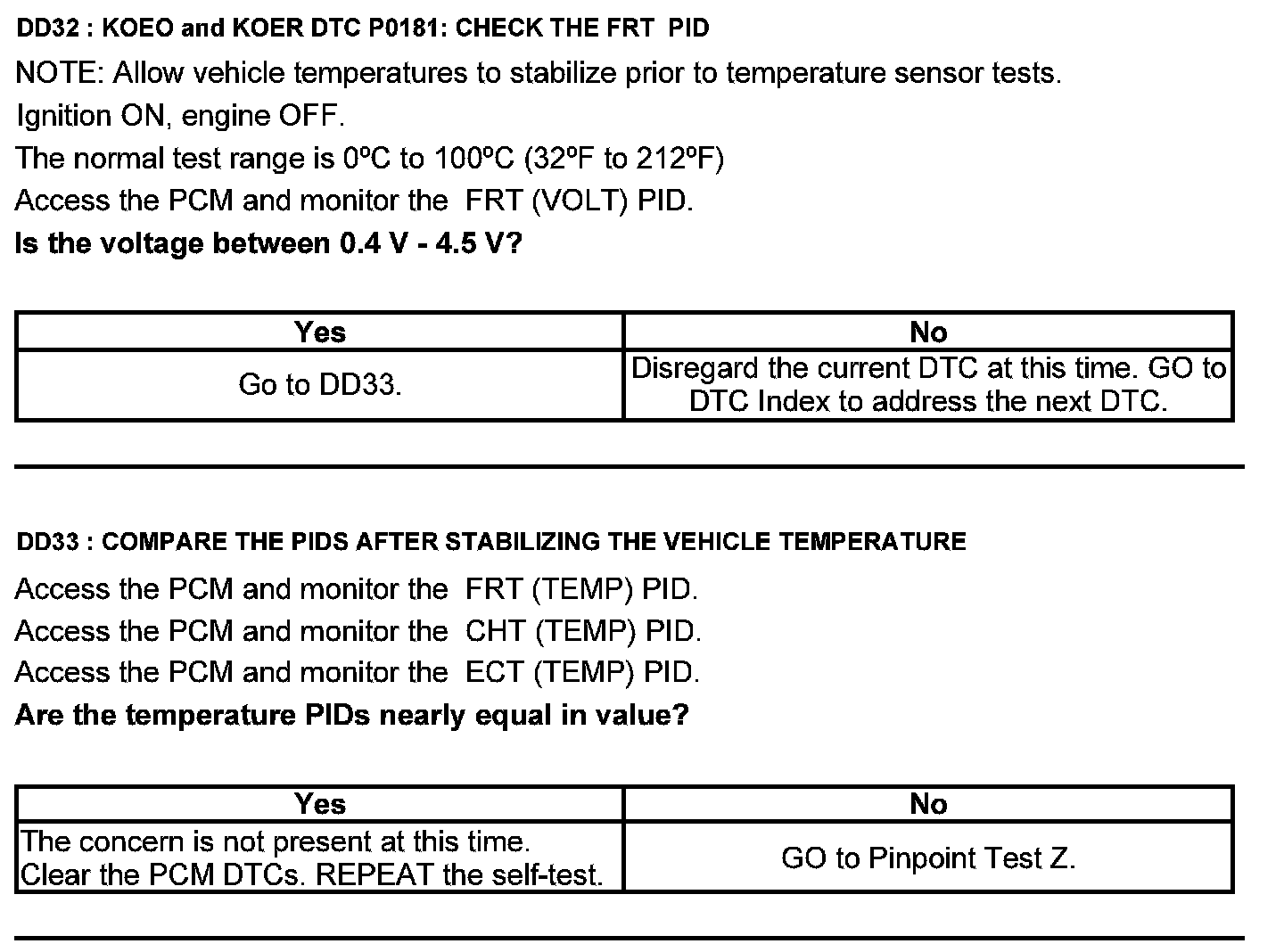

Fuel Rail Pressure Temperature (FRPT) Sensor Connector






Harness Side







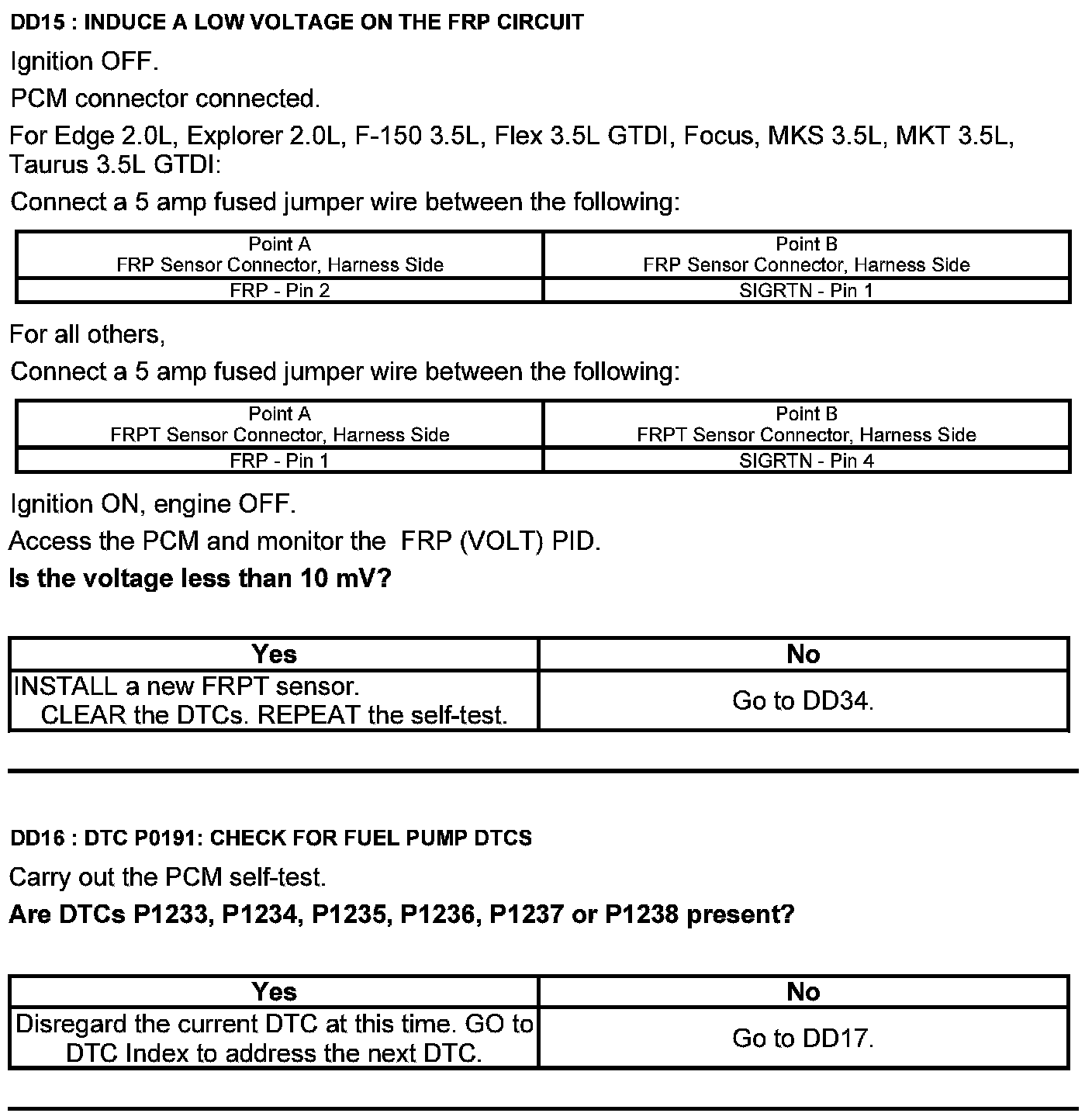

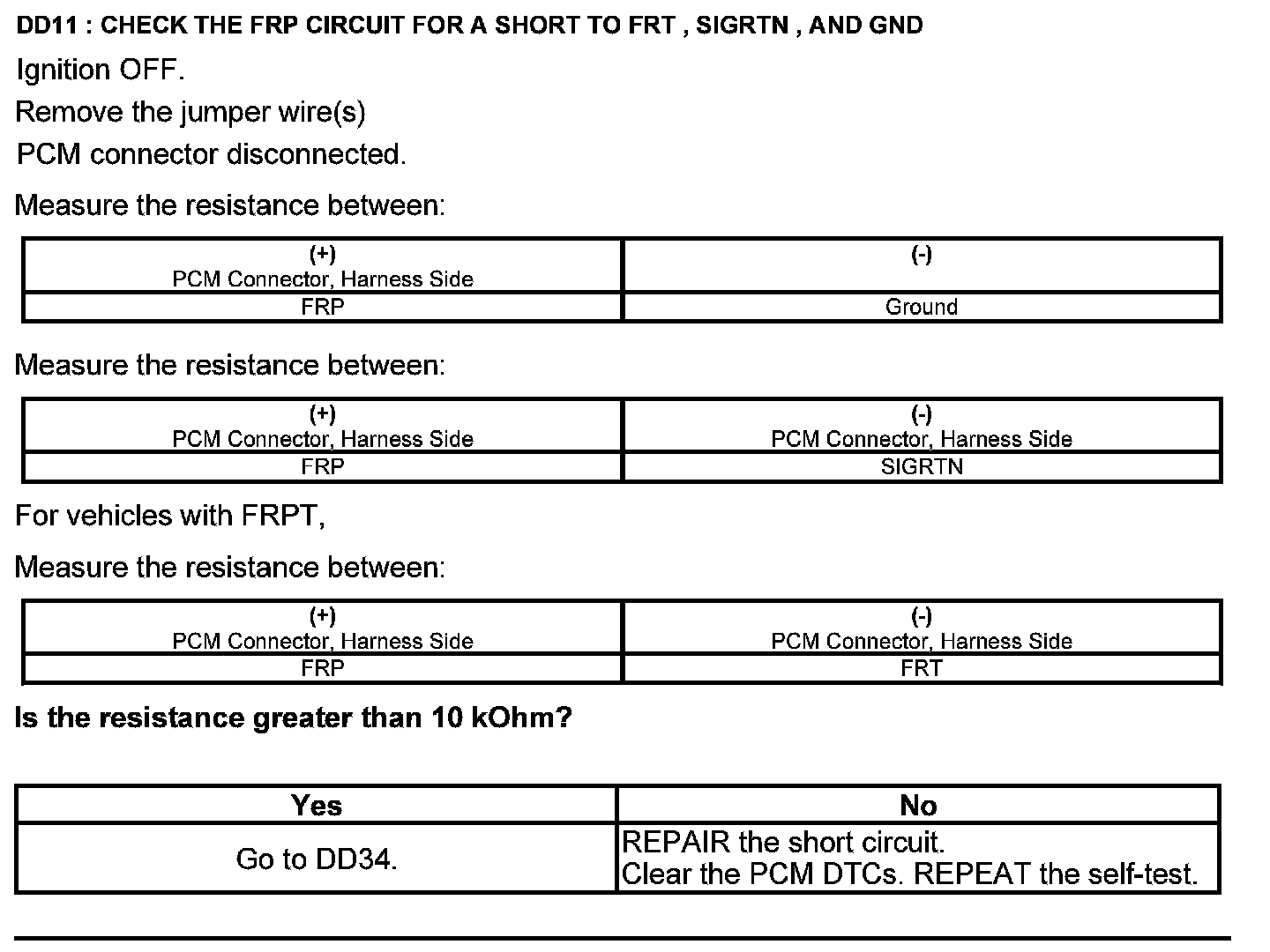

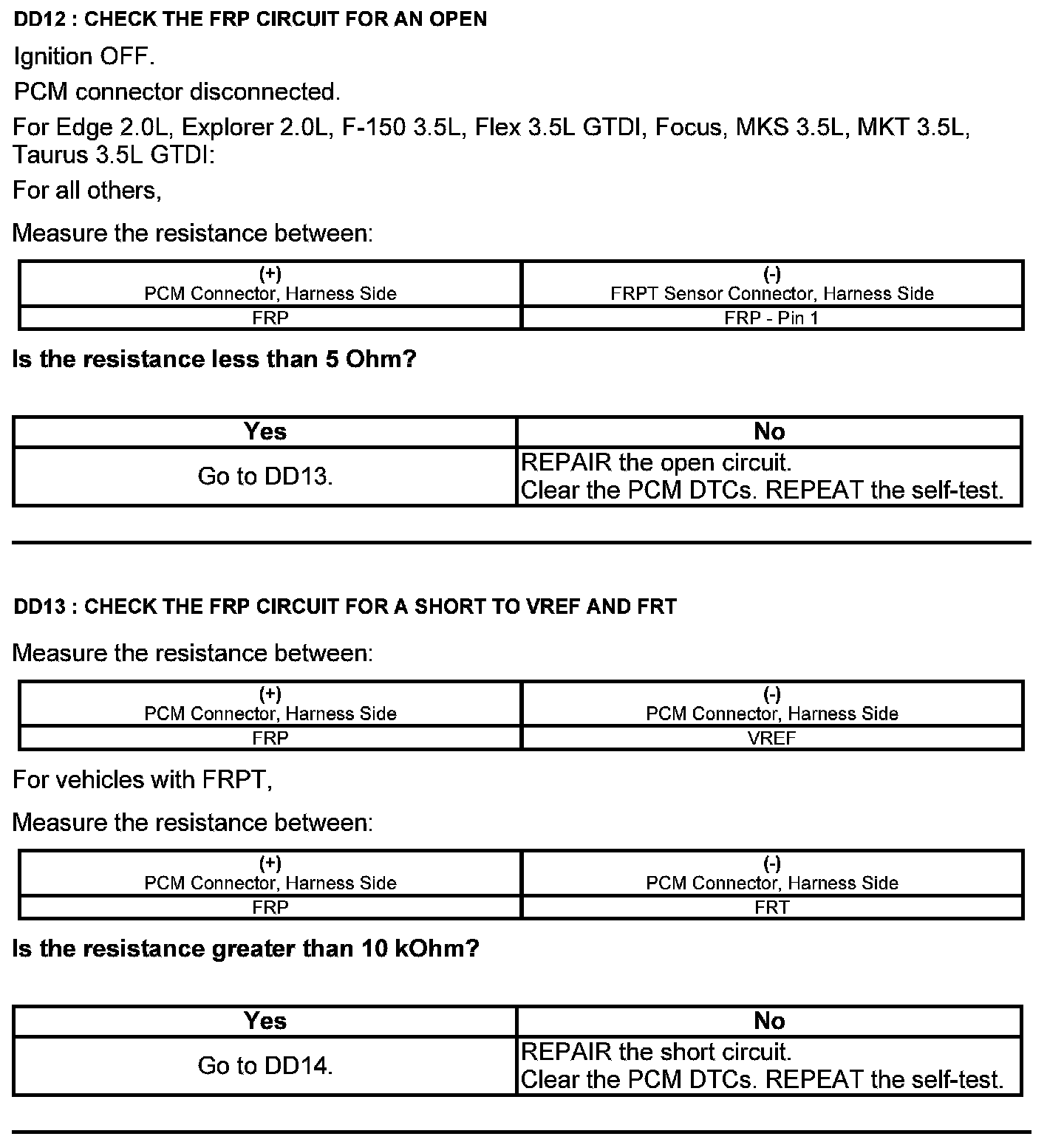

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
