Parking Lamp Bulb - RH

Parking Lamp Bulb - RH, Fusion

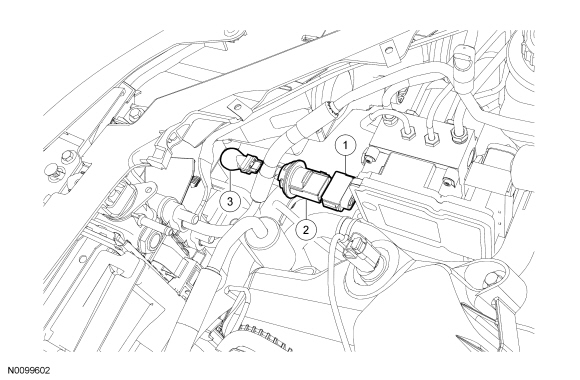

NOTE: Hybrid shown, non-Hybrid similar.









Removal and Installation

NOTE: The front parking/turn lamp on non-Hybrid vehicles can be accessed without removing any components.

1. Remove the headlamp assembly. For additional information, refer to Headlamp Assembly .

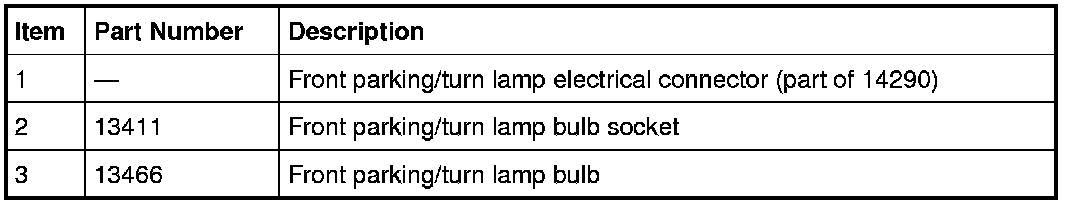

2. Remove the front parking/turn lamp socket from the headlamp assembly.
- Remove the front parking/turn lamp bulb.


3. To install, reverse the removal procedure.
