Parking Lamp Bulb - LH

Parking Lamp Bulb - LH, Fusion

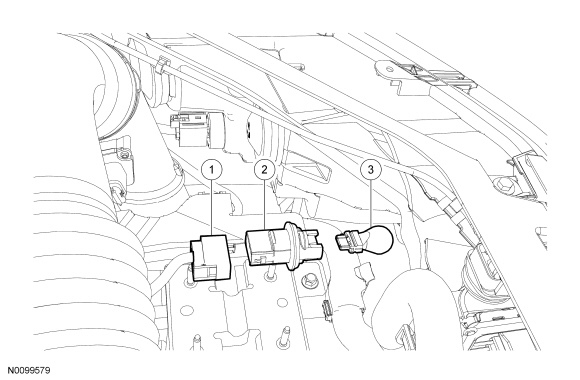

NOTE: Hybrid shown, non-Hybrid similar.









Removal and Installation

NOTE: The front parking/turn lamp on non-Hybrid vehicles equipped with a 2.5L or 3.0L engine can be accessed without removing any components.

1. For Hybrid vehicles, remove the battery tray.

2. For vehicles equipped with a 3.5L engine, remove the air cleaner.

3. Disconnect the parking/turn lamp electrical connector.

4. Remove the front parking/turn lamp socket from the headlamp assembly.
- Remove the front parking/turn lamp bulb.


5. To install, reverse the removal procedure.
