Thermostatic Expansion Valve Manifold and Tube Assembly

Thermostatic Expansion Valve Manifold and Tube Assembly













Removal and Installation

NOTICE: Motorcraft(R) Electric A/C Compressor Oil only must be used as a refrigerant system lubricant for hybrid vehicles. Addition of any oil other than Motorcraft(R) Electric A/C Compressor Oil to the hybrid vehicle refrigerant system will damage the electric Air Conditioning (A/C) compressor and contaminate the refrigerant system.

NOTICE: Use only the Air Conditioning (A/C) refrigerant compressor oil specified for this vehicle configuration. Use of any A/C refrigerant compressor oil other than what is specified will contaminate and damage the A/C system.

All vehicles

1. Recover the refrigerant.

3.5L vehicles

2. Remove the lower cowl panel grille.

Non-hybrid vehicles

3. Detach the wire harness pin-type retainer at the front of the RH shock tower and detach the 2 wire harness clips from the Thermostatic Expansion Valve (TXV) manifold and tube assembly.





All vehicles

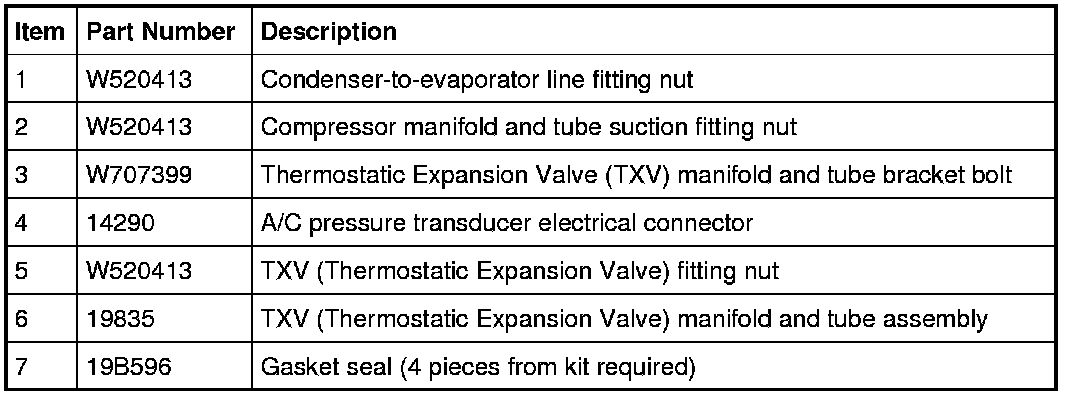

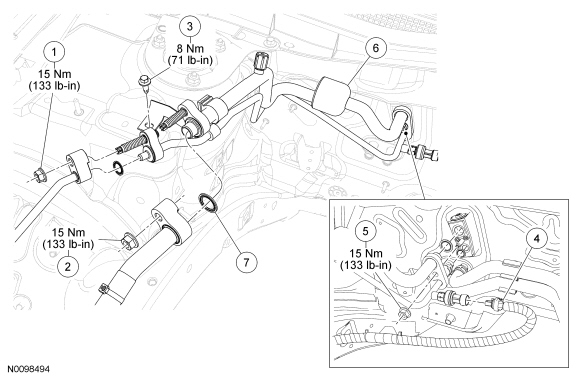

4. Remove the condenser-to-evaporator line fitting nut and disconnect the fitting.
- Discard the gasket seal.

- To install, tighten to 15 Nm (133 lb-in).


5. Remove the compressor manifold and tube suction fitting nut and disconnect the fitting.
- Discard the gasket seal.

- To install, tighten to 15 Nm (133 lb-in).


6. Remove the TXV (Thermostatic Expansion Valve) manifold and tube bracket bolt.
- To install, tighten to 8 Nm (71 lb-in).


7. Disconnect the A/C pressure transducer electrical connector and detach the wire harness from the TXV (Thermostatic Expansion Valve) manifold and tube assembly.

8. Remove the TXV (Thermostatic Expansion Valve) fitting nut and disconnect the fitting.
- Discard the gasket seals.

- To install, tighten to 15 Nm (133 lb-in).


9. Remove the TXV (Thermostatic Expansion Valve) manifold and tube assembly.

10. NOTICE: Motorcraft(R) Electric A/C Compressor Oil only must be used as a refrigerant system lubricant for hybrid vehicles. Addition of any oil other than Motorcraft(R) Electric A/C Compressor Oil to the hybrid vehicle refrigerant system will damage the electric Air Conditioning (A/C) compressor and contaminate the refrigerant system.

To install, reverse the removal procedure.
- Install new O-ring seals and new gasket seals.

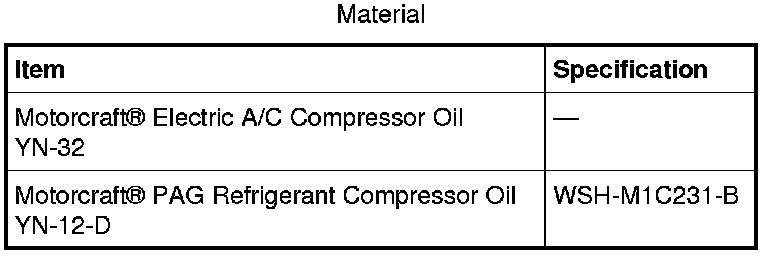

- Add the correct amount of clean PAG oil (non-hybrid) or electric A/C compressor oil (hybrid) to the refrigerant system.


11. Evacuate, leak test and charge the refrigerant system.
