Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

Oil Level Indicator and Tube













Removal and Installation

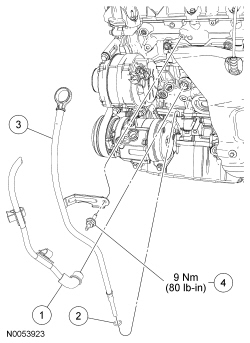

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the oil level indicator.

3. If equipped, disconnect the block heater electrical connector and wiring harness retainers.

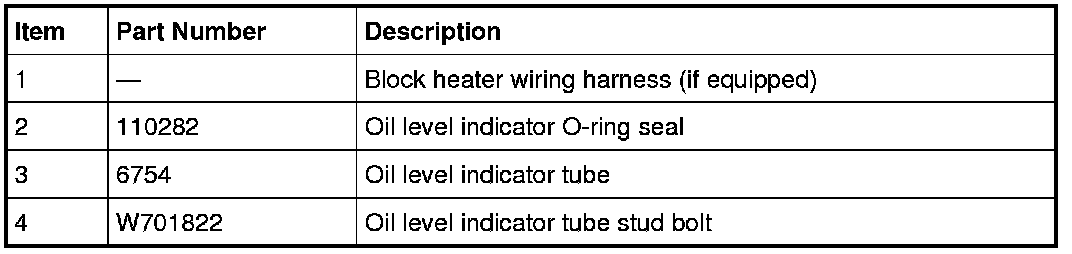

4. Remove the stud bolt and the oil level indicator tube.
- Discard the O-ring seal.

- To install, tighten to 9 Nm (80 lb-in).

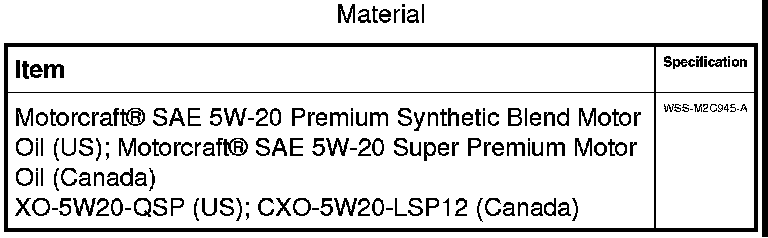

5. NOTE: Install a new O-ring seal and lubricate with clean engine oil.
To install, reverse the removal procedure.
