Home >> Ford >> 2012 >> Fusion AWD V6-3.0L Flex Fuel >> Repair and Diagnosis >> Diagrams >> Splices

Splices

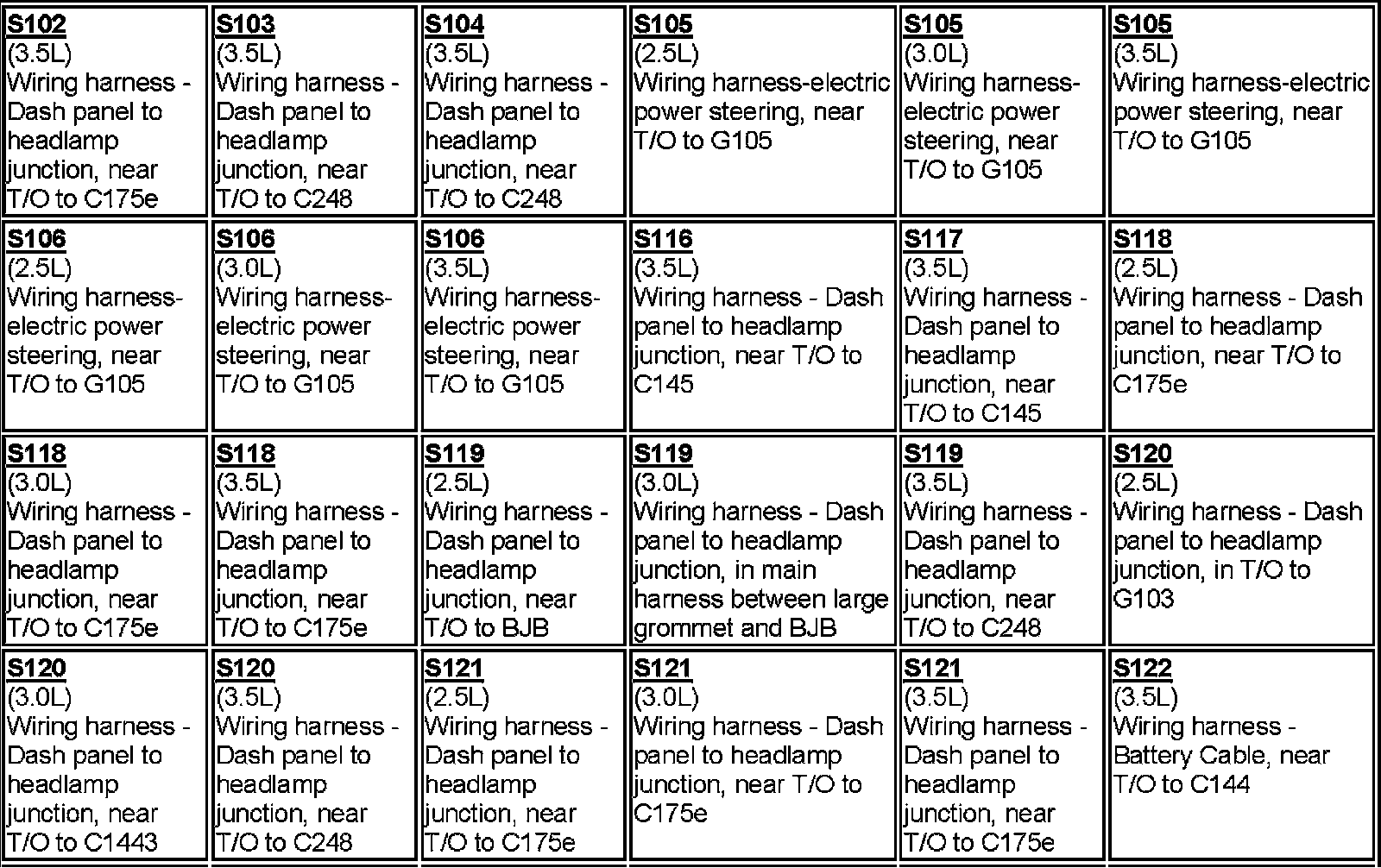

S102-S122:

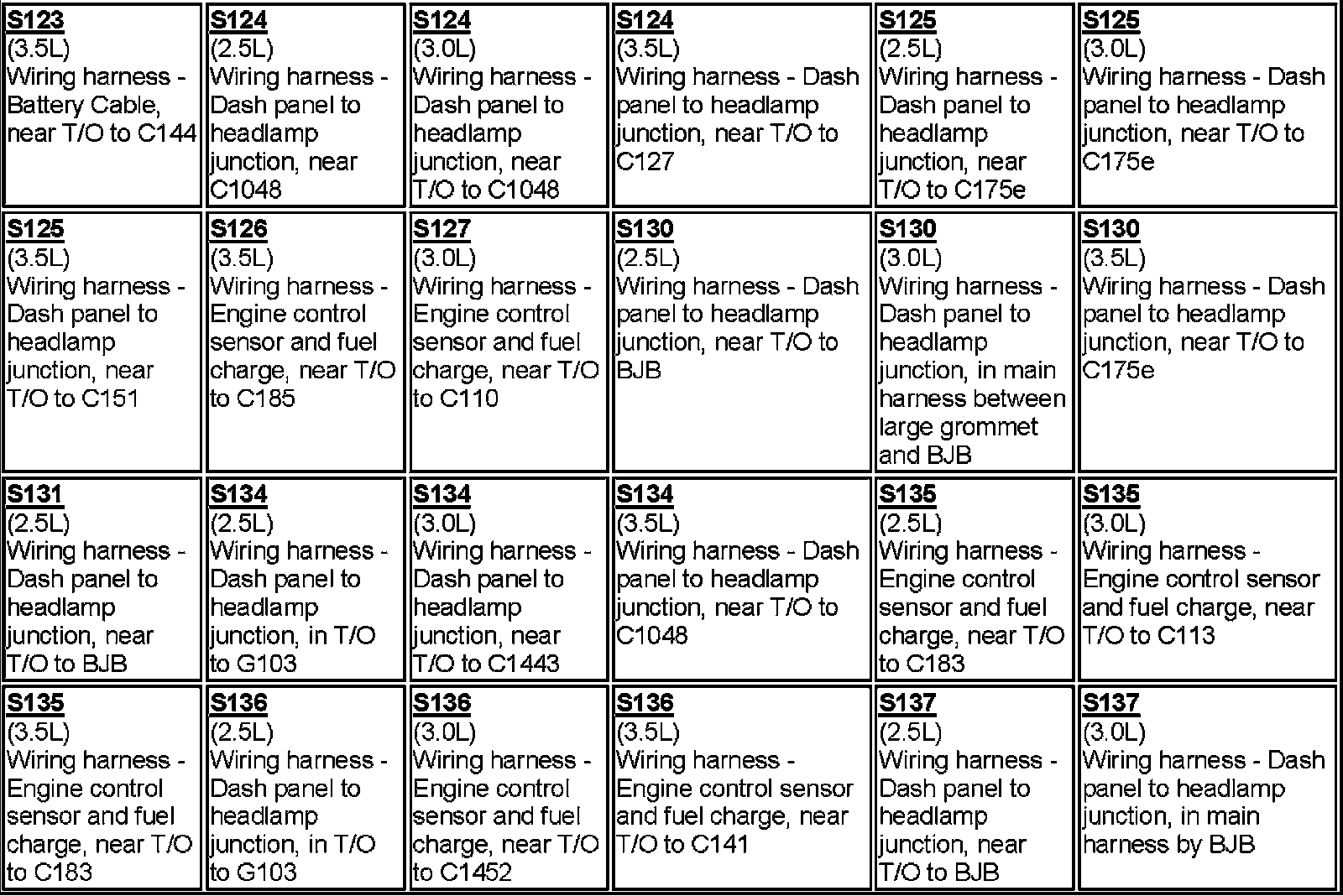

S123-S137:

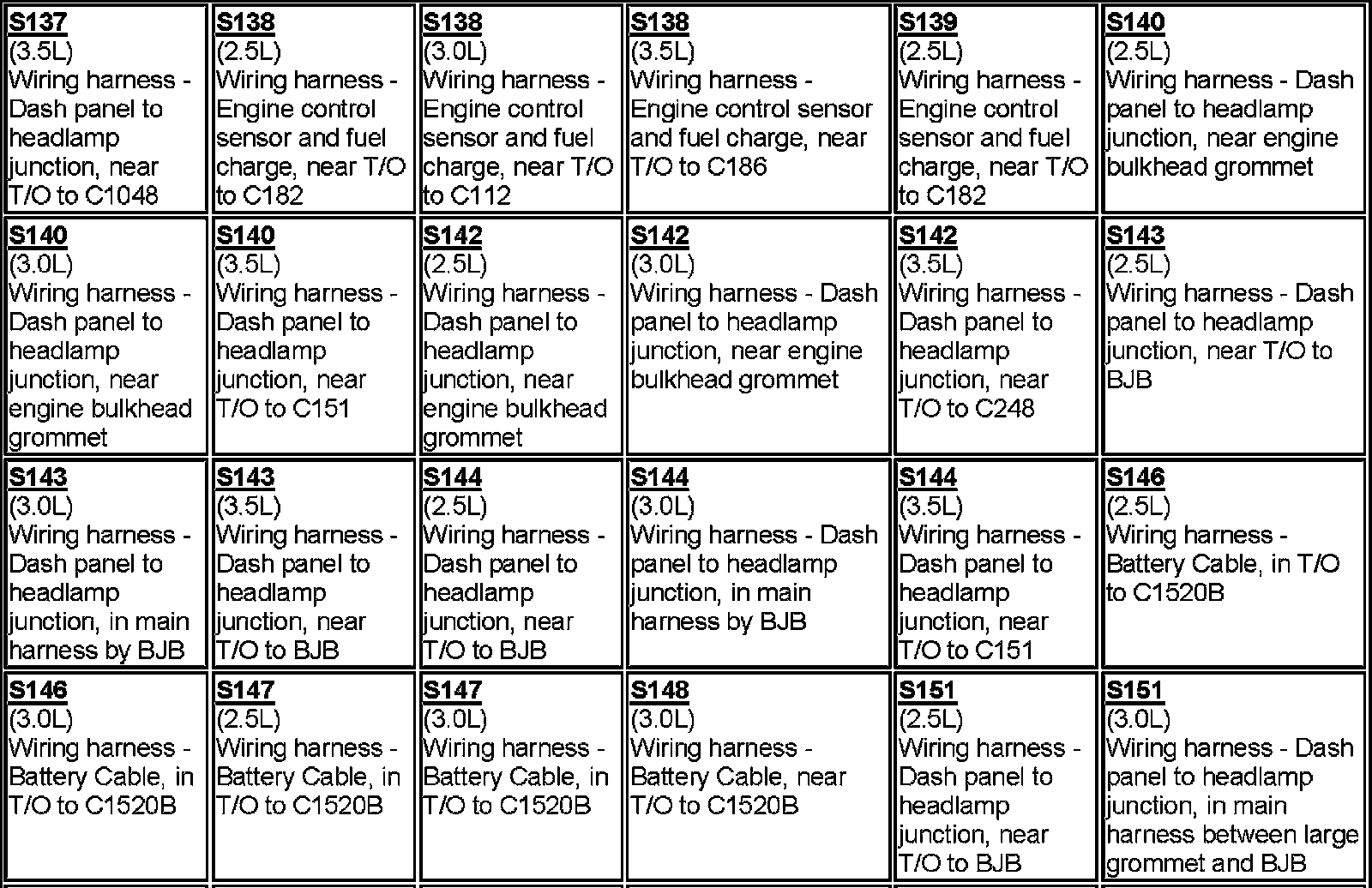

S137-S151:

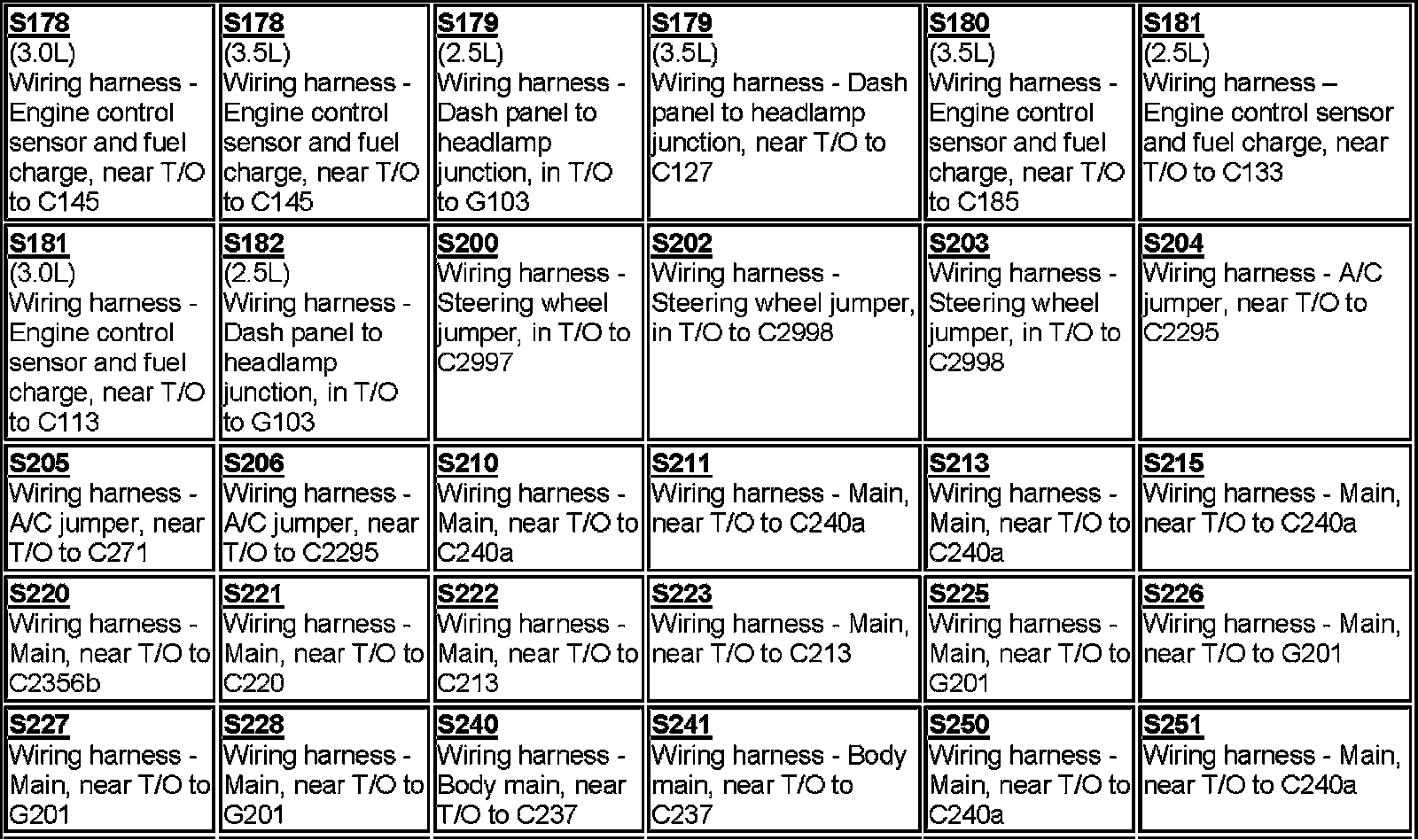

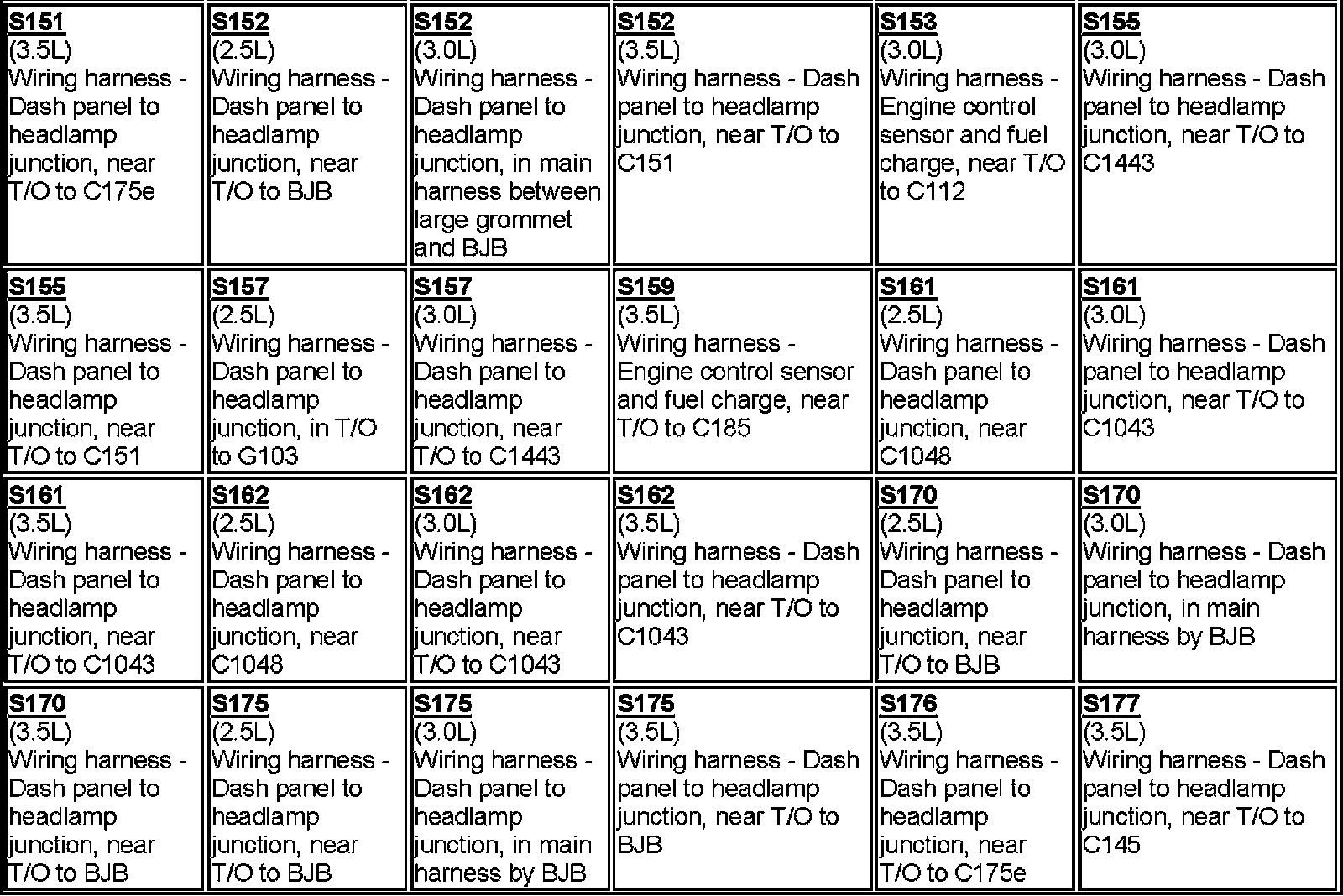

S151-S177:





S178-S251:

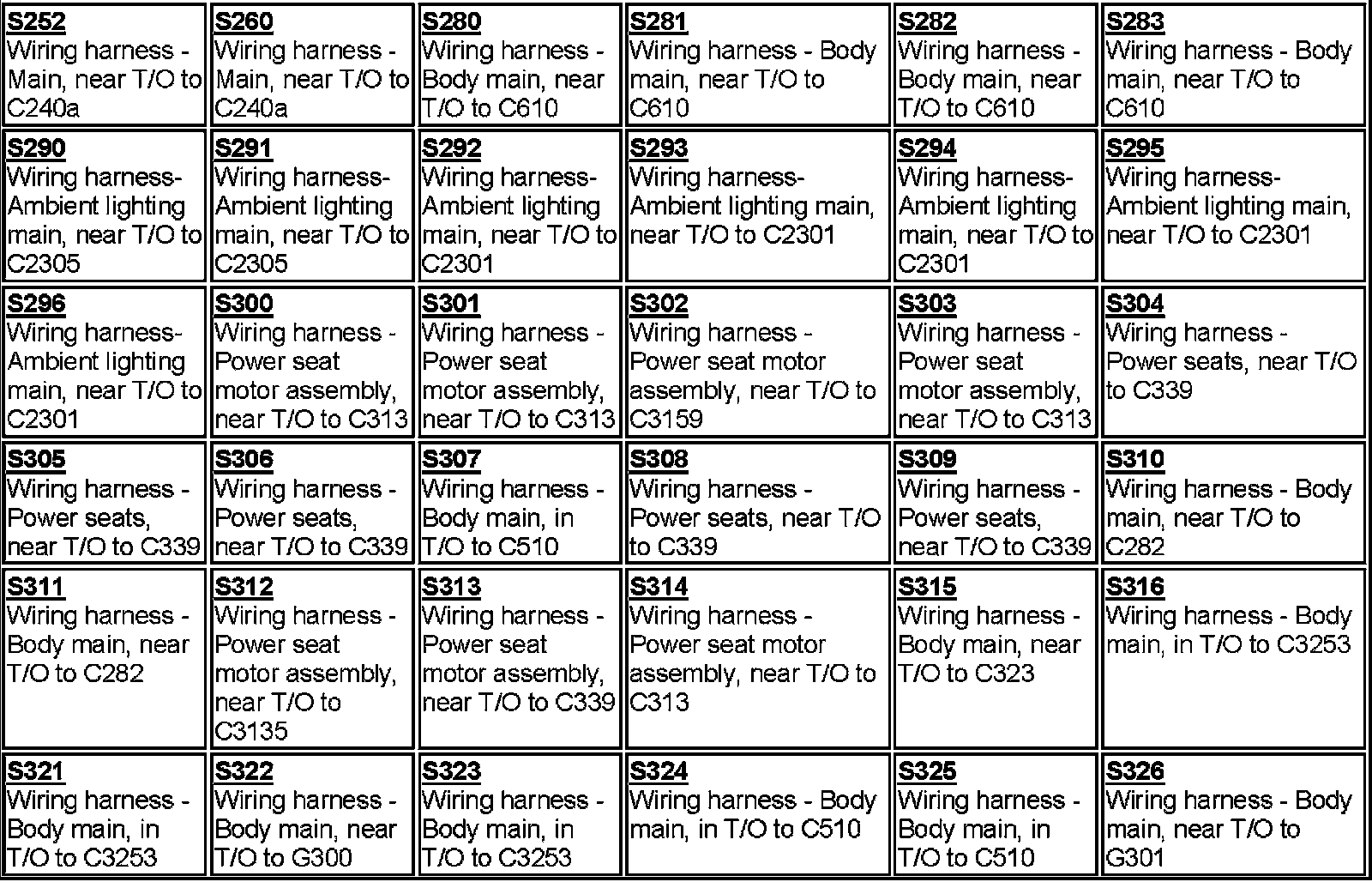

S252-S326:

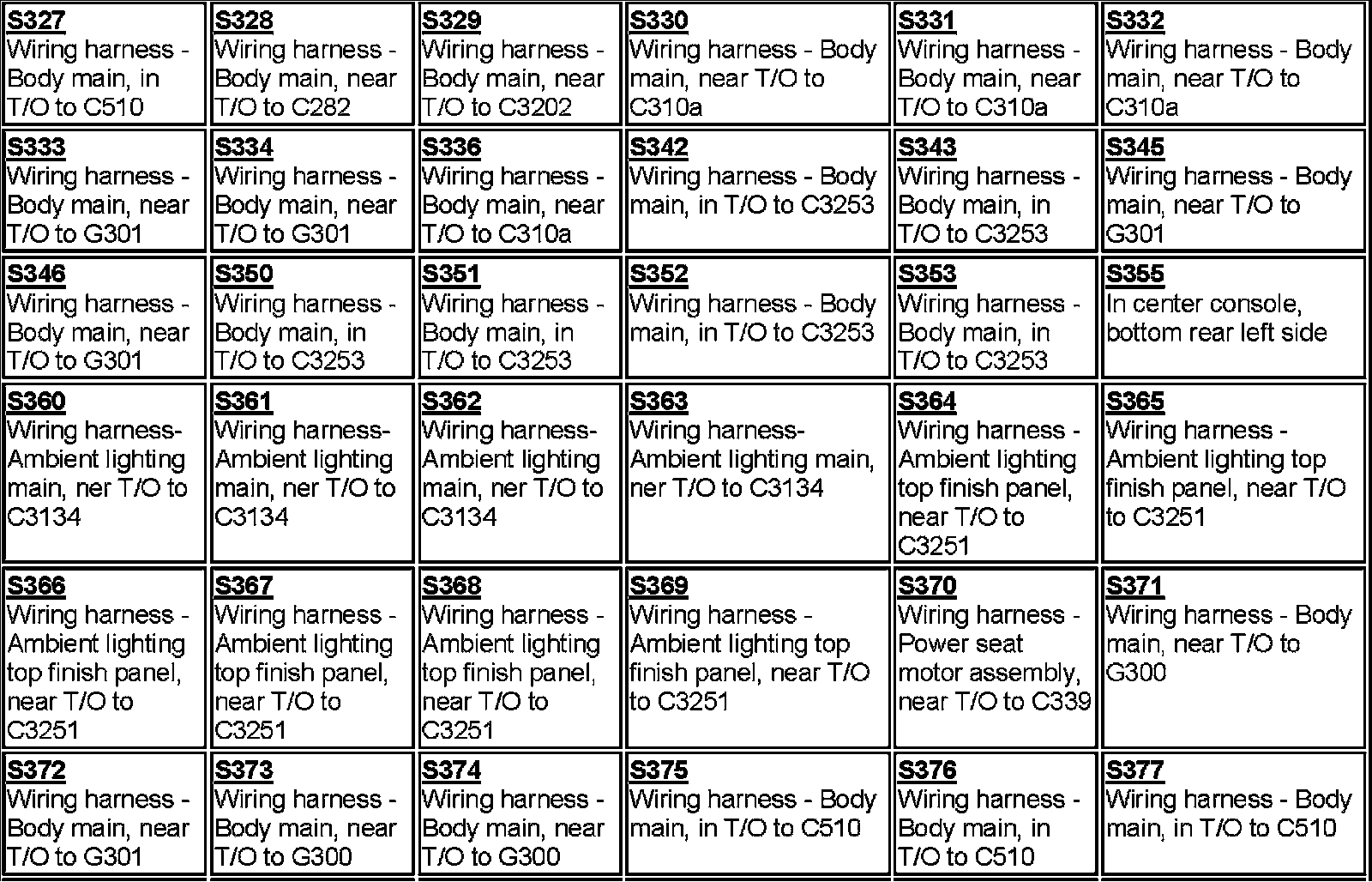

S327-S377:

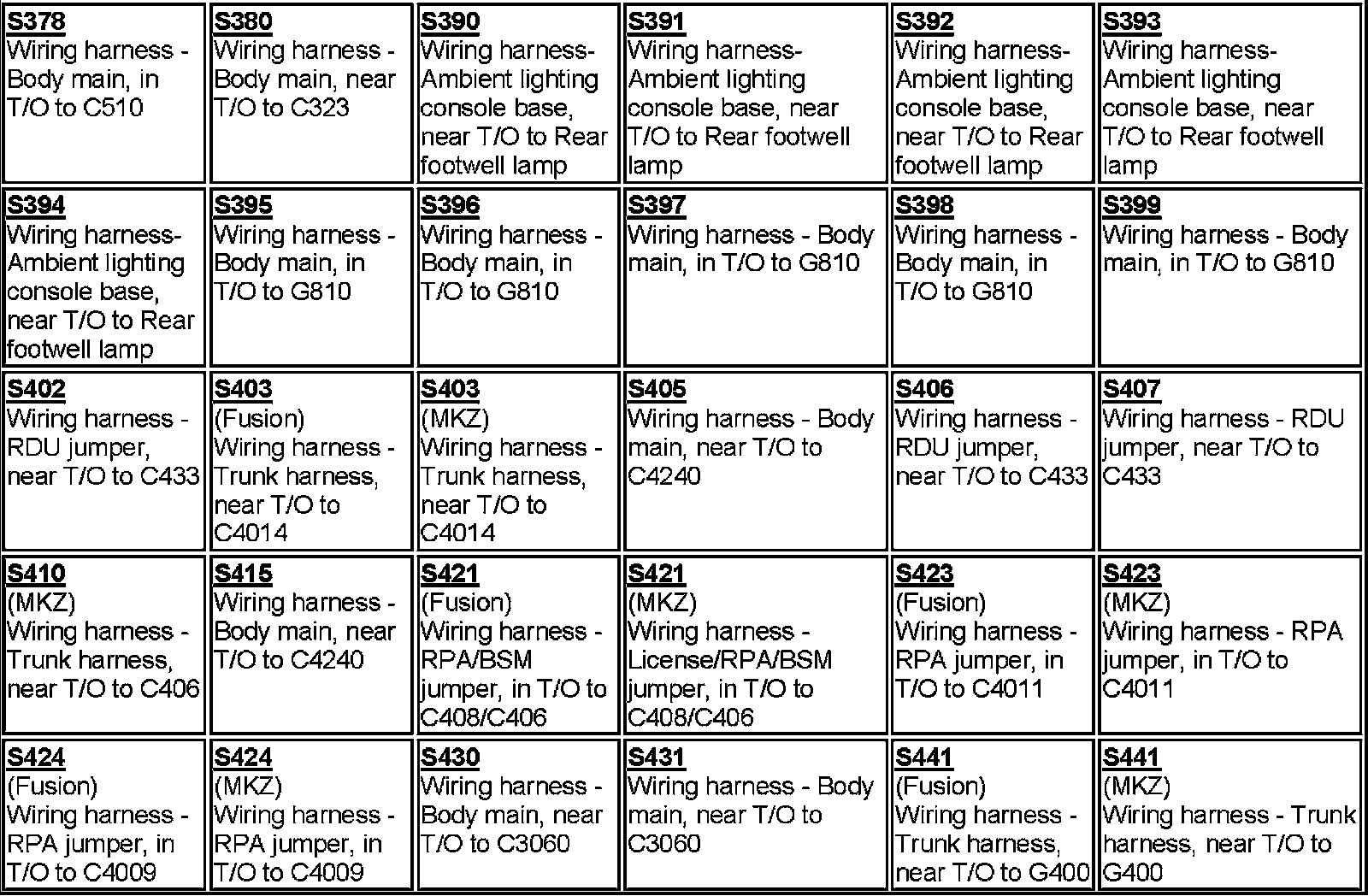

S378-S441:

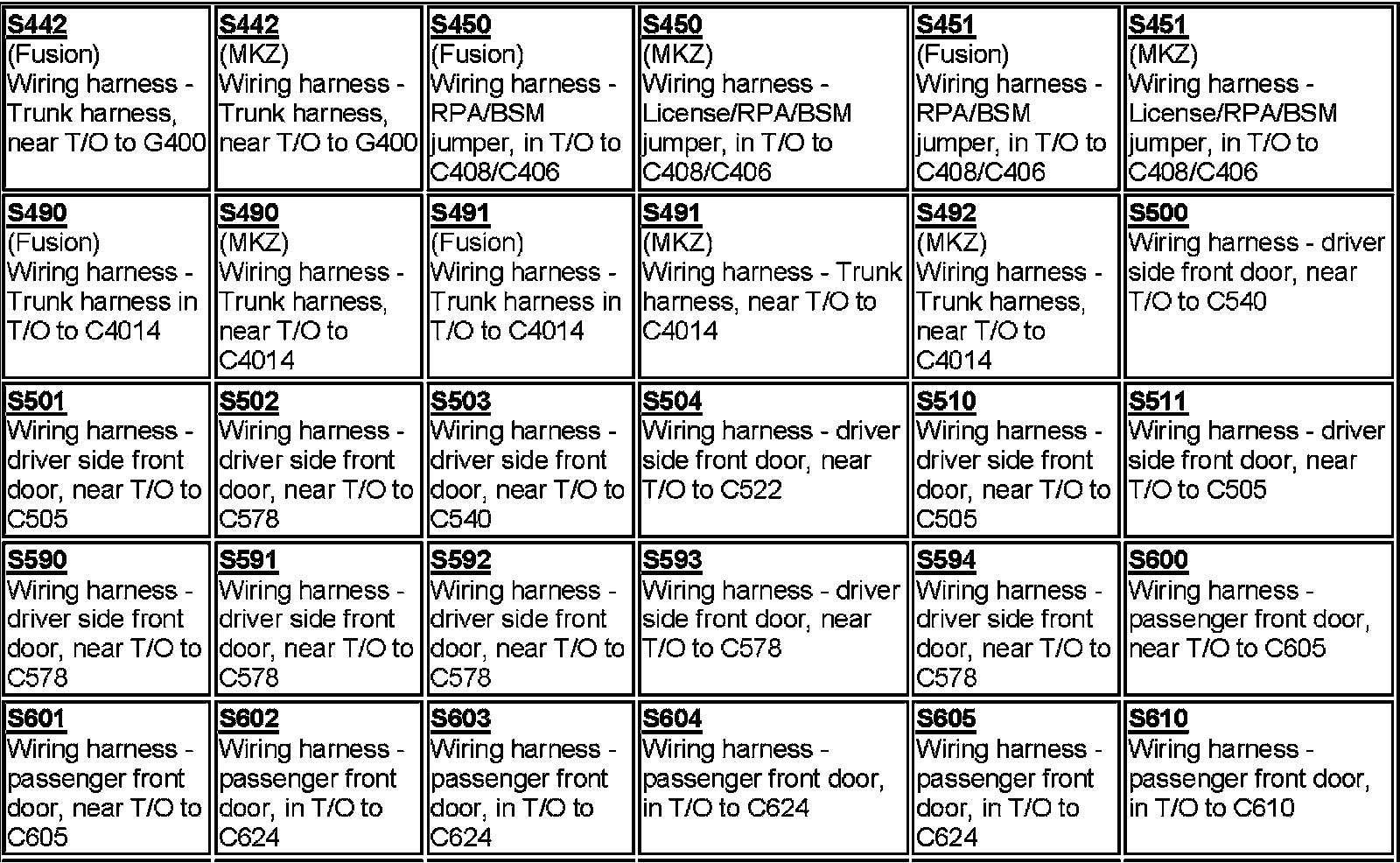

S442-S610:

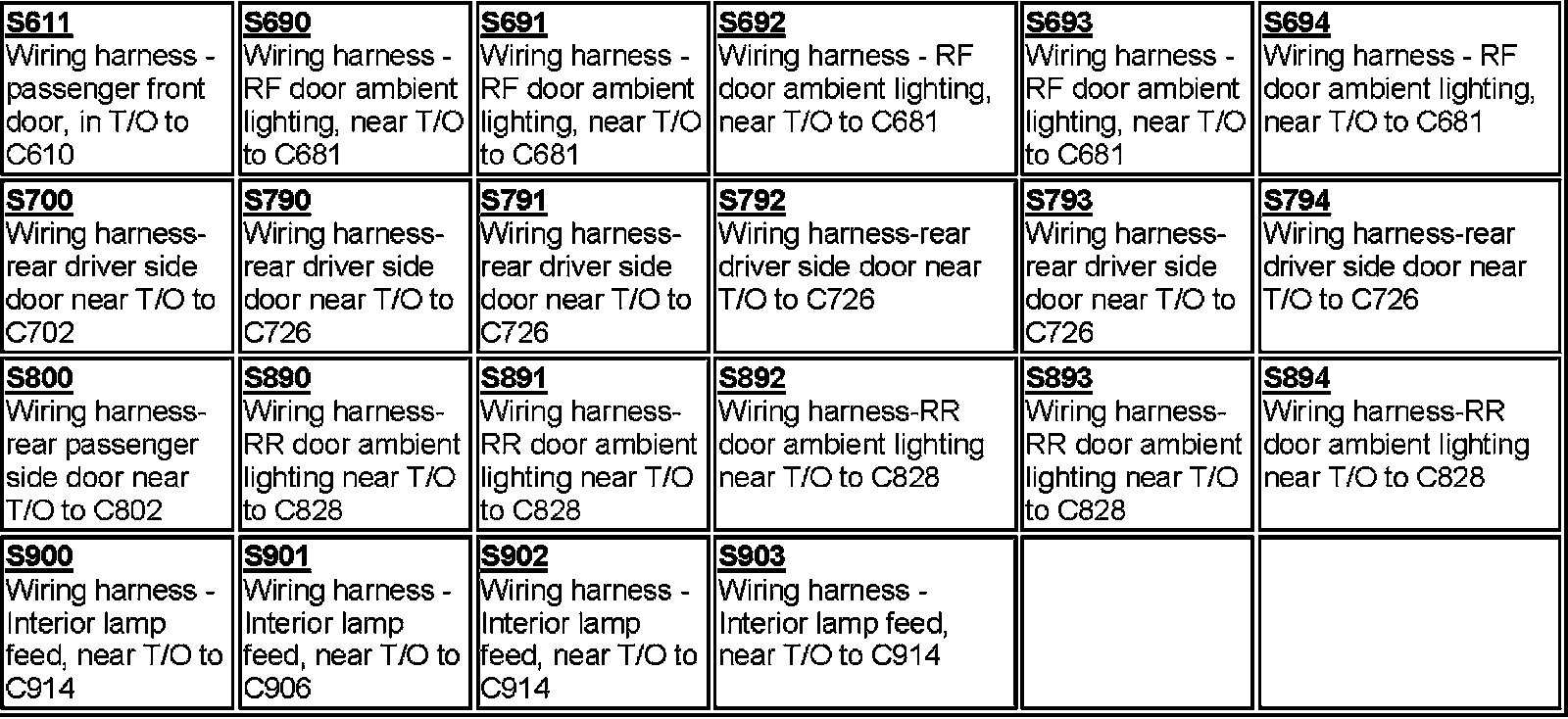

S611-S903:
