Home >> Ford >> 2012 >> Fusion AWD V6-3.0L Flex Fuel >> Repair and Diagnosis >> Diagrams >> Connectors

Connectors

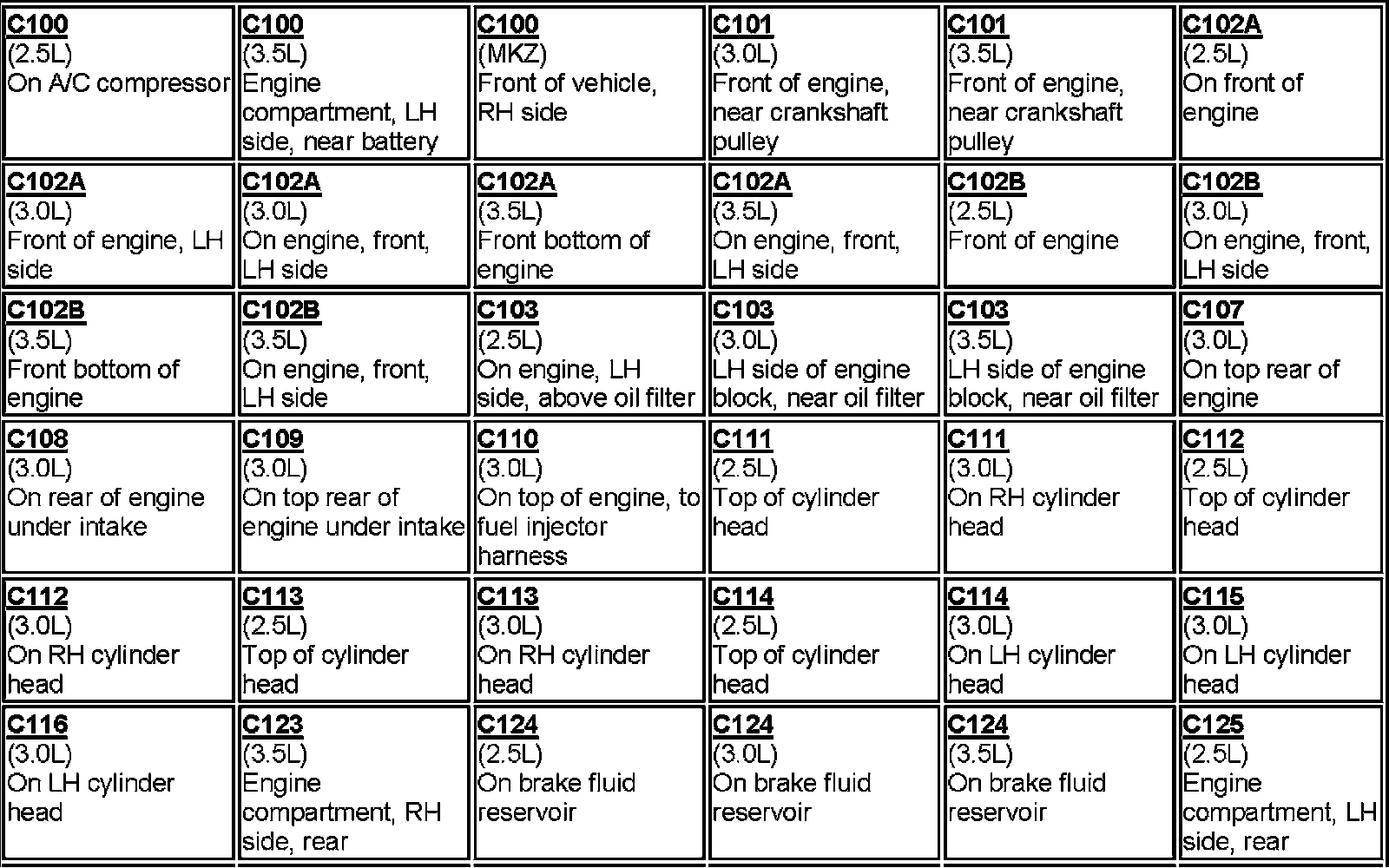

C100-C125:

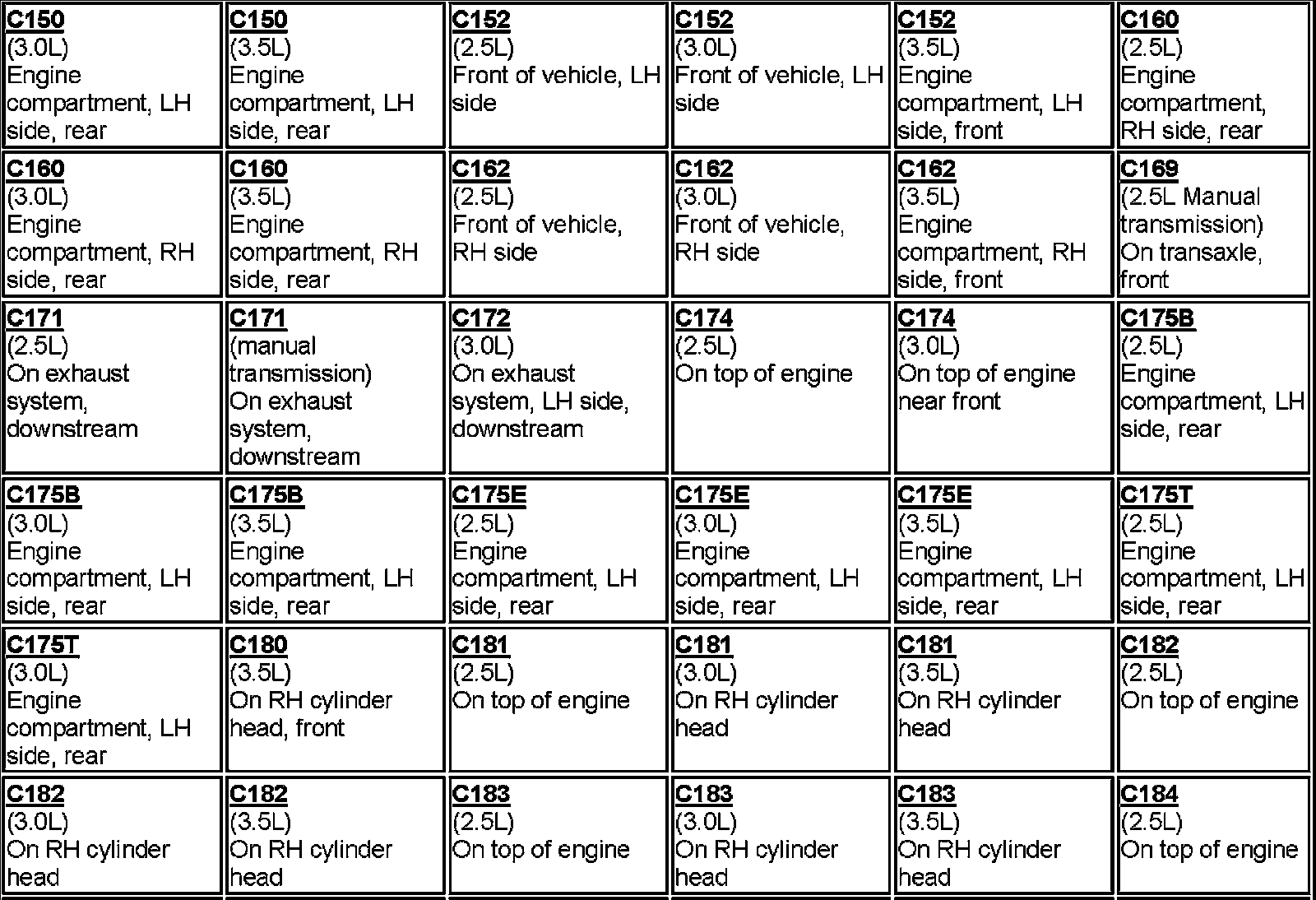

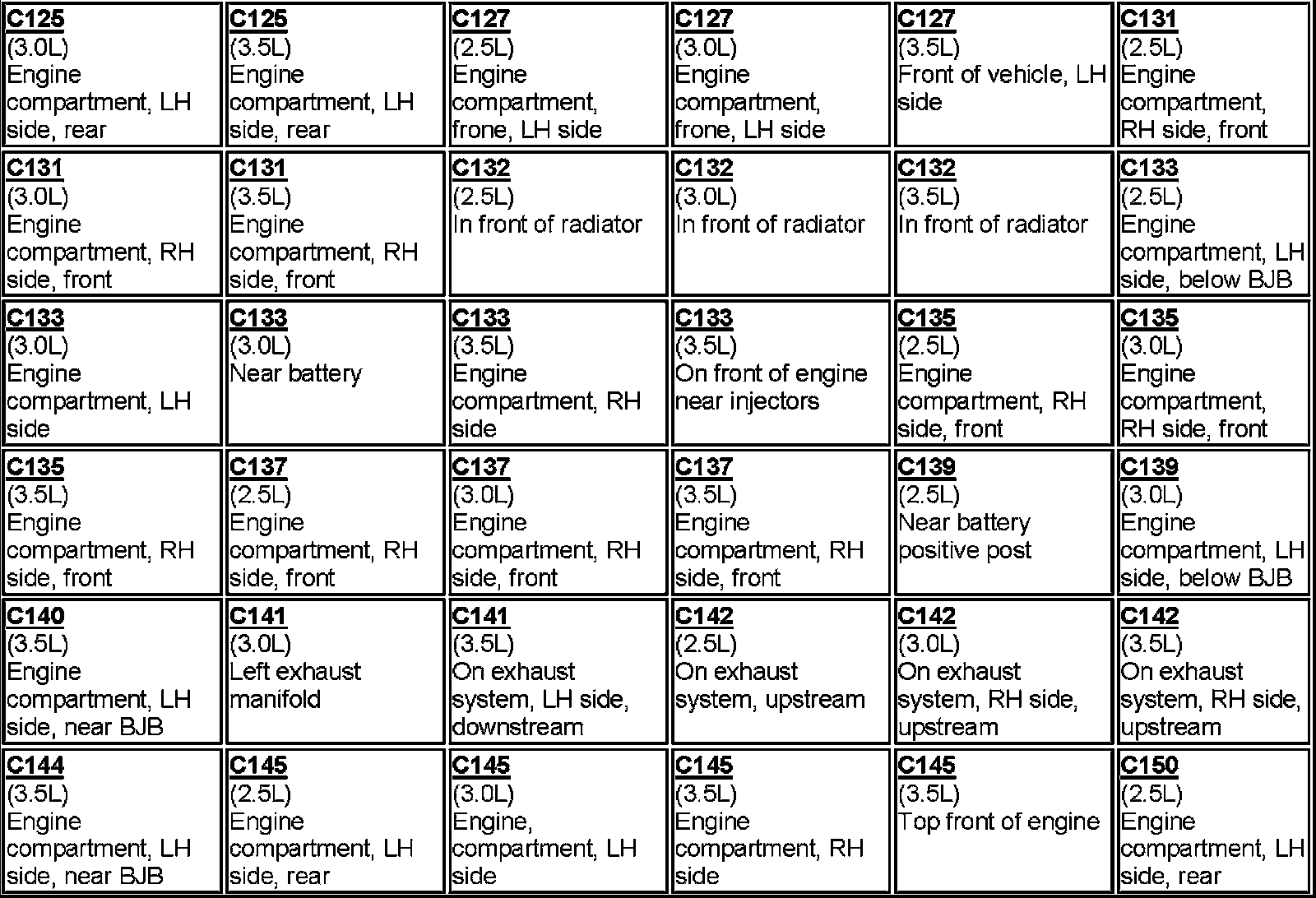

C125-C150:





C150-C184:

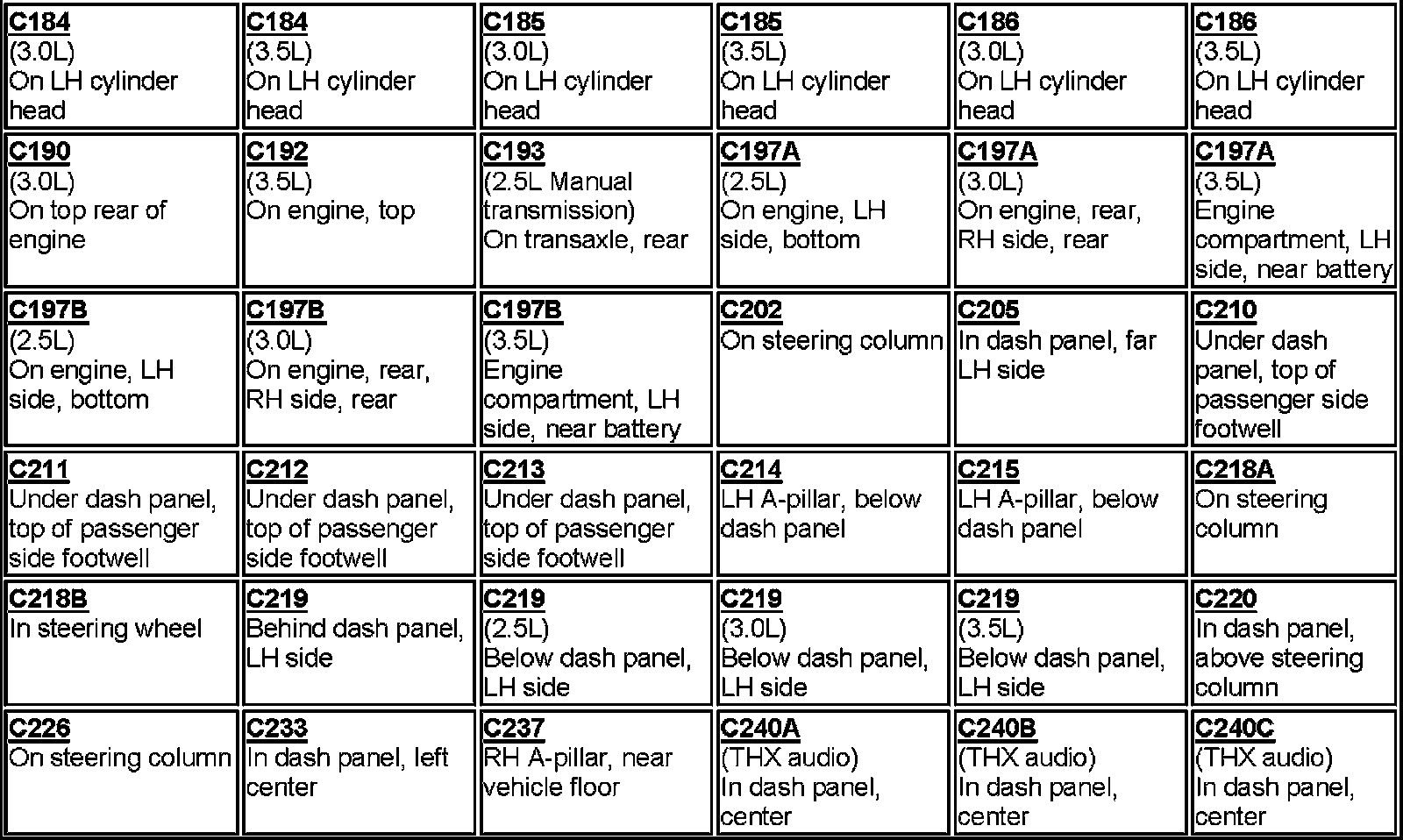

C184-C240C:

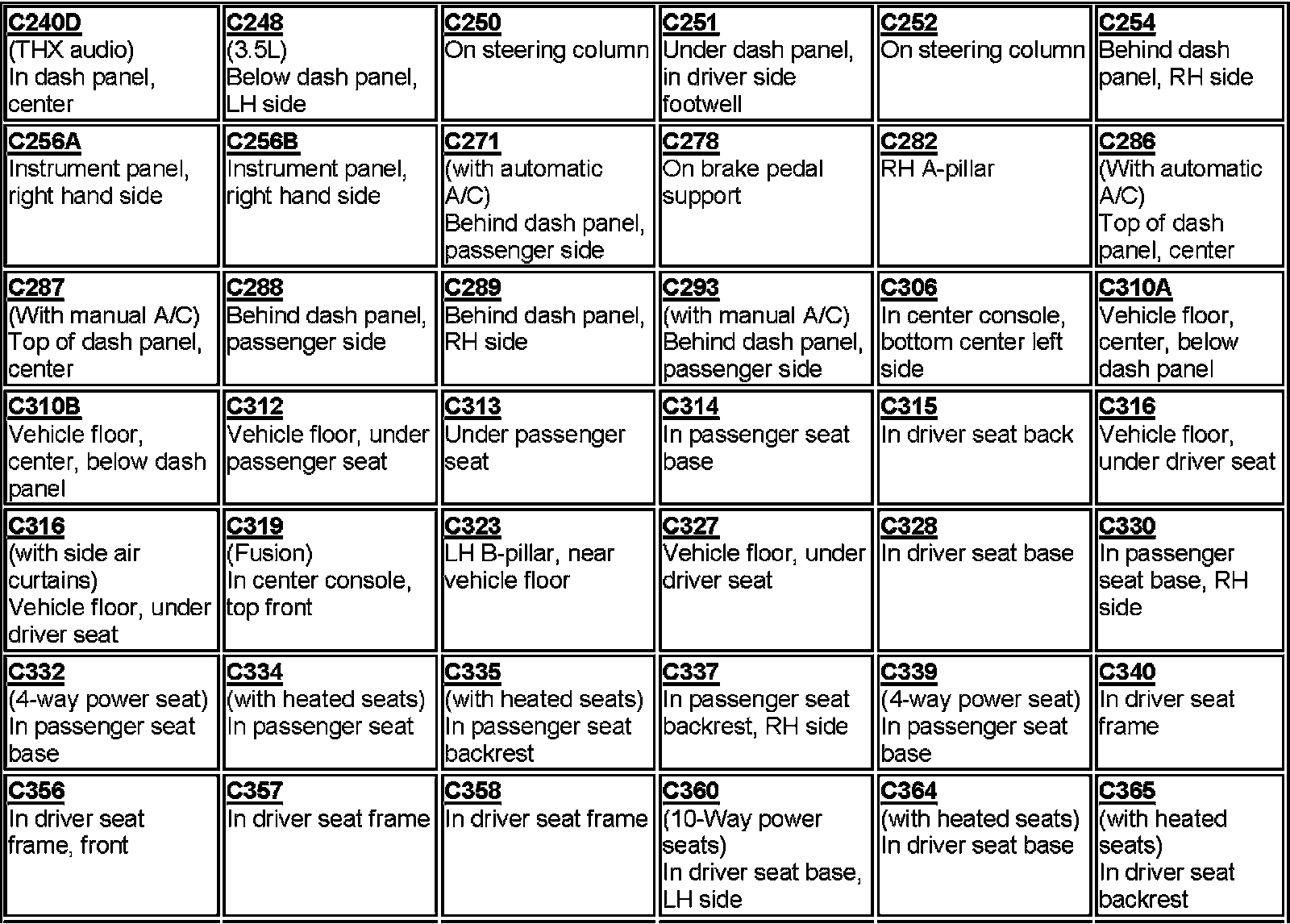

C240D-C365:





C367-C505:





C510-C819:





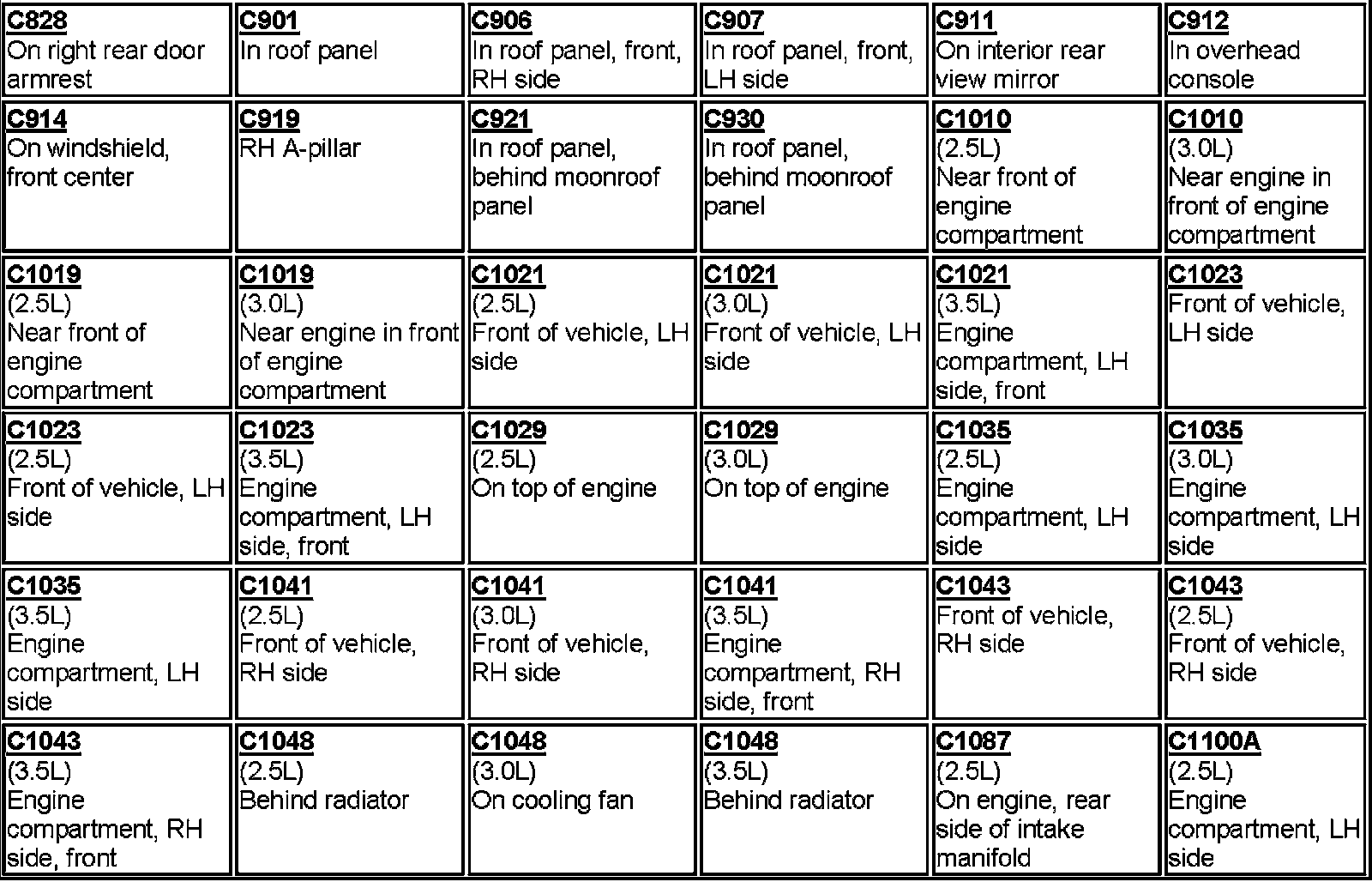

C828-C1100A:





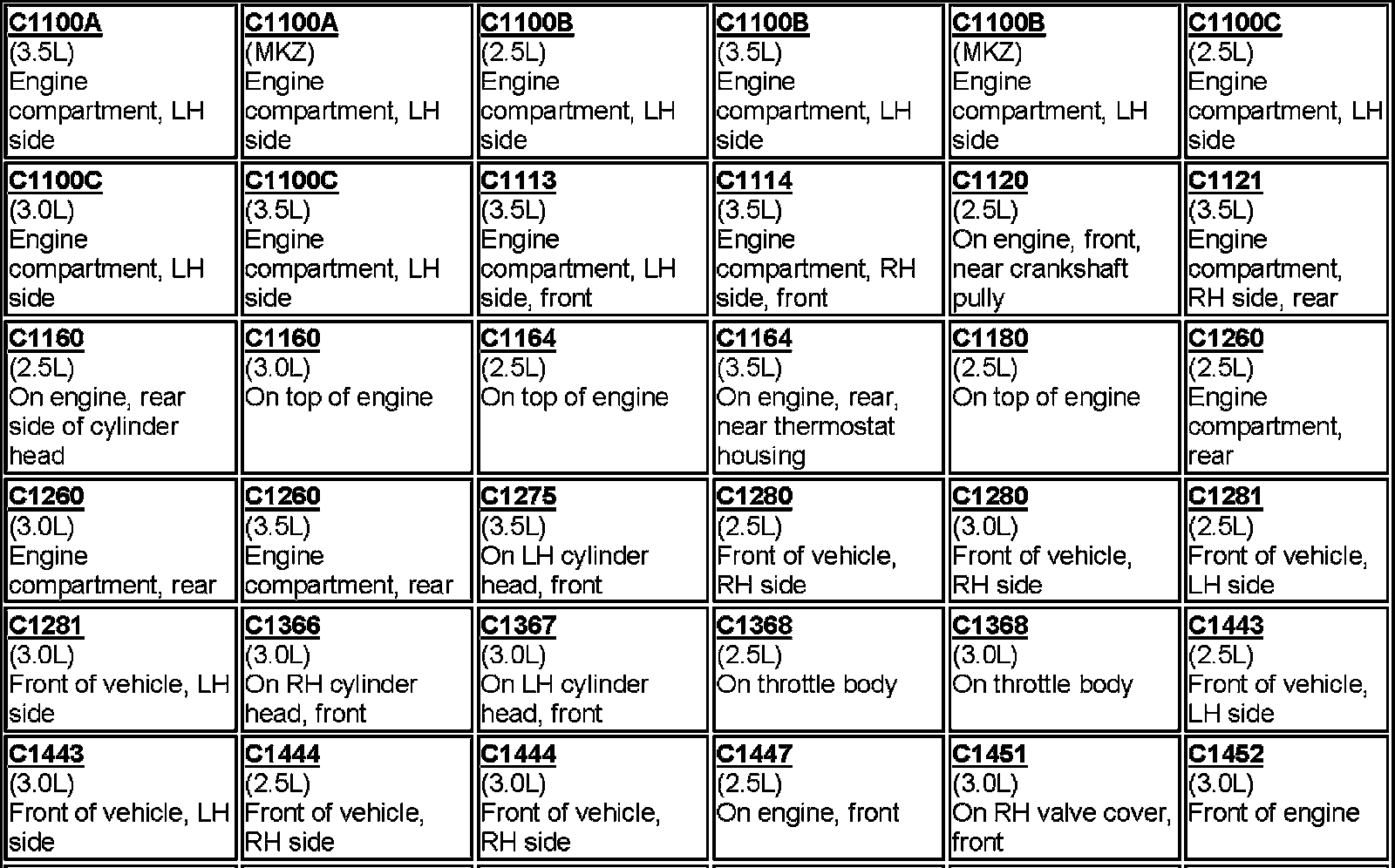

C1100A-C1452:

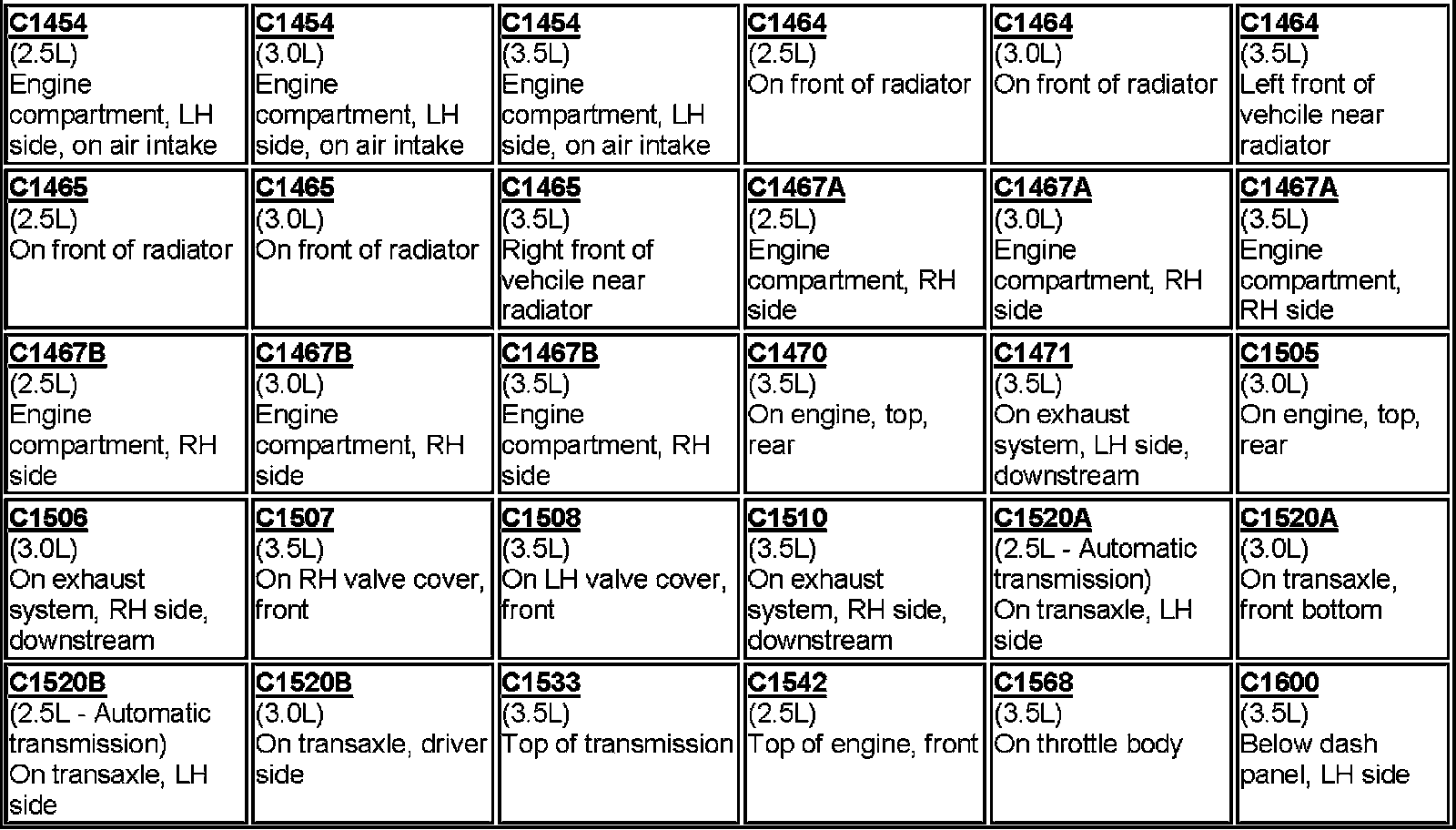

C1454-C1600:





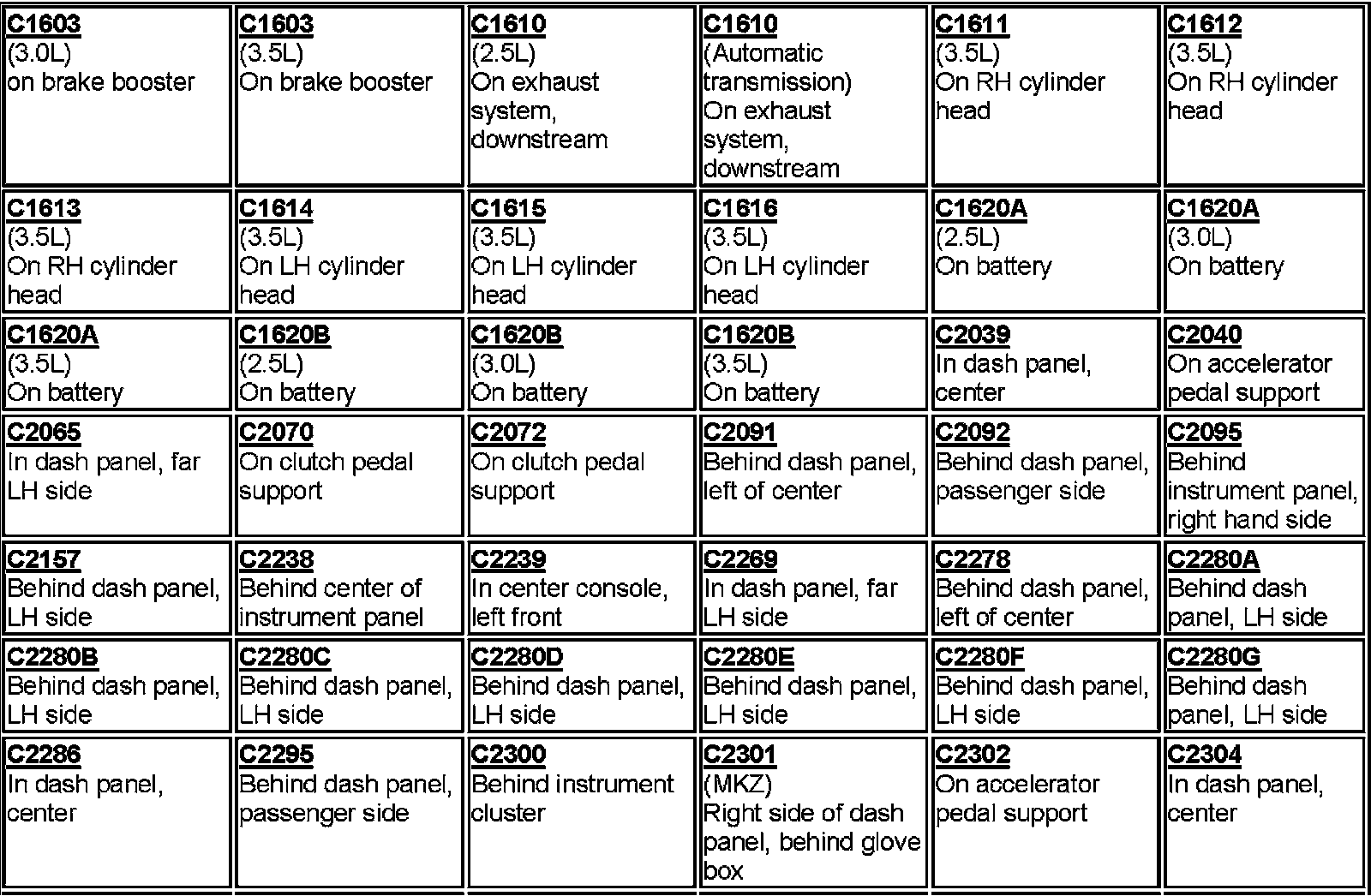

C1603-C2304:





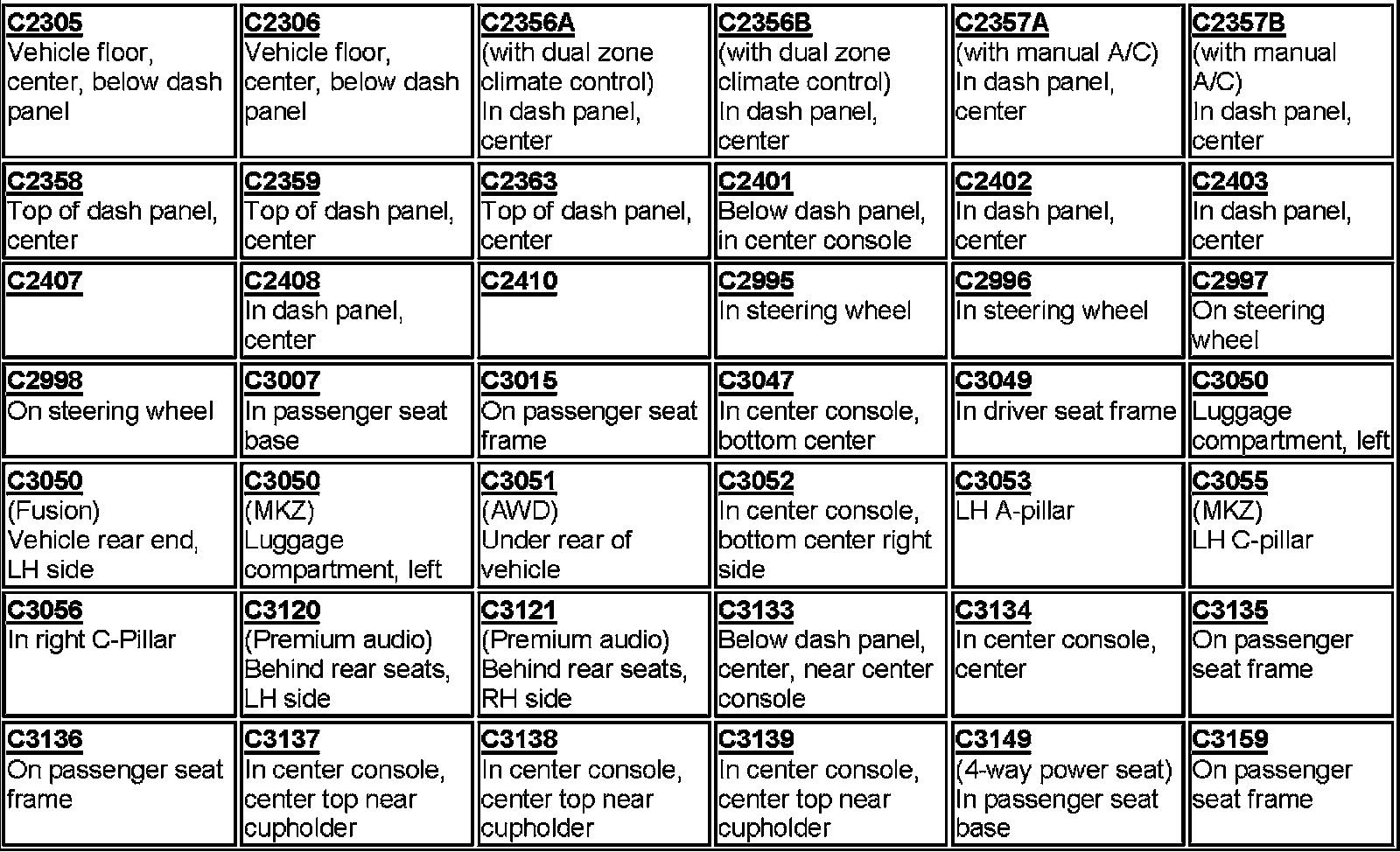

C2305-C3159:

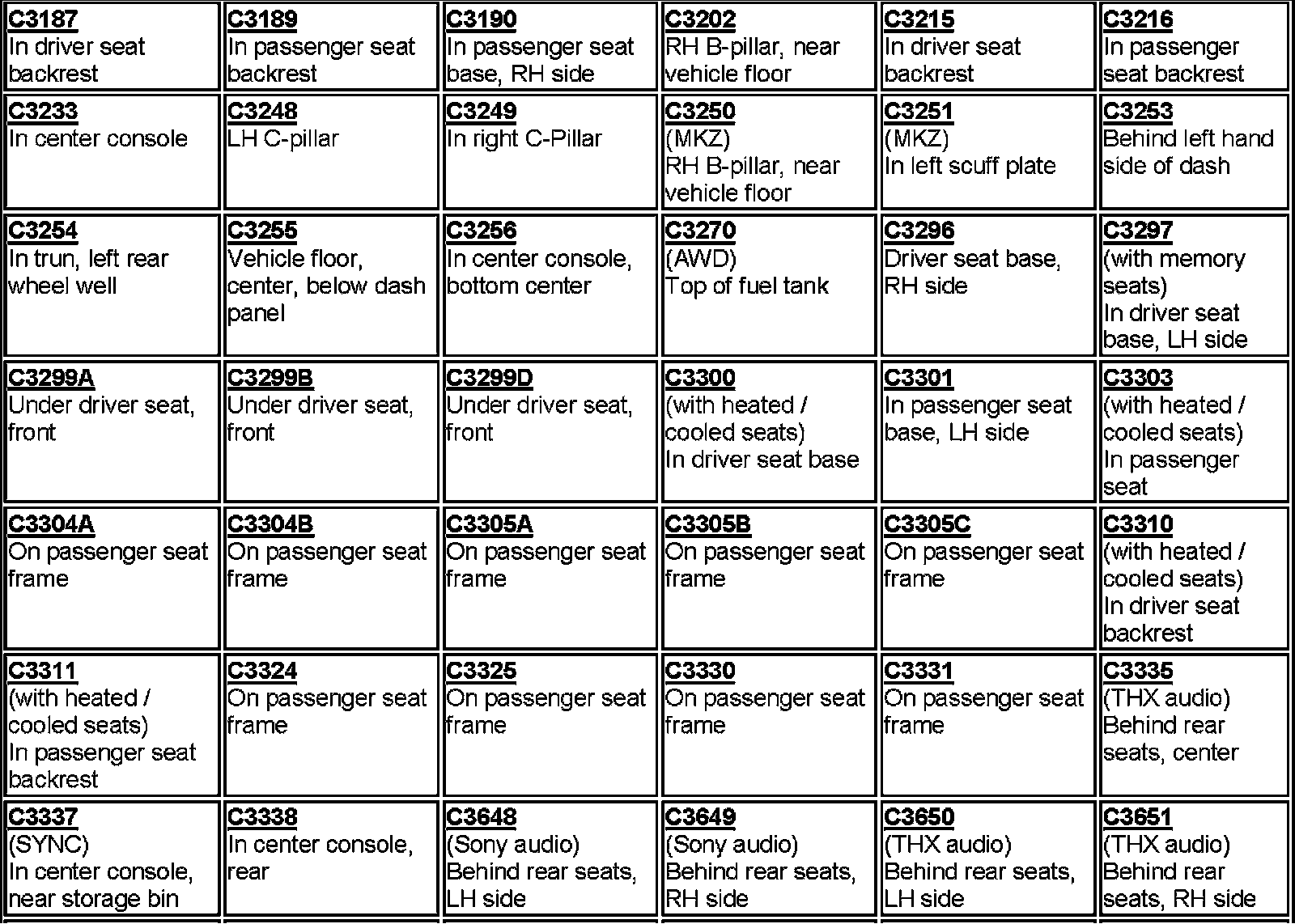

C3187-C3651:

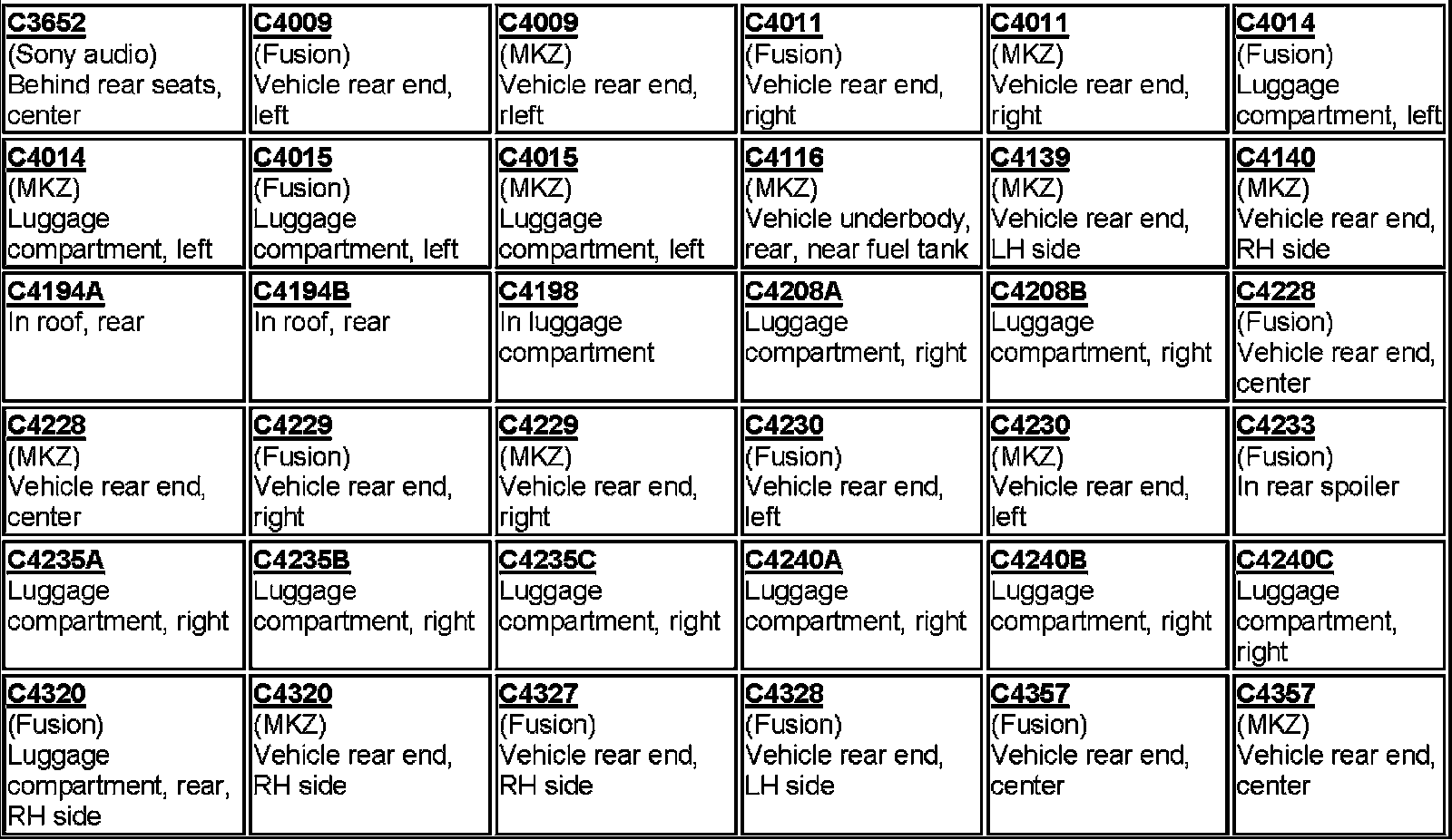

C3652-C4357:





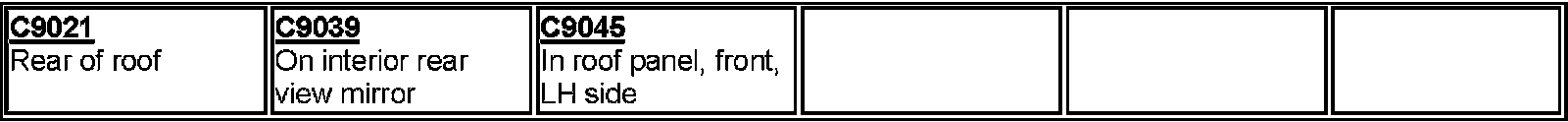

C9021-C9045:
