Home >> Ford >> 2012 >> Fusion AWD V6-3.0L Flex Fuel >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures




Anti-Lock Control - Non-Hybrid

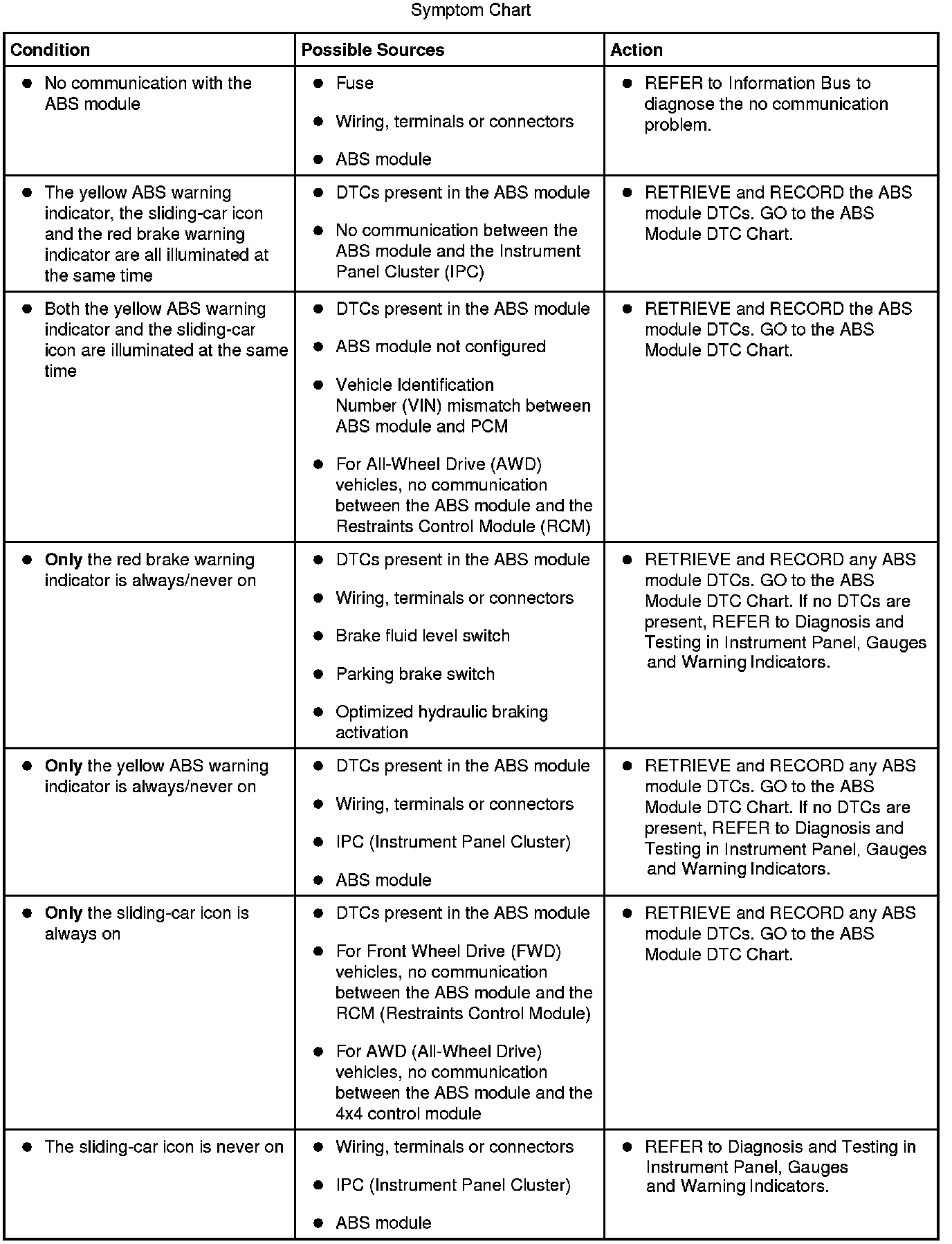

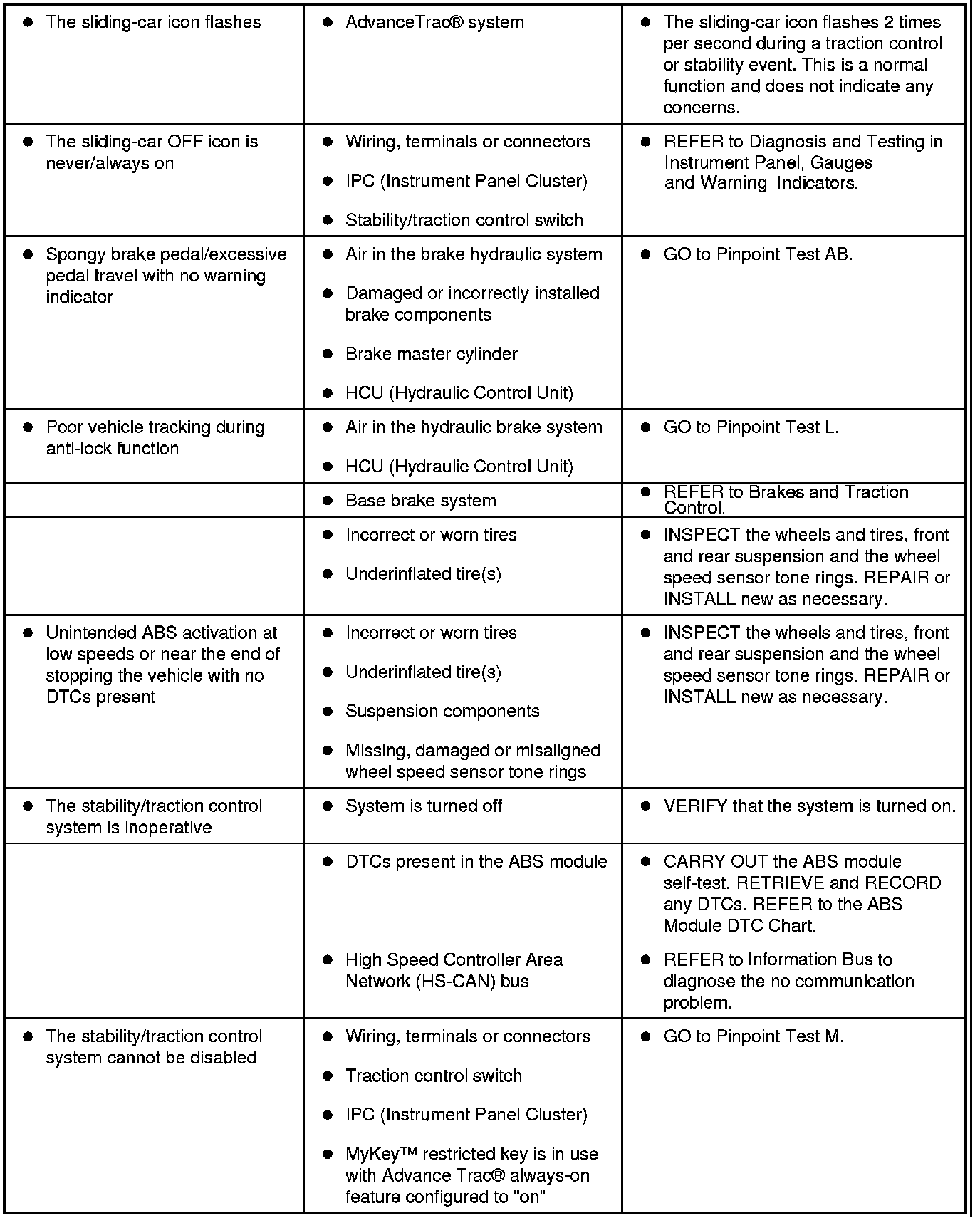

Symptom Chart
