Speaker - Instrument Panel

Speaker - Instrument Panel

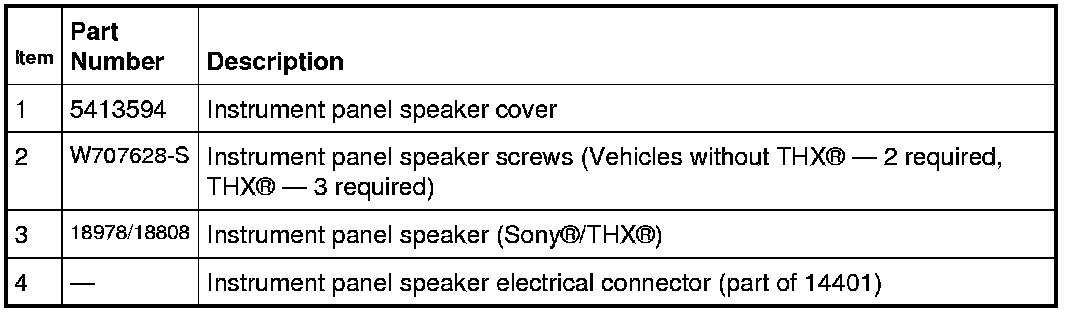

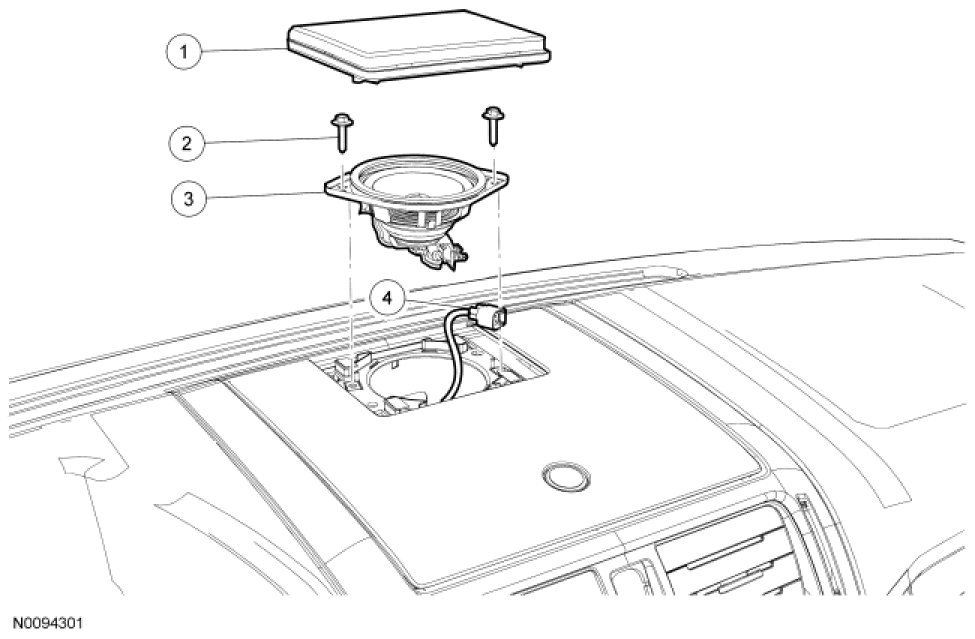

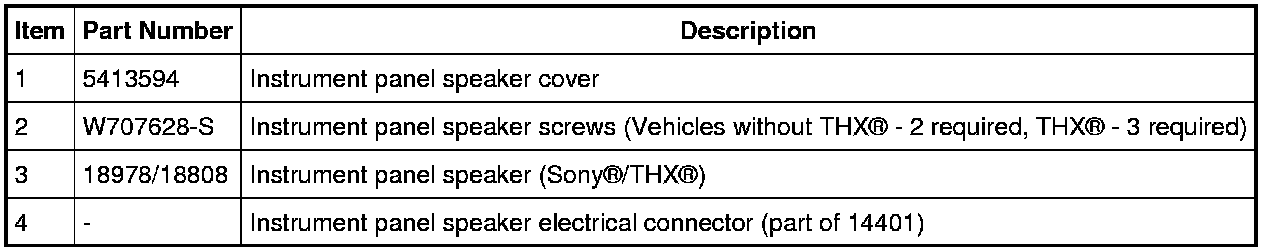

NOTE: Vehicle without THX(R) shown, vehicles with THX(R) similar.









Removal and Installation

1. NOTE: For THX(R) sound, pry the speaker cover at the front, then lift.
Using a suitable tool such as a trim removal tool, remove the instrument panel speaker cover.


2. Remove the screws (2 for vehicles without THX(R) sound, 3 for THX(R) sound) and the instrument panel speaker.
- Disconnect the electrical connector.


3. To install, reverse the removal procedure.
