Wiper Motor - Rear Window

Wiper Motor - Rear Window

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

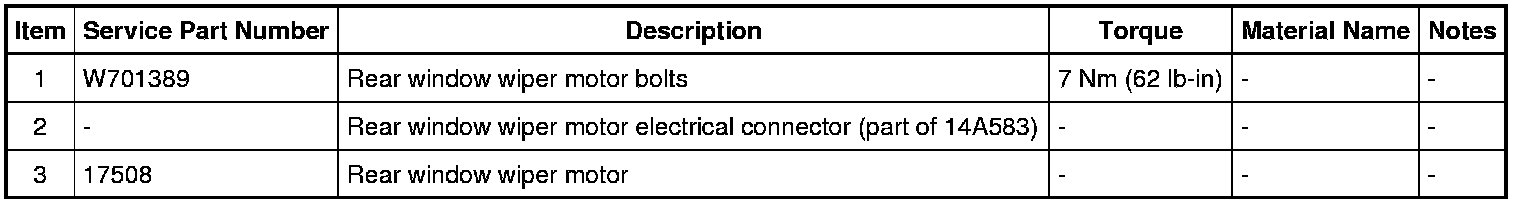

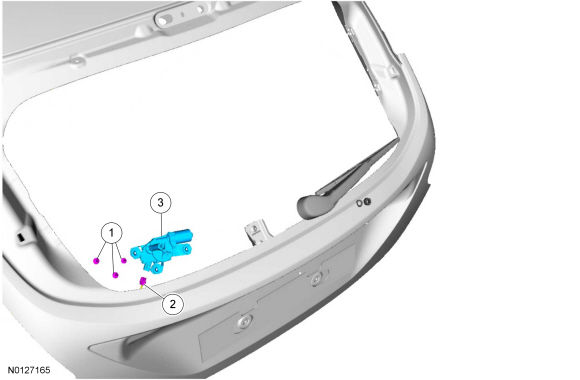

Exploded View










Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the rear wiper pivot arm. For additional information, REFER to Wiper Pivot Arm -Rear .

2. Remove the liftgate trim panel. For additional information, REFER to Liftgate Trim Panel .

3. Remove the rear window wiper motor.

1. Disconnect the rear window wiper motor electrical connector.

2. Remove the 3 rear window wiper motor bolts.


- 7 Nm (62 lb-in).





Installation

1. To install, reverse the removal procedure.
