Wiper Pivot Arm - Rear

Wiper Pivot Arm - Rear

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

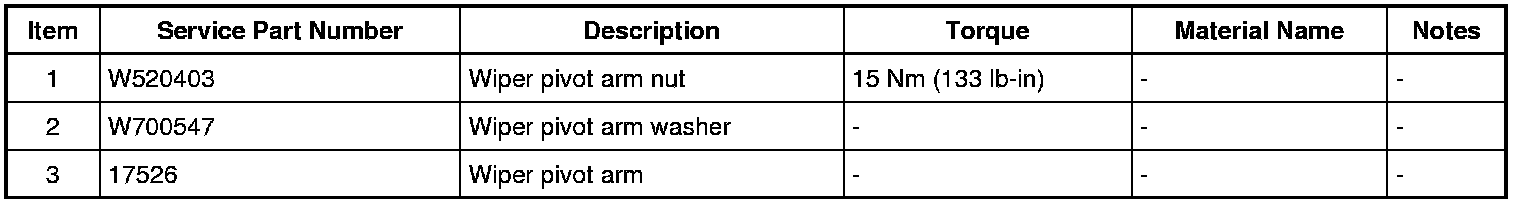

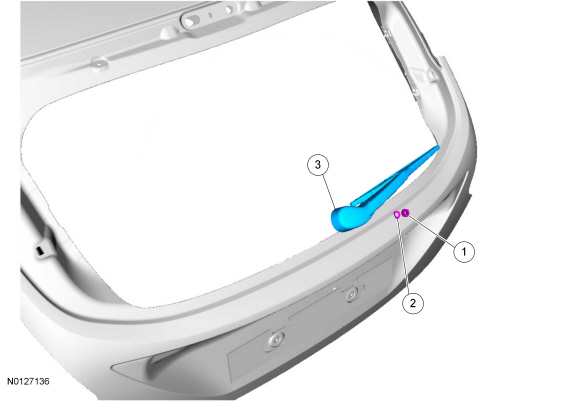

Exploded View










Removal

NOTE: Removal steps in this procedure may contain installation details.

1. NOTICE: Make sure that the rear wiper motor is in the park position.

Remove the rear wiper pivot arm.

1. Open the rear pivot arm nut cover.

2. Remove the rear wiper pivot arm nut and washer.
- 15 Nm (133 lb-in).

3. Using a 2-jaw puller, remove the rear wiper pivot arm






Installation

1. Cycle and park the rear window wiper.

2. Align the rear wiper blade to the first defroster line located on the rear window glass.





3. To install, reverse the removal procedure.
