Windshield Moulding / Trim: Service and Repair

Applique - Windshield

Door Glass Top Run - Front

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

Removal

NOTE: Removal steps in this procedure may contain installation details.

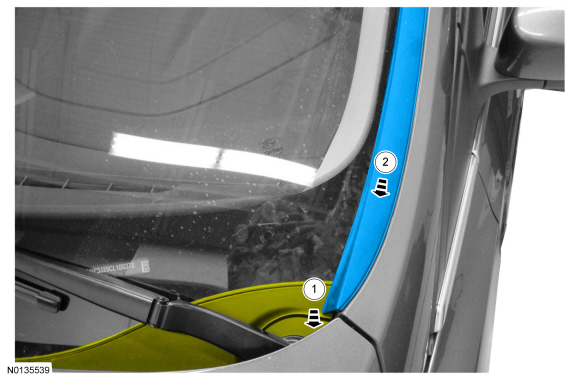

1. Remove the windshield applique.

1. Push down on the corner of the cowl panel grille at the base of the windshield applique.

2. NOTICE: Make sure the windshield applique clips are fully dis-engaged prior to removing the applique or damage to the component and bracket can occur.

Slide the windshield applique downward approximately an inch past the fender edge to dis-engage the windshield applique clips and remove the windshield applique.






Installation

1. To install, reverse the removal procedure.
