without Door Modules (without Window One-touch Up)

Symptom Chart(s)

Symptom Chart: Glass, Frames and Mechanisms

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Diagnostic Methods for information about these practices.

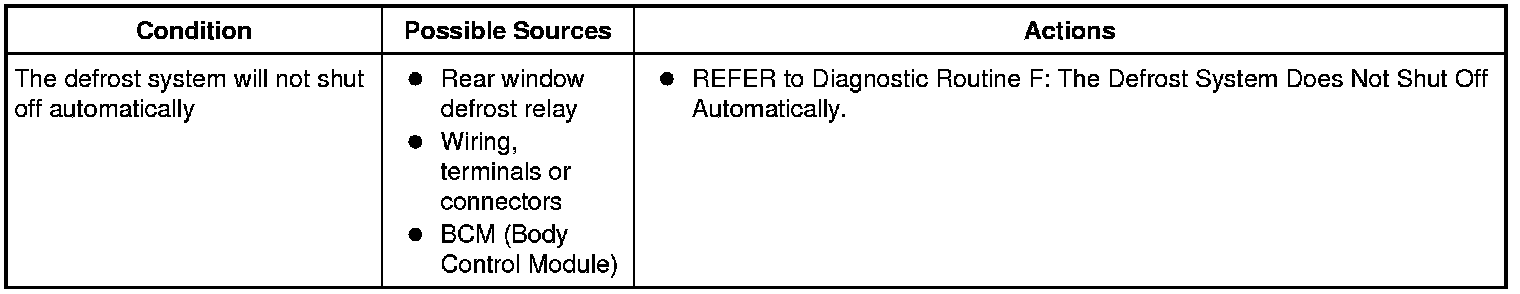

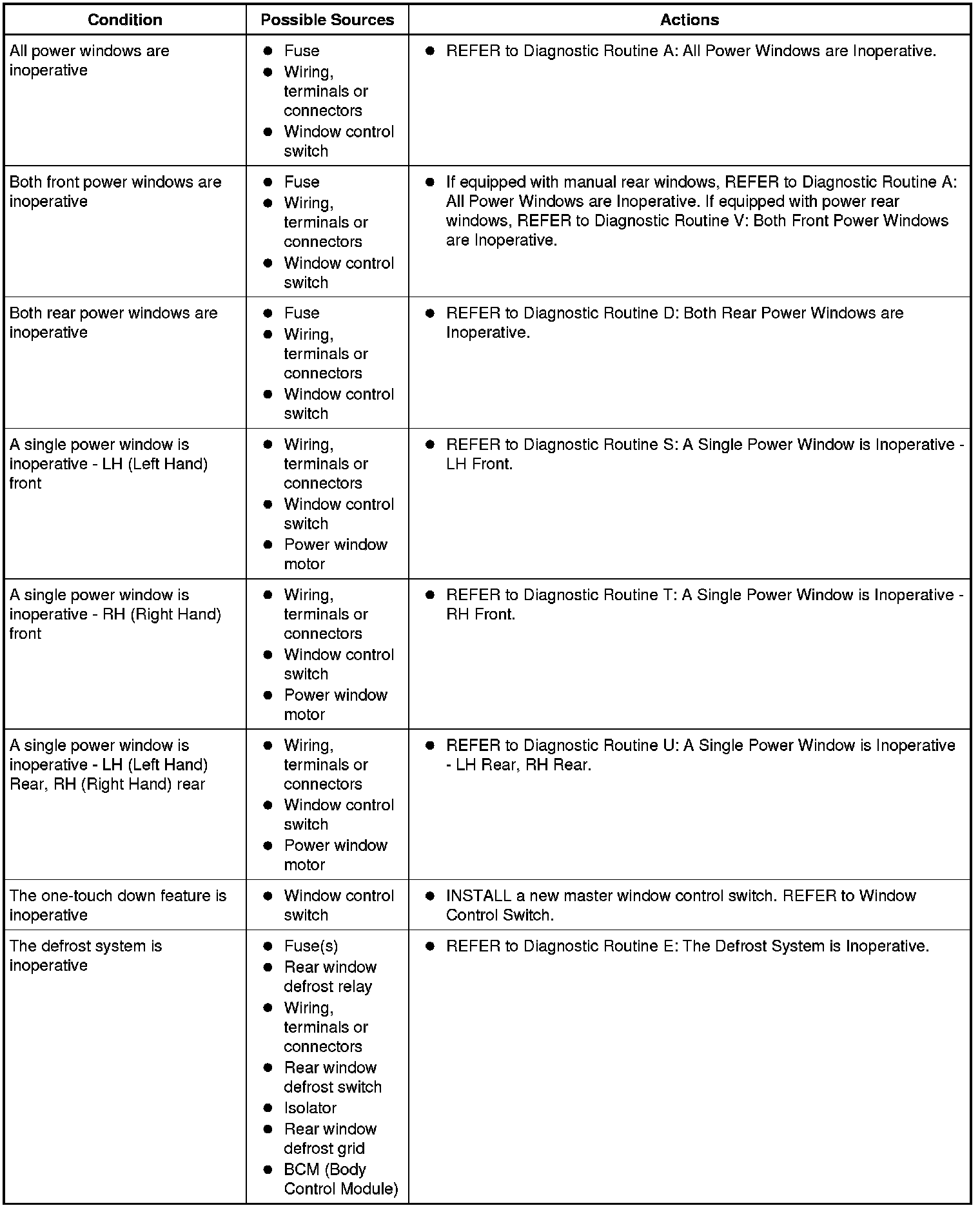

Symptom Chart
