Diagnostic Routine V

Diagnostic Routine V

Diagnostic Overview

The One-Touch Up Feature is Inoperative

Refer to Wiring Diagram Set 100 for schematic and connector information Electrical Diagrams.

Normal Operation and Fault Conditions

REFER to Passenger Window Control Switch - Front or REFER to Power Window Operation - Rear .

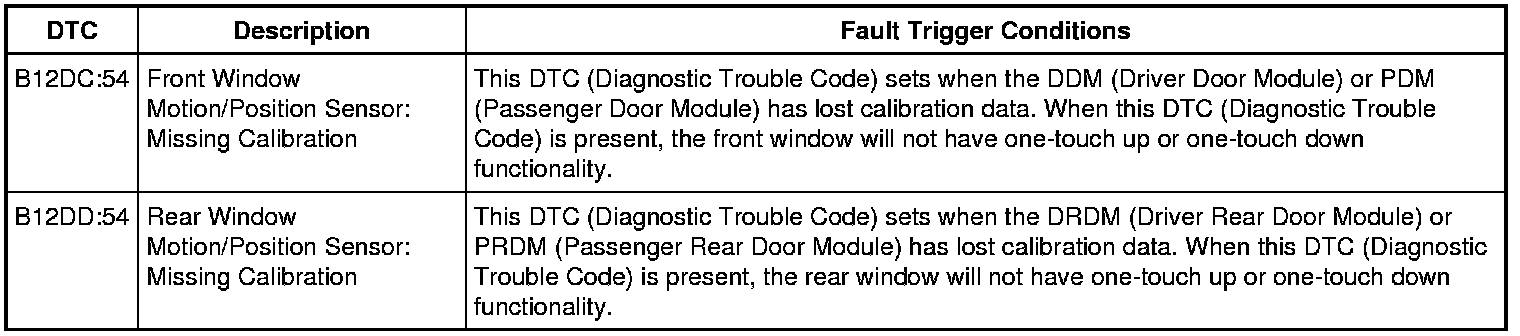

DTC Fault Trigger Conditions






Pinpoint Test

1. INITIALIZE THE SUSPECT POWER WINDOW

1. Carry out the initialization procedure on the suspect power window. REFER to Window Motor Initialization Testing and Inspection.

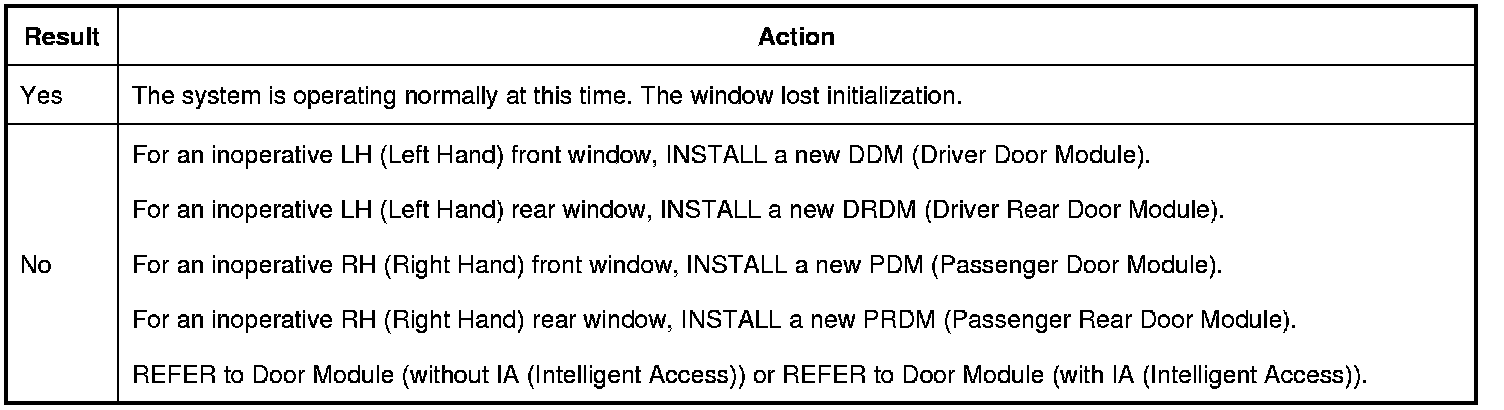

Is the one-touch up/down feature operating correctly?
