Transmission Support Insulator

Transmission Support Insulator

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

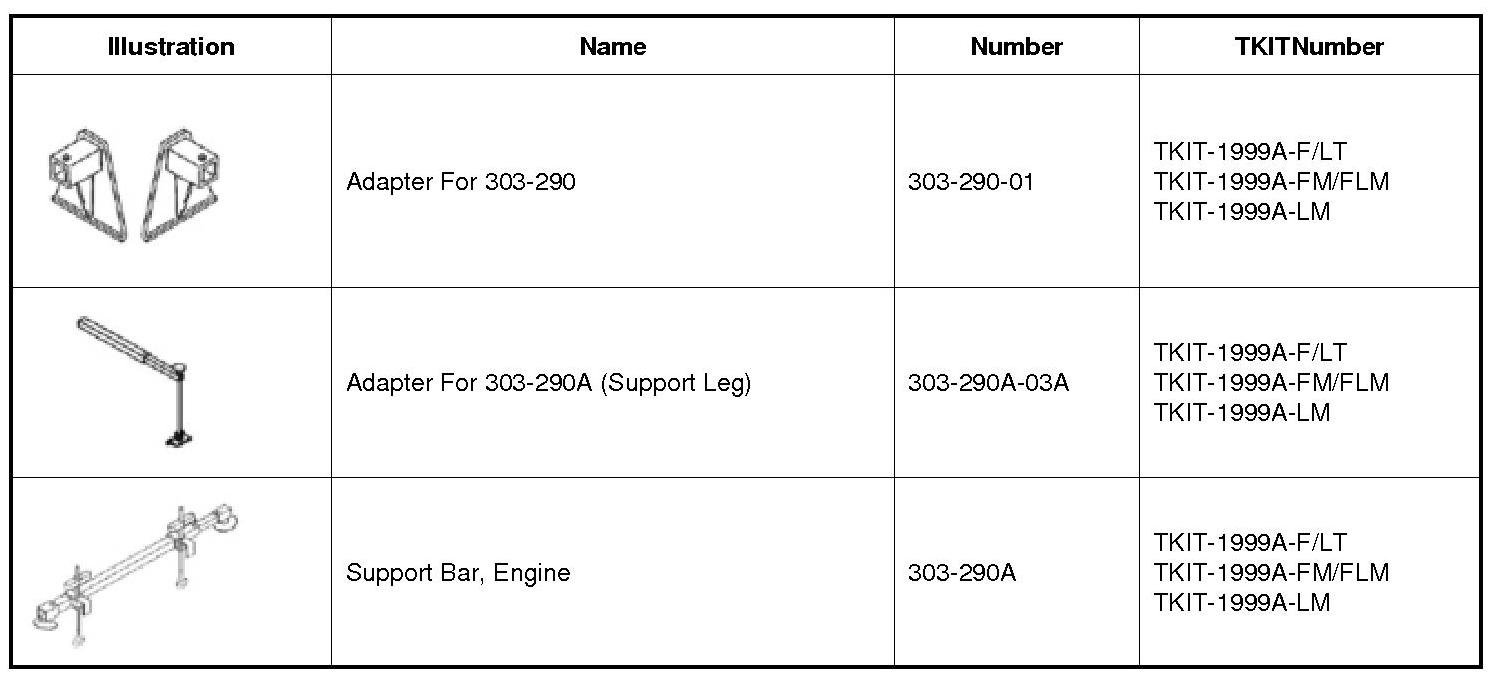

Special Tool(s)

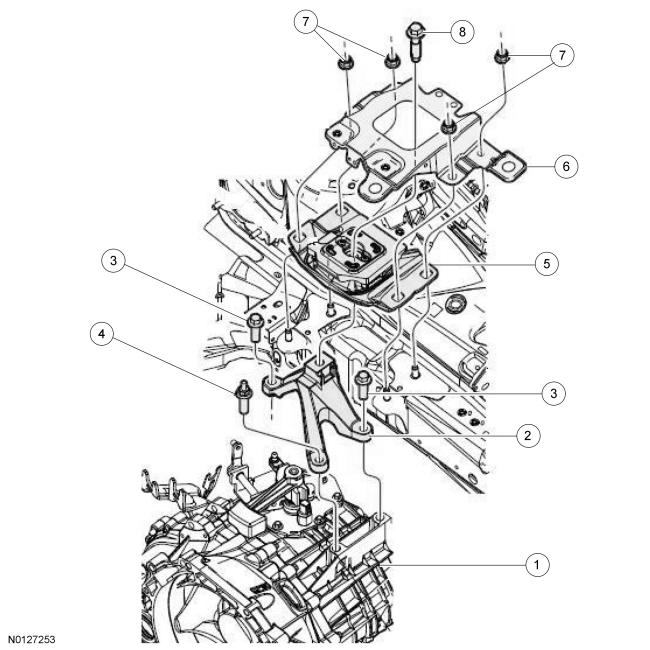

Exploded View










Removal

1. With the vehicle in NEUTRAL, position it on a hoist. REFER to Lifting Points .

2. Remove the battery and battery tray. REFER to Battery and Battery Tray - Exploded View .

3. Remove the ACL (Air Cleaner) assembly and the outlet pipe. REFER to Exploded View .

4. Detach the wiring harness from the battery tray bracket.





5. Install 303-290-01 , 303-290A and 303-290A-03A.





6. Remove the 4 transmssion support insulator nuts, the transmission support insulator bolt and remove the transmission support insulator.





Installation

1. Install the transmission support insulator, the 4 transmssion support insulator nuts, and the transmission support insulator bolt.
- Tighten the transmission support insulator nuts to 50 Nm (37 lb-ft).
- Tighten the transmission support insulator bolt to 150 Nm (111 lb-ft)





2. Attach the wiring harness to the battery tray bracket.





3. Install the ACL (Air Cleaner) assembly and the outlet pipe. REFER to Exploded View .

4. Install the the battery tray and battery. REFER to Battery and Battery Tray - Exploded View .
