Shift Cable: Service and Repair




Gearshift Cables

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

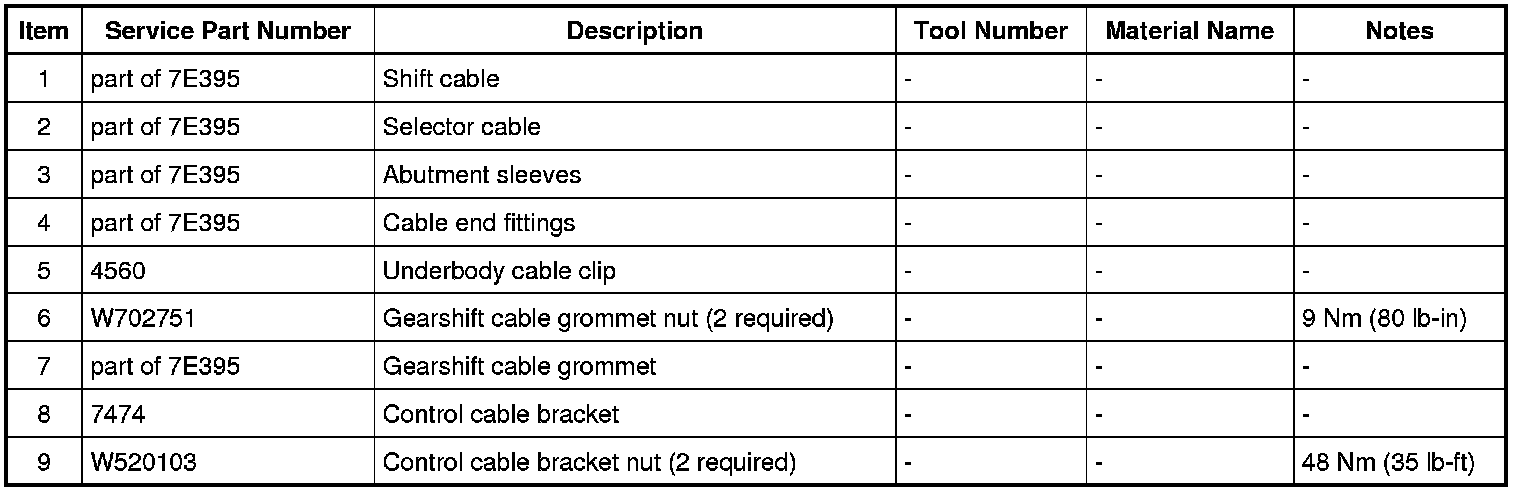

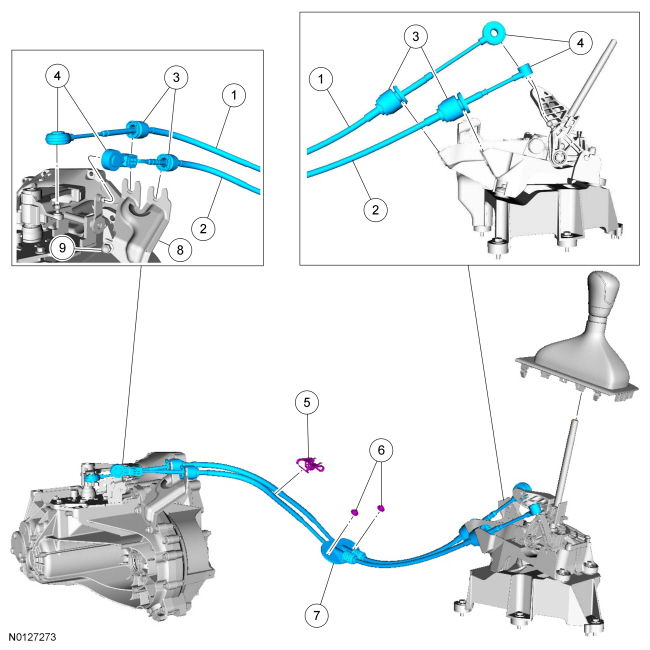

Exploded View

Gearshift Cables
