Diagnostic Routine C

Diagnostic Routine C

Pinpoint Test

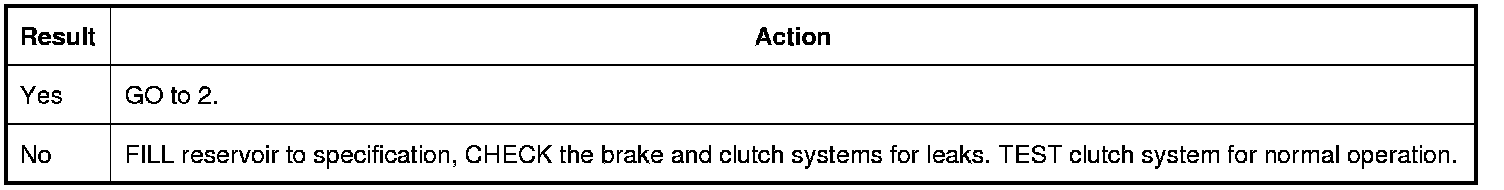

1. CHECK CLUTCH FLUID LEVEL

1. Check clutch fluid level.

Is the clutch fluid level between the MAX and MIN marks on the brake fluid reservoir?

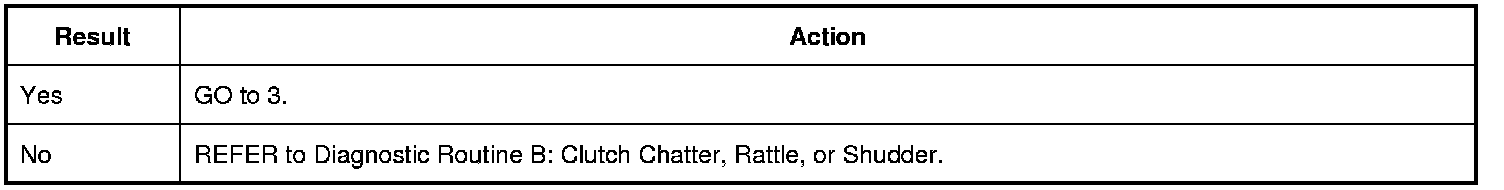

2. TEST CLUTCH PEDAL FREE TRAVEL

1. Manually operate the clutch pedal to the point of resistance and release.

2. Measure pedal travel.

Is the measured dimension within 10 mm (0.3937 in)?

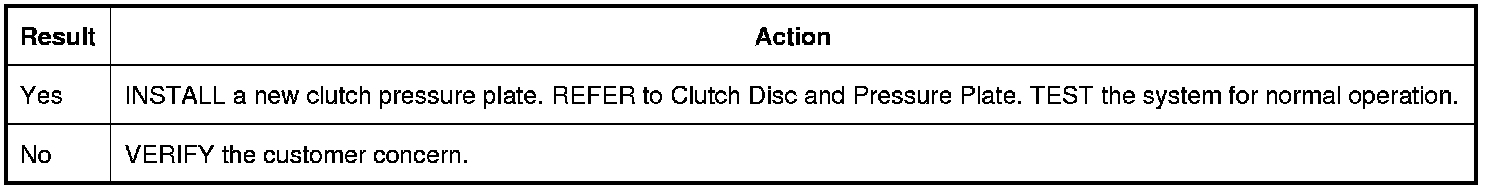

3. CHECK THE BELLEVILLE SPRING WASHER OF THE CLUTCH PRESSURE PLATE

1. Remove transaxle. REFER to Transmission - FWD .

Does the clutch pressure plate or the Belleville spring washer of the clutch pressure plate show signs of wear or damage?
