Transmission Vent

Transmission Vent

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

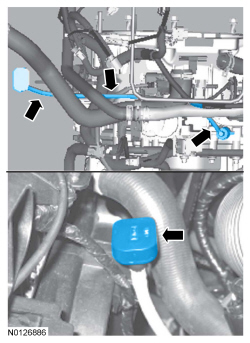

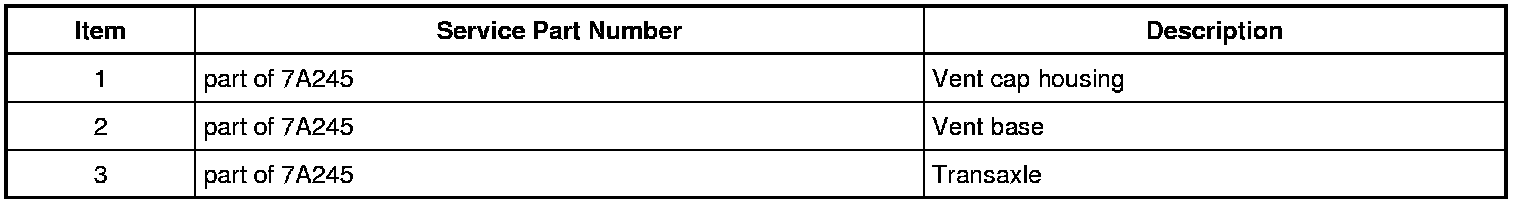

Exploded View










Removal

1. Remove the battery and battery tray. REFER to Battery and Battery Tray - Exploded View .

2. Remove the ACL (Air Cleaner) assembly and the outlet pipe. REFER to Exploded View .

3. Remove the vent assembly end from the cooling fan housing and position it aside.





4. Remove the vent assembly from the transaxle.





Installation

1. Inspect the vent transaxle bore for damage or debris. Clean or repair as needed.

2. Install the vent assembly in the transaxle bore.





3. NOTICE: Make sure the transaxle vent hose is properly routed or damage can occur.

Route the vent assembly and install the vent cap onto the cooling fan housing.





4. Install the ACL (Air Cleaner) assembly and outlet pipe. REFER to Exploded View .

5. Install the battery tray and battery. REFER to Battery and Battery Tray - Exploded View .
