Transmission Case

Transmission Case

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

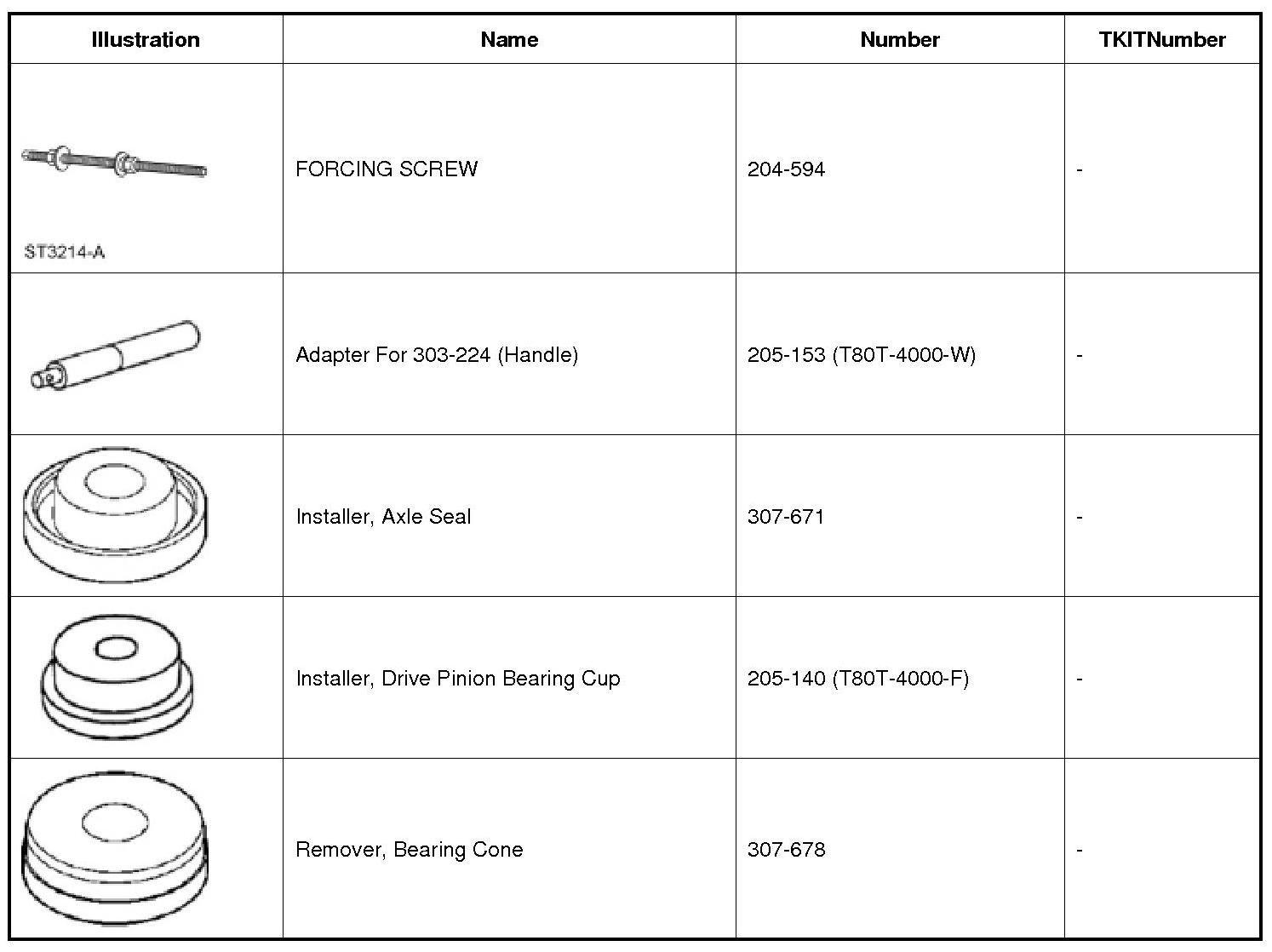

Special Tool(s)






Disassembly

1. Remove and discard the halfshaft seal.

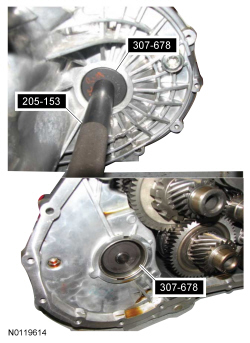

2. Using 205-153 (T80T-4000-W) and 307-678 , remove the differential gear case bearing cup.





Assembly

1. NOTE: NOTE: If new differential bearings, differential, clutch housing or transmission case are installed, measure the differential shim for the correct size. REFER to Differential Shim Selection .

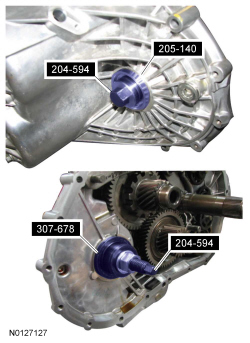

Using 204-594 , 205-140 (T80T-4000-F) and 307-678 , install the differential gear case bearing cup.





2. Install the halfshaft seal on 307-671 and 205-153 (T80T-4000-W).





3. Using 307-671 and 205-153 (T80T-4000-W) , install the new halfshaft seal.
