Outer Input Shaft Case Seal

Outer Input Shaft Case Seal

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

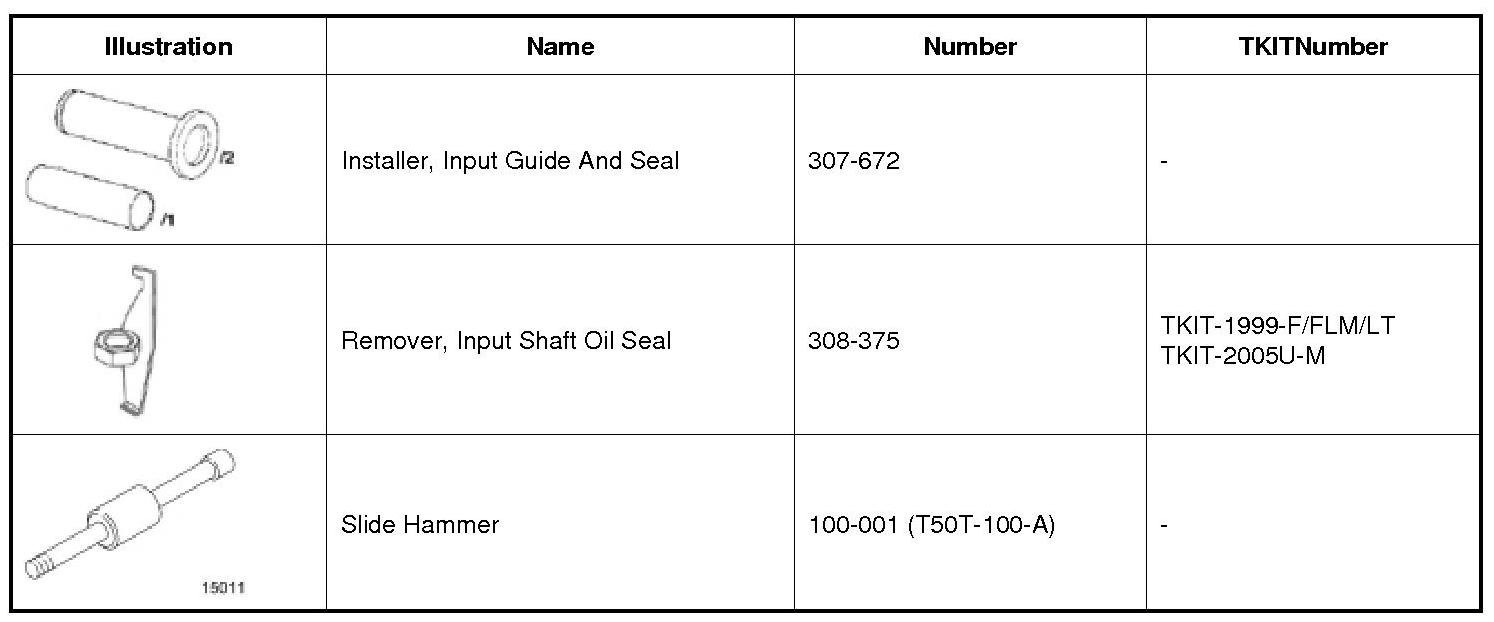

Special Tool(s)






Removal

1. Remove the clutch engagement system. REFER to Clutch Engagement System .

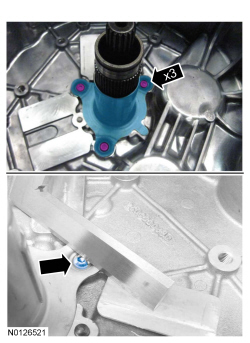

2. Remove the guide tube bolts.





3. Remove the guide tube.





4. Using 100-001 (T50T-100-A) and 308-375 , remove and discard the input shaft case seal.





Installation

1. Using 307-672 /1 and 307-672 /2, install a new input shaft case seal.





2. Inspect the guide tube for wear or damage. Replace as necessary.

3. Using the locating flange on the guide tube, install the guide tube.





4. NOTE: The guide tube bolts must not project beyond the mounting surface of the clutch engagement levers.

Install the 3 guide tube bolts.






- Tighten to 8 Nm (71 lb-in).

5. Install the clutch engagement system. REFER to Clutch Engagement System .
