Manual Control Lever Shaft Seal

Manual Control Lever Shaft Seal

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

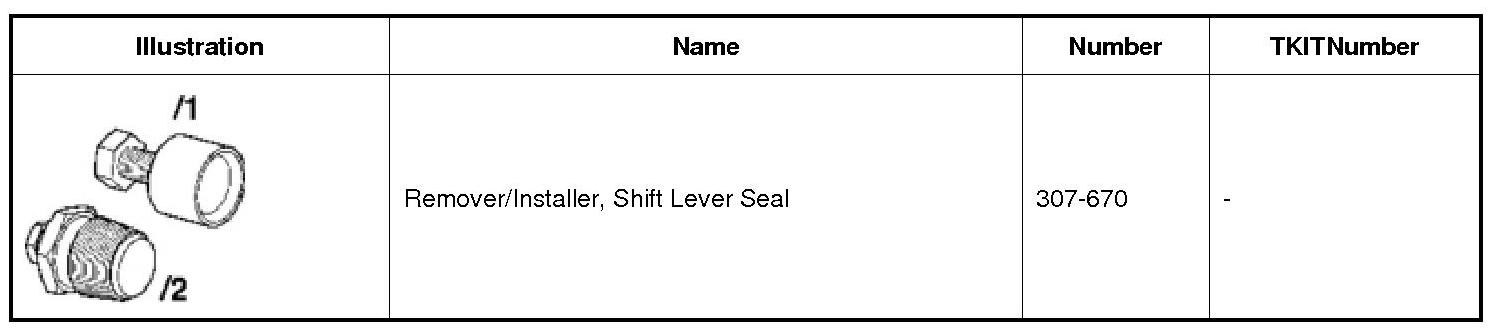

Special Tool(s)






Removal

1. Remove the transmission. REFER to Transmission .

2. Remove and discard the manual control lever bolt and remove the manual control lever.





3. Install 307-670 /1.





4. NOTE: Use care to prevent clutch housing cup plug from being dislodged.

Using 307-670 /2, apply slight pressure to 307-670 /2, remove and discard the manual control lever seal.





5. Inspect the transmission case bore for debris or damage. Clean and/or repair as needed.

Installation

1. Using 307-670 /1, install the new manual control lever shaft seal.





2. Install the manual control lever and the new manual control lever bolt.






3. Install the transmission. For additional information, REFER to Transmission .
