Inner Input Shaft Seal

Inner Input Shaft Seal

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

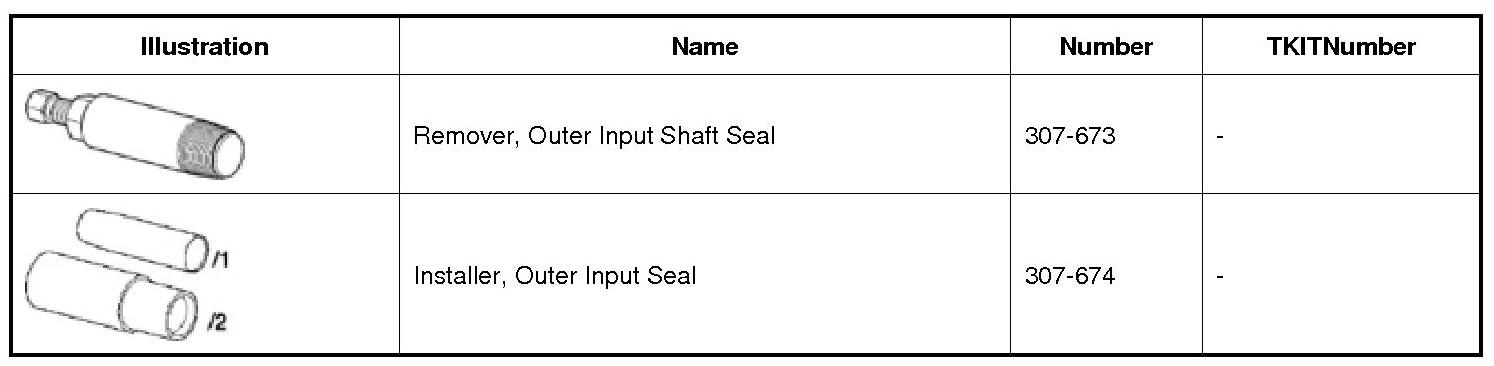

Special Tool(s)






Removal

1. Remove the clutch. REFER to Clutch .

2. NOTICE: Verify all of the old seal material is removed or transmission fluid leakage can occur and damage can occur to the clutch.

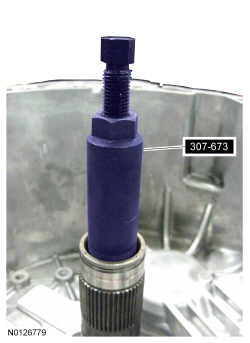

Using 307-673 apply pressure while turning clockwise and remove and discard the inner input shaft seal.





Installation

1. Using 307-674 /1 and 307-674 /2, install the new inner input shaft seal.





2. Install the clutch. REFER to Clutch .
