Home >> Ford >> 2012 >> Focus L4-2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications >> Suspension System - General Information

Suspension System - General Information

Suspension System - General Information

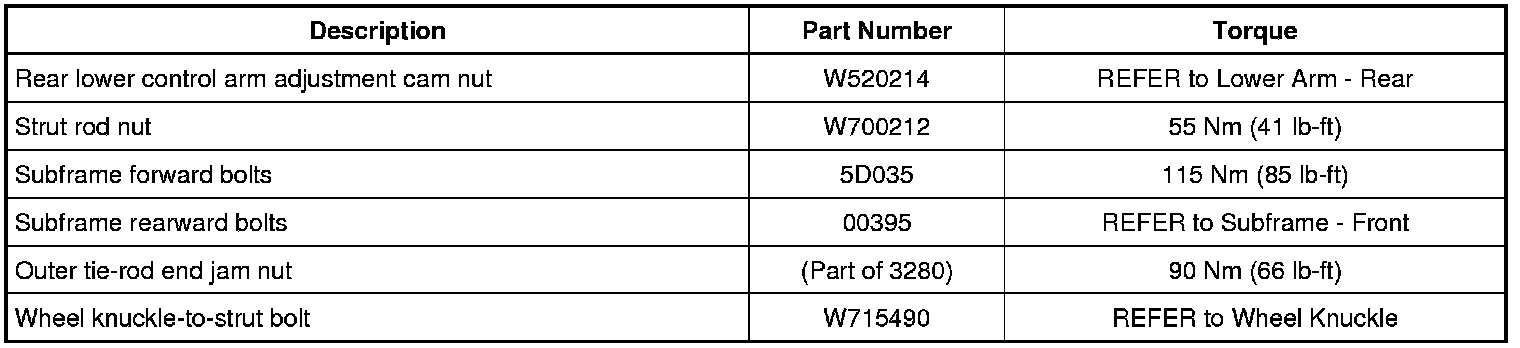

Torque Specifications

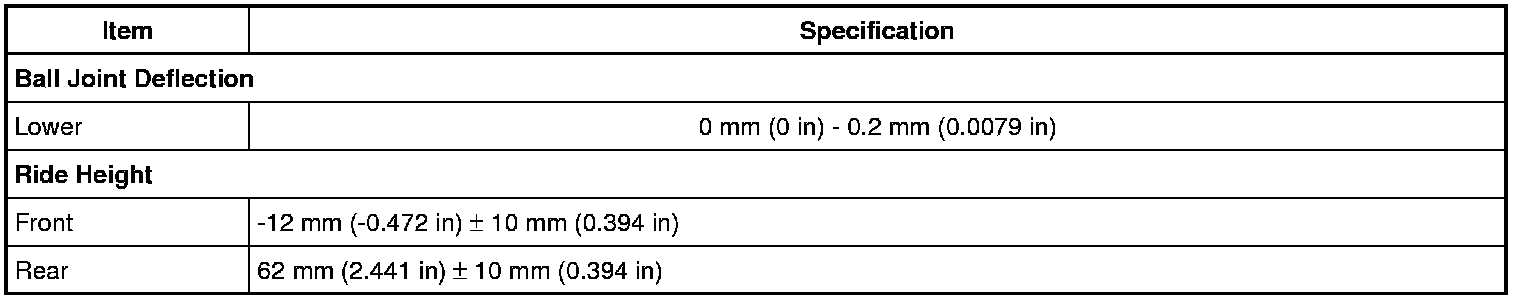

General Specifications

General Specifications

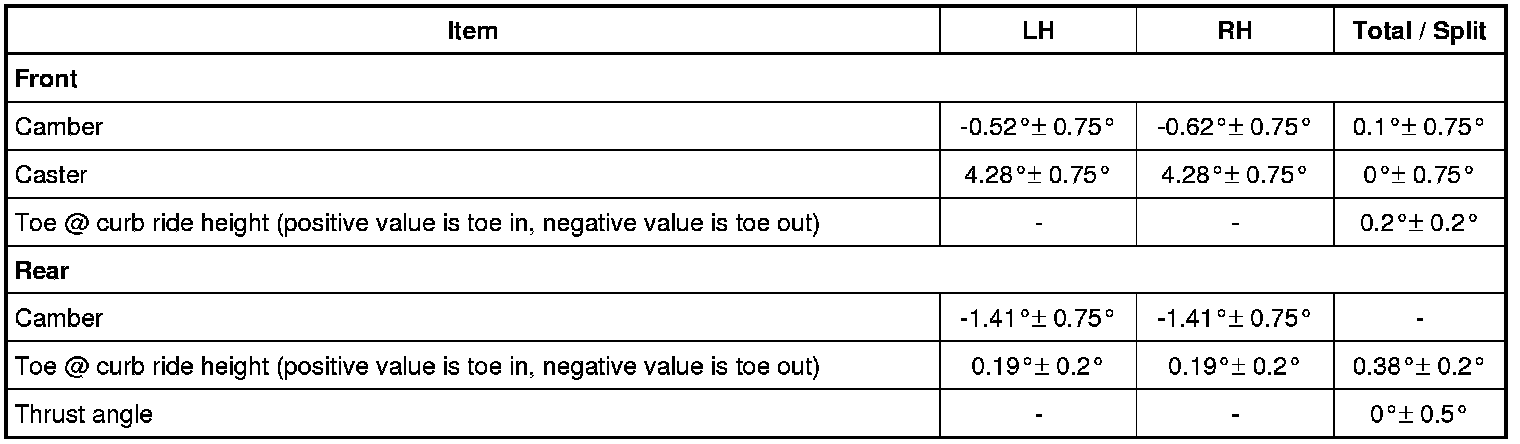

Alignment Specifications
