Home >> Ford >> 2012 >> Focus L4-2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> Manual Transmission - MTX75

Manual Transmission - MTX75




Manual Transmission - MTX75

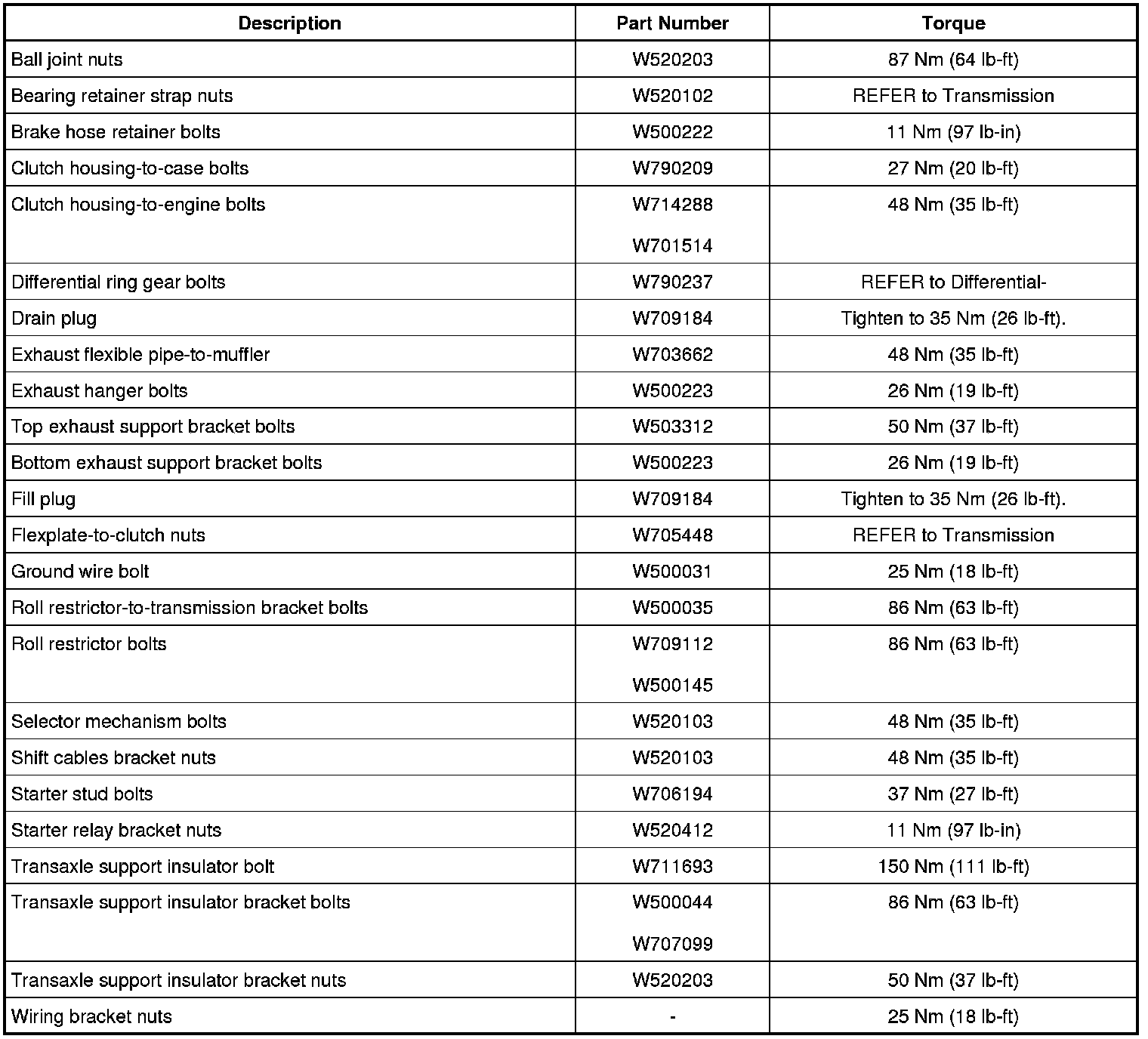

Torque Specifications





General Specifications

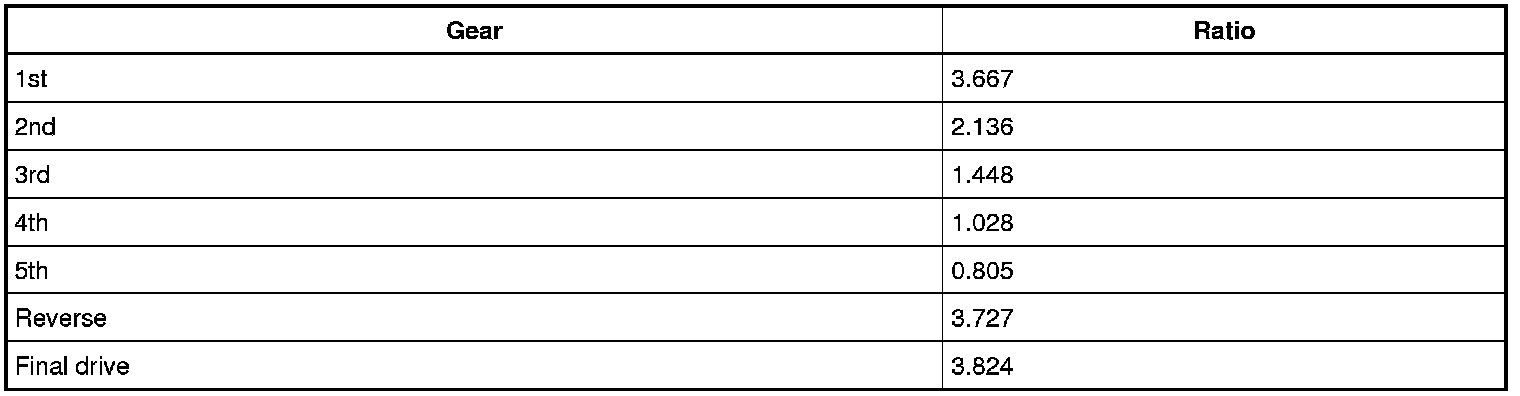

Transmission Ratios

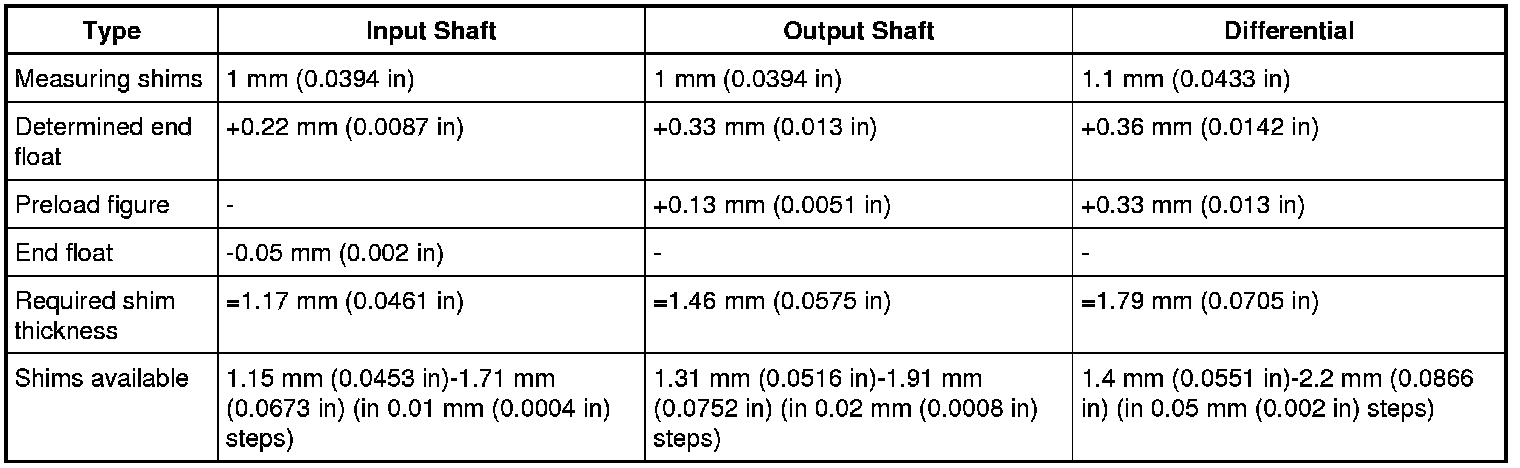

Required Shim Thickness
