Home >> Ford >> 2012 >> Focus L4-2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications




Engine - 2.0L GDI

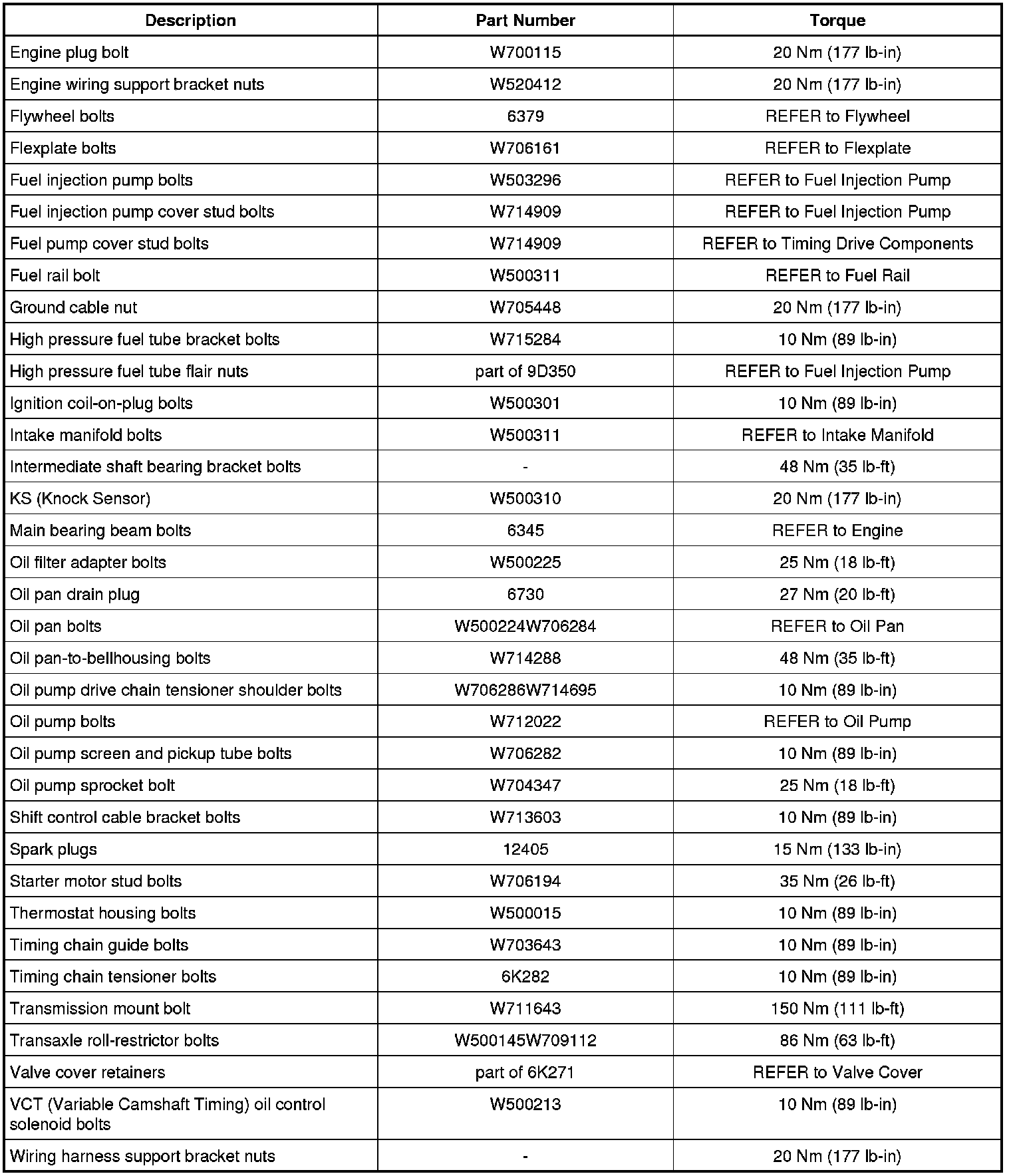

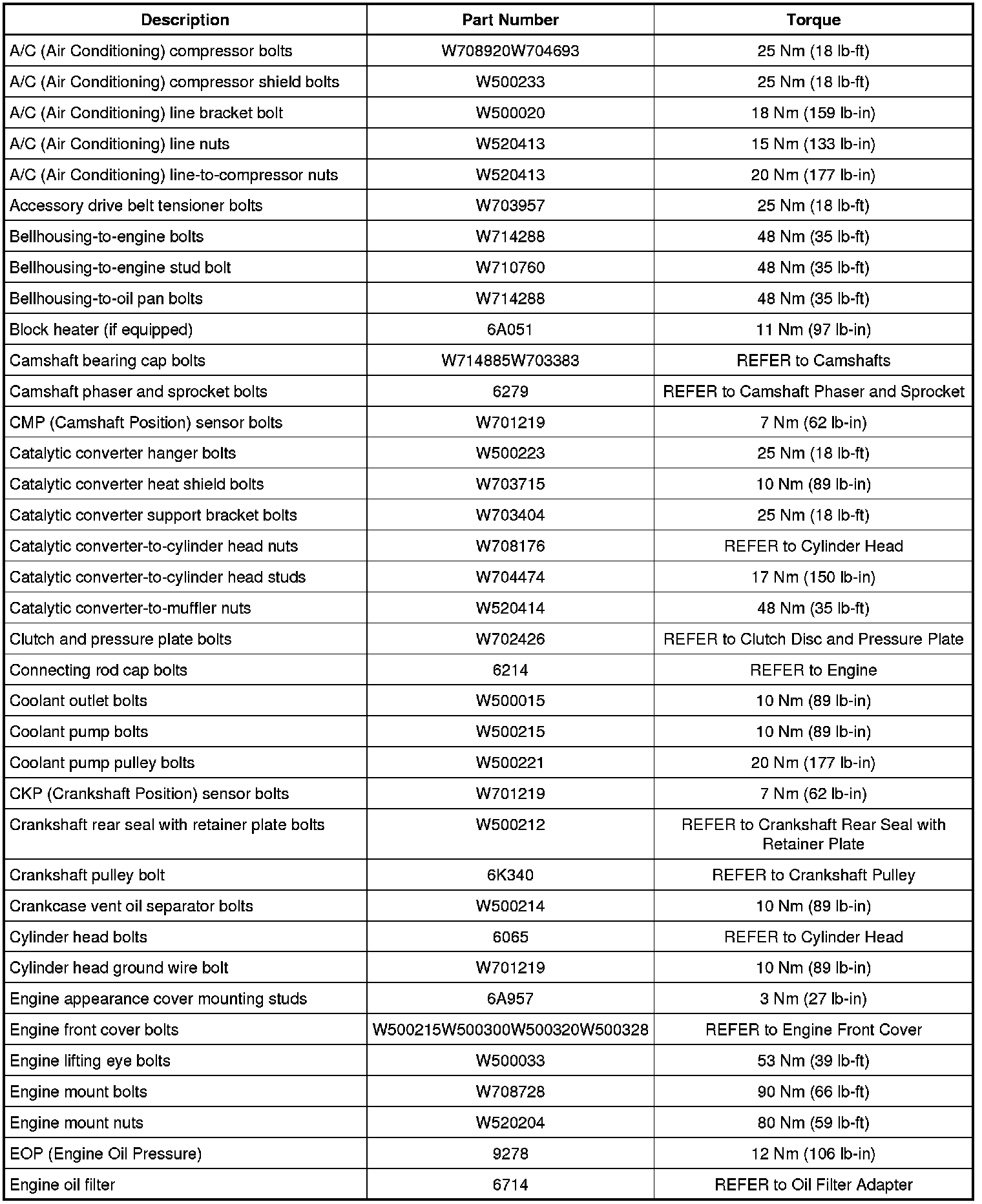

Torque Specifications

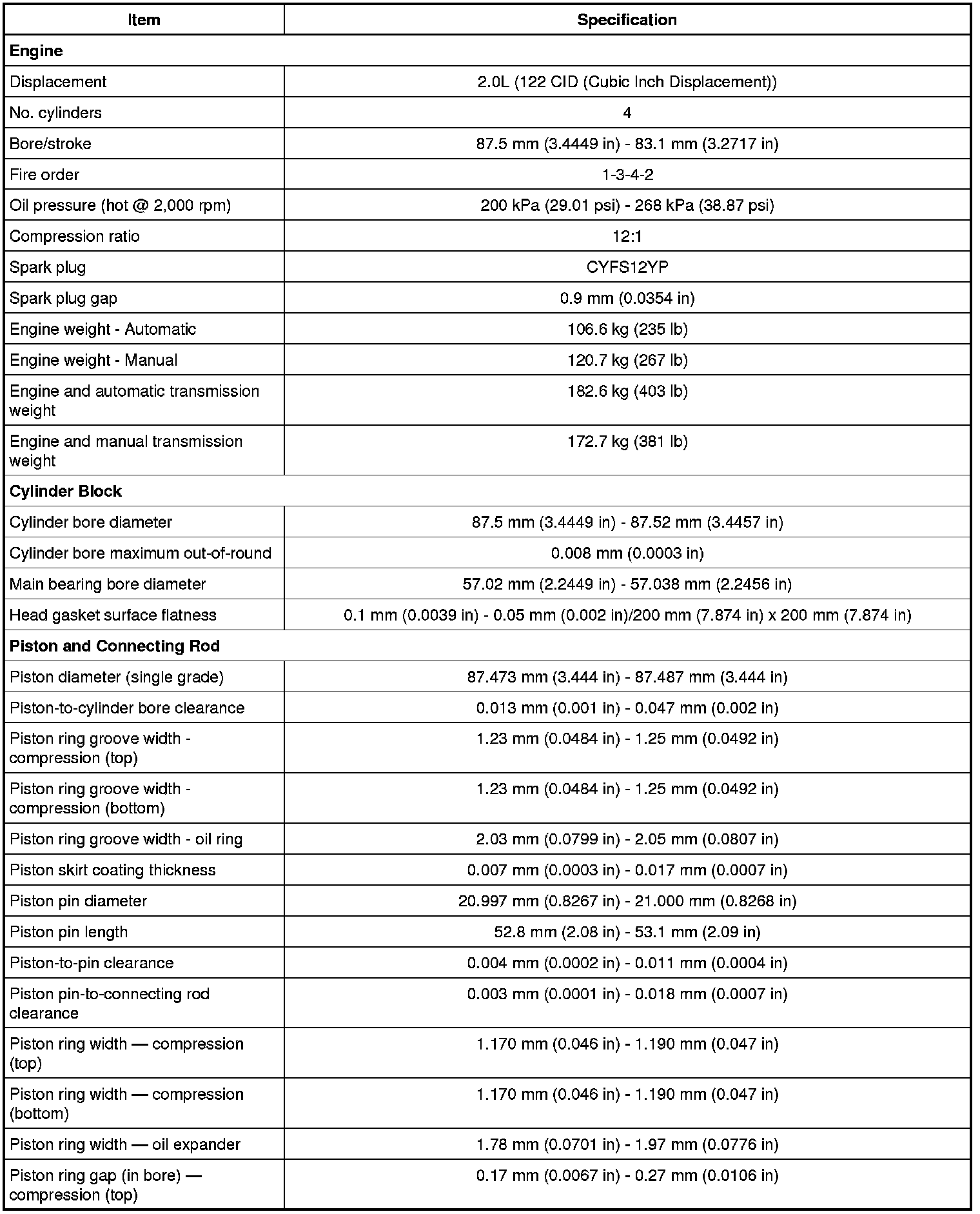

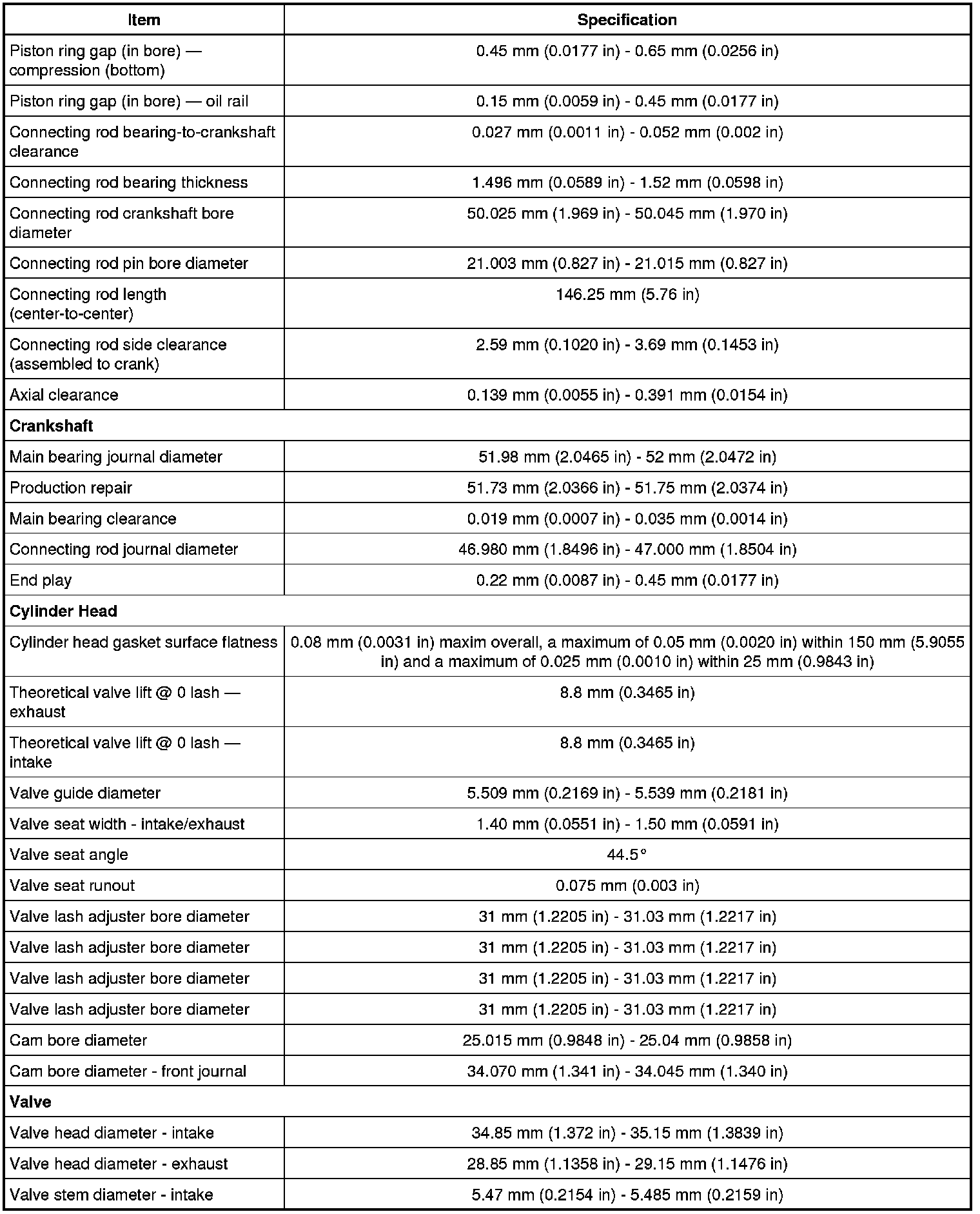

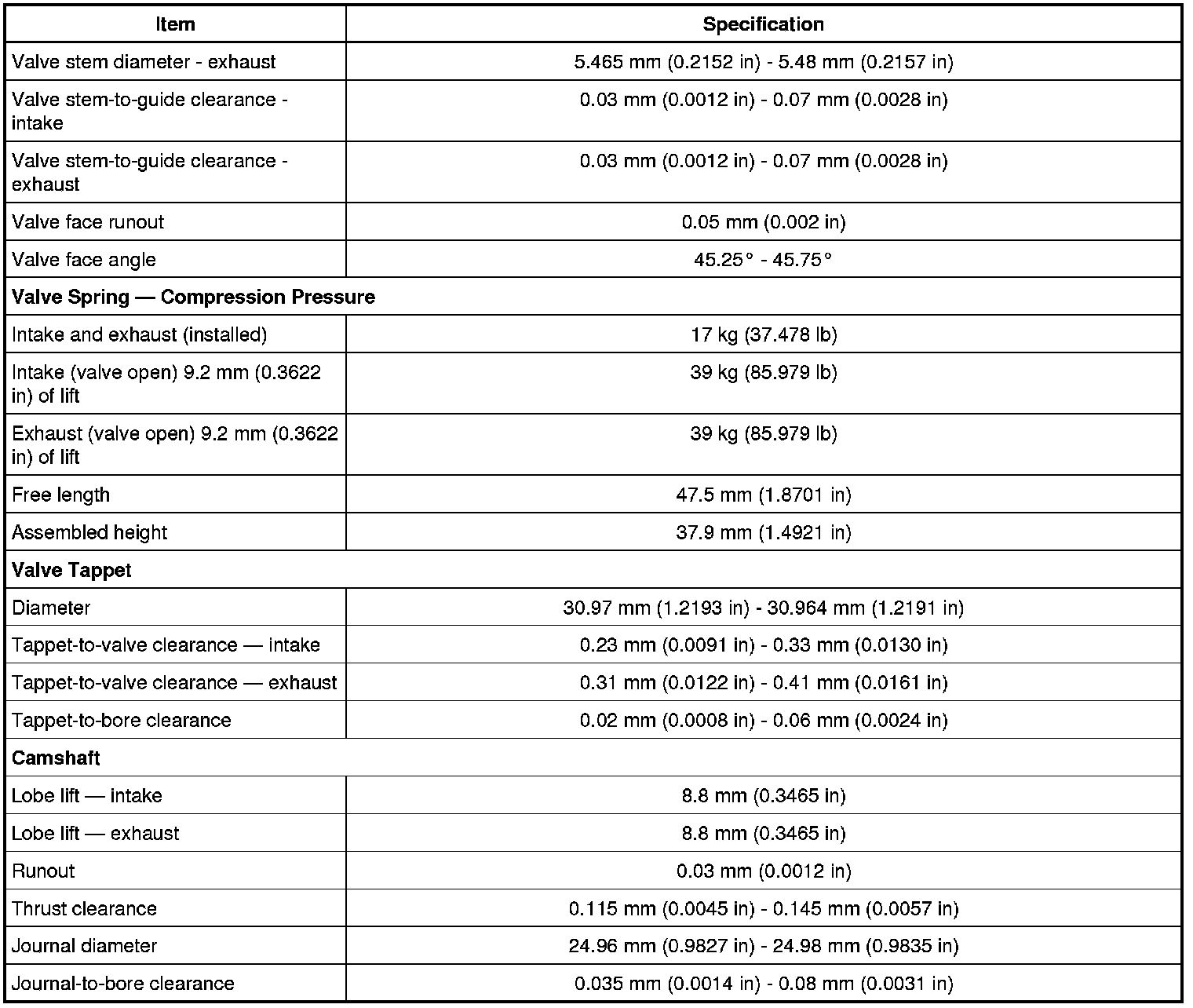

General Specifications
