Home >> Ford >> 2012 >> Focus L4-2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Body and Frame >> Doors, Hood and Trunk >> Door Module

Door Module




Handles, Locks, Latches and Entry Systems - with Door Modules (with Window One-touch Up), without Intelligent Access (IA)

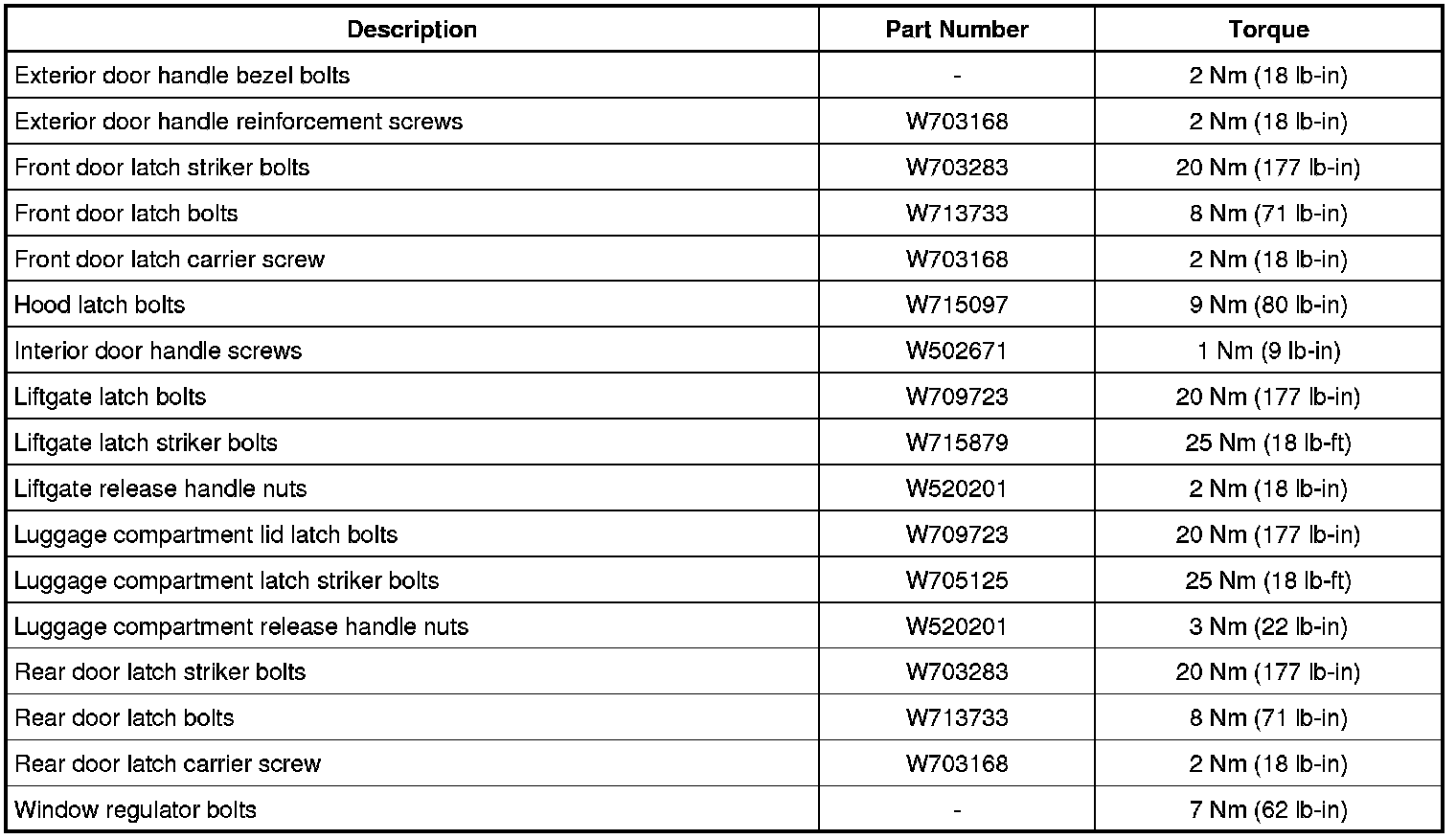

Torque Specifications
