Automatic Transmission - DPS6




Automatic Transmission - DPS6

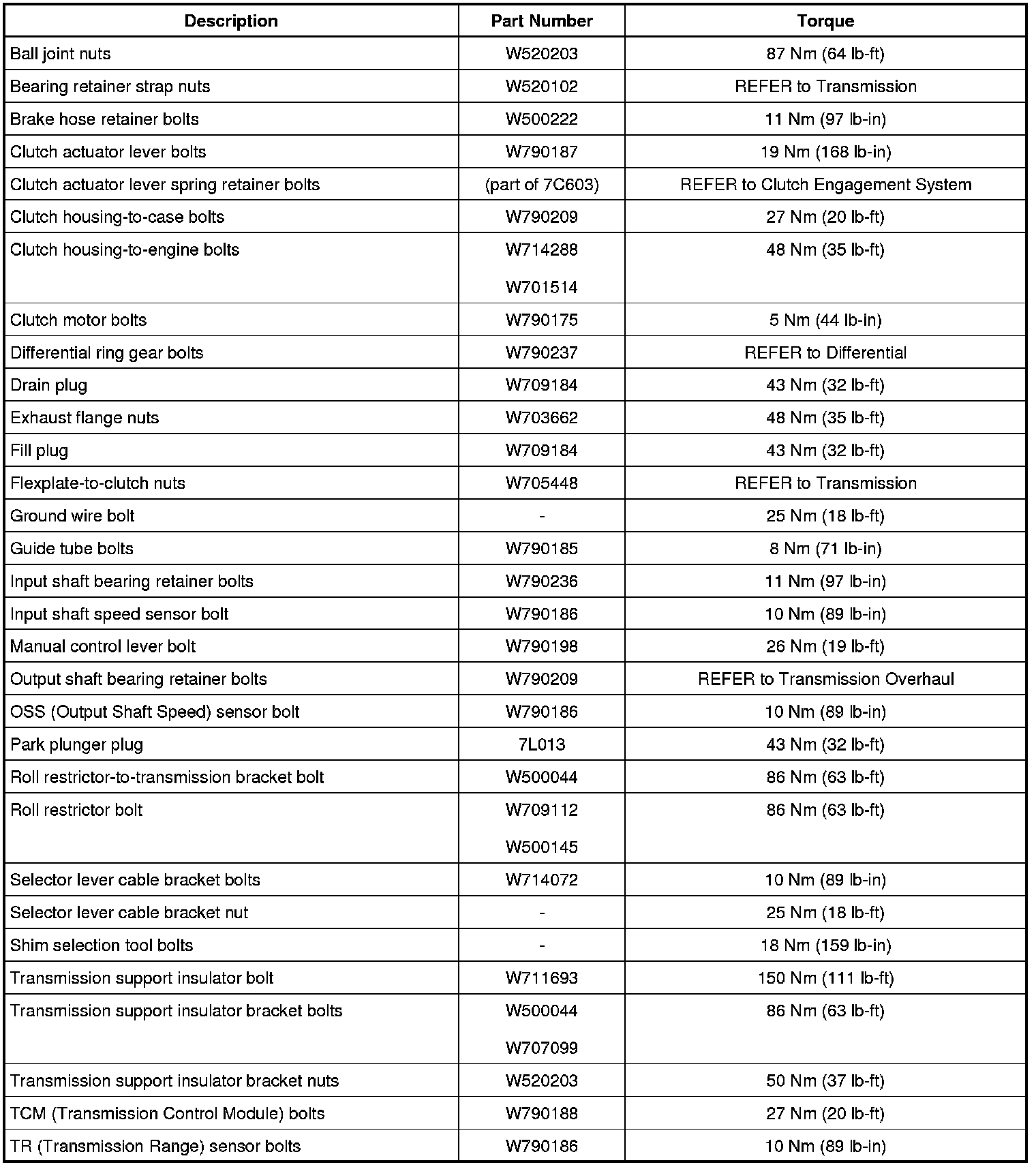

Torque Specifications

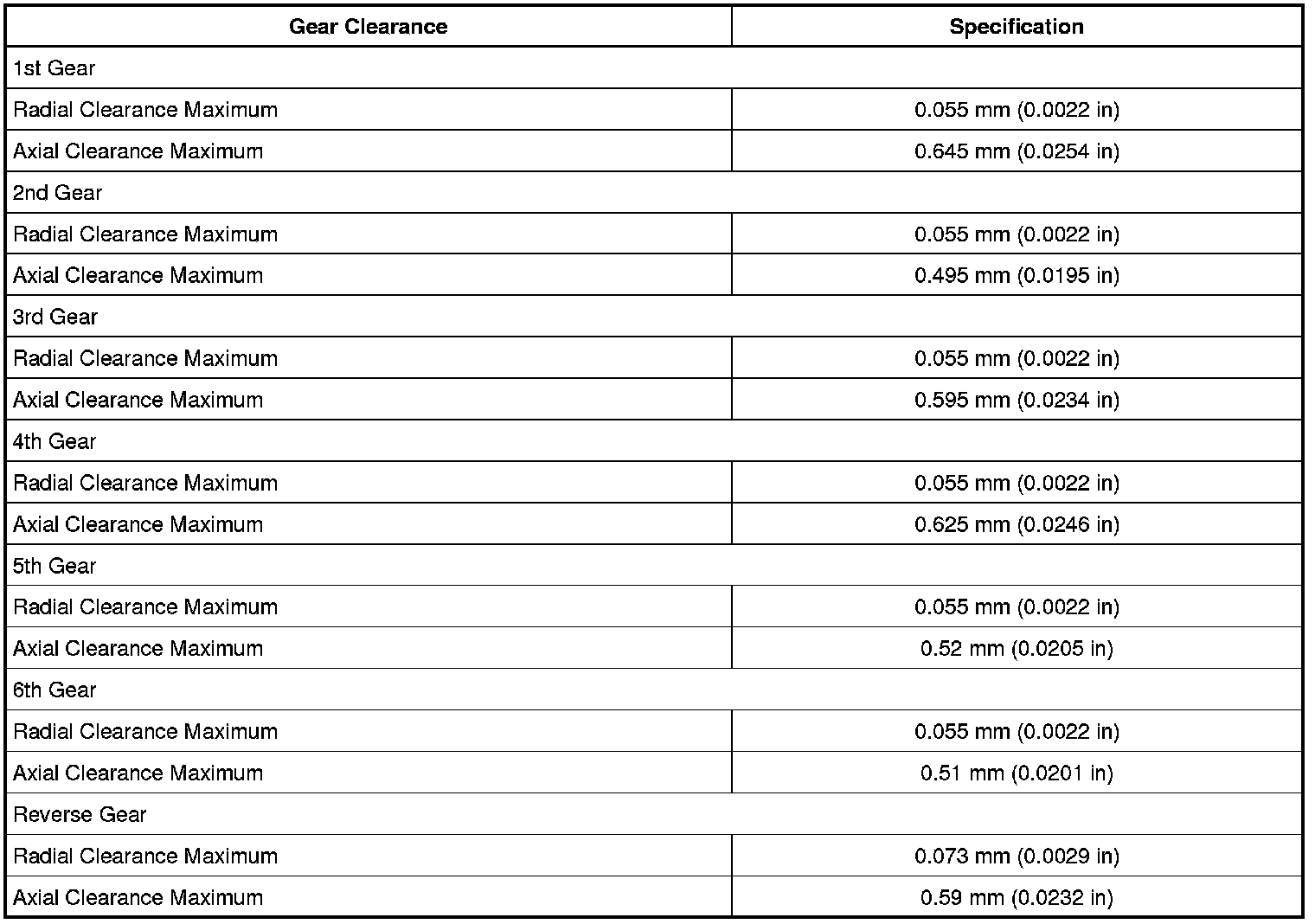

General Specifications

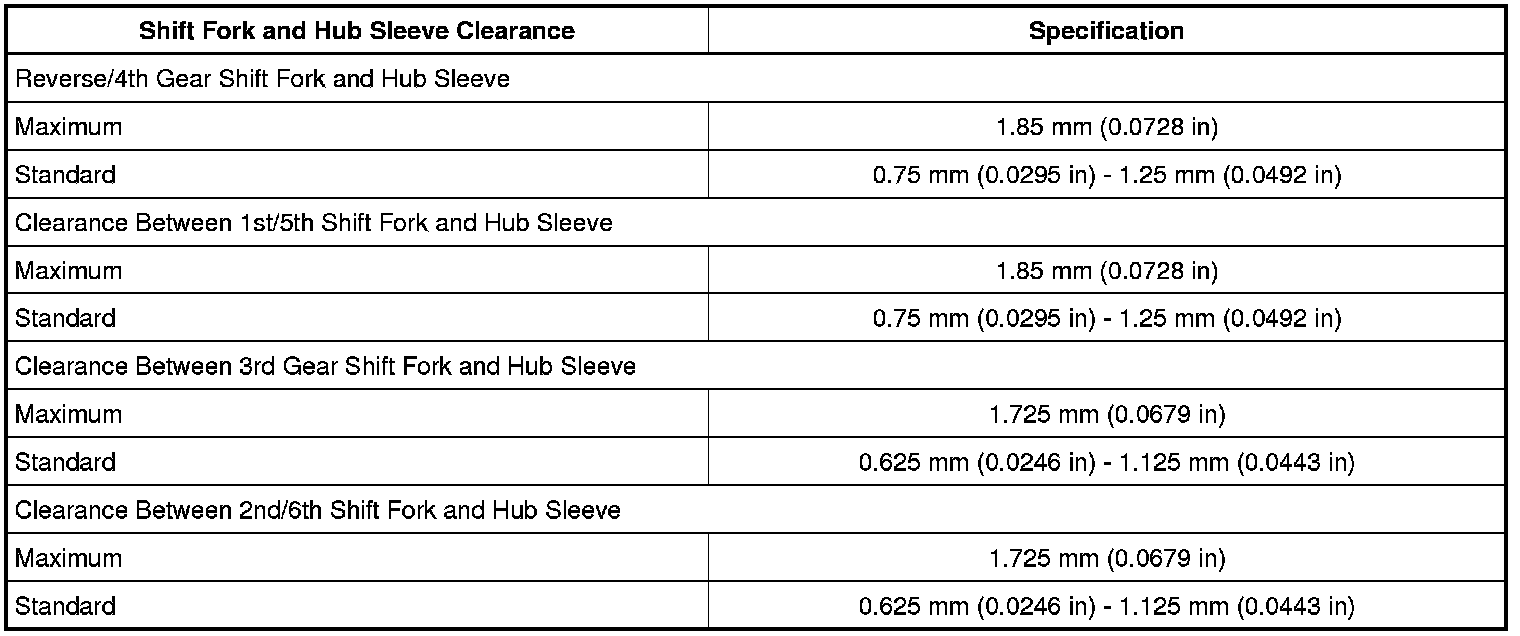

General Specifications

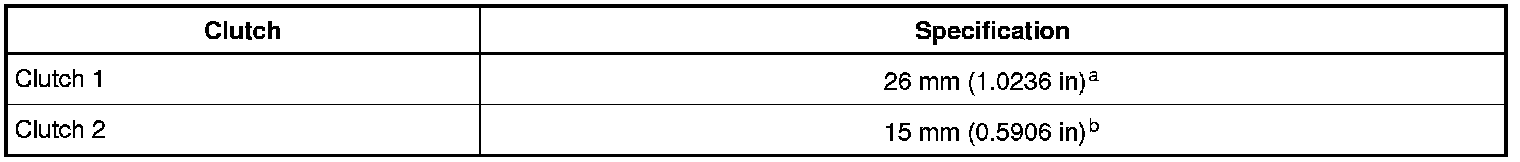

a Maximum after clutch reset

b Maximum after clutch reset

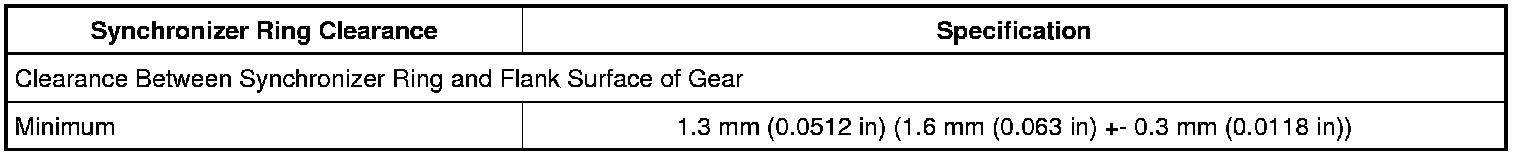

General Specifications





General Specifications





General Specifications

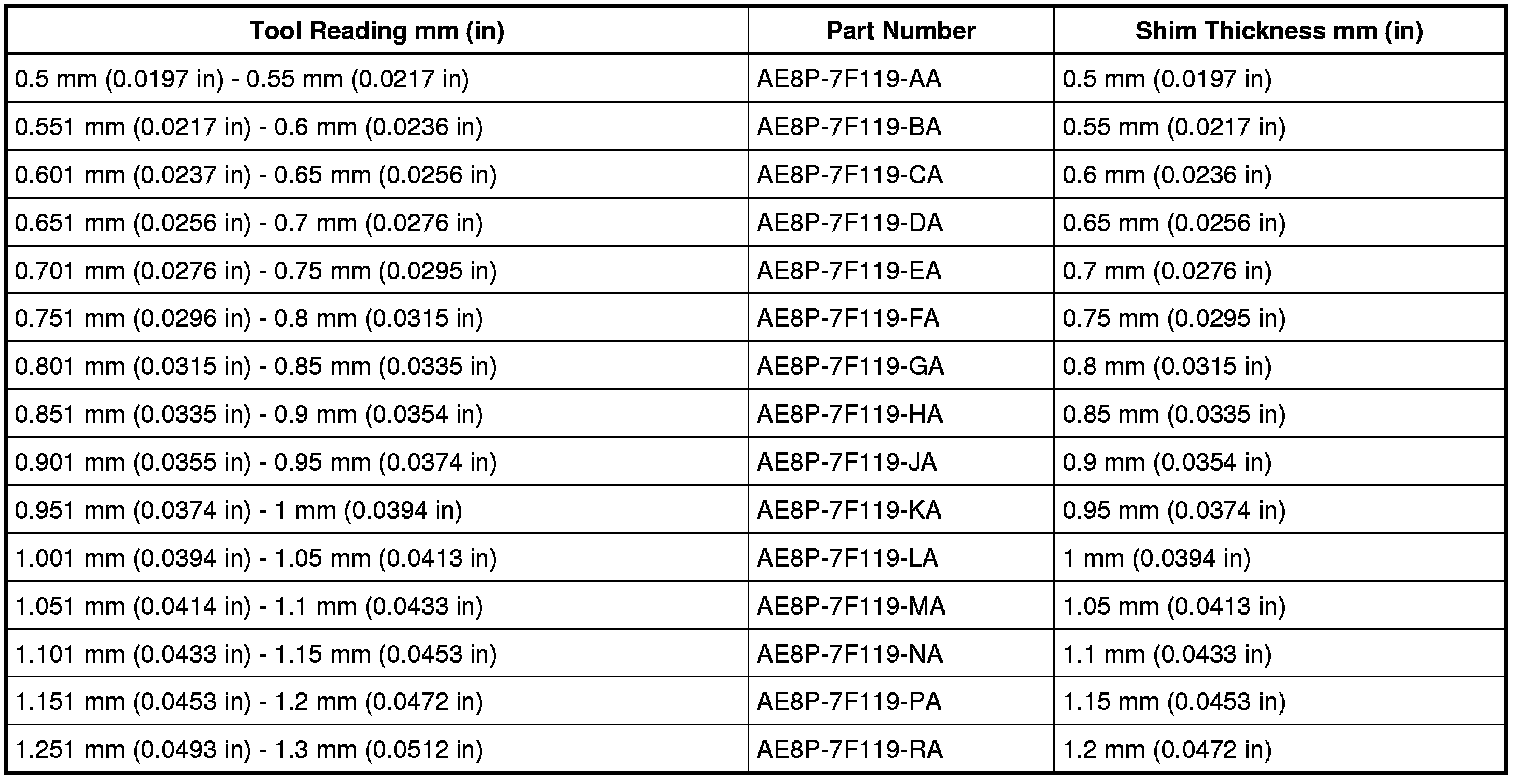

Differential Shim Selection Chart

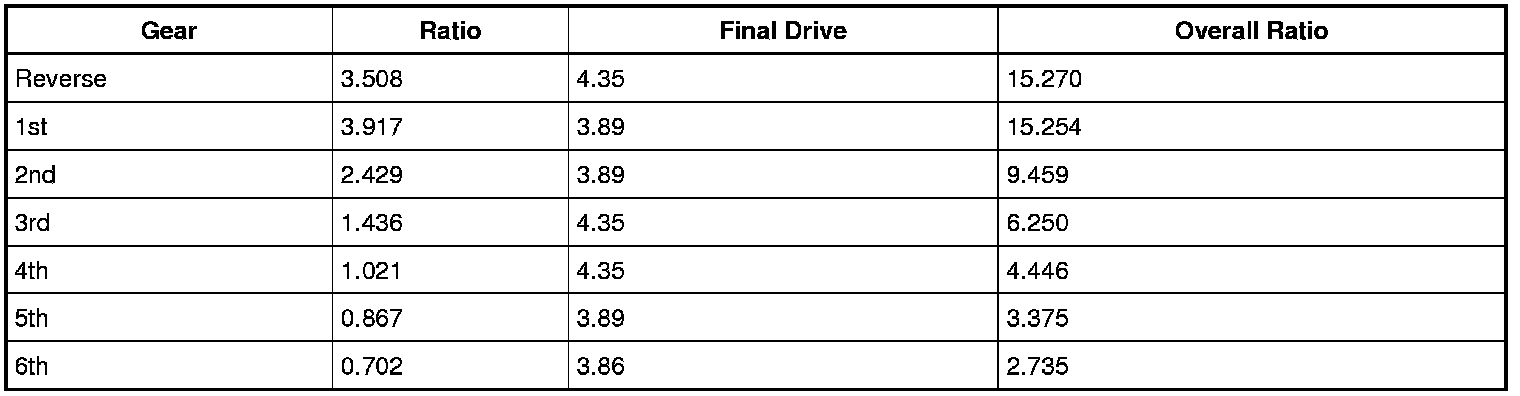

Gear Ratio Chart

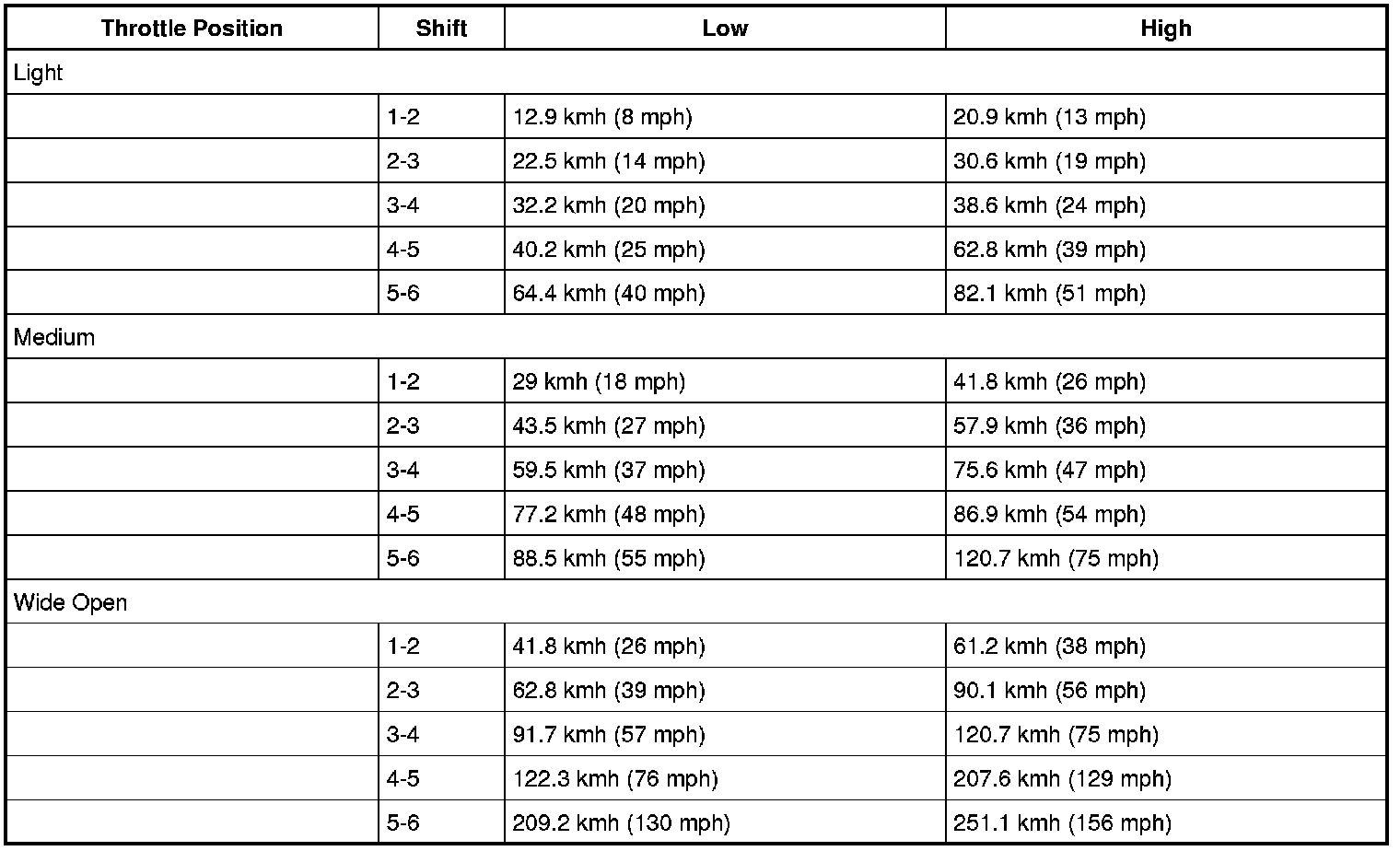

Shift Speeds Chart
