Backup Lamp Switch: Service and Repair

Reversing Lamp Switch

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

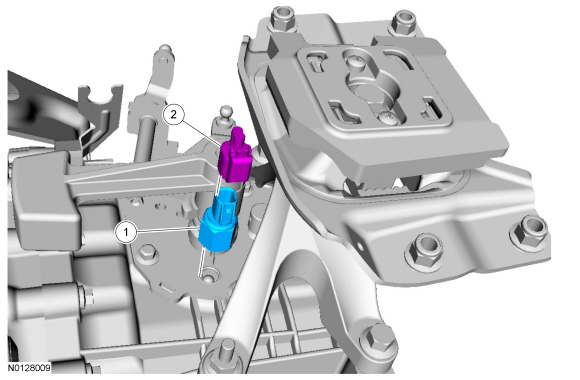

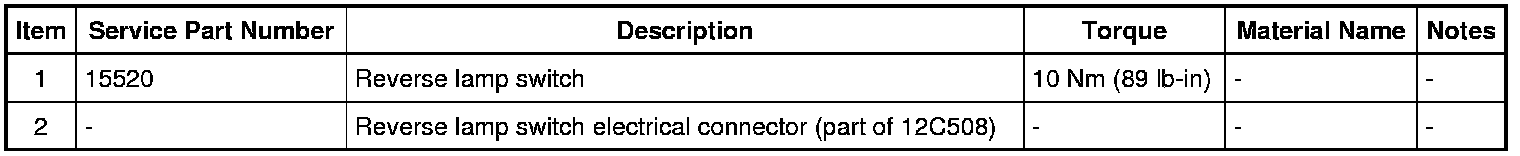

Exploded View










Removal

1. Remove the battery. REFER to Battery .

2. Remove the battery tray. REFER to Battery and Battery Tray - Exploded View .

3. Disconnect the electrical connector and remove the reversing lamp switch.

Installation

1. Install the reversing lamp switch.
- Tighten to 10 Nm (89 lb-in).

2. Connect the electrical connector.

3. Install the battery tray. REFER to Battery and Battery Tray - Exploded View .

4. Install the battery. REFER to Battery .
