Heated Seat Control Switch - Low Series Console With Cubby Box Or Consolette Floor Console

Heated Seat Control Switch - Low Series Console With Cubby Box Or Consolette Floor Console

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

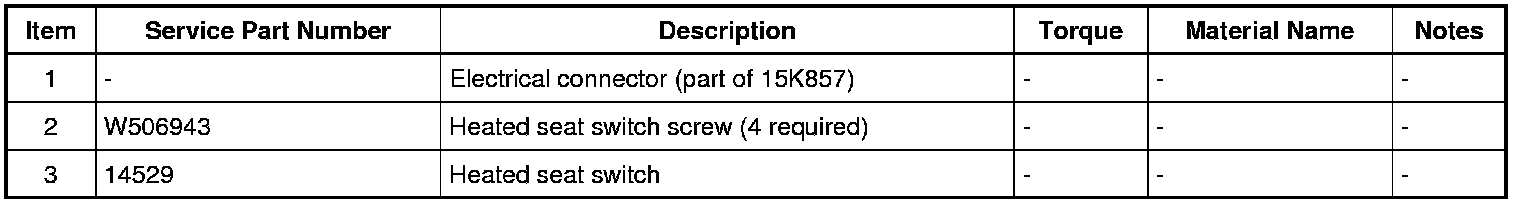

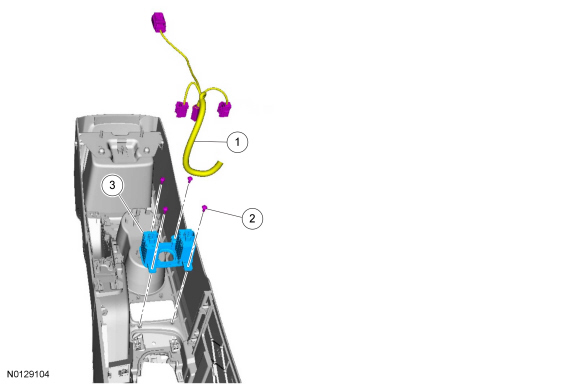

Exploded View

NOTE: Bottom of floor console is shown for clarity.









Removal

1. Remove the front floor console. REFER to Console - Front, Floor .

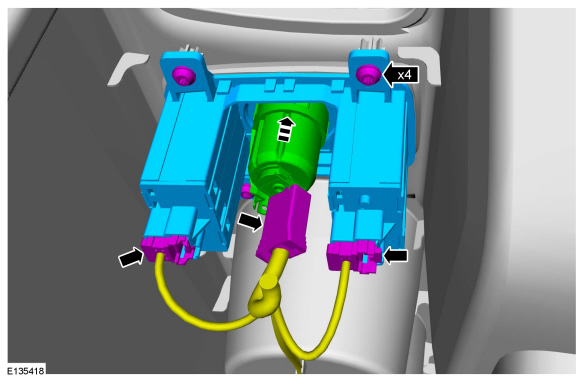

2.





Installation

1. To install, reverse the removal procedure.
