Parking Assist Distance Sensor: Service and Repair

Active Park Assist Sensor

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

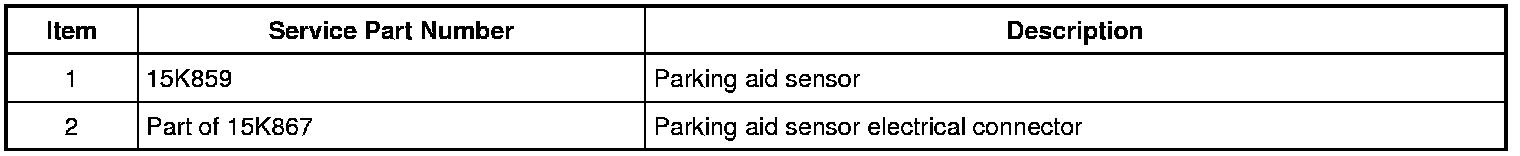

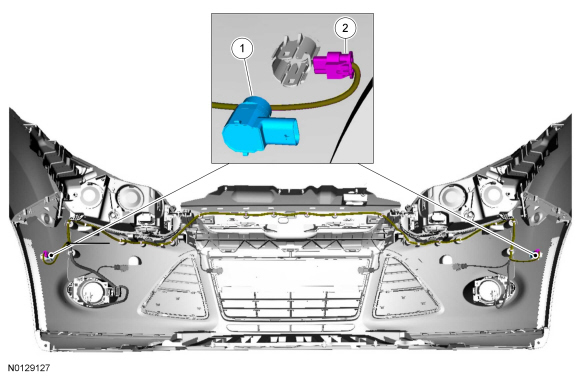

Exploded View










Removal

NOTE: The removal steps in this procedure may include installation details.

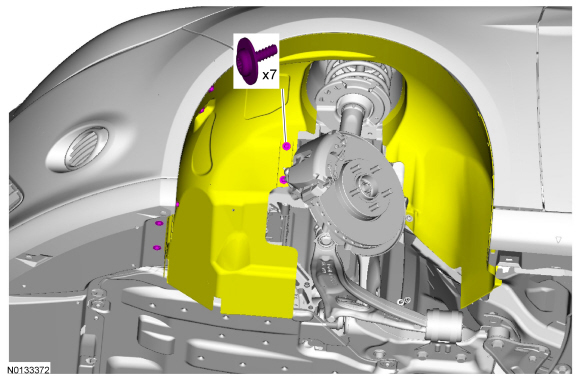

1. Remove the wheel and tire. REFER to Wheel and Tire .

2.
- 2 Nm (18 lb-in)

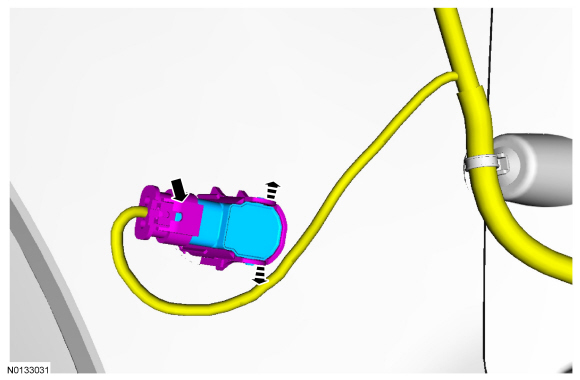

3.





Installation

1. To install, reverse the removal procedure.

2. After installing the sensor(s), use the scan tool to verify that the active park assist sensor PIDs (Parameter Identifications) are responding correctly. Carry out the Azimuth System check. REFER to Azimuth System Check Active Park Assist. If the parking aid sensor does not respond correctly. REFER to Symptom Chart: Active Park Assist Active Park Assist.
