Component Location




Supplemental Restraint System

Component Location

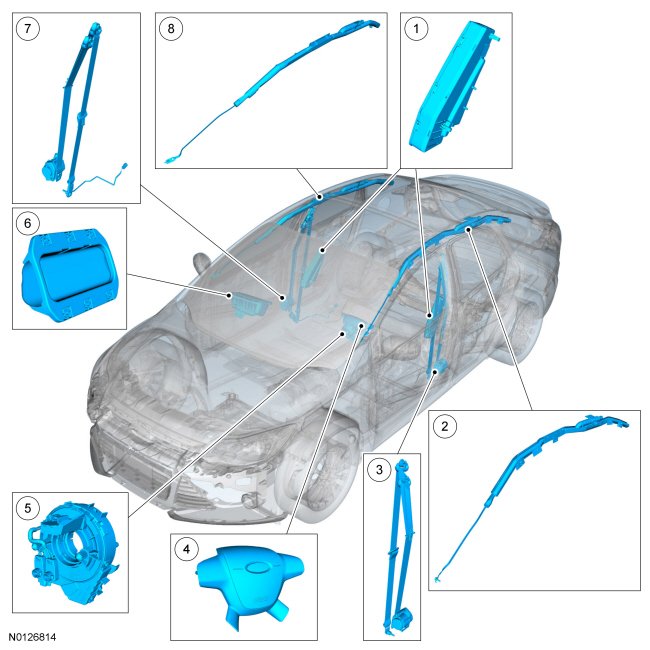

SRS (Supplemental Restraint System) Deployable Devices

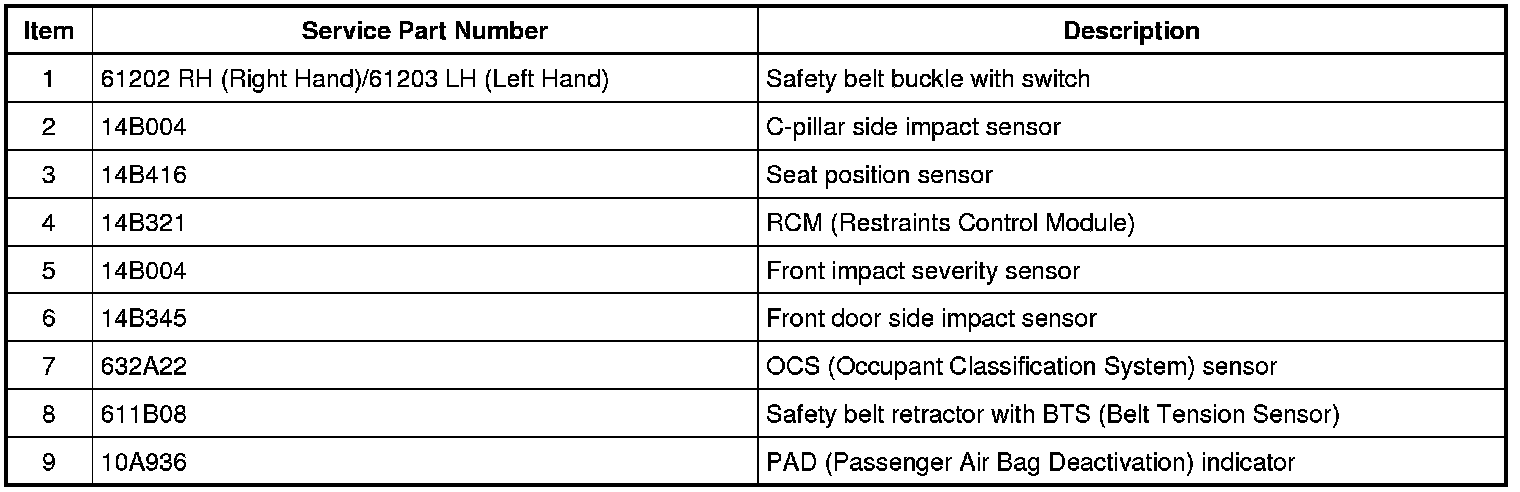

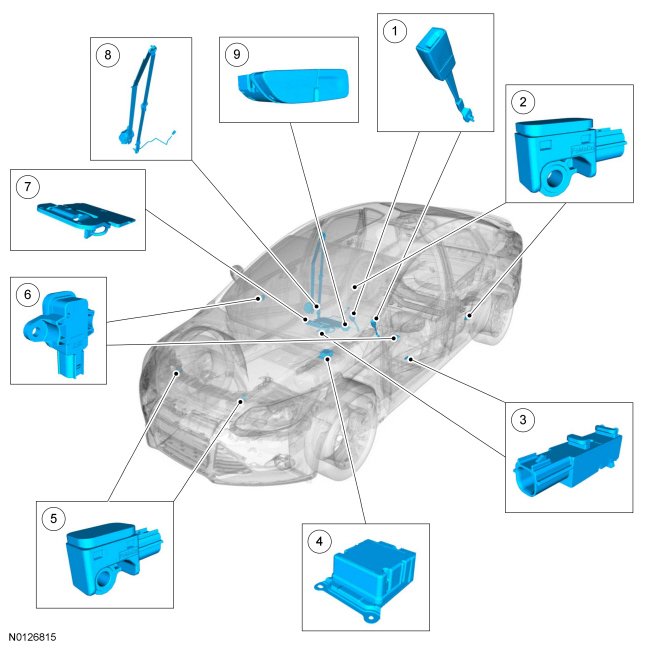

SRS (Supplemental Restraint System) Sensors and Indicator
