Side Air Curtain Module

Side Air Curtain Module

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

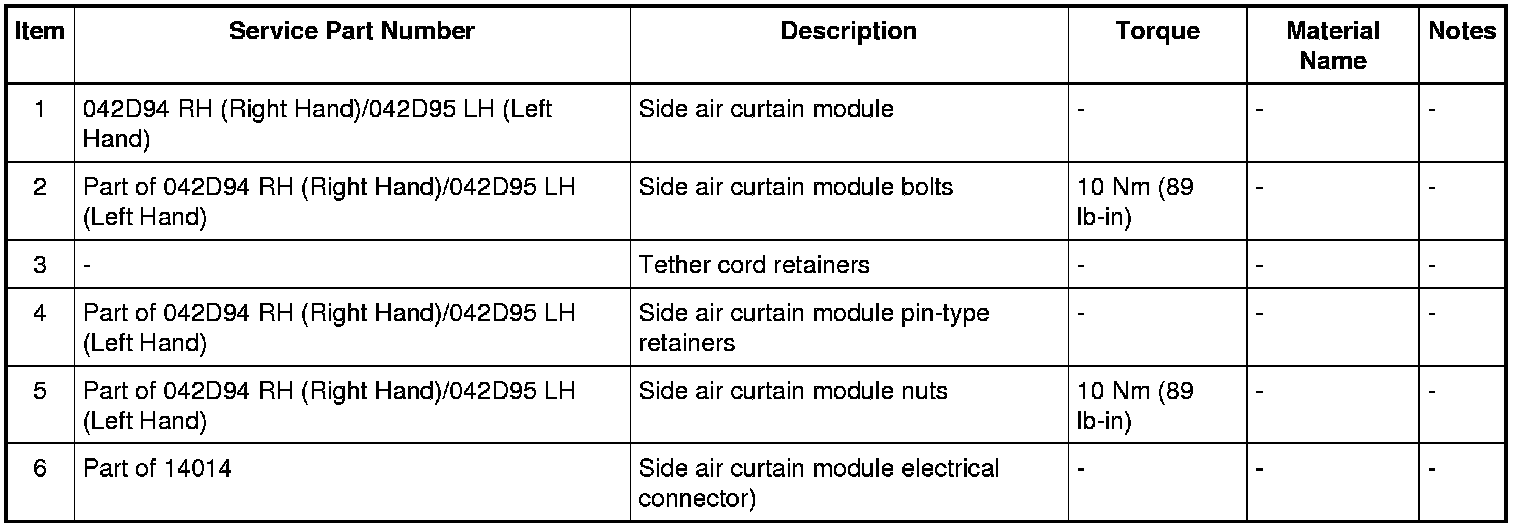

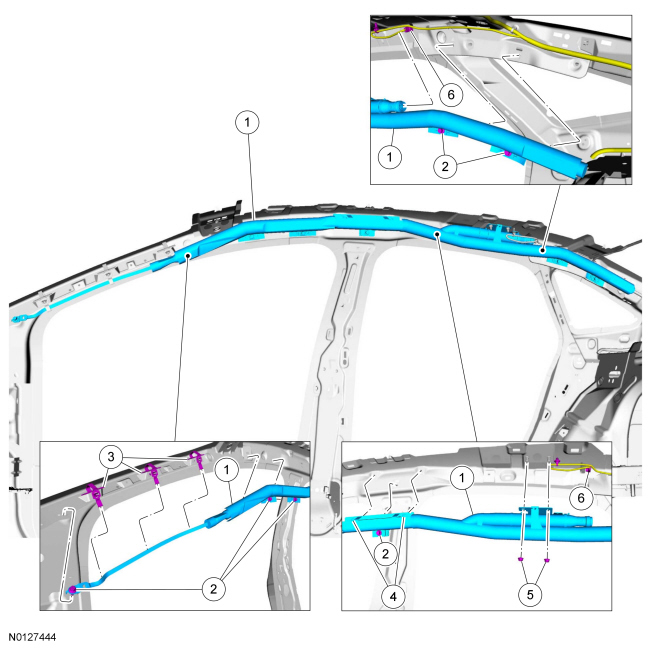

Exploded View

Side Air Curtain Module

NOTE: RH (Right Hand) side shown, LH (Left Hand) side similar.










Removal

WARNING: Always carry or place a live Safety Canopy(R) , or side air curtain module, with the module and tear seam pointed away from your body. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

WARNING: Anytime the Safety Canopy(R) or side air curtain module has deployed, a new headliner and new A-, B-, C- and D-pillar upper trim panels and attaching hardware must be installed. Remove any other damaged components and hardware and install new components and hardware as needed. Failure to follow these instructions may result in the Safety Canopy(R) or side air curtain module deploying incorrectly and increases the risk of serious personal injury or death in a crash.

WARNING: Never probe the electrical connectors on air bag, Safety Canopy(R) or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.

NOTE: The SRS (Supplemental Restraint System) must be fully operational and free of faults before releasing the vehicle to the customer.

1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

If installing a new component for a SRS (Supplemental Restraint System) fault, continue to step 2. Otherwise, turn the ignition off, wait at least one minute and continue to step 3.

2. NOTE: The air bag warning indicator illuminates when the correct RCM (Restraints Control Module) fuse is removed and the ignition is on.
Depower the SRS (Supplemental Restraint System). REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) . Service and Repair

3. Drop the headliner to access the side air curtain module. REFER to Headliner - 4-Door Sedan or REFER to Headliner - 5-Door Hatchback .

4. Lift the locking wedge and disconnect the side air curtain module electrical connector.

- Detach the wire harness retainer from the side air curtain module bracket.






5. Detach the side air curtain module tether cord from the 3 tether cord retainers.

6. Remove the 2 side air curtain module nuts and 6 bolts.

7. Detach the 4 retainers, 3 pin-type retainers and remove the side air curtain module.





Installation

WARNING: Before installing a Safety Canopy(R) or side air curtain module, inspect the roofline for any damage. If necessary, the sheet metal must be reworked to its original condition and structural integrity. Install new fasteners if damaged and remove foreign material. Failure to follow these instructions may result in the Safety Canopy(R) or side air curtain deploying incorrectly, which increases the risk of serious personal injury or death in a crash.

WARNING: Inspect a Safety Canopy(R) or side air curtain module before installation. If the module is damaged, the cover has separated or the Safety Canopy(R) or side air curtain material has been exposed, install a new module. Do not attempt to repair the module. Failure to follow these instructions may result in the Safety Canopy(R) or side air curtain deploying incorrectly, which increases the risk of serious personal injury or death in a crash.

WARNING: Never put any type of fastener or tie strap around any part of a Safety Canopy(R) module, side air curtain module or interior trim panel. This will prevent the Safety Canopy(R) or side air curtain module from deploying correctly. Failure to follow this instruction may increase the risk of serious personal injury or death in a crash.

WARNING: Do not obstruct or place objects in the deployment path of the Safety Canopy(R) or side air curtain module. Failure to follow this instruction may result in the Safety Canopy(R) or side air curtain module deploying incorrectly and increases the risk of serious personal injury or death in a crash.

1. Position the side air curtain module and engage the retainers.





2. Install the 2 side air curtain module nuts and 6 bolts.
- Tighten to 10 Nm (89 lb-in).

3. Attach the side air curtain module tether cord to the 3 tether cord retainers.

4. Connect the side air curtain module electrical connector and push the locking wedge down.

- Attach the wire harness retainer to the side air curtain module bracket.

5. Install the headliner. REFER to Headliner - 4-Door Sedan or REFER to Headliner - 5-Door Hatchback .

6. If the SRS (Supplemental Restraint System) was depowered, repower the SRS (Supplemental Restraint System). REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) . Service and Repair
