Procedures

Fuel Injection Pump Tappet Inspection

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

General Procedure

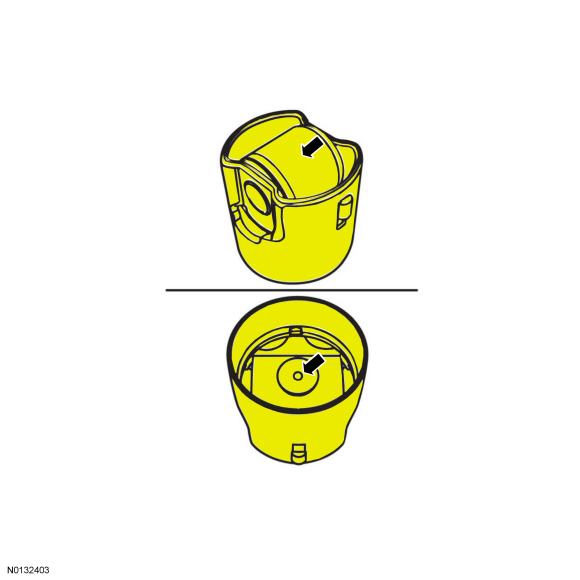

1. Inspect the fuel injection pump roller tappet for flat spots or scoring, especially in the indicated areas. If any damage is found, inspect the fuel injection pump roller tappet camshaft lobe. Install new components as necessary.
