Intake Air System Components - Exploded View




Intake Air System Components - Exploded View

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

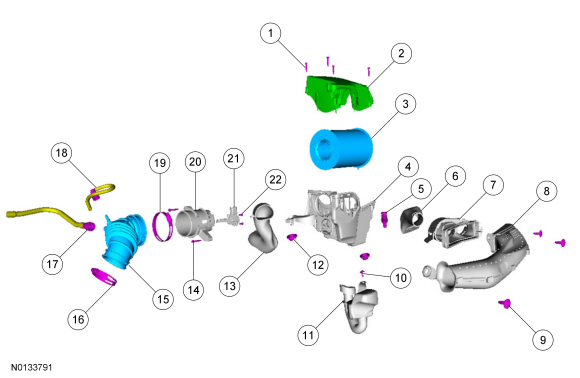

Exploded View

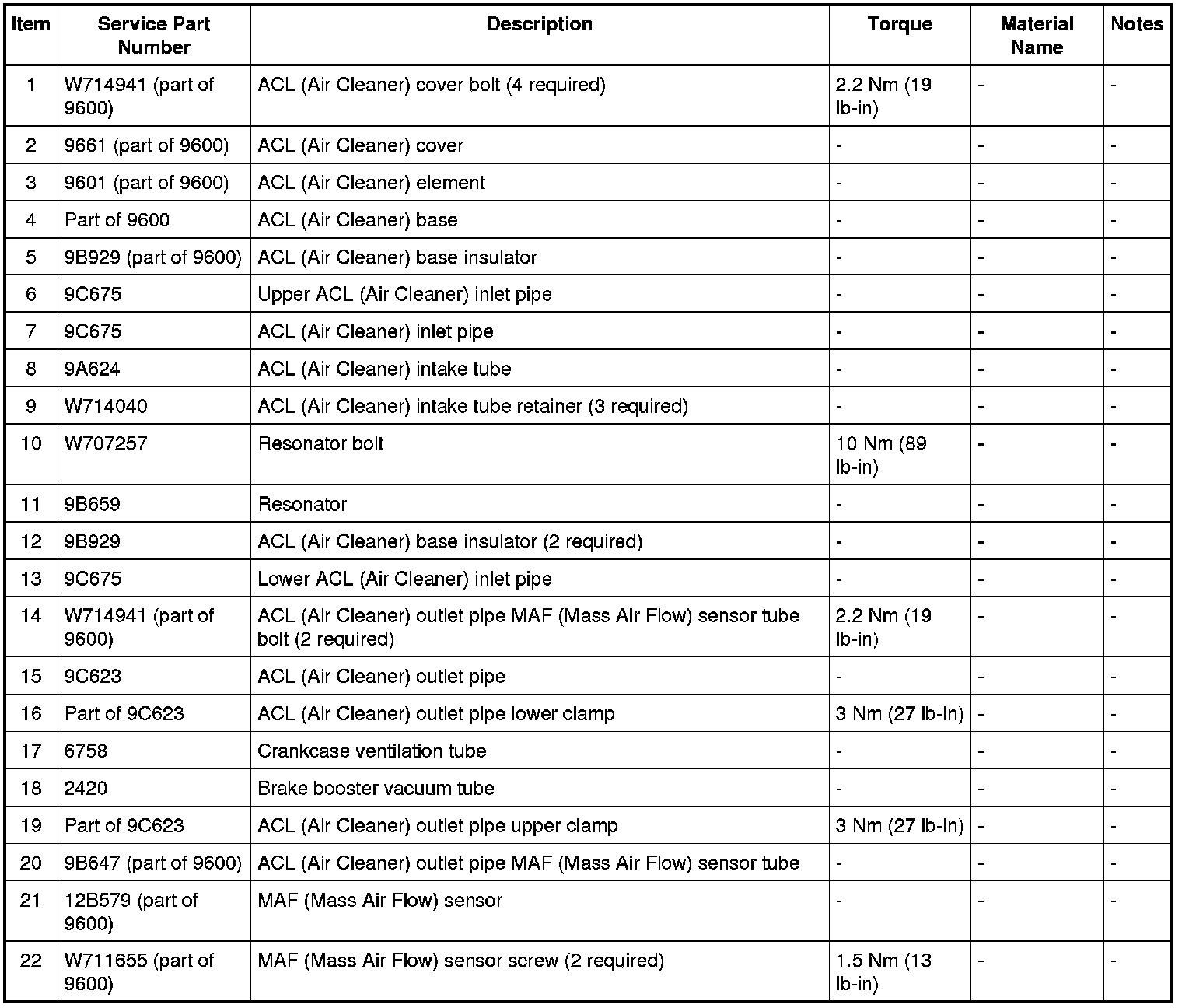

ACL (Air Cleaner) Assembly - 2.0L Non-PZEV Shown, PZEV Similar

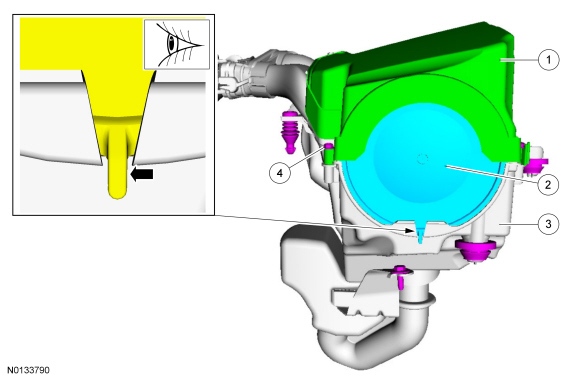

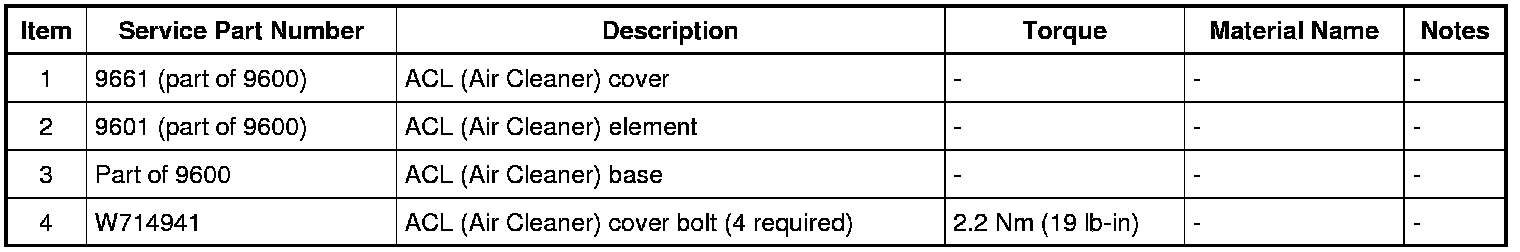

ACL (Air Cleaner) Element
