Turn Signal - Exterior Mirror

Turn Signal - Exterior Mirror

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

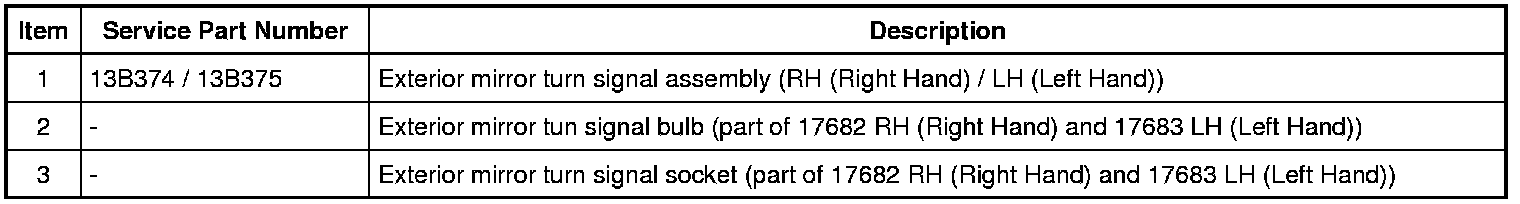

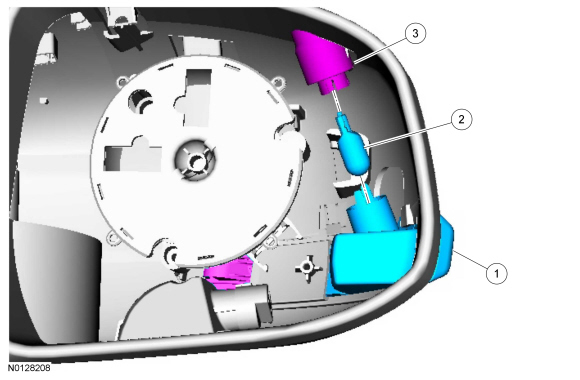

Exploded View










Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the exterior mirror glass. REFER to Exterior Mirror Glass .

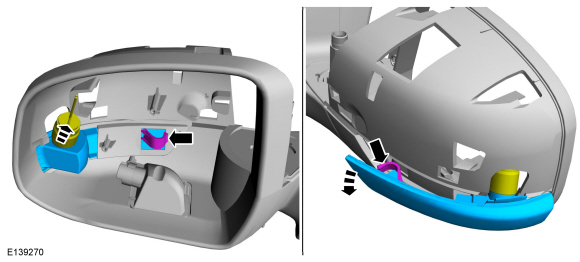

2. NOTE: Exterior mirror cover and motor removed for clarity.






Installation

1. To install, reverse the removal procedure.
