Rear Lamp Assembly - 4-Door

Rear Lamp Assembly - 4-Door

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

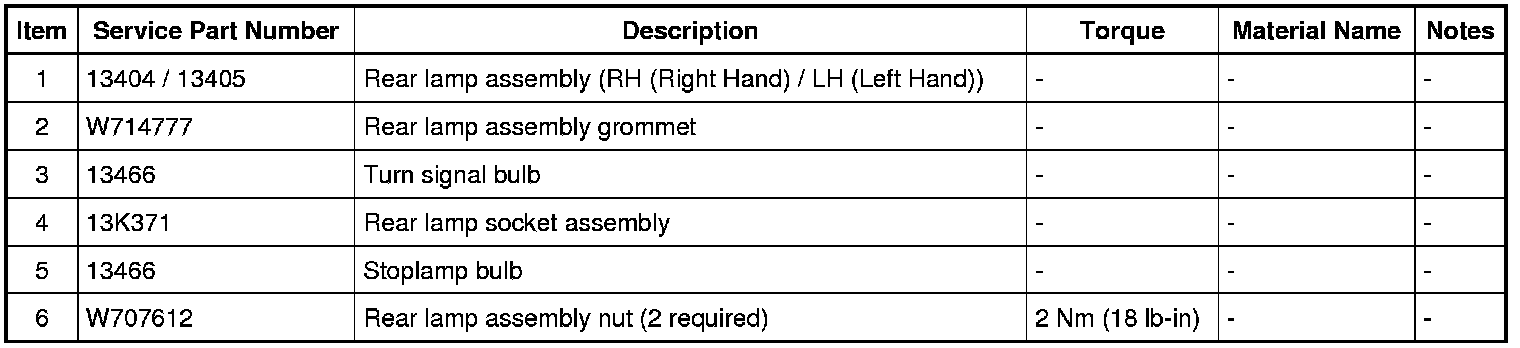

Exploded View










Removal

NOTE: Removal steps in this procedure may contain installation details.

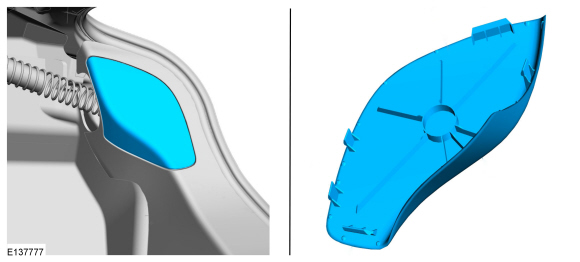

1.





2.
- 2 Nm (18 lb-in)

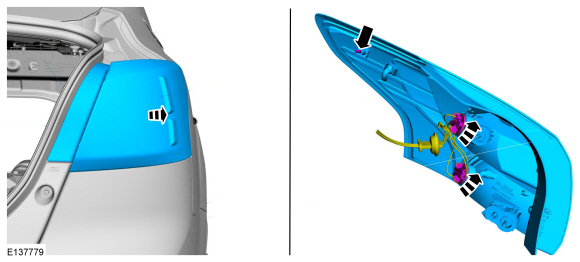

3.





Installation

1. To install, reverse the removal procedure.
